SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Brand Name: Y&H

Certification: CE

Hign-concerned Chemical: None

Is Smart Device: No

Maximum Current: MPPT 20A/40A/60A

Model Number: TM

Origin: Mainland China

is_customized: Yes

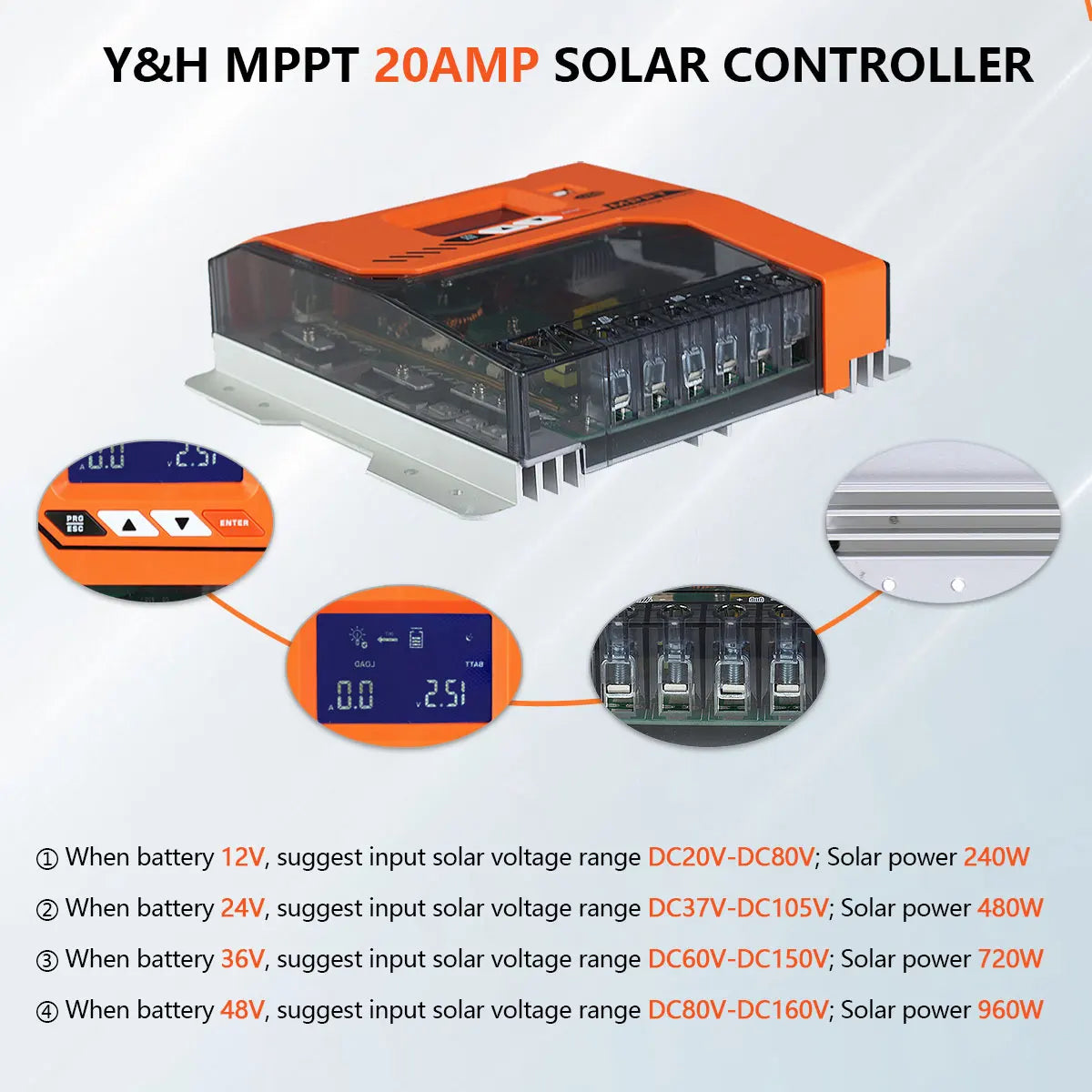

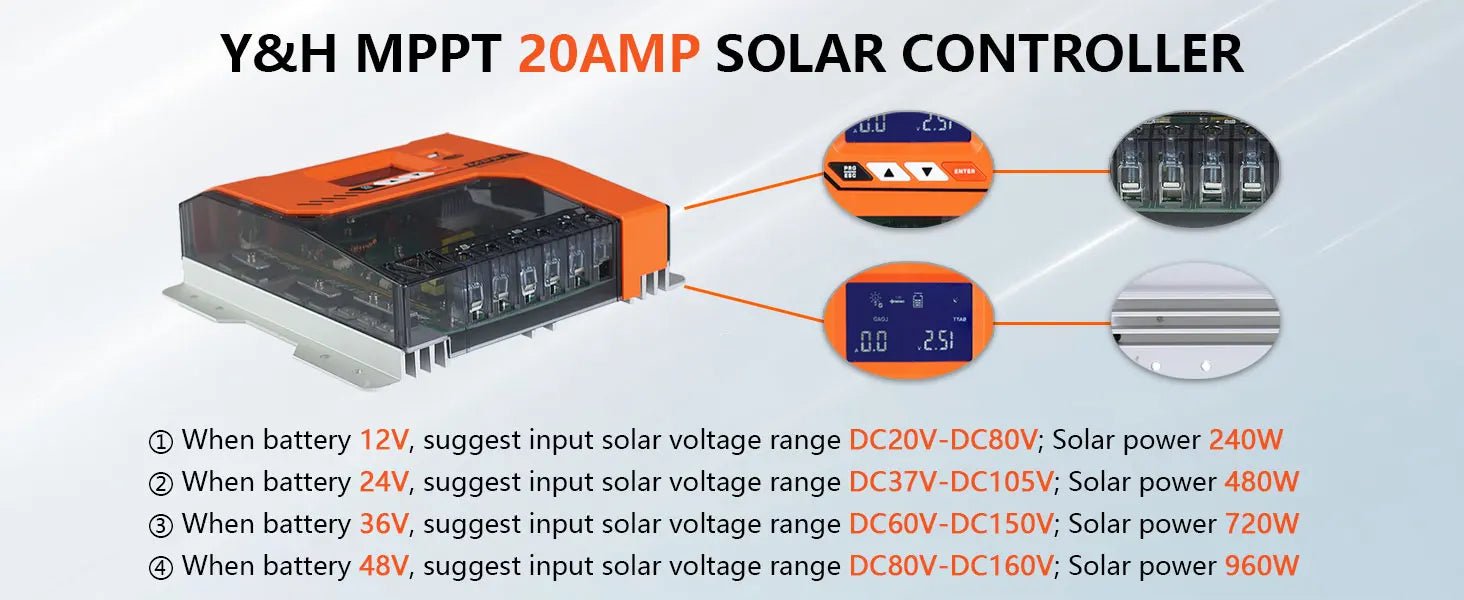

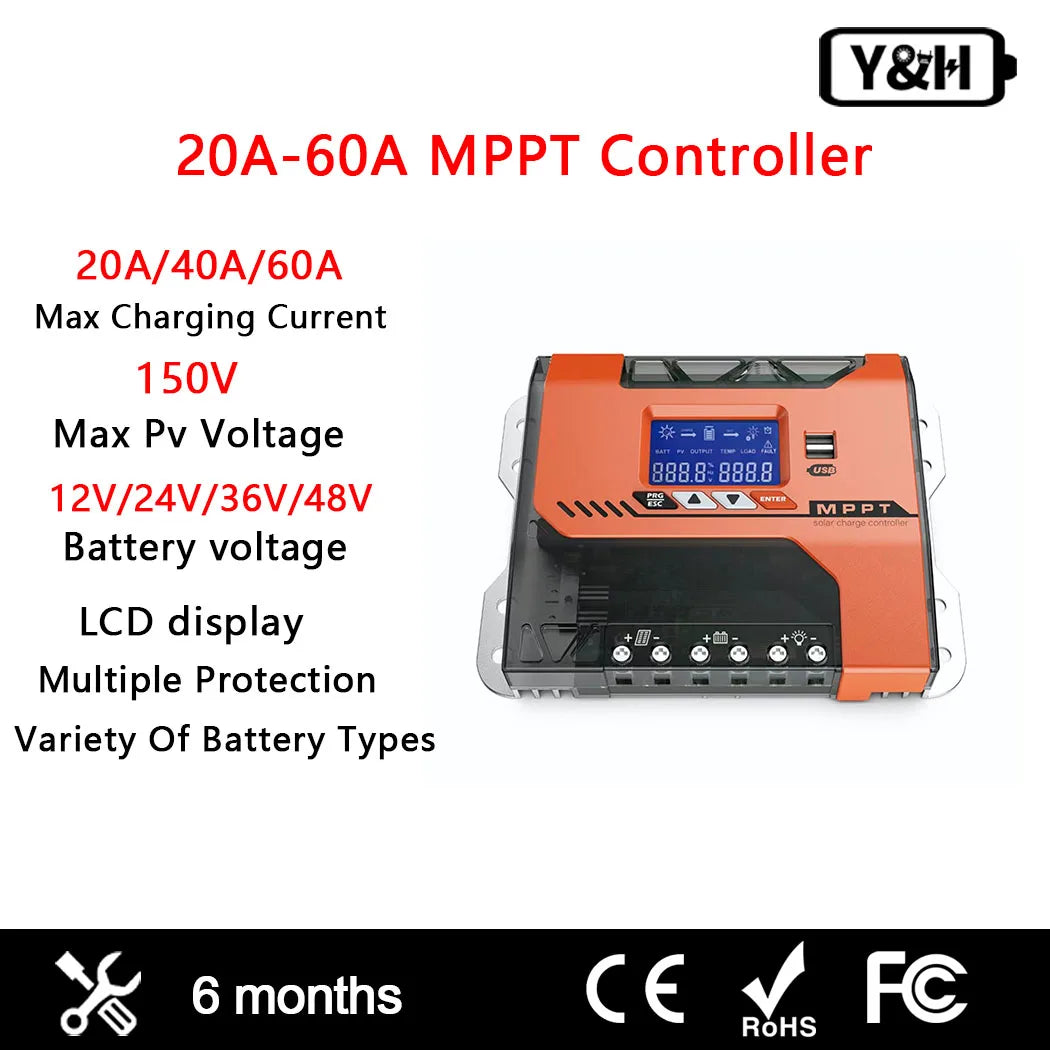

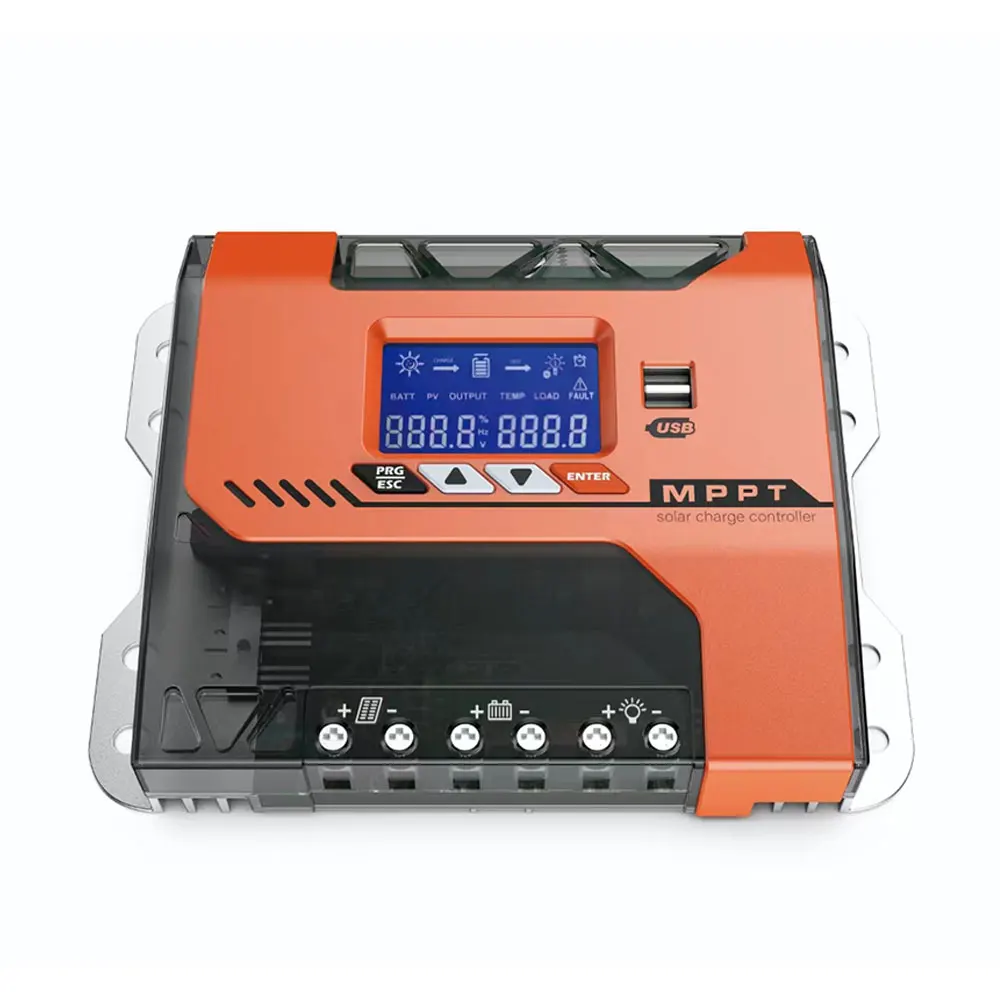

Y&H MPPT 20A 40A 60A Solar Charger Controller 12V 24V 36V 48V Battery Regulator Max PV Input 150VDC For AGM, Gel, Flooded and Li

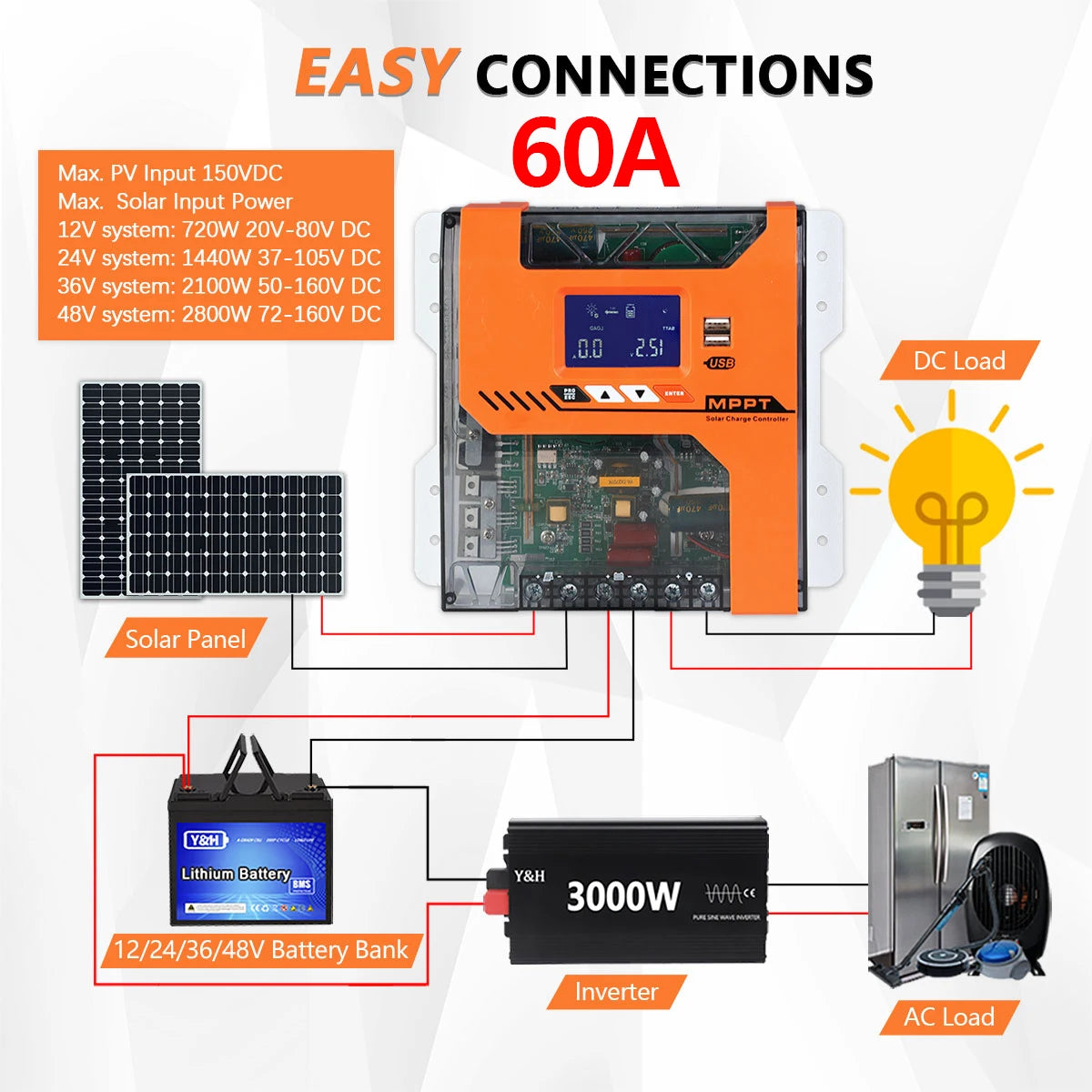

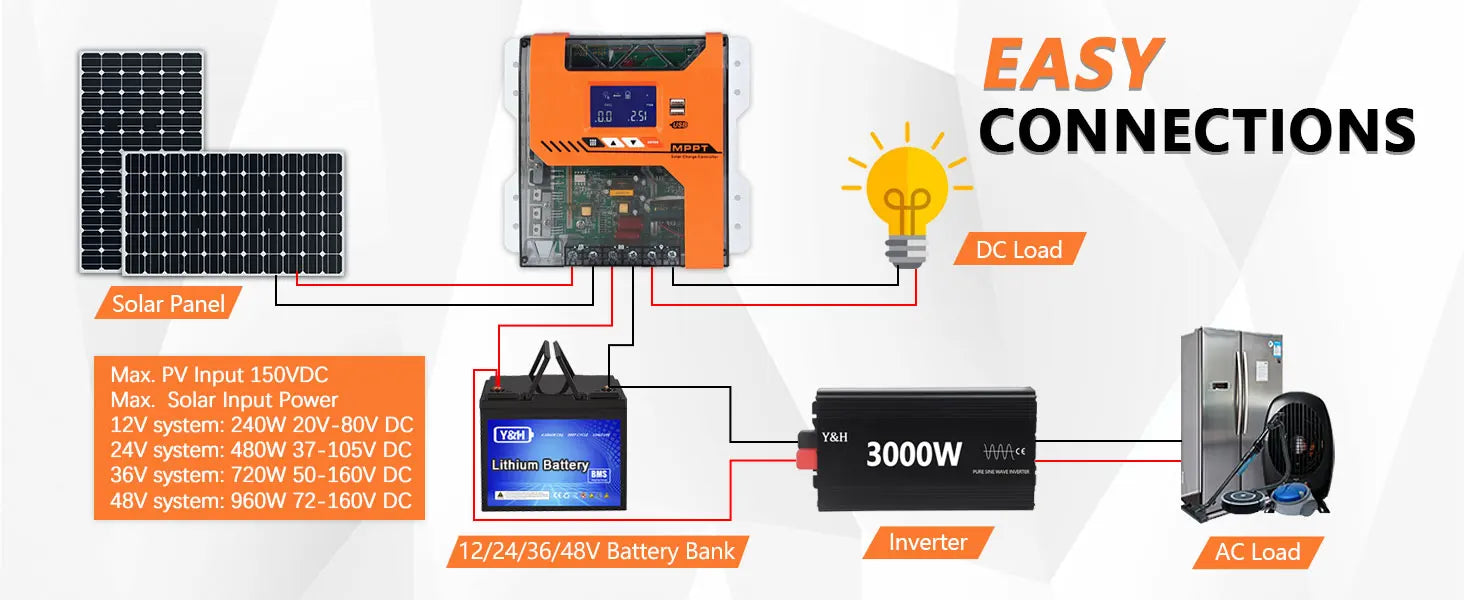

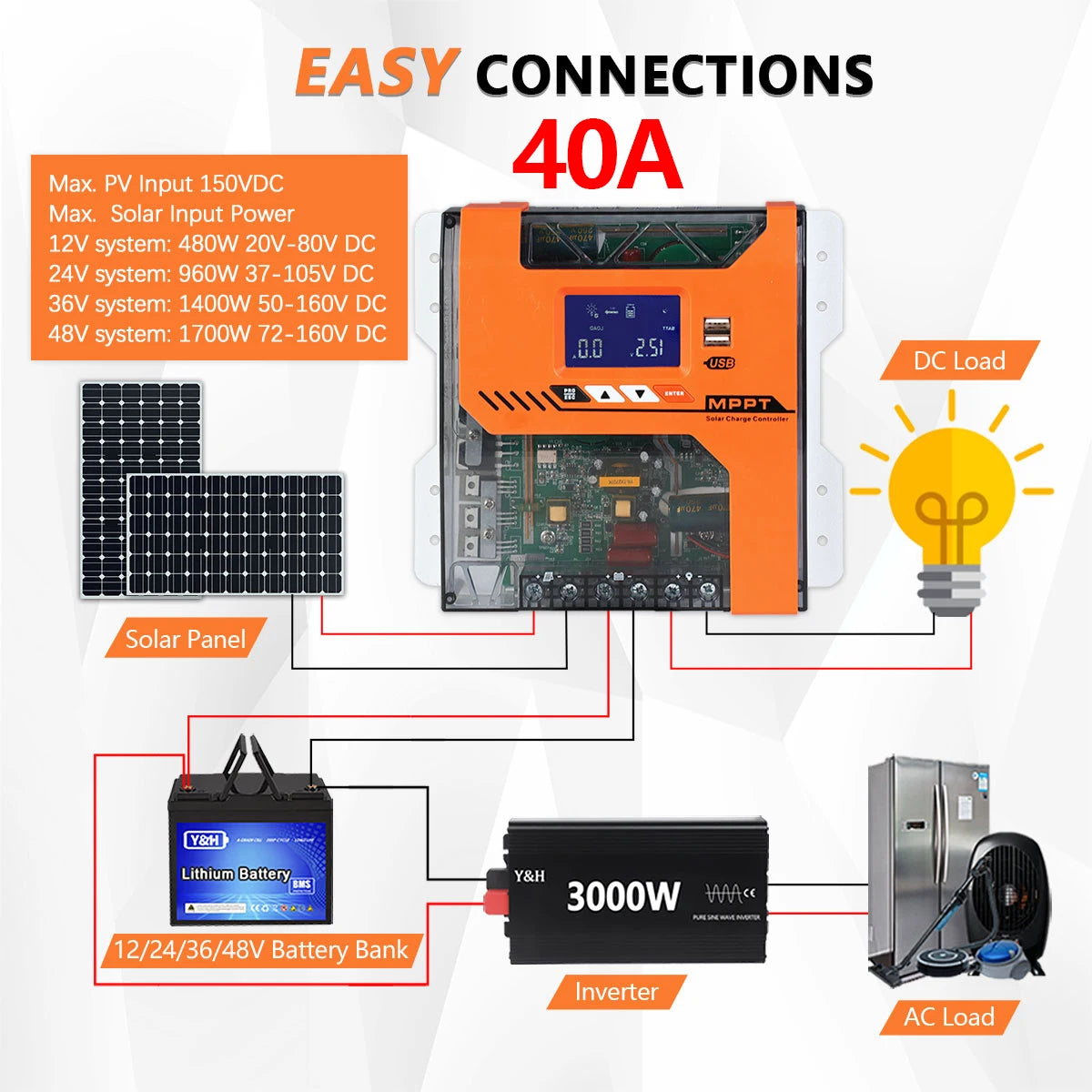

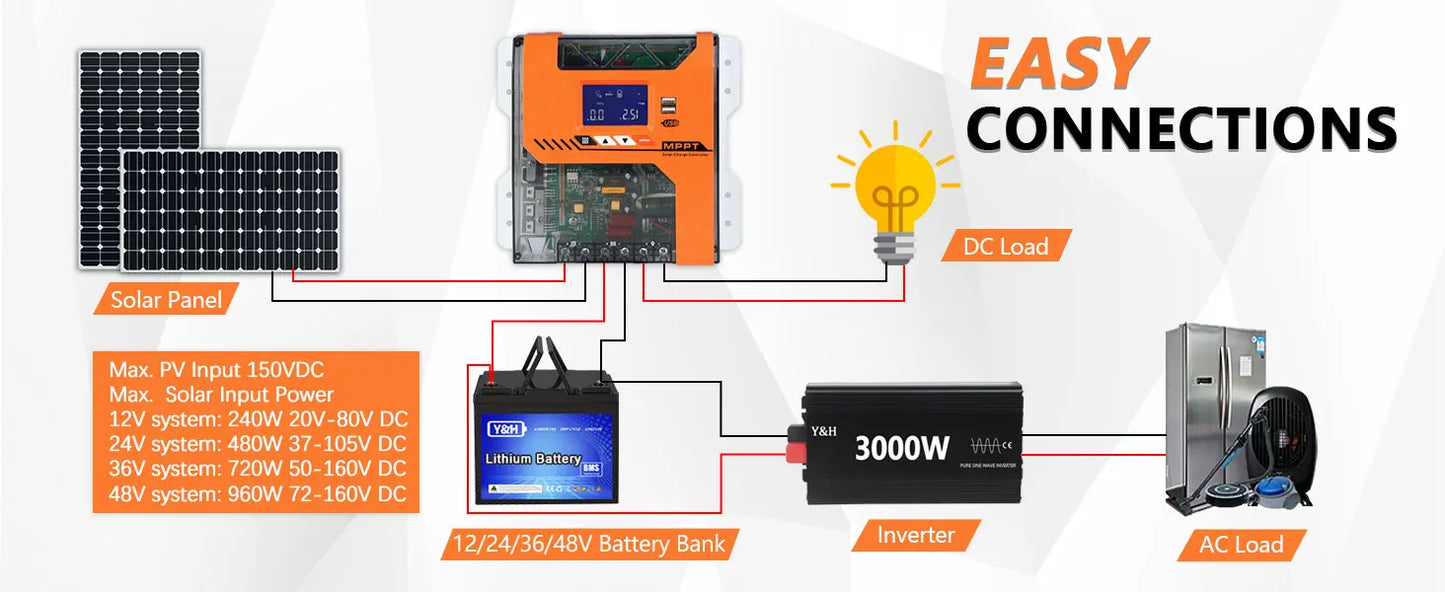

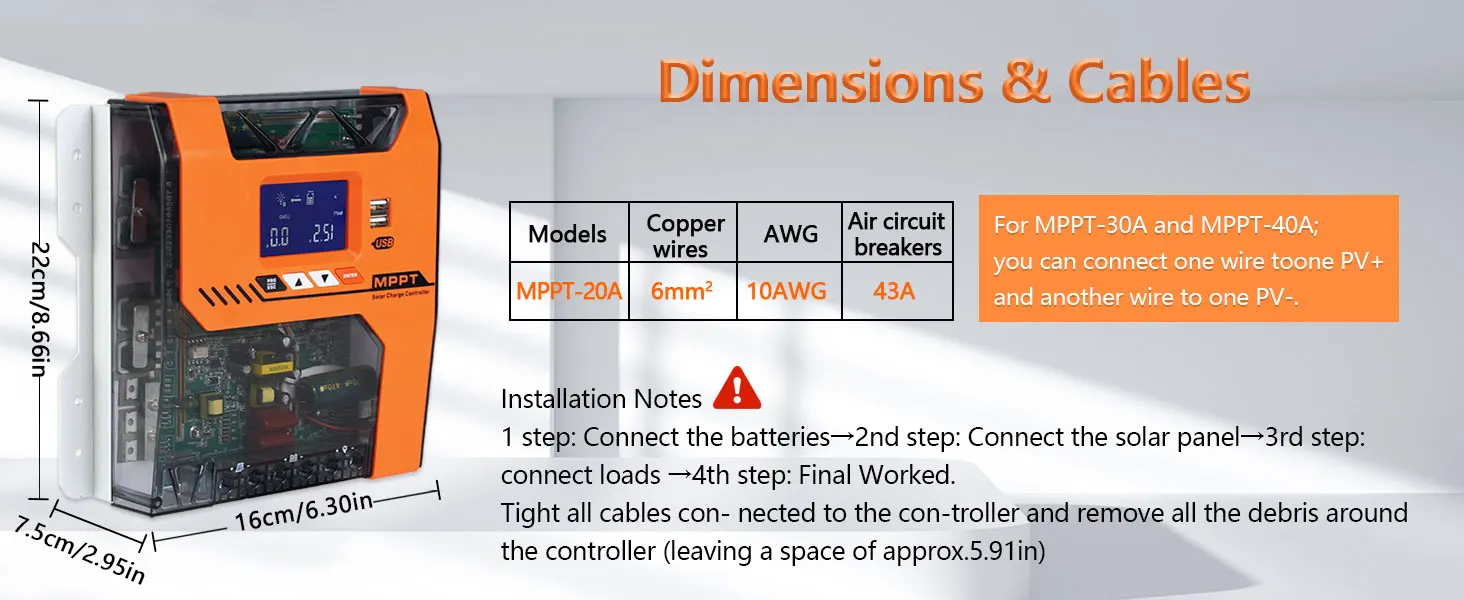

Notes on controller connection:

1: Connect the battery. 2: Connect photovoltaics. 3: Connect the load

Note when the controller exits the system:

1: Exit the load. 2: Exit photovoltaic. 3: Exit the battery

Overview：

MPPT series solar charge controller is based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

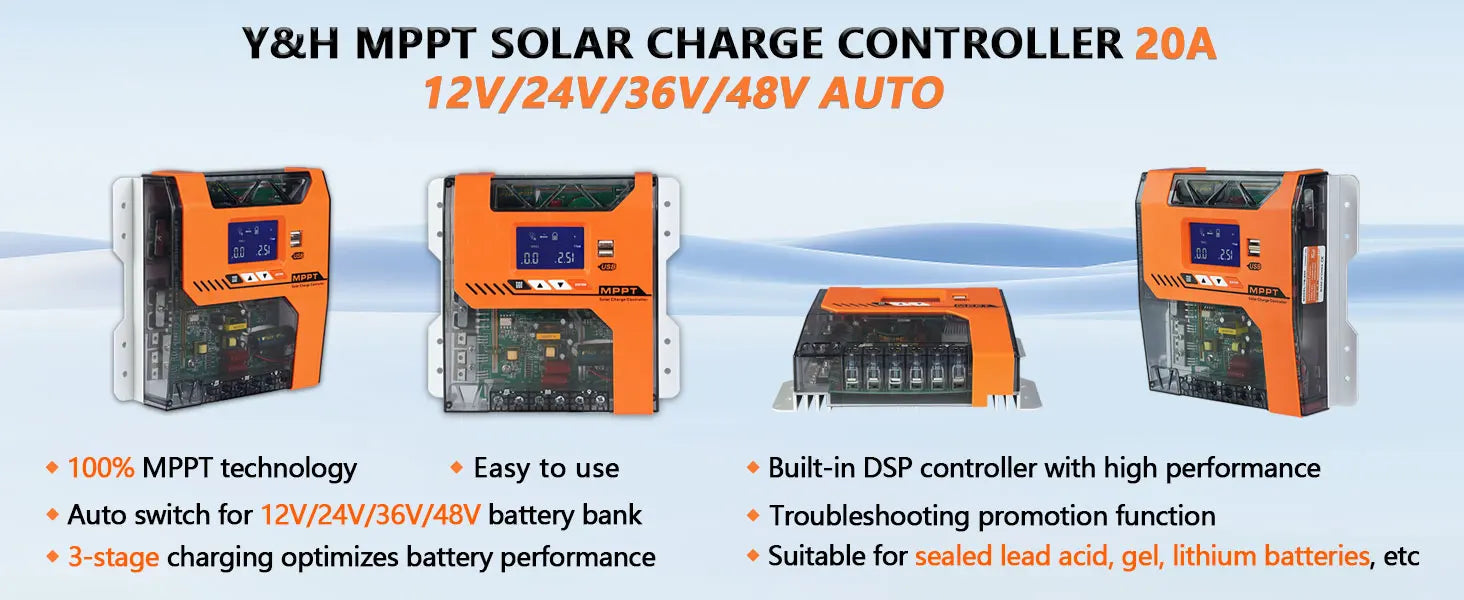

It comes with a number of outstanding features, such as:

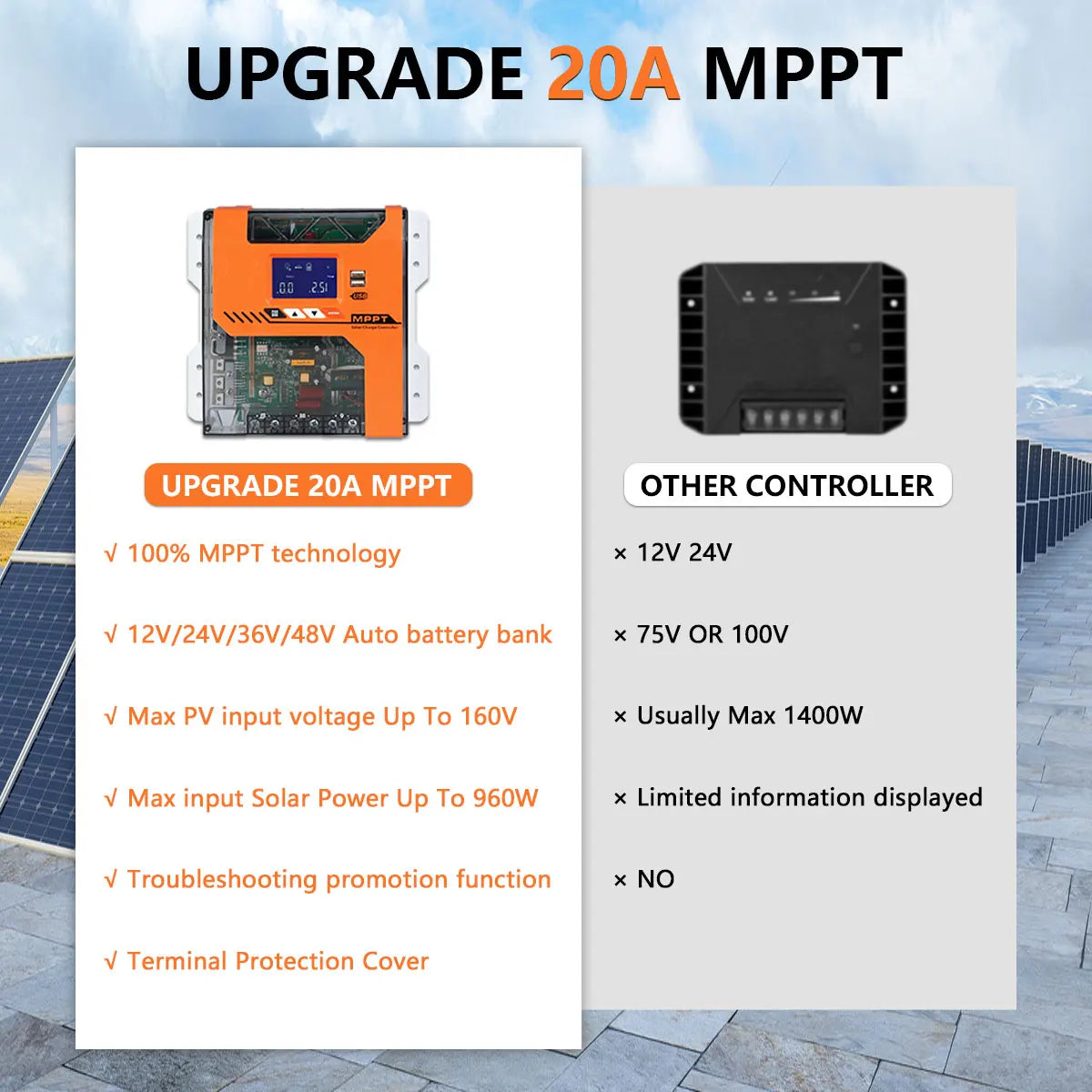

100% MPPT technology

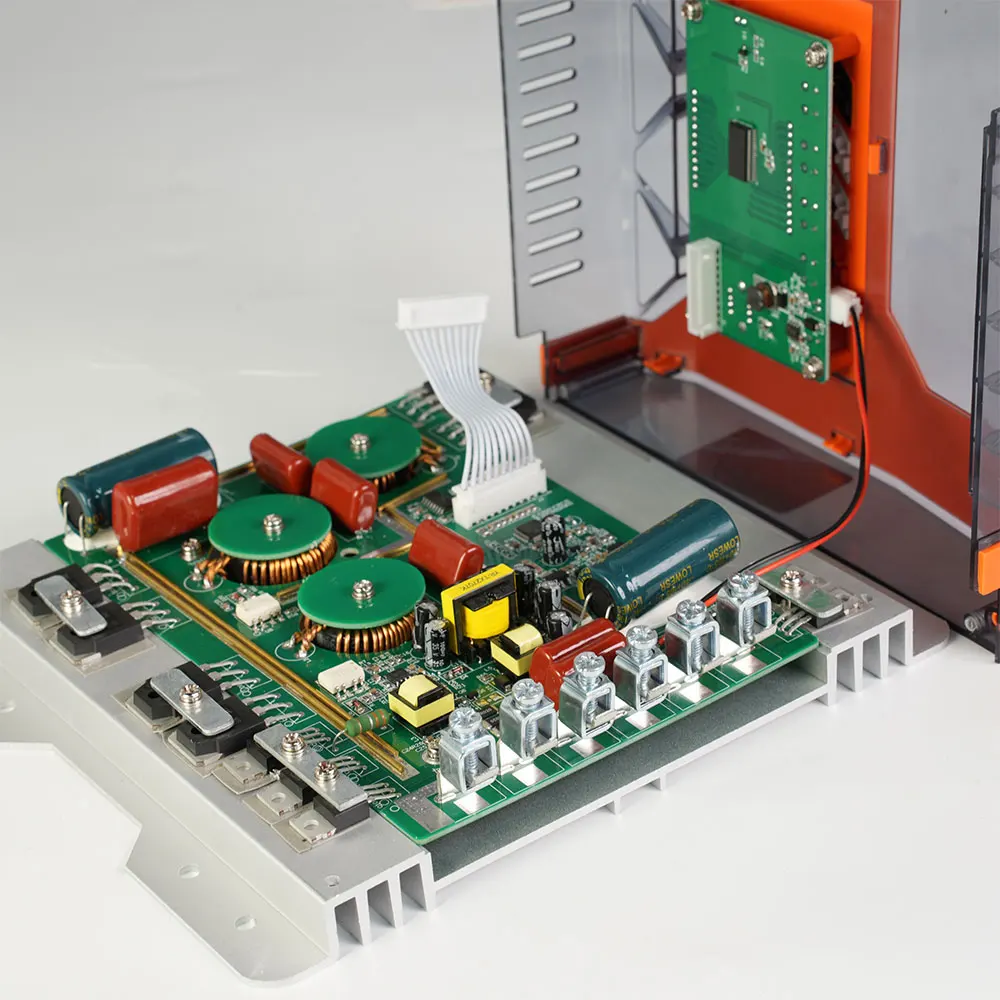

Built-in DSP controller with high performance

easy installation, easy setup

Automatic switch for 12V/24V/36V/48V battery bank

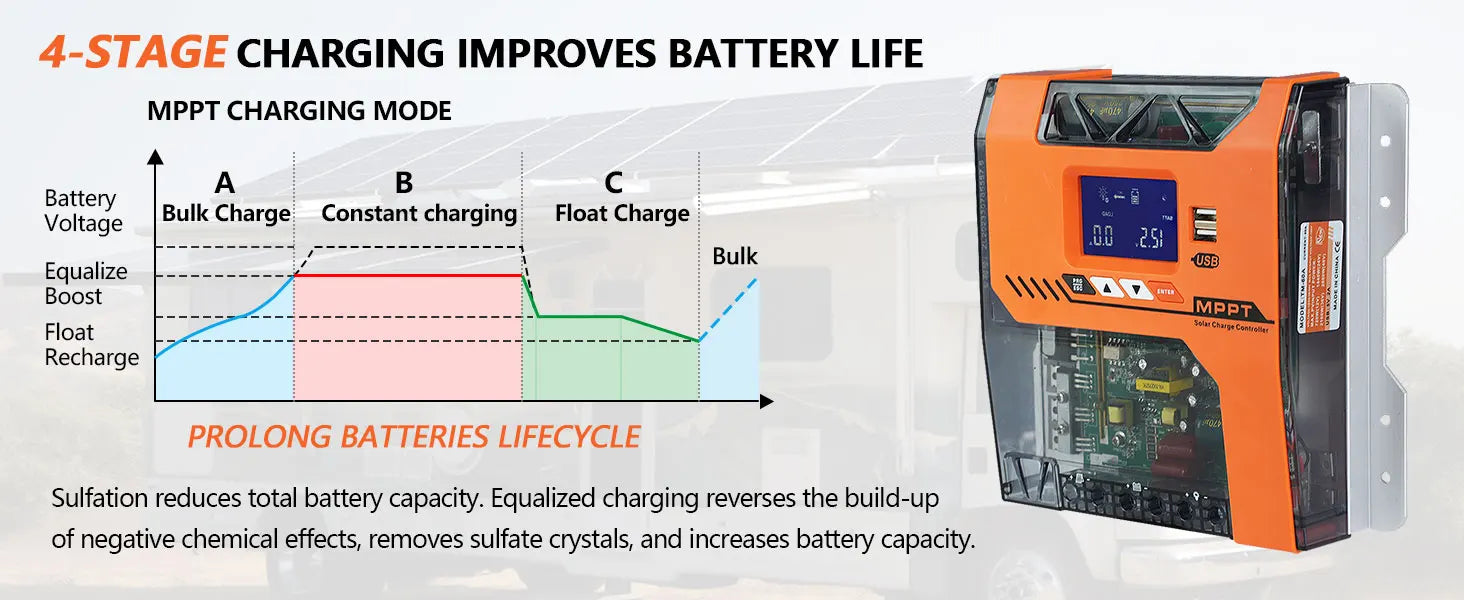

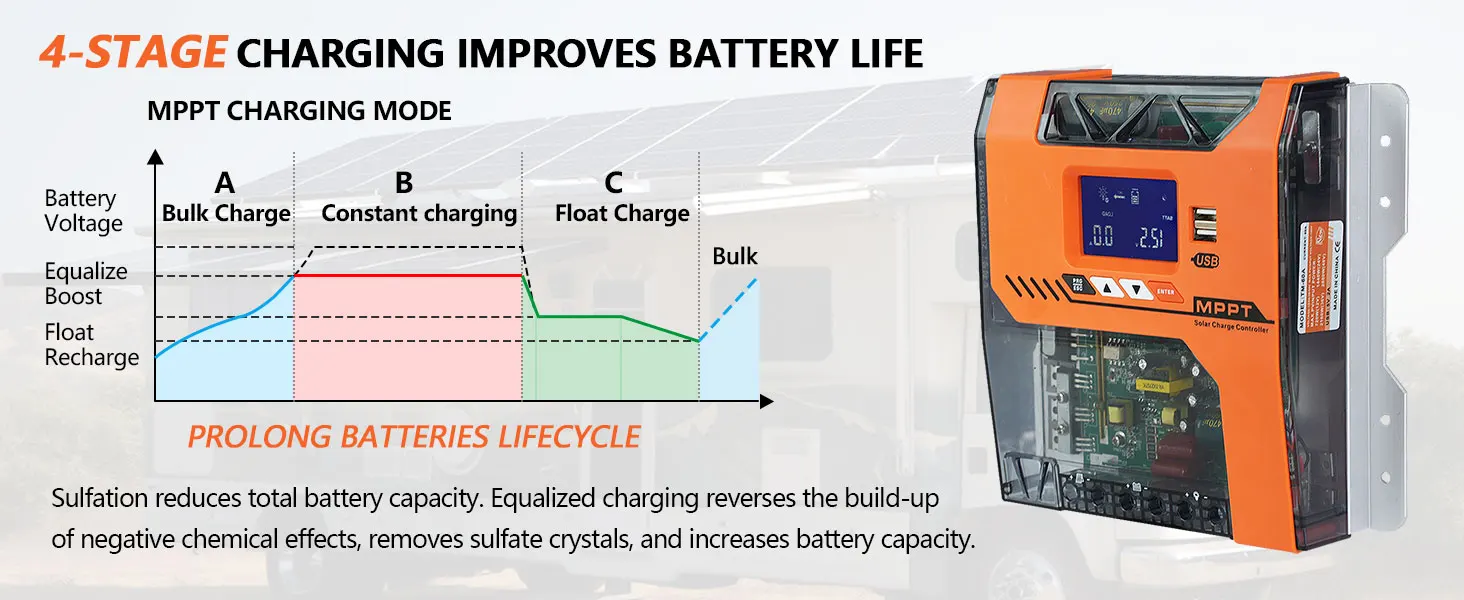

3-stage charging optimizes battery performance

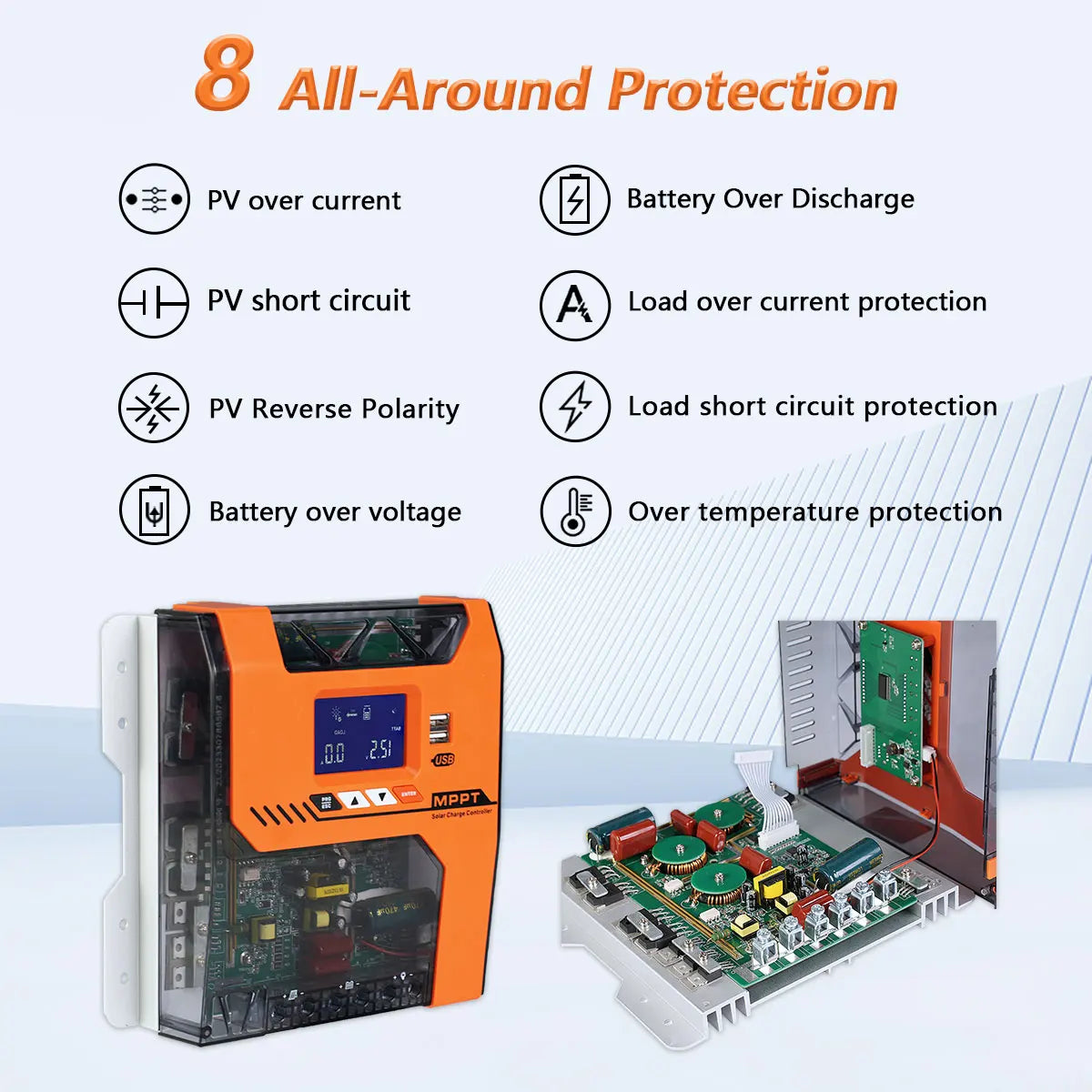

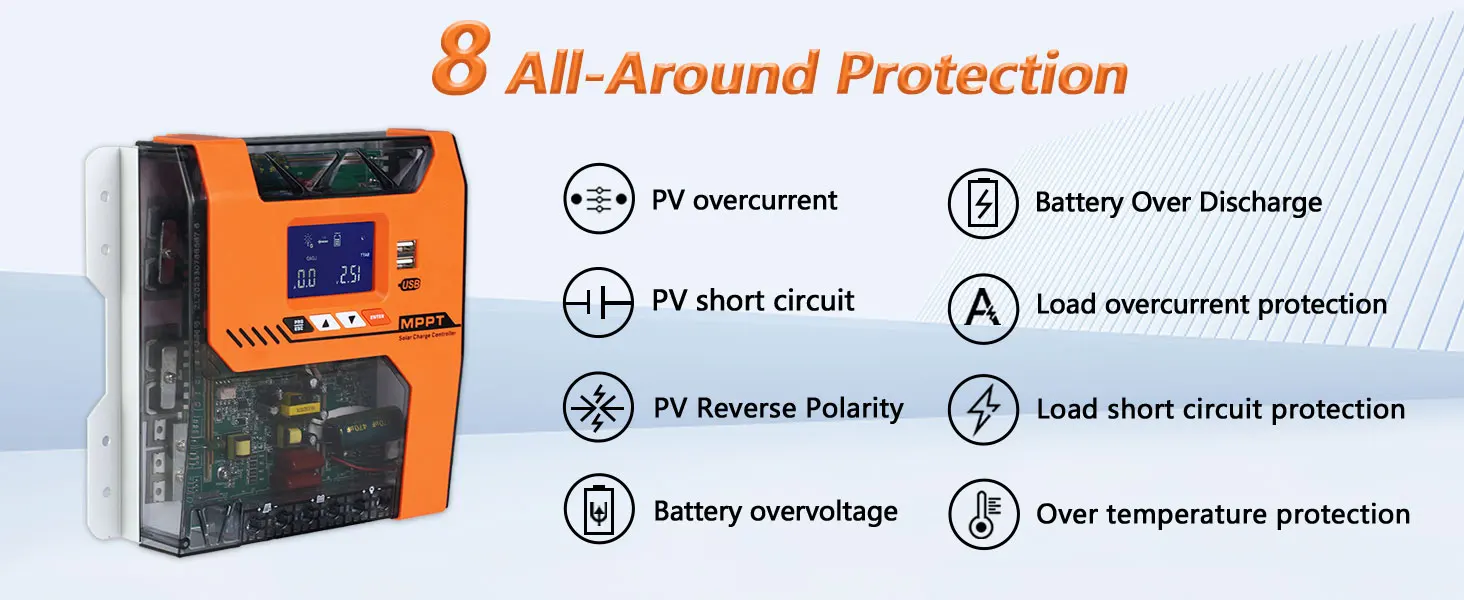

Overcharge protection, Input PV polarity reverse protection, Output limited current protection, Over-temperature protection

Troubleshooting promotion function.

Suitable for battery types such as sealed lead acid, vented gel and lithium battery, etc

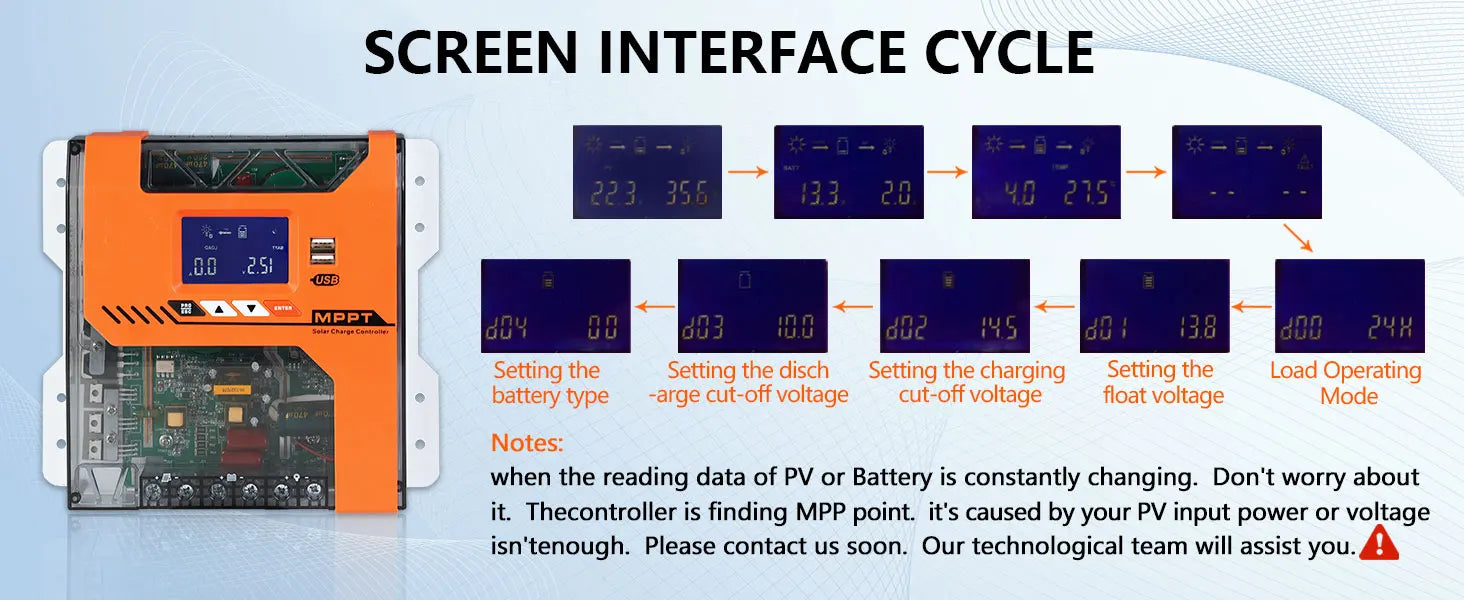

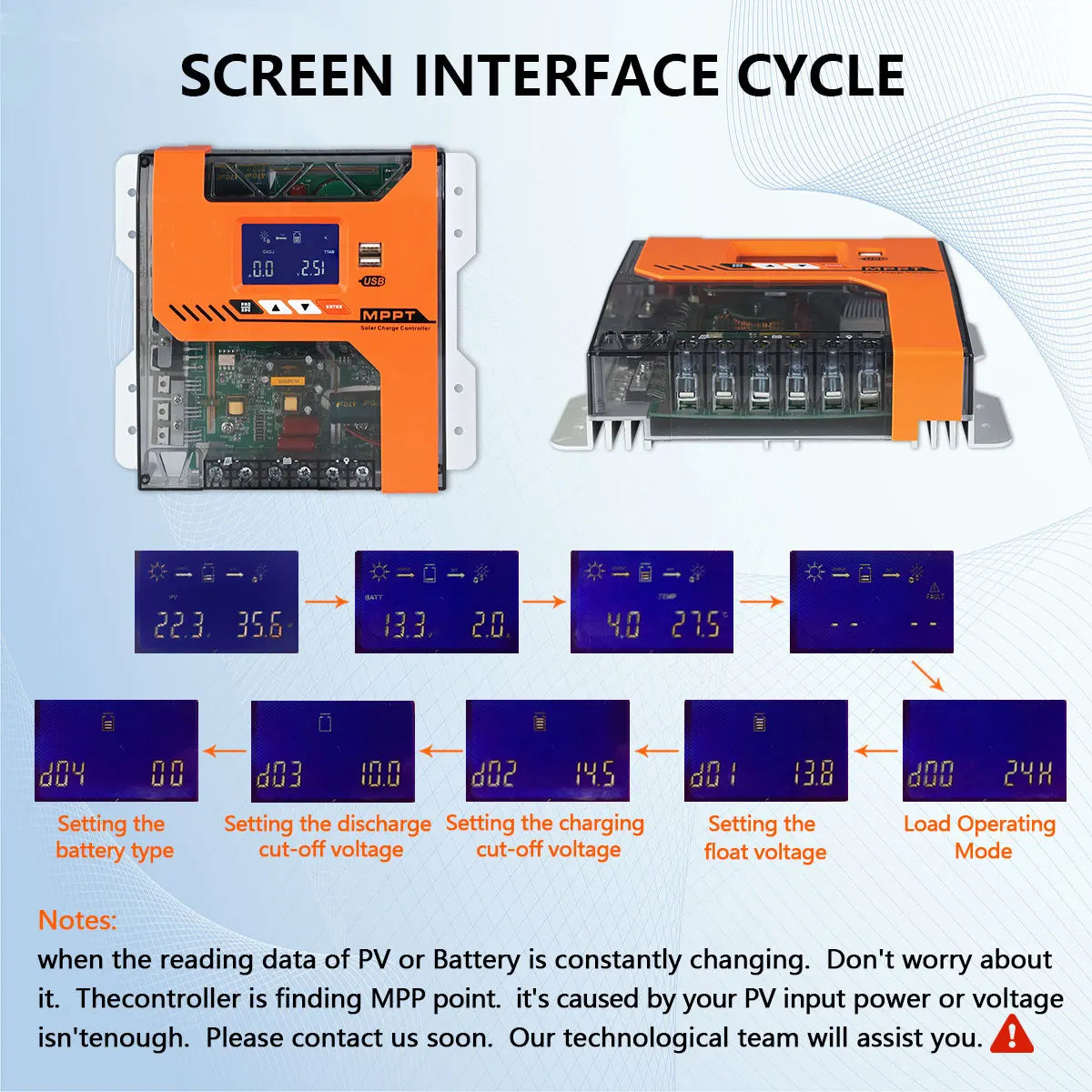

Program the charging and discharging parameters and charge by simply selecting the battery type.
