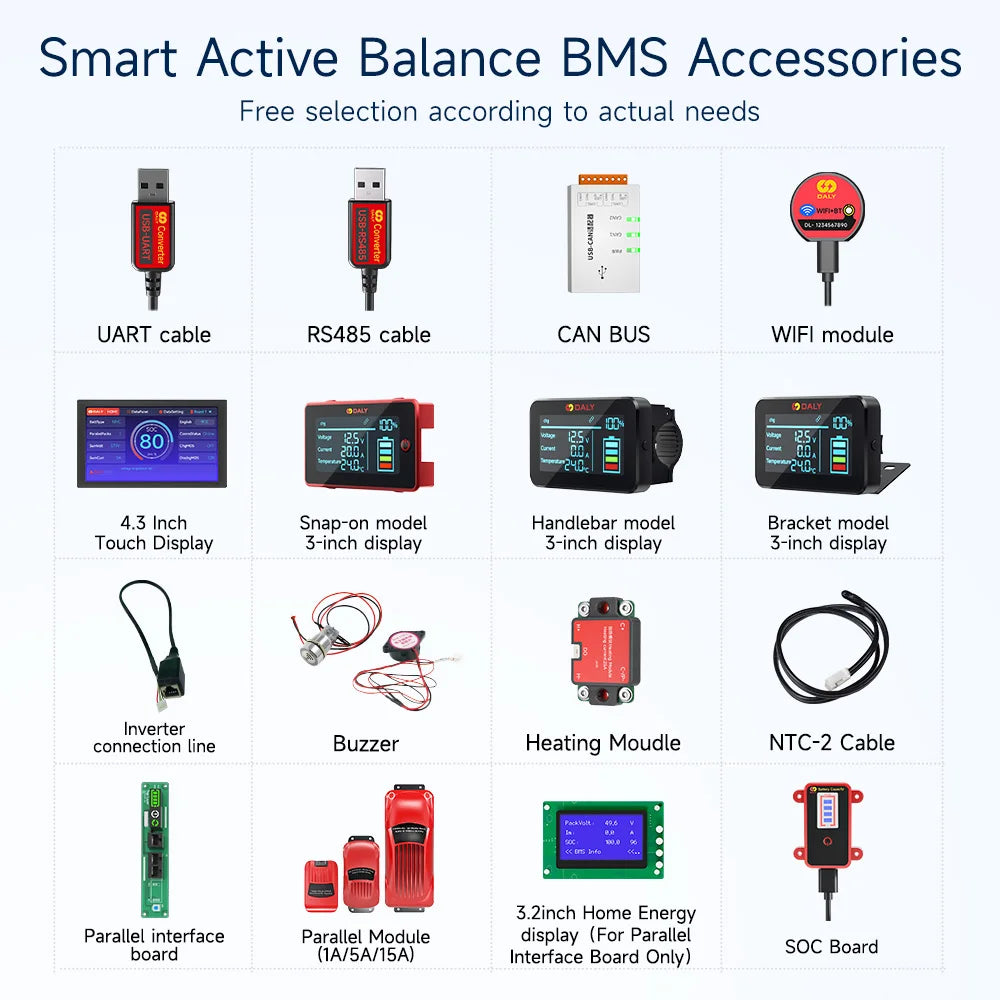

Smart active balancer BMS accessories.

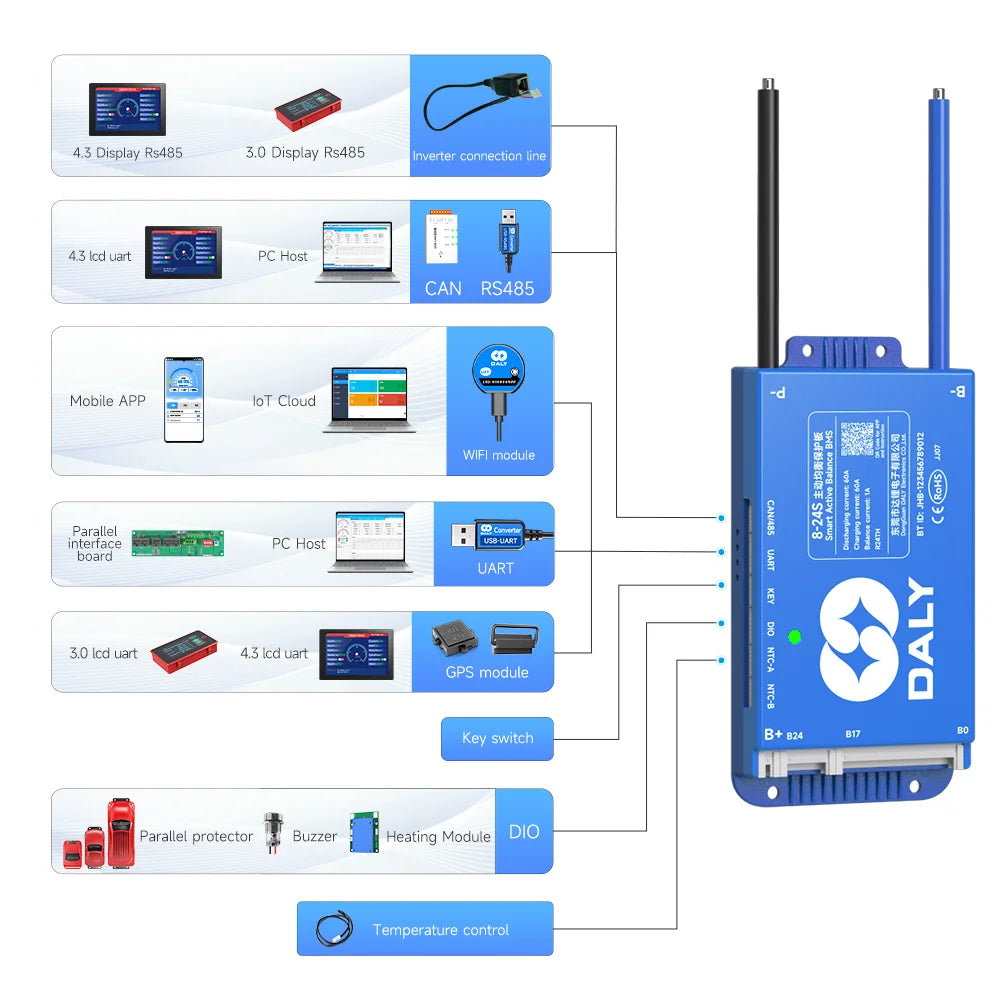

1. Pls buy the accessories based on BMS version to make sure bms and accessories can work smoothly. the bms accessories only can support 100balance bms and Daly K, M, S New version bms. Not compatible for others brand bms.

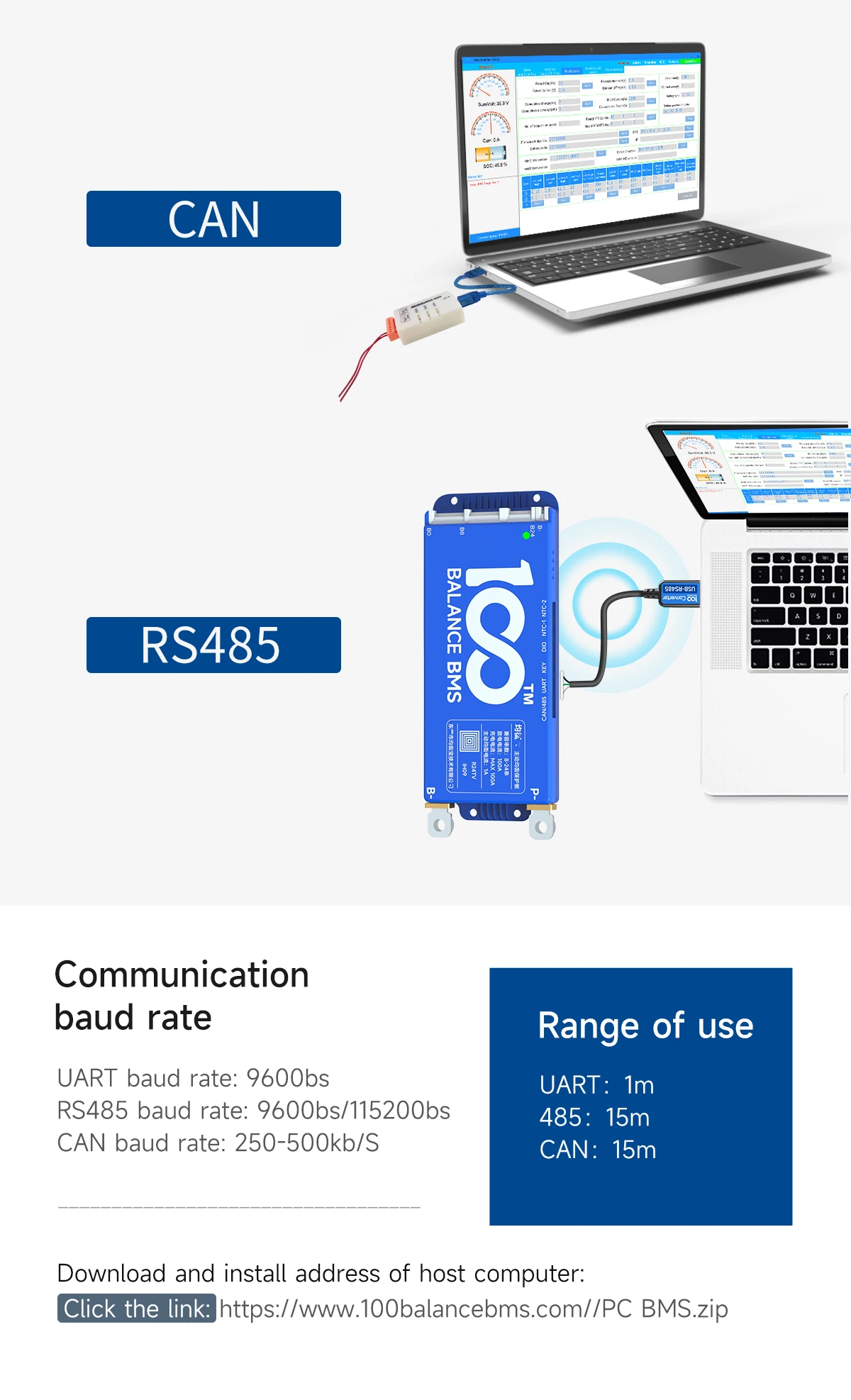

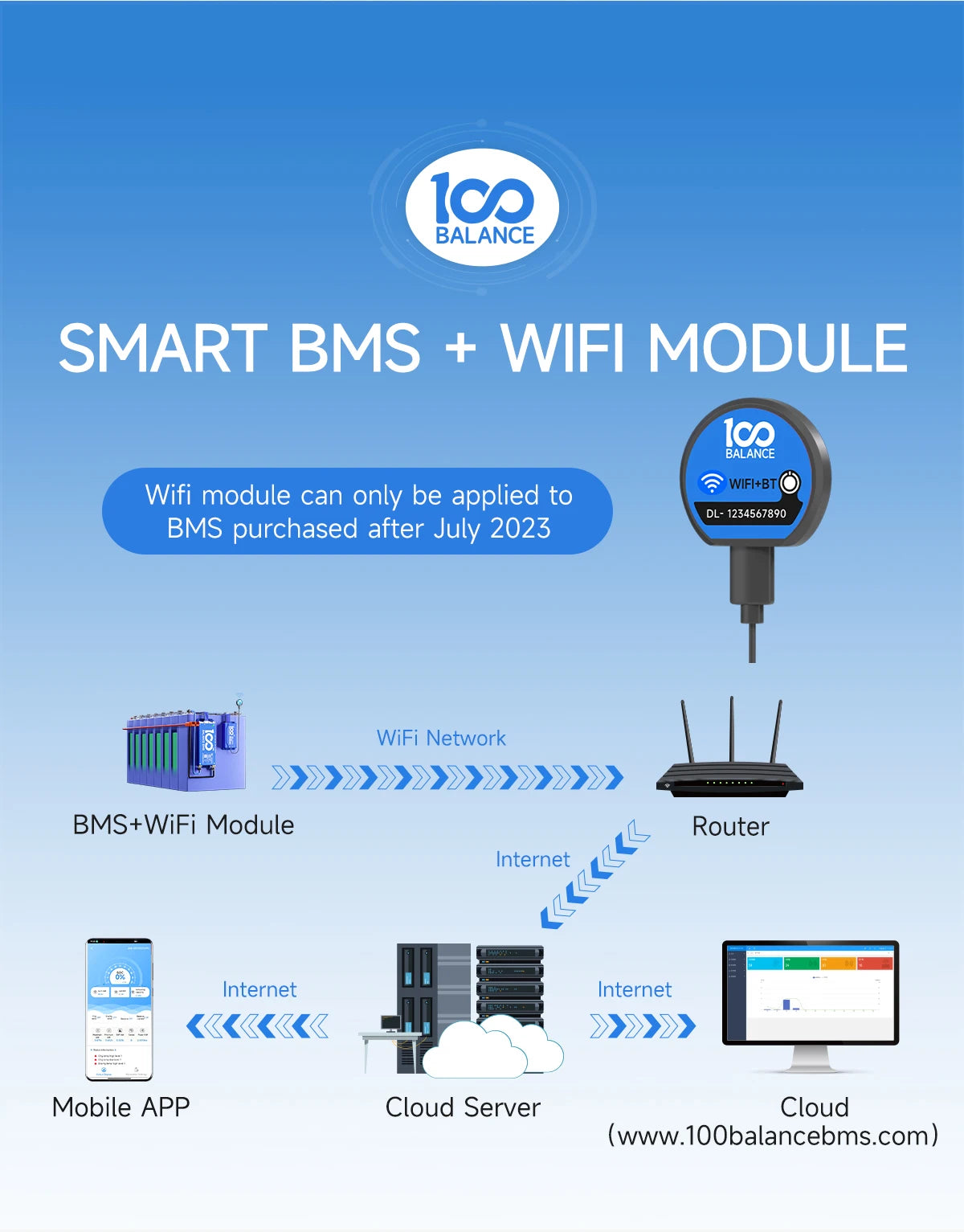

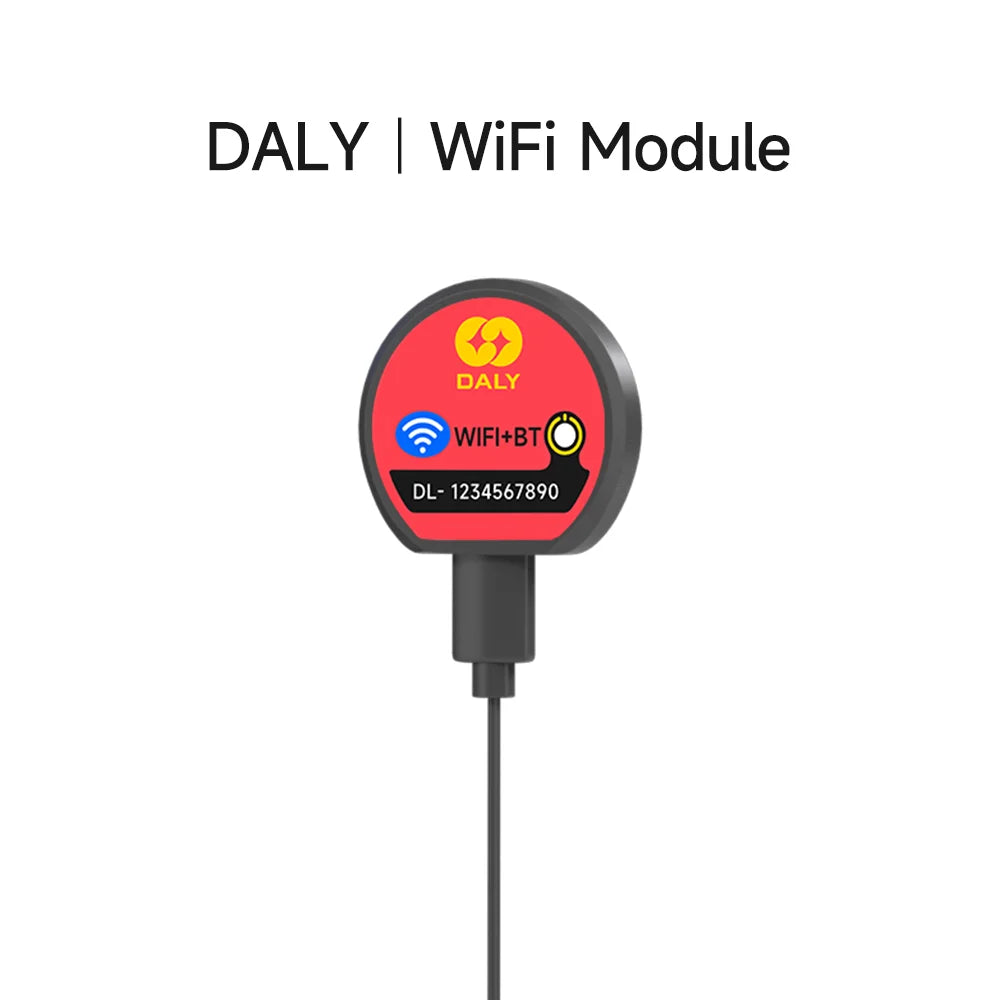

2.  bms +wifi + lcd display can work together for customer to review the battery status locally and remotely without distance limitation.

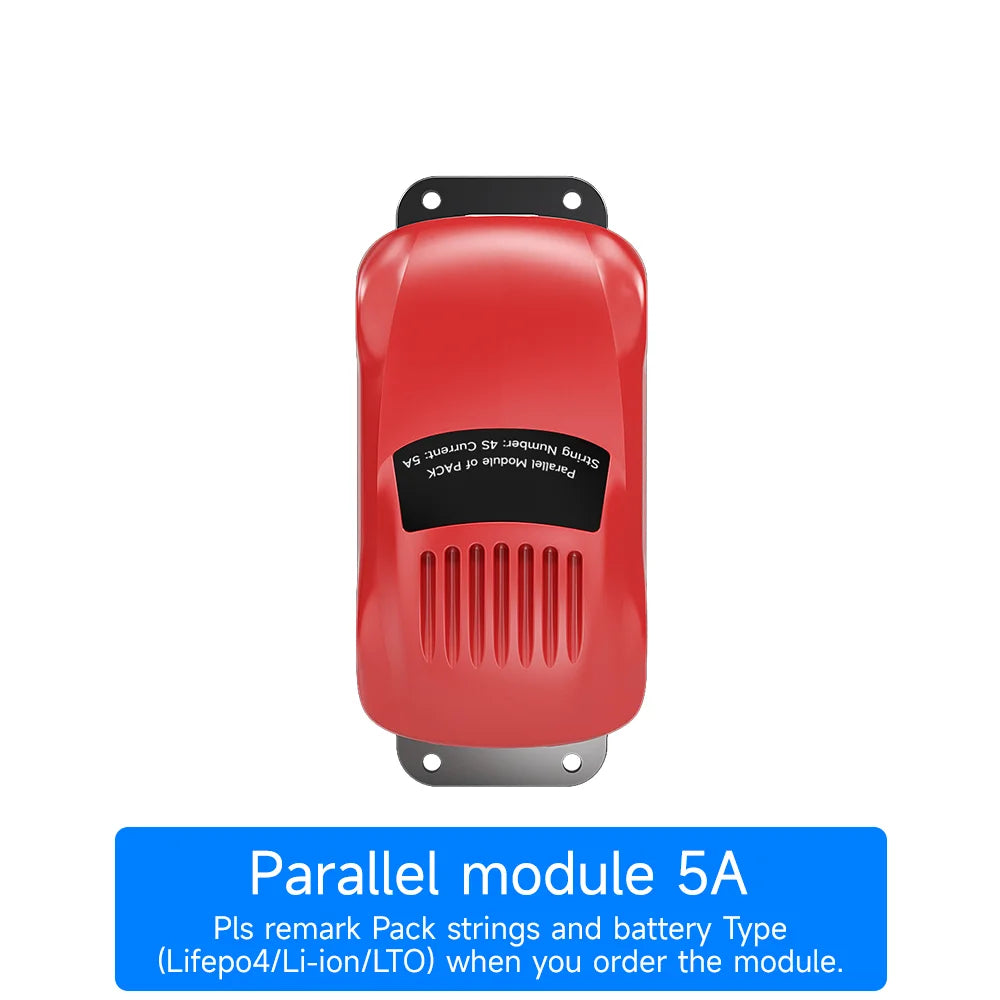

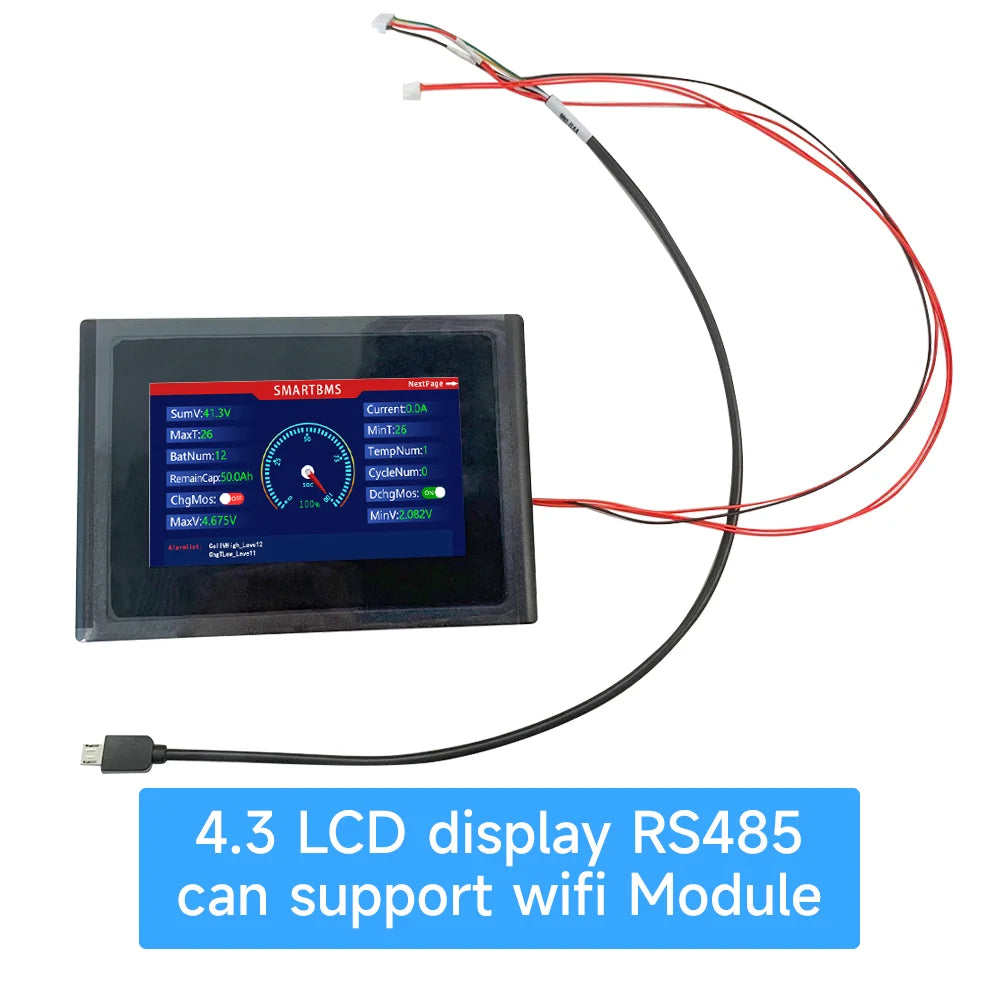

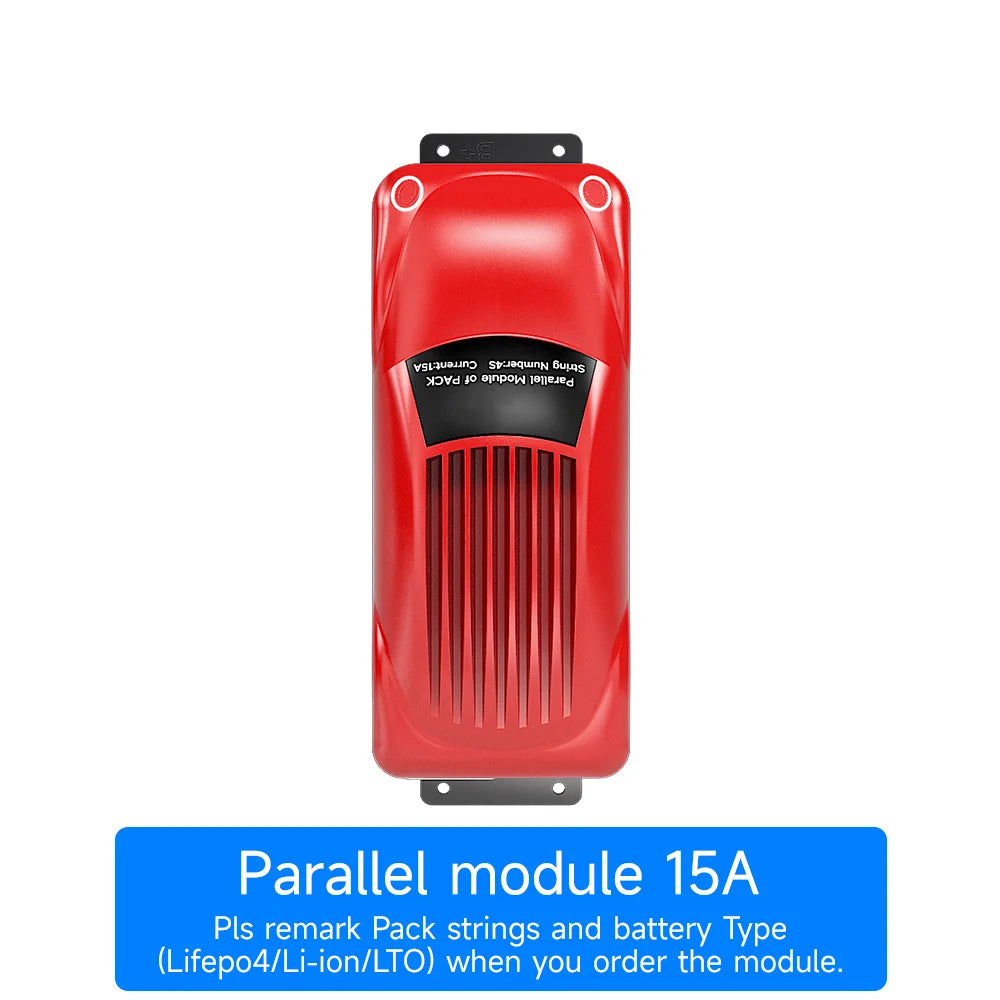

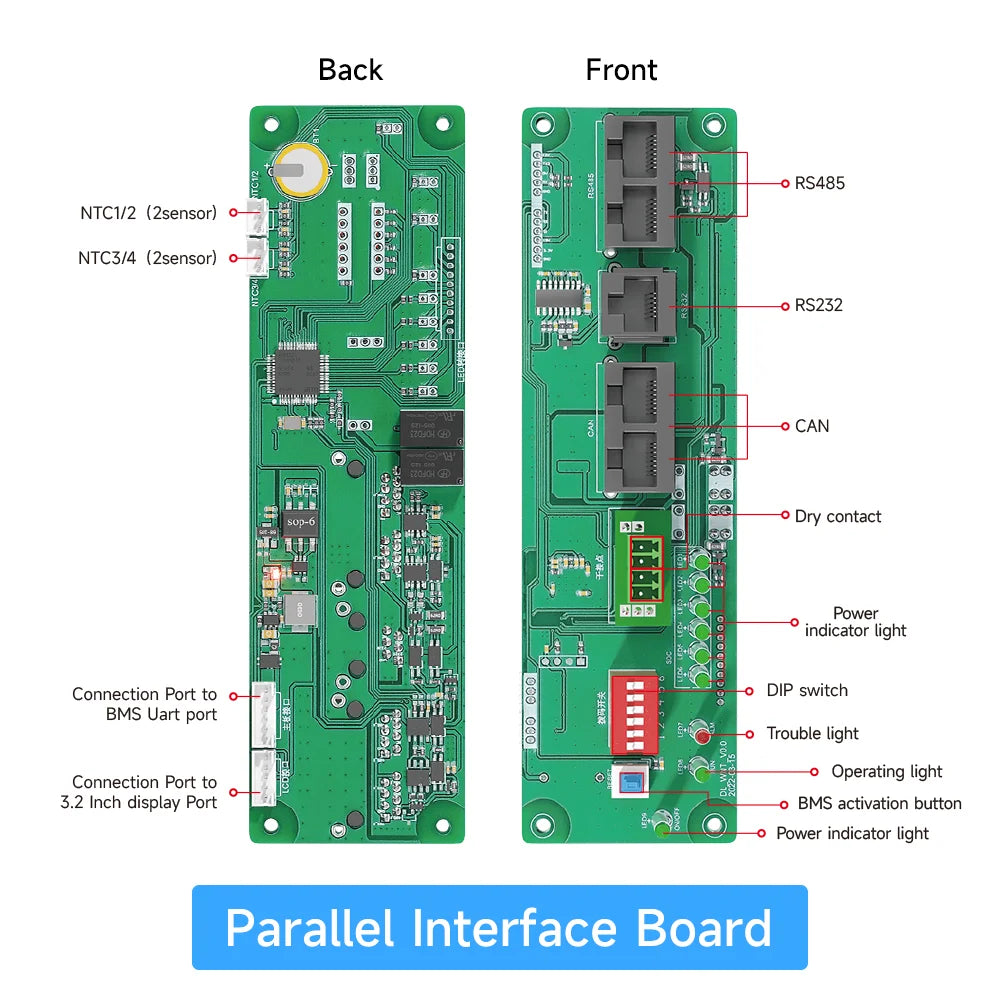

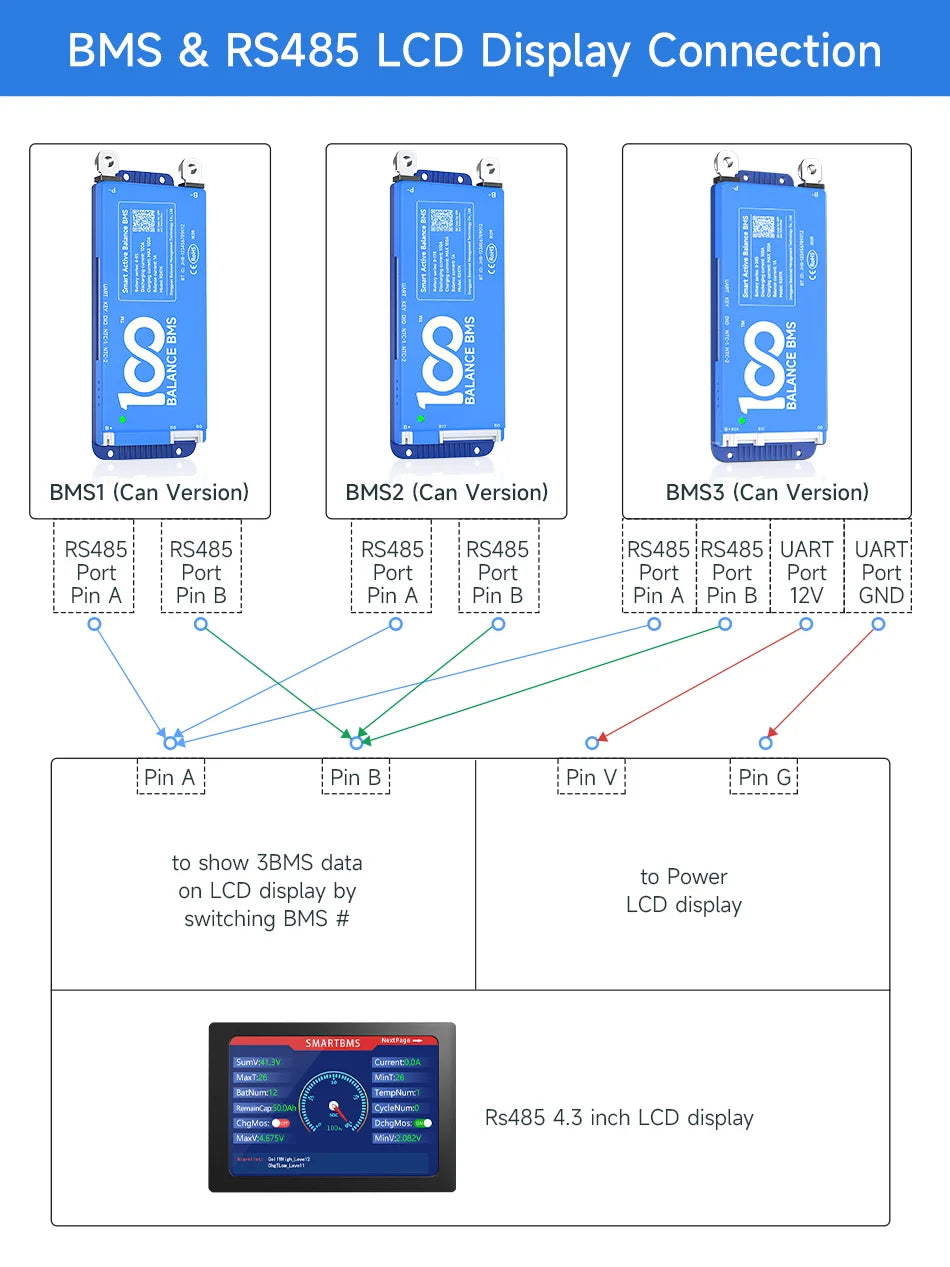

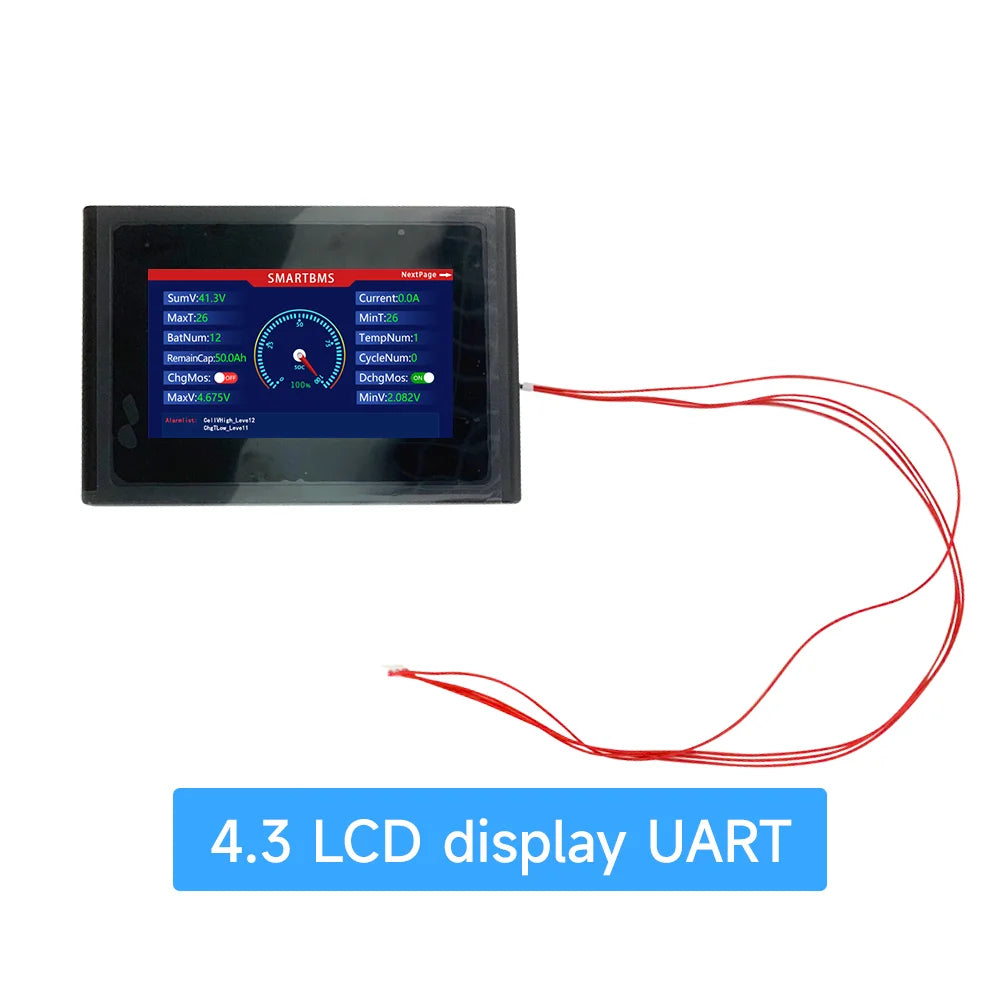

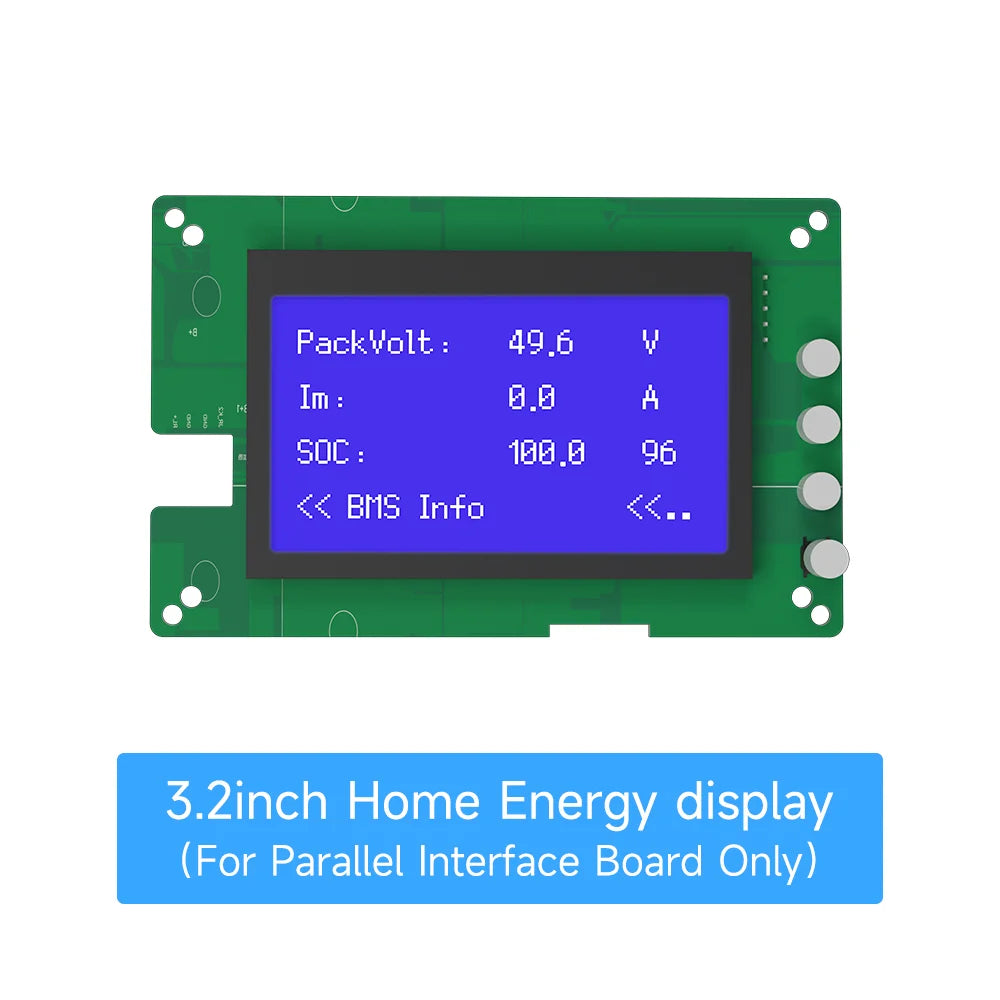

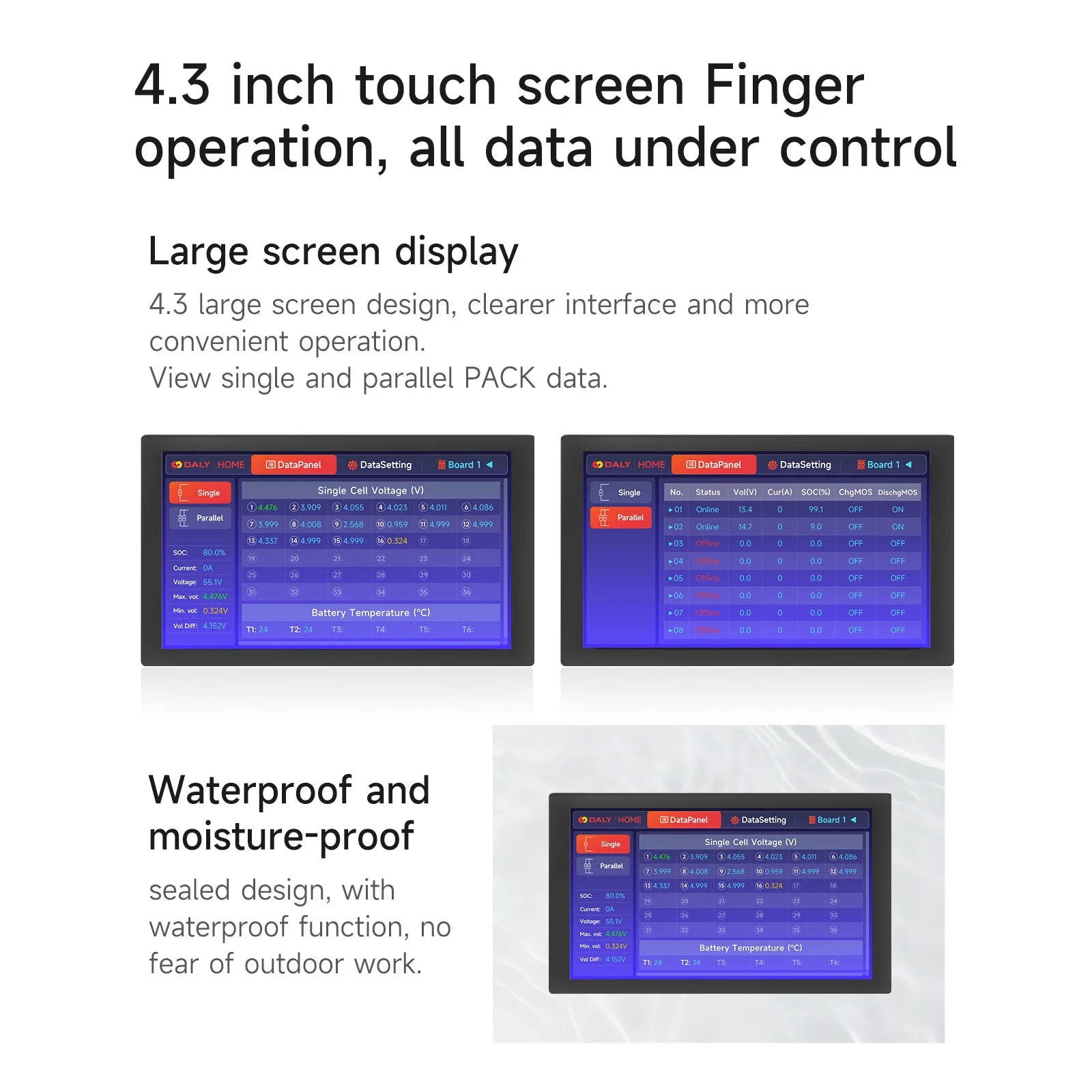

3. Mutiple bms can be connected in parallel connection and show the information on 4.3 LCD display by switch bms #.

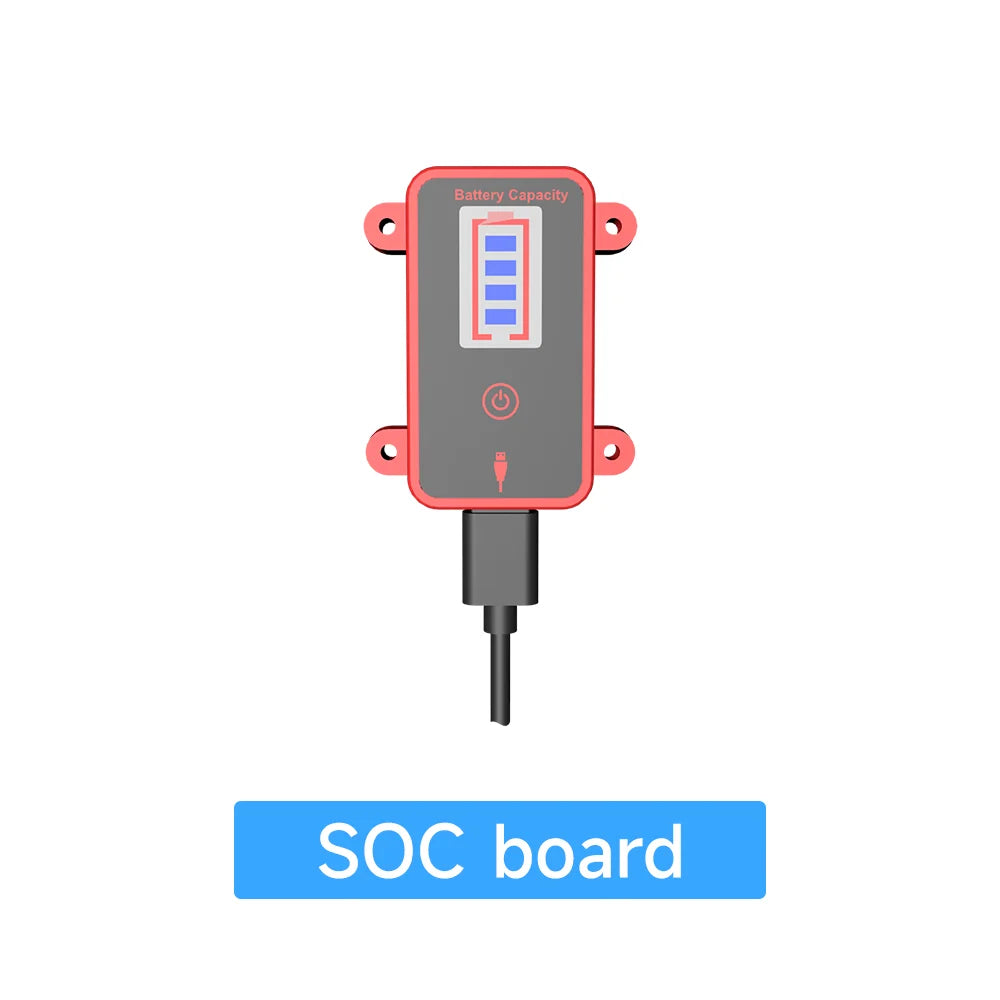

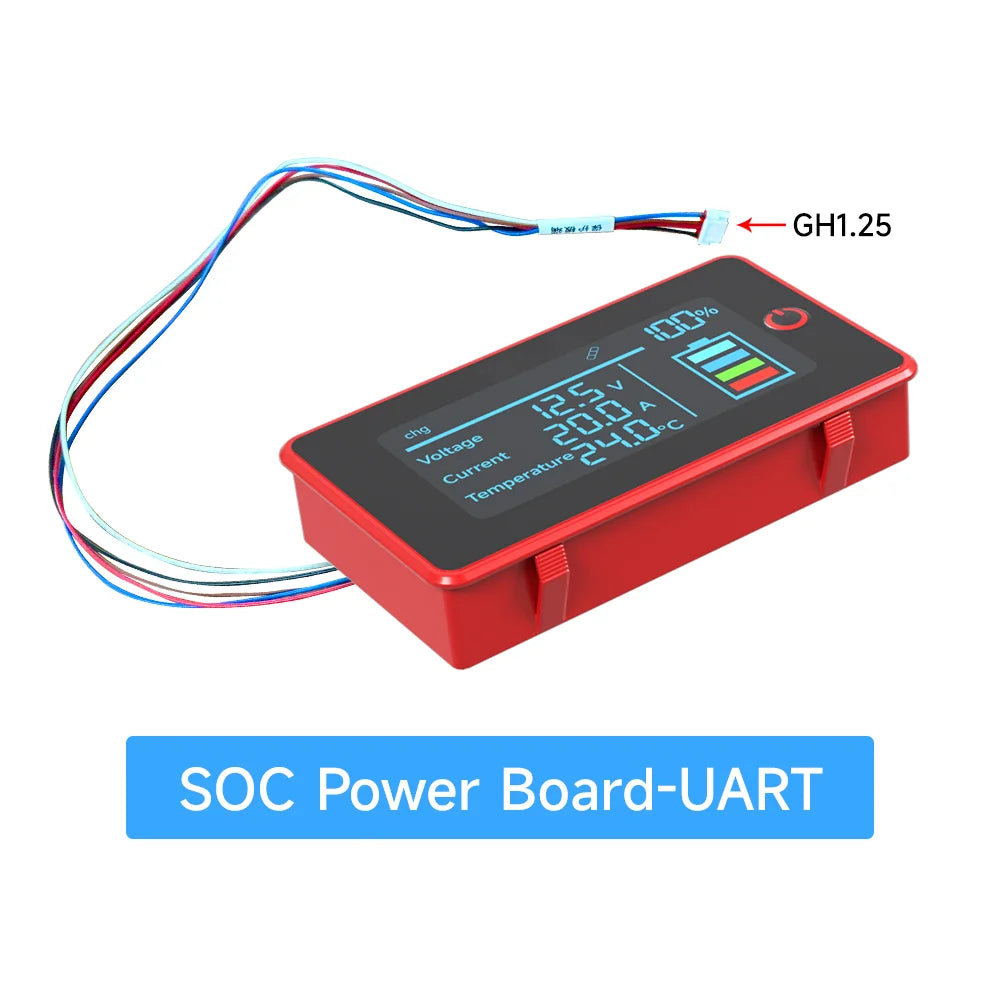

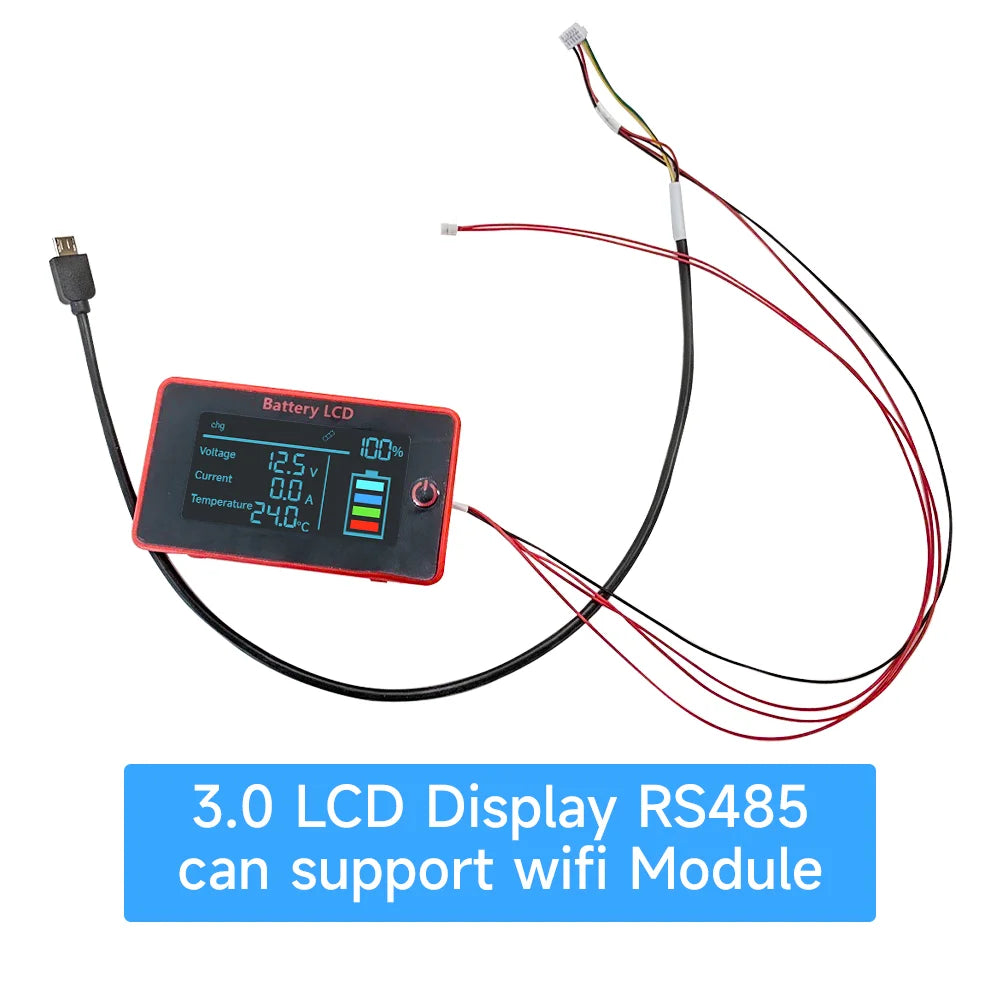

     3.0 soc display only can can show one bms information.

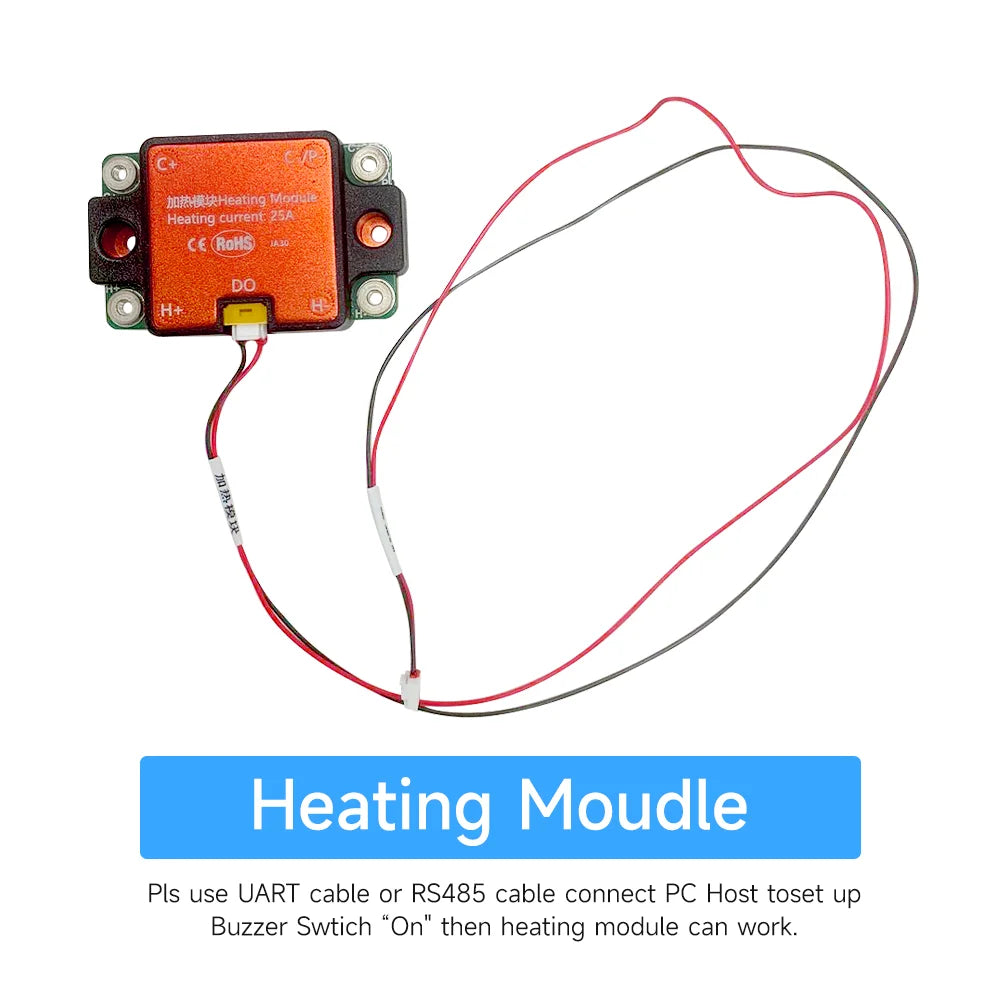

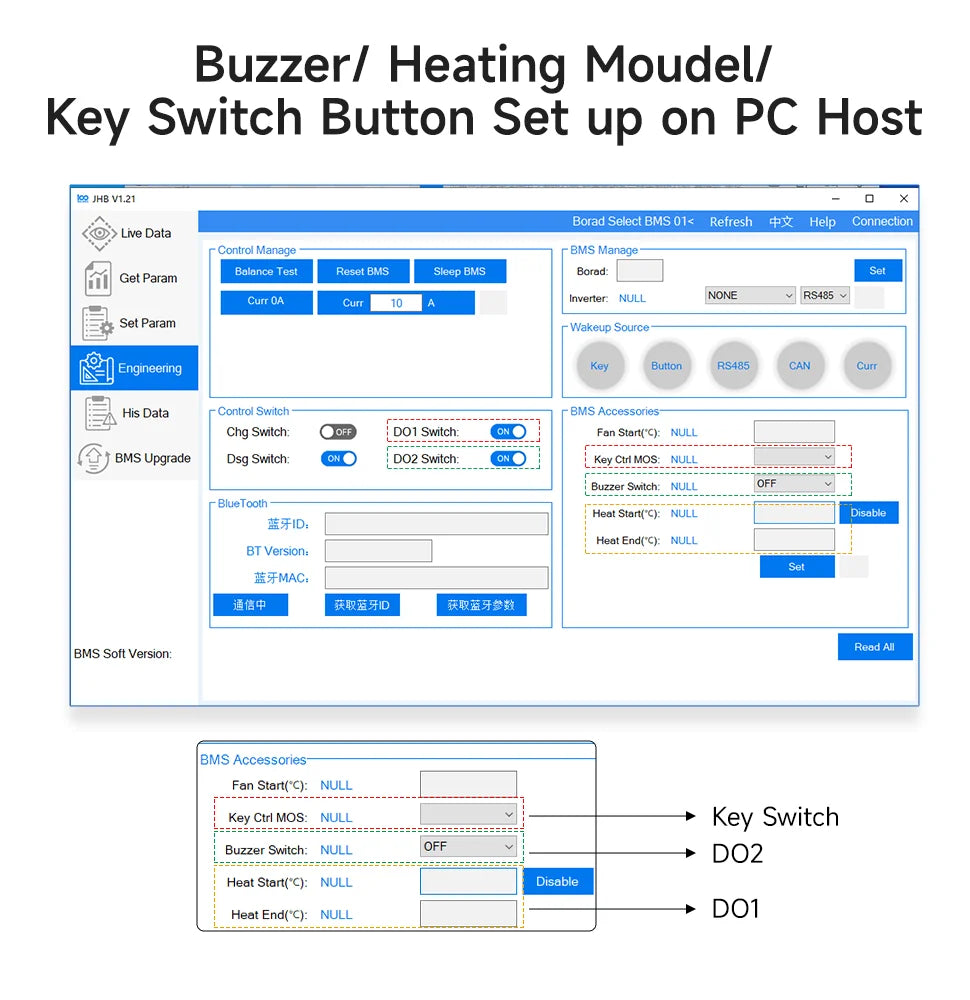

4. Heating Moudel logic. if the logic is okay for you. then pls order the module.

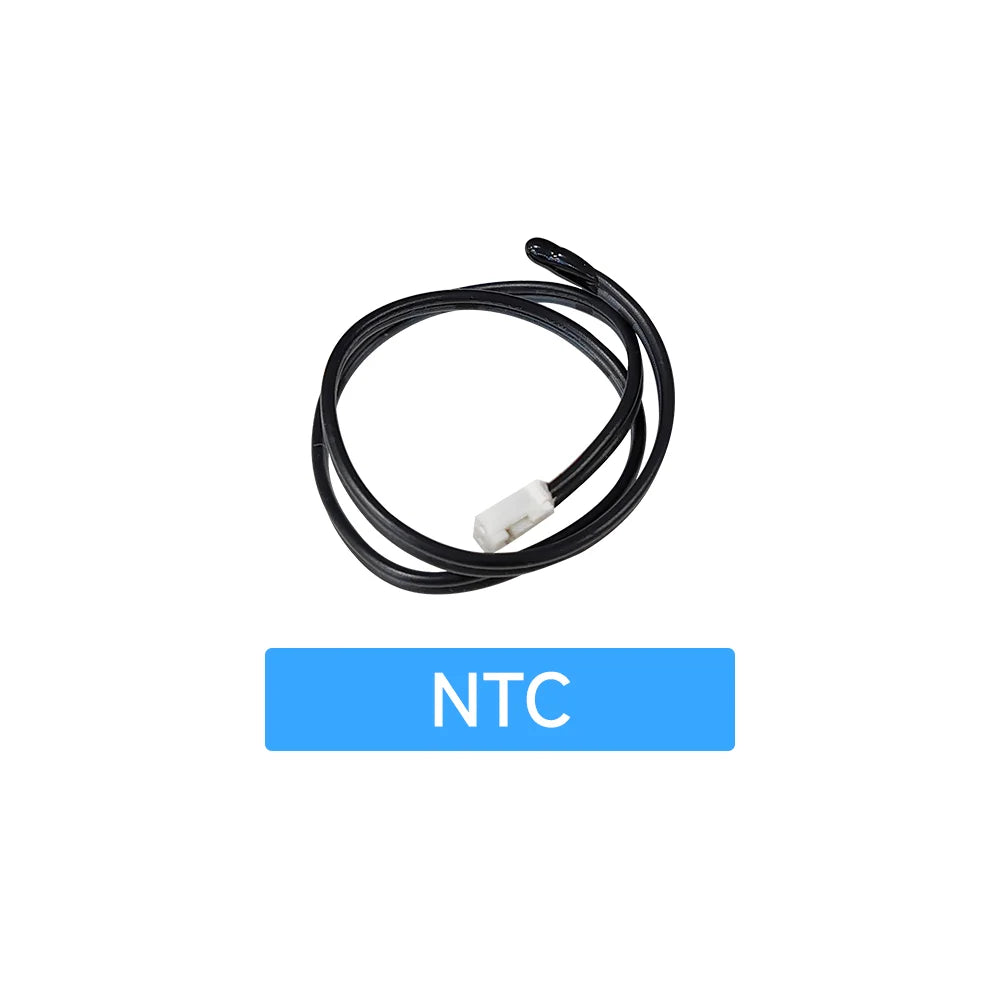

1). Minimum NTC temperature < heating start temperature (can be set by the PC host), and there is a charger; then heating will be turned on

2). Minimum NTC temperature > Heating shutdown temperature (can be set by the PC host), turn off heating for charging

3). Judgment of abnormal status: heating is turned on for 15 minutes, but the temperature does not rise by 2 degrees. Heating is abnormal. Exist heating . After 15 minutes, judge whether to turn on heating again. Heating is turned on for 60 minutes, but the temperature does not rise by 5 degrees. Heating is abnormal. Exit heating. 15 Check again after a few minutes whether to turn on heating.

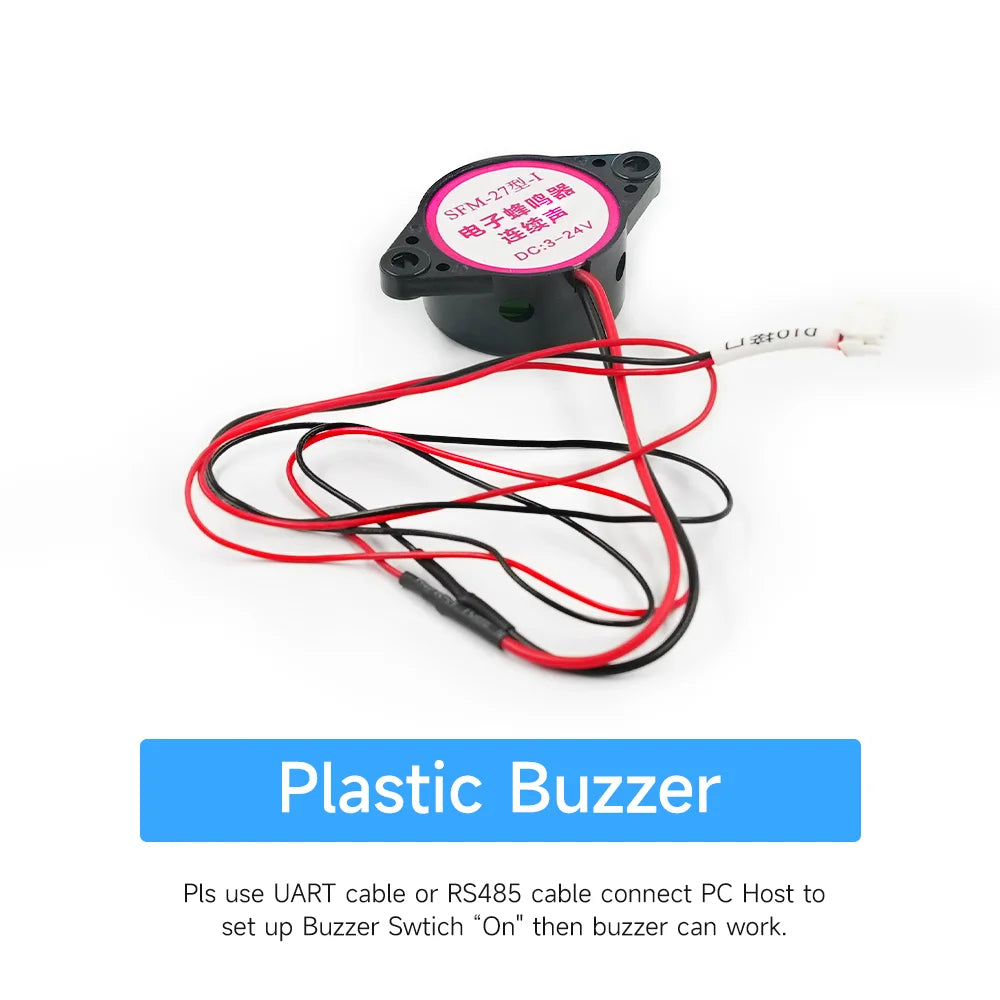

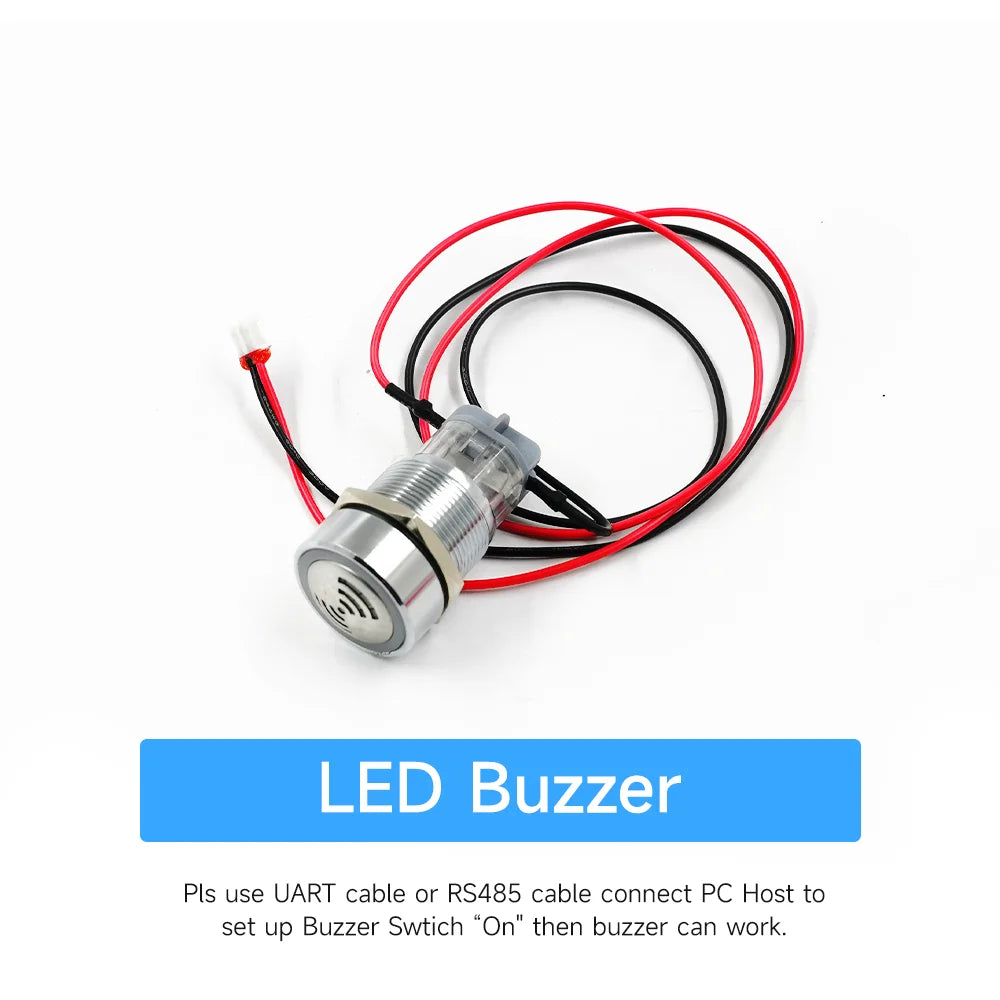

6 Buzzer Logic:

Standard version buzzer logic:

1). Power on or Bluetooth connection, buzz for 1 second.

2). Set parameters on PC host, buzz for 1 second.

3). Cut off other voltage, temperature, current, etc. except those that generate overcharge protection, MOS protection, buzz for 1 second

India Norms logic:

Thermal runaway fault keeps beeping. when the temperature is ≥ 60degree, the buzzer for 1 second and stops for 1 second until the temperature is ≤ 58. The buzzer stops.
