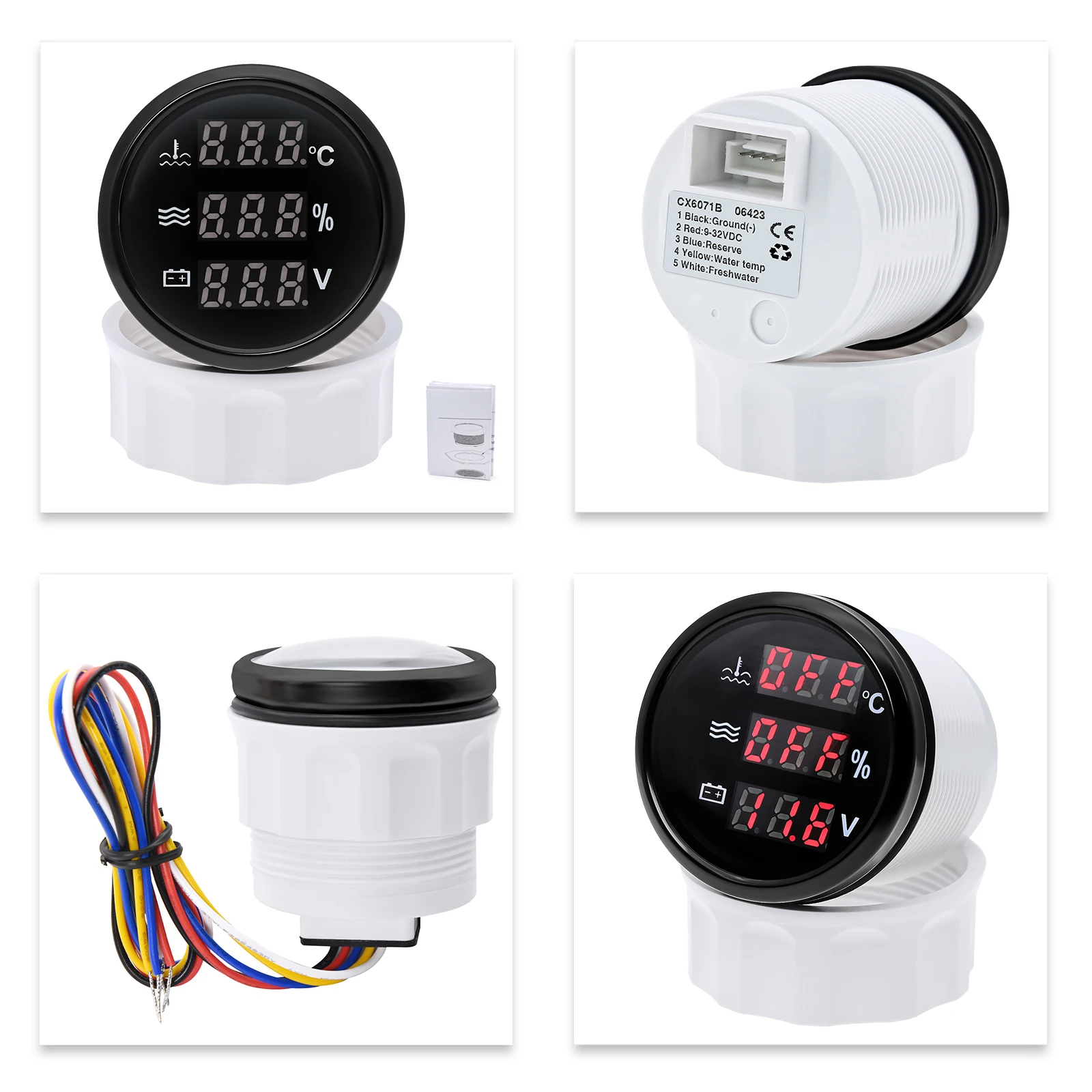

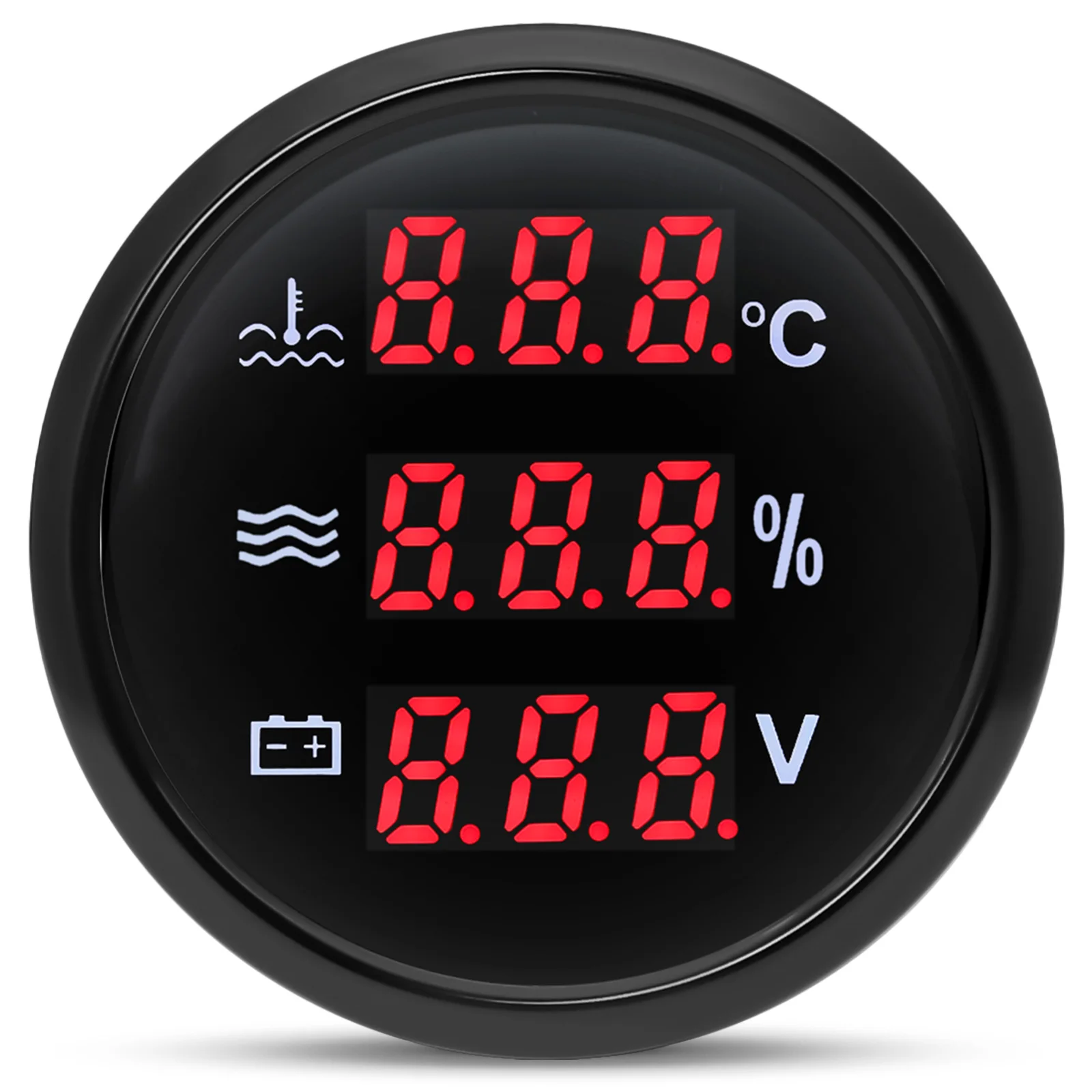

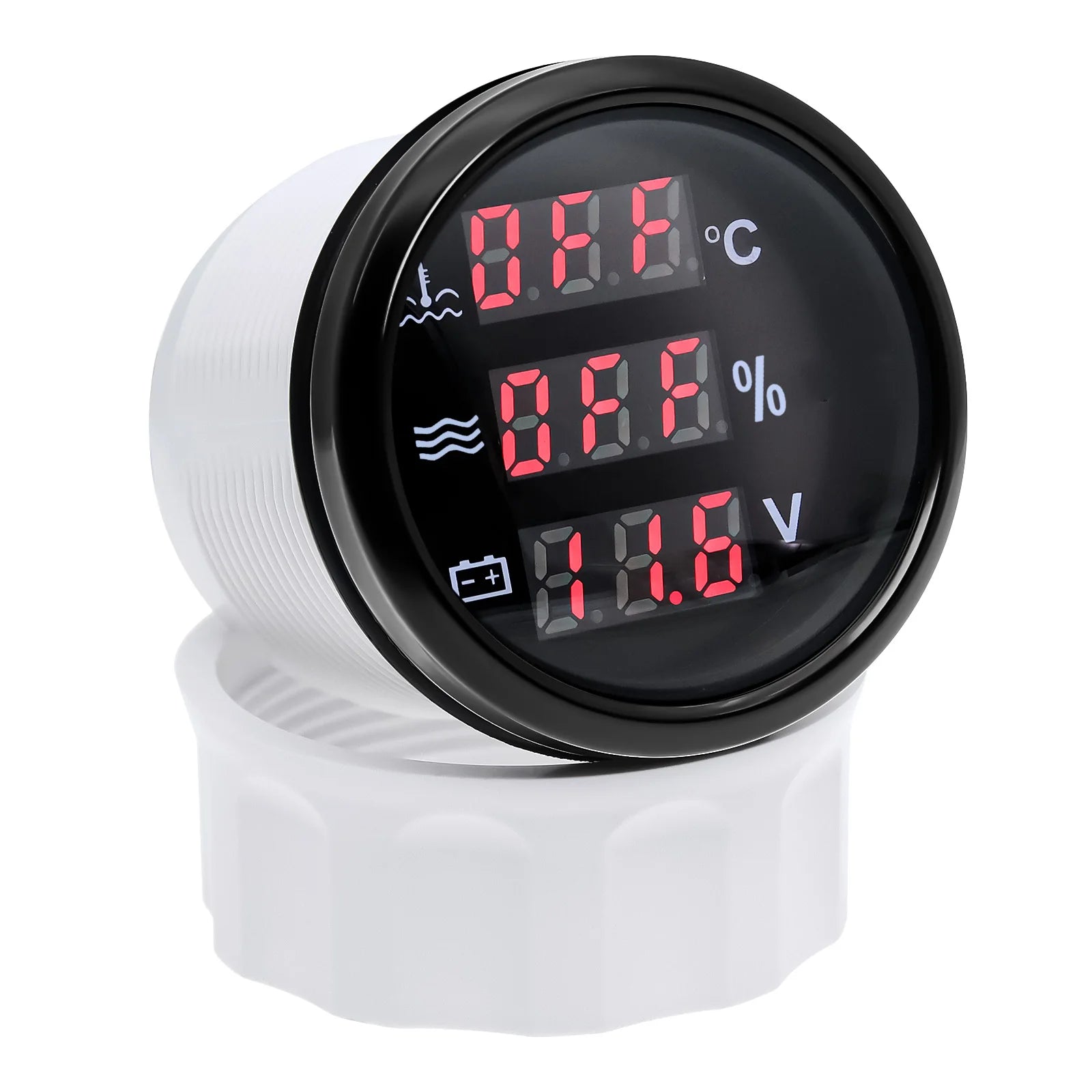

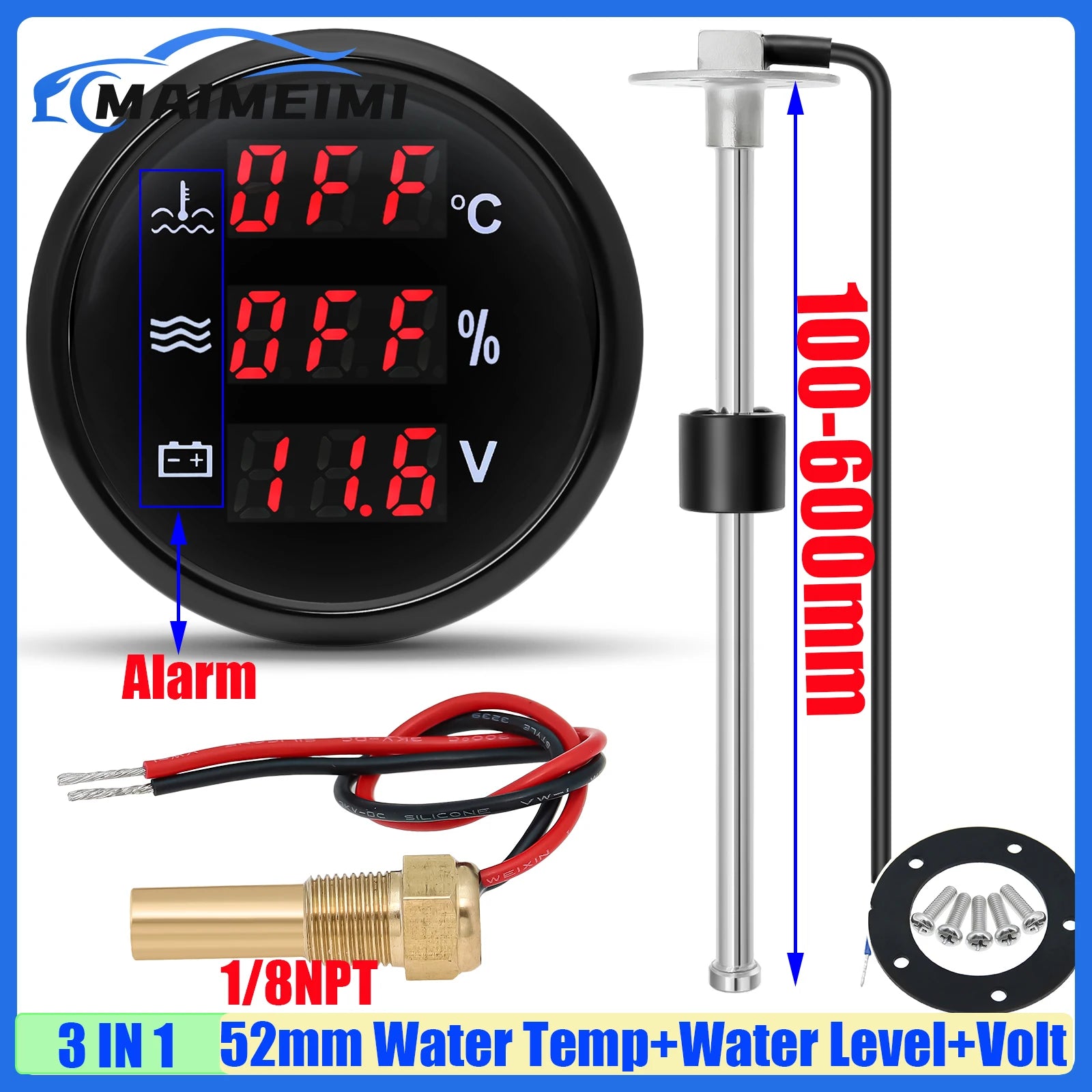

Feature:

- Fitment: for Universal Gasoline/Diesel Car Boat etc
- Operatingvoltage: 9~32VDC
- Operating current: ≤60mA
-Operating temperature: -20~ 70℃
- Storage temperature: -30~ 80℃
- Backlight Color: Red Light

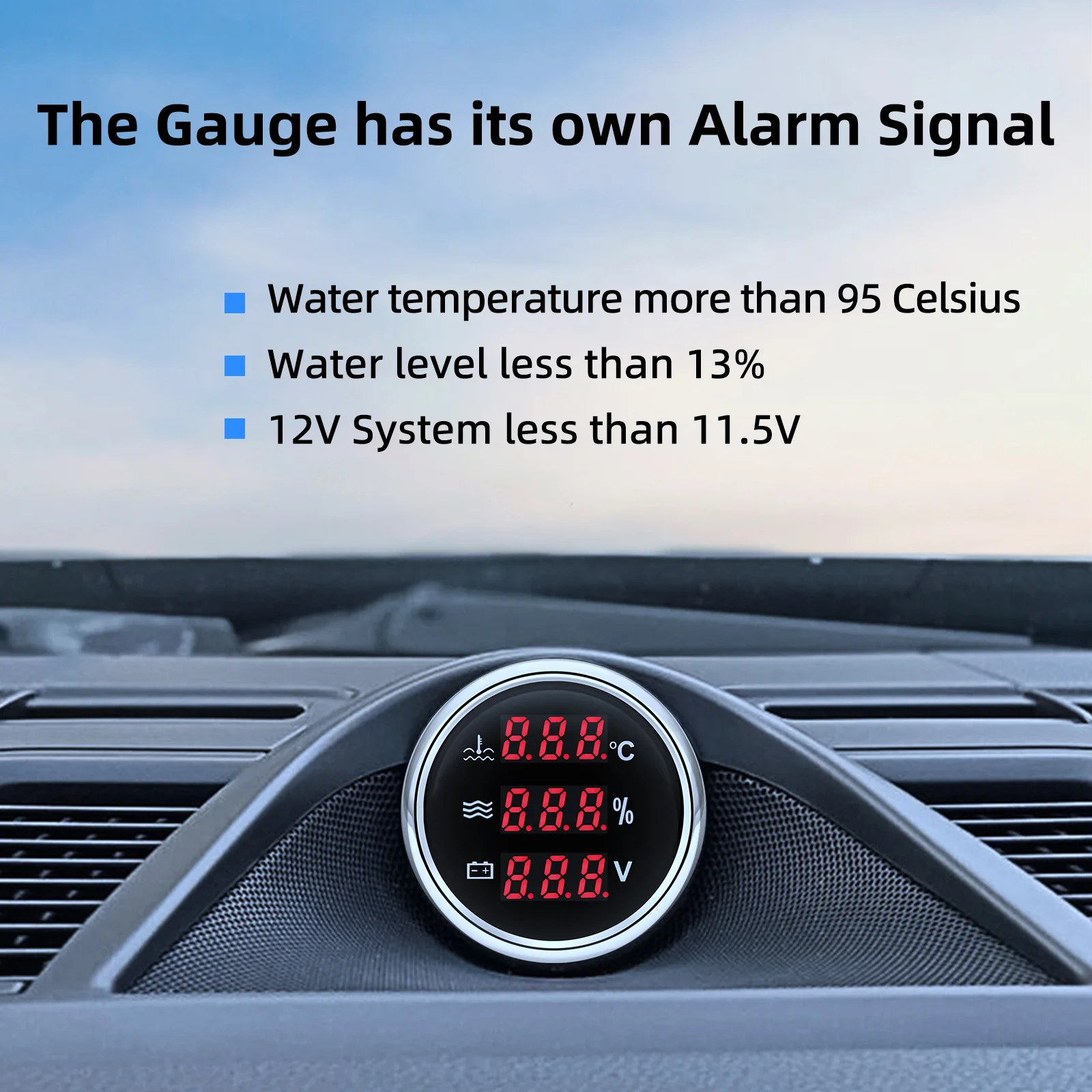

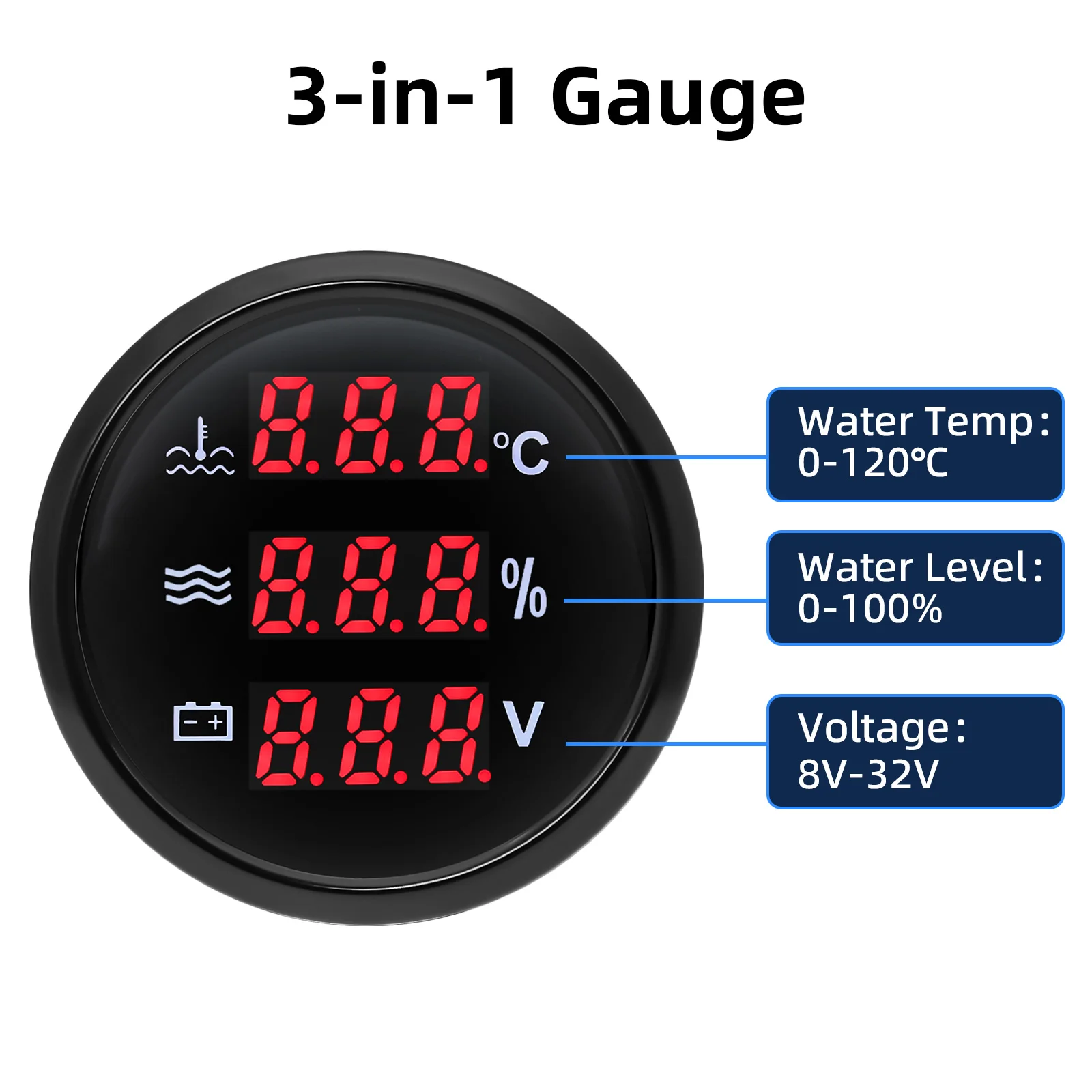

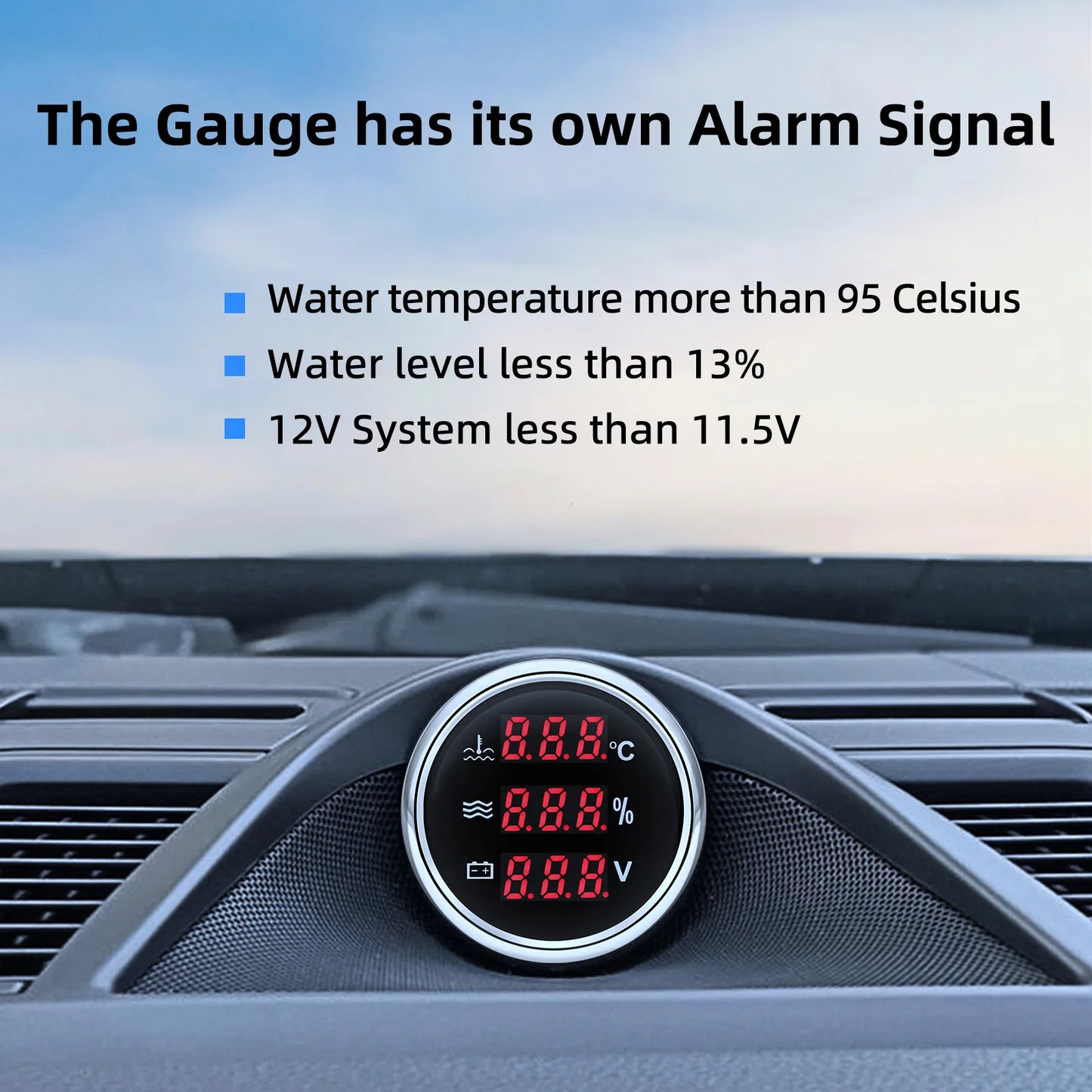

Alarm Set:

- Water Level Gauge Alarm: less than 13%

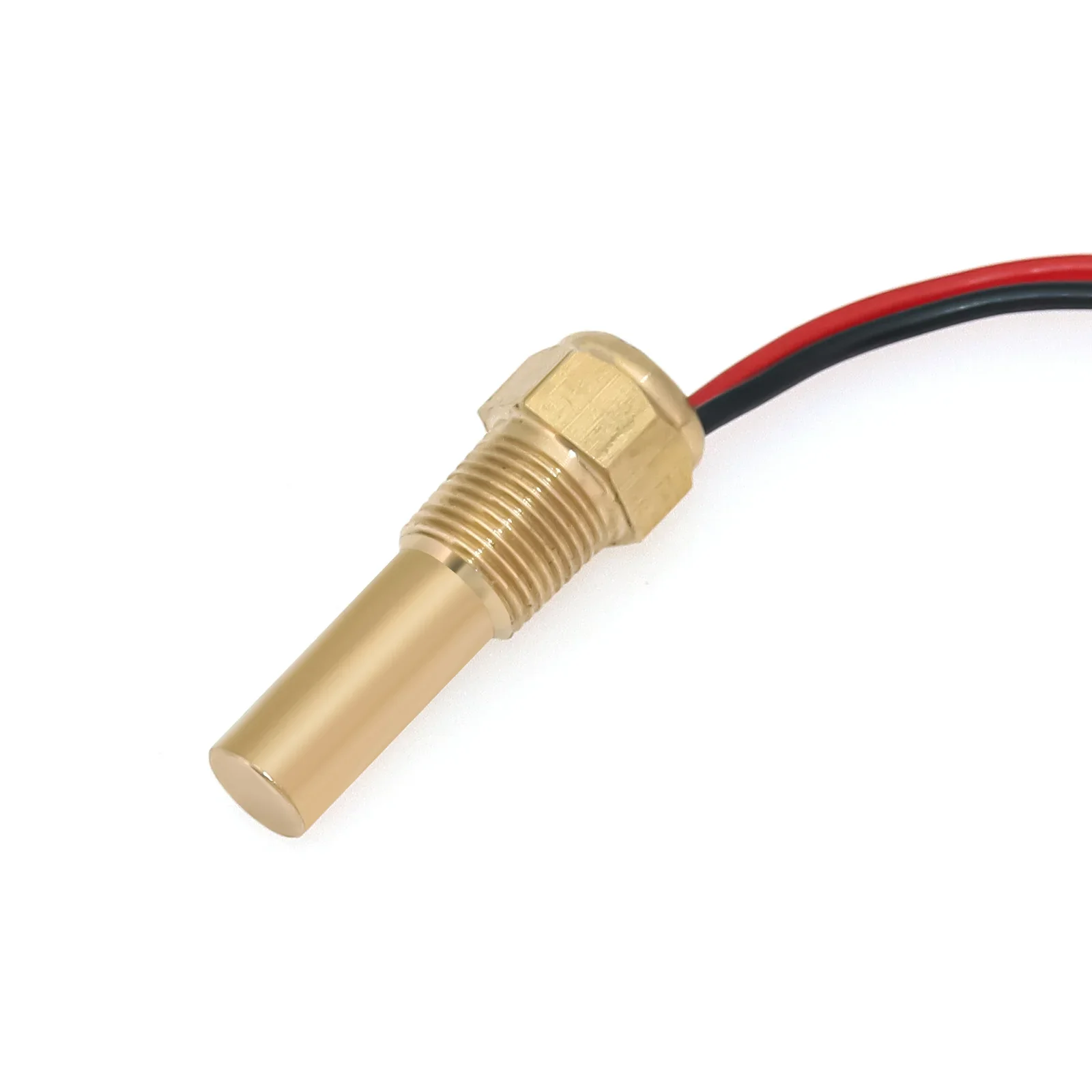

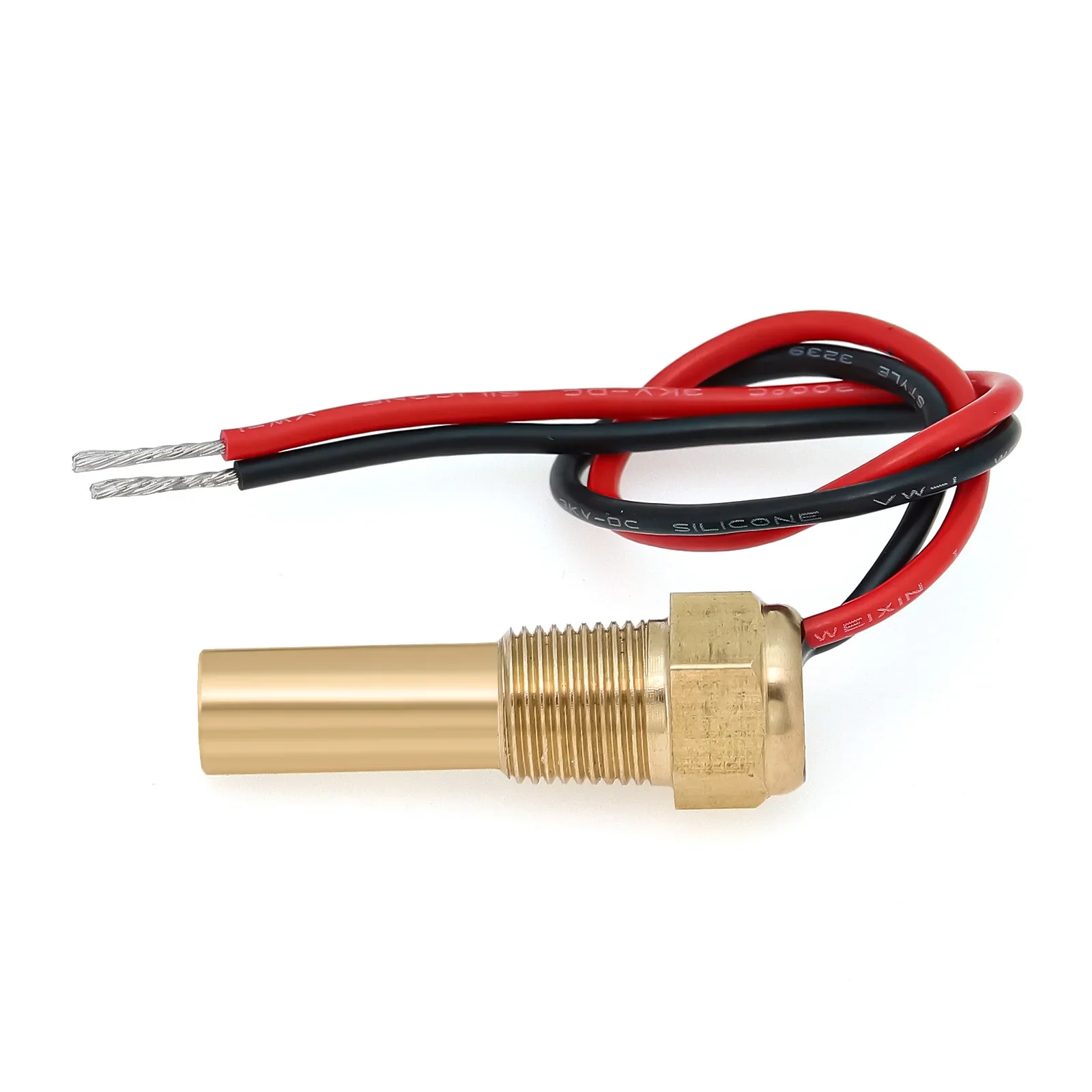

- Water Temp Gauge Alarm: more than 95 Celsius
- Voltage Alarm:12v System less than 11.5V,24v System less than 22V.

Using operation:

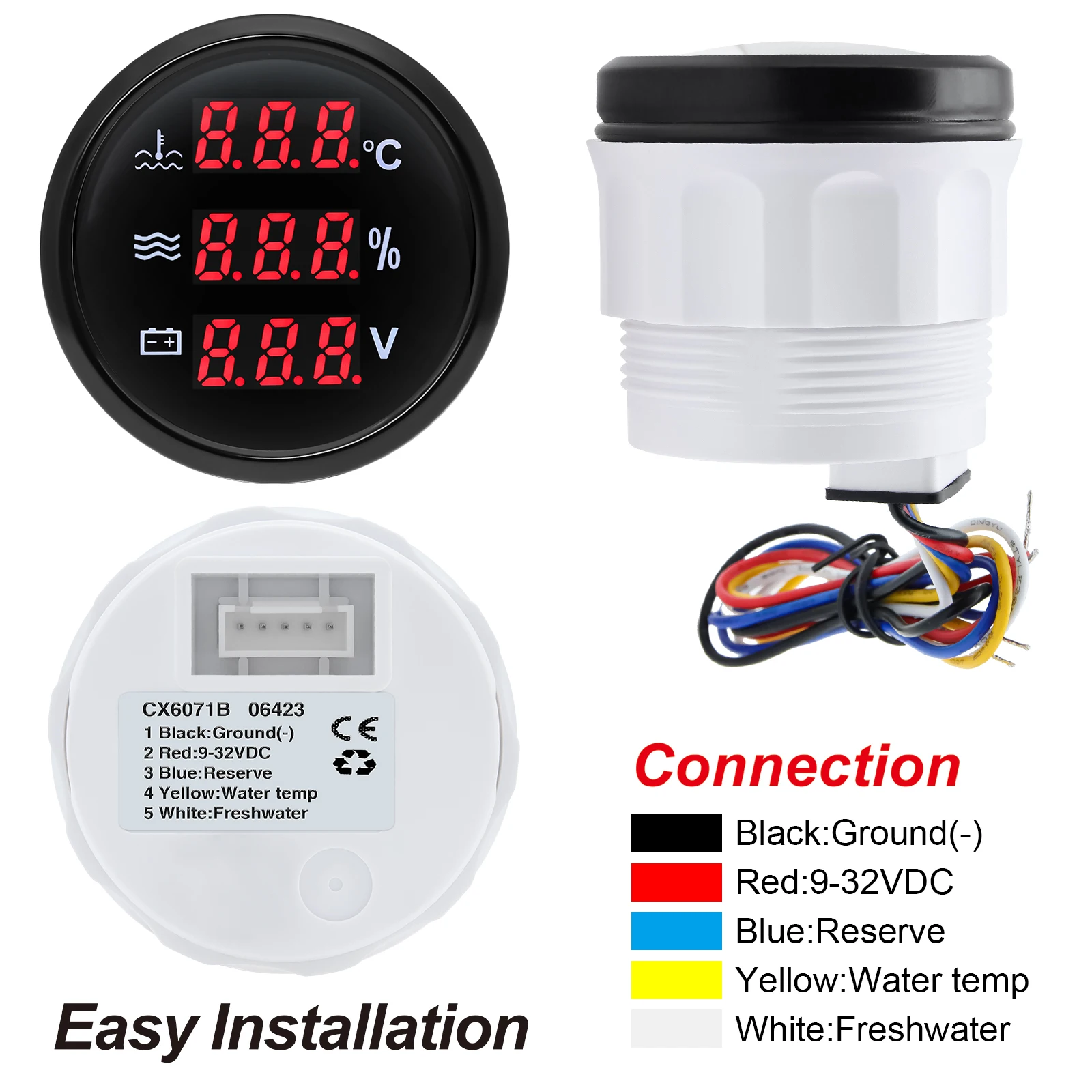

1.①,③model gauge , level sensor :②model gauge, level sensor:Default input signal is 0~190ohm when Switch connect to Ground input signal is 240~33ohm.

2. Default input signal is 0~190ohm when Blue,Yellow and White are connect to Ground 3 seconds,input signal is 240~33ohm.

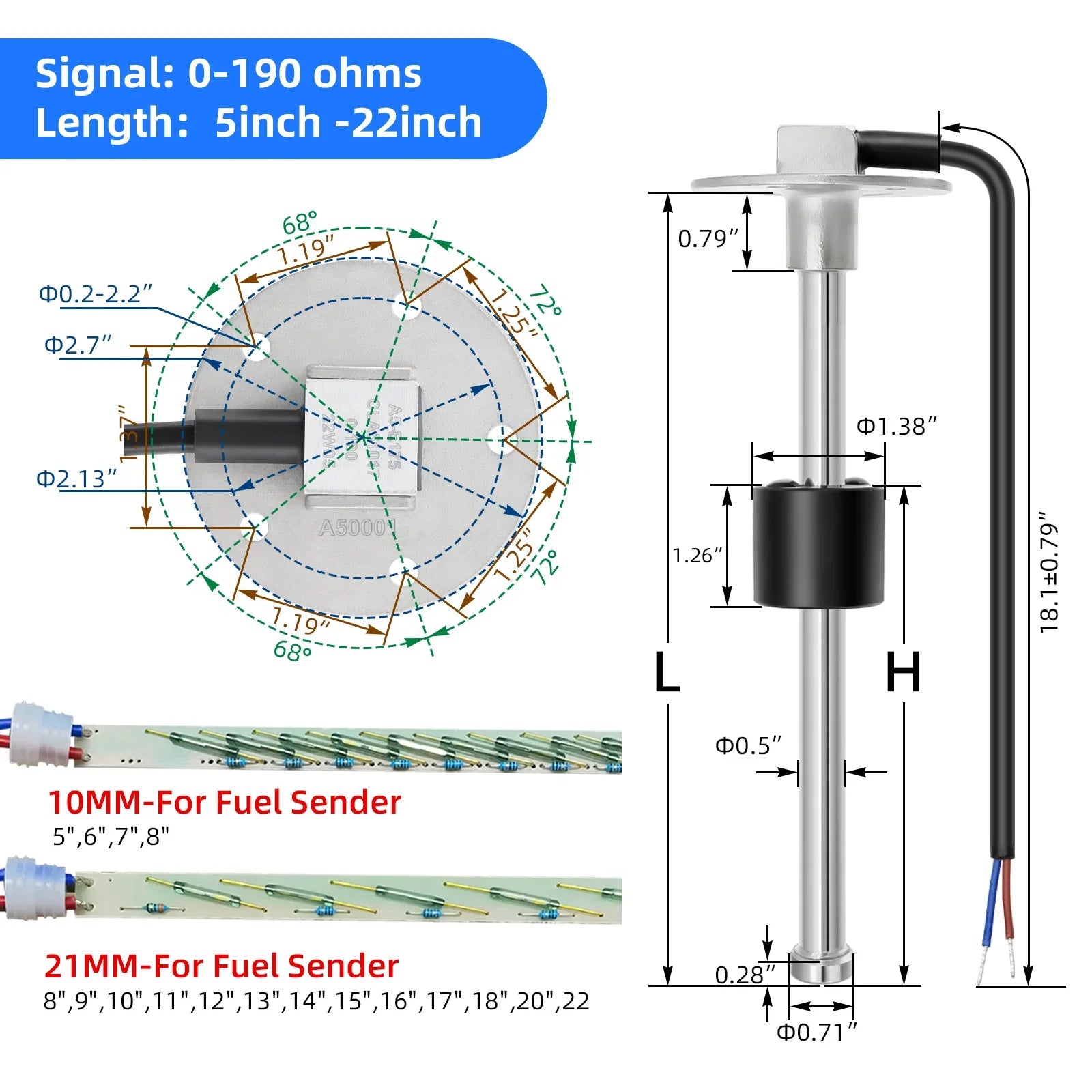

Specification:

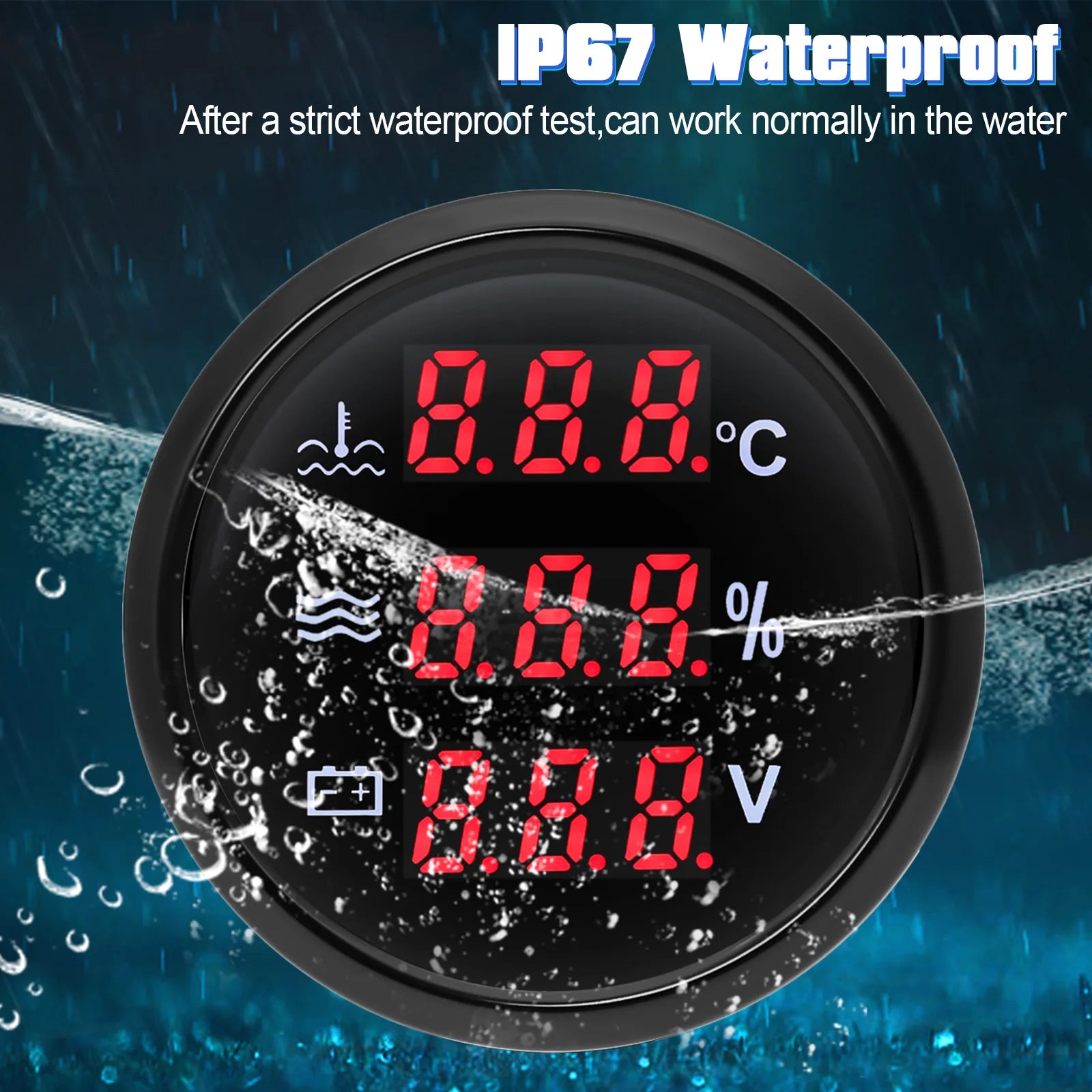

- Protection ank: IP67
- Resolution range: 21 mm
- Assembly: SAE standard 5 holes
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius

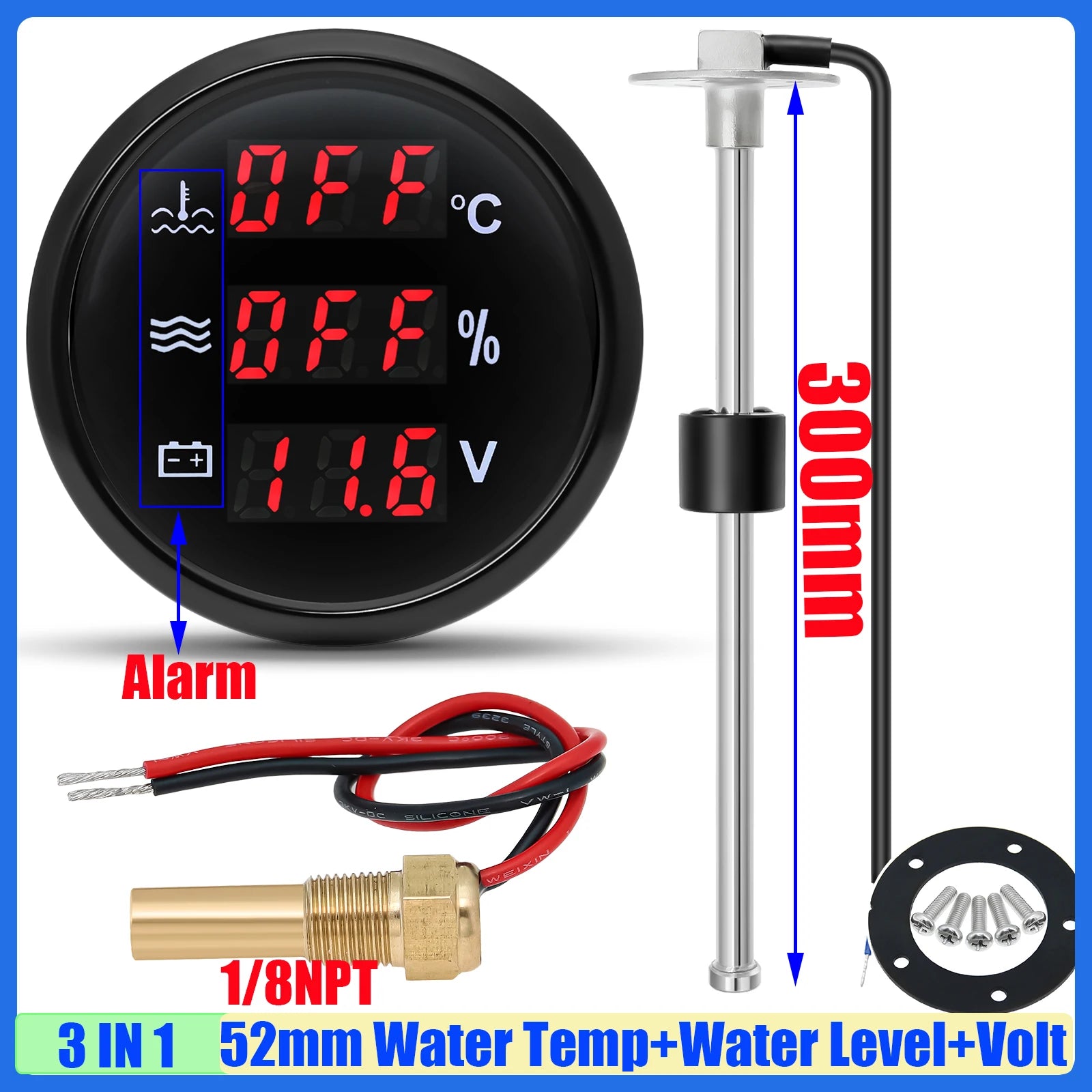

- Fit for Fuel Level Gauge and Water Level Gauge

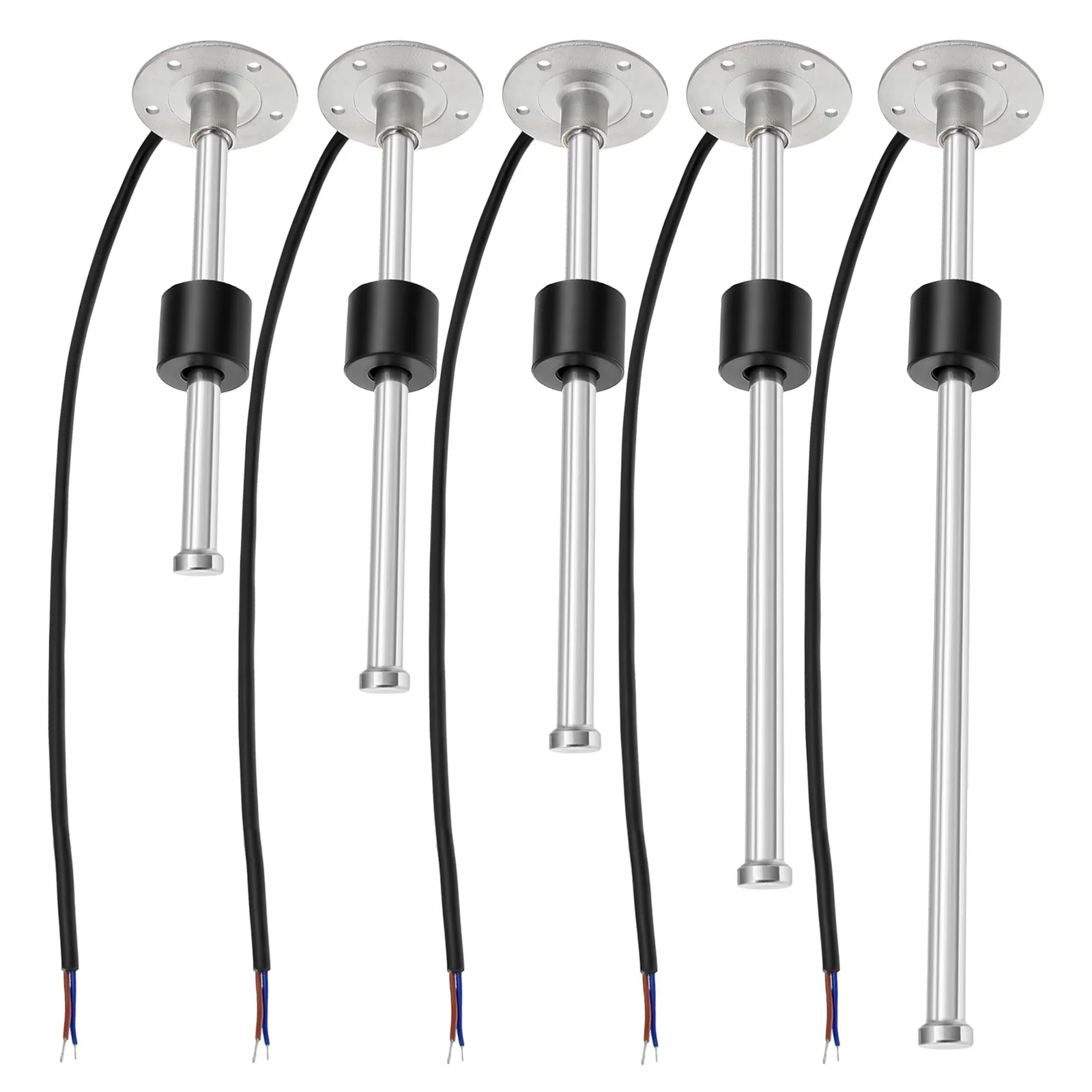

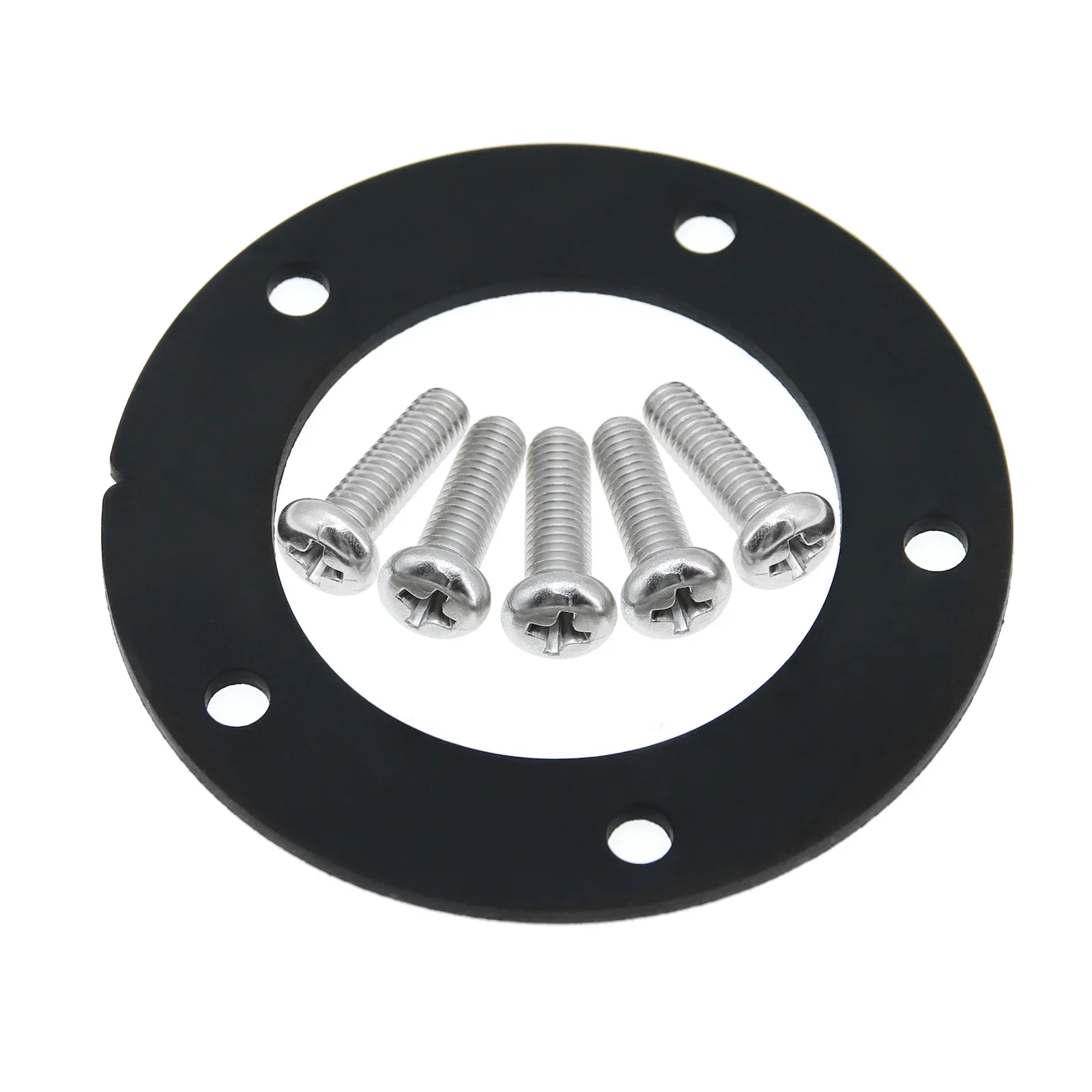

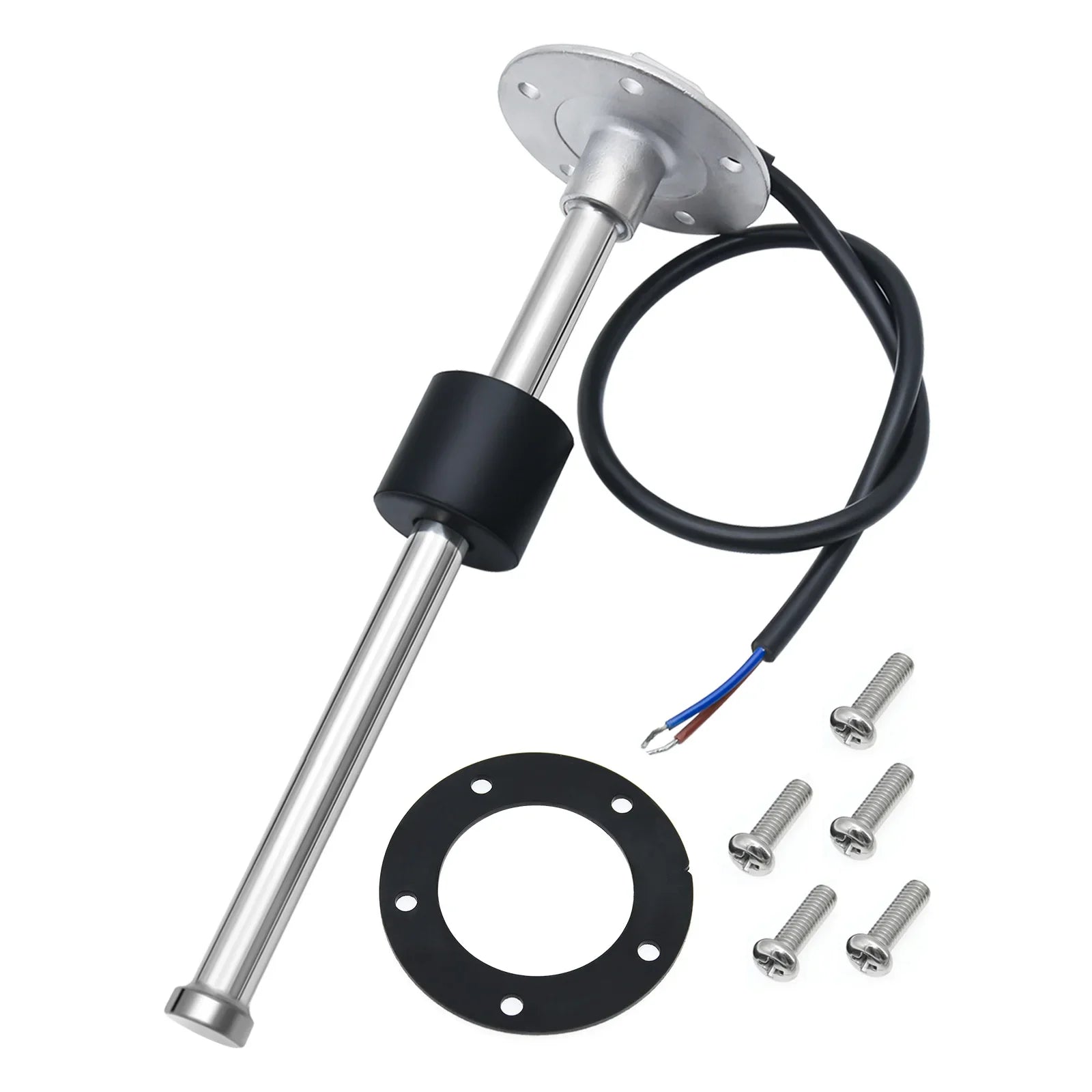

- Sensor Length :150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm - Mounting: 5 pieces of M5 screws and 2 mm thick gasket
- Output signal: 0~190 ohm (Standard European),
fit for water /Fuel Level Gauge: 0-190ohm
- Fitment: for Gasoline, diesel, methanol fuel, ethanol fuel
- the blue wire of sensor is connect the Ground line,
- the brown wire of sensor is connect the gauge

Attention:

- Empty oil level : 0 ohm /
- Full oil level : 190 ohm

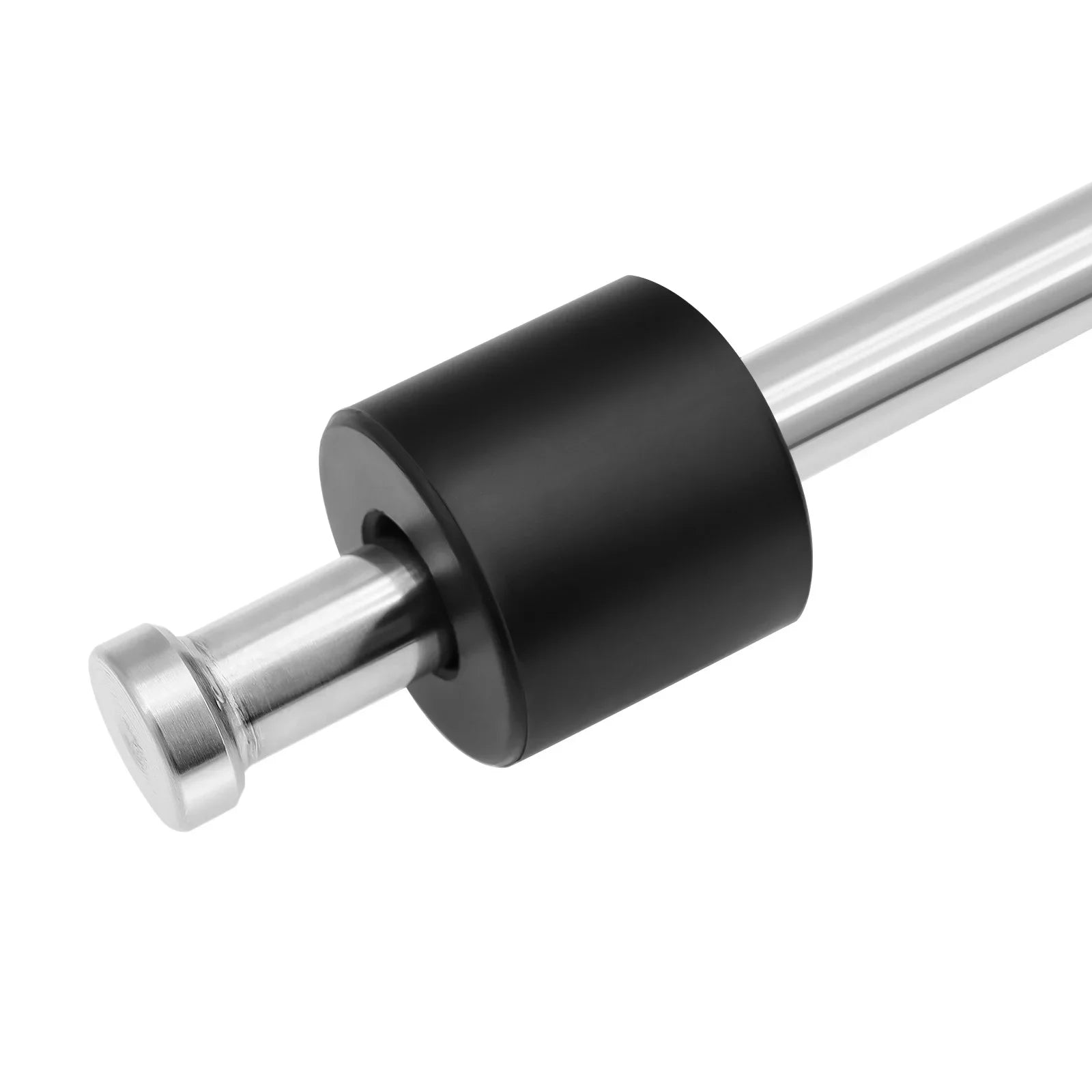

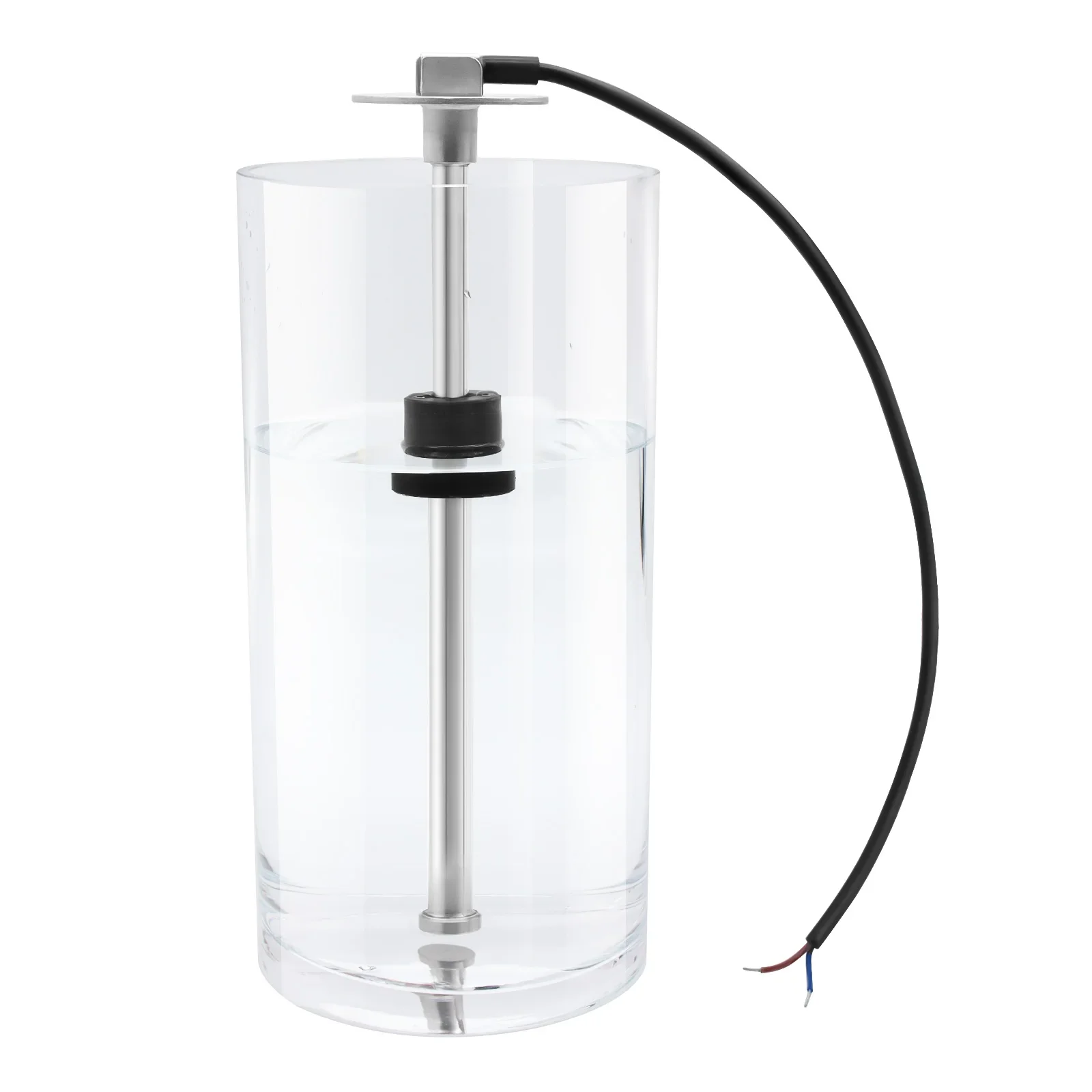

- When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~
