RCCB RCD DC Electric Vehicle EV Charging Pile Residual Current breaker 2P 63A 30mA Type B 10KA Din Rail Earth Leakage TONGOU
RCCB RCD DC Electric Vehicle EV Charging Pile Residual Current breaker 2P 63A 30mA Type B 10KA Din Rail Earth Leakage TONGOU
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore

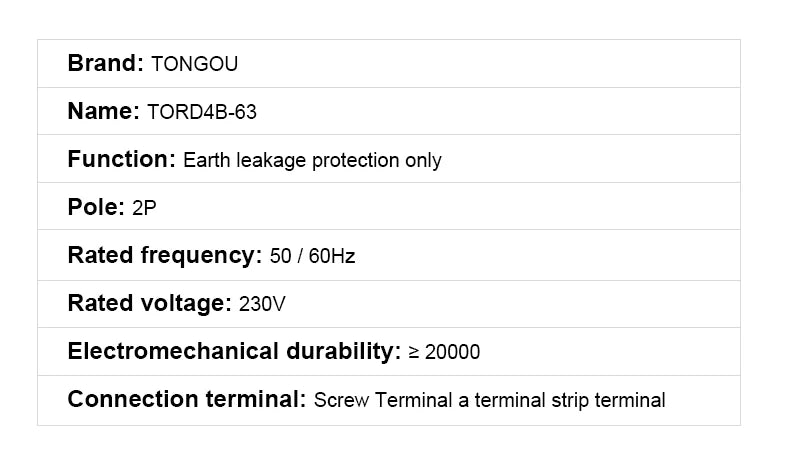

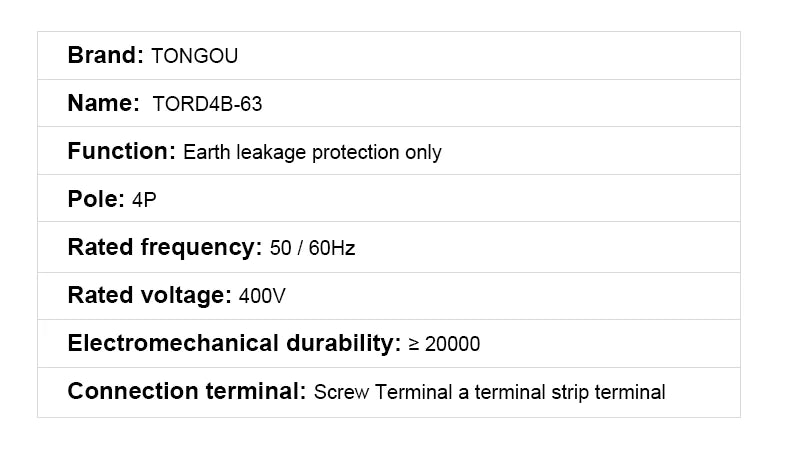

SPECIFICATIONS
Brand Name: TONGOU
Breaking capacity: 10 KA
Certification: CE,CE
Choice: yes

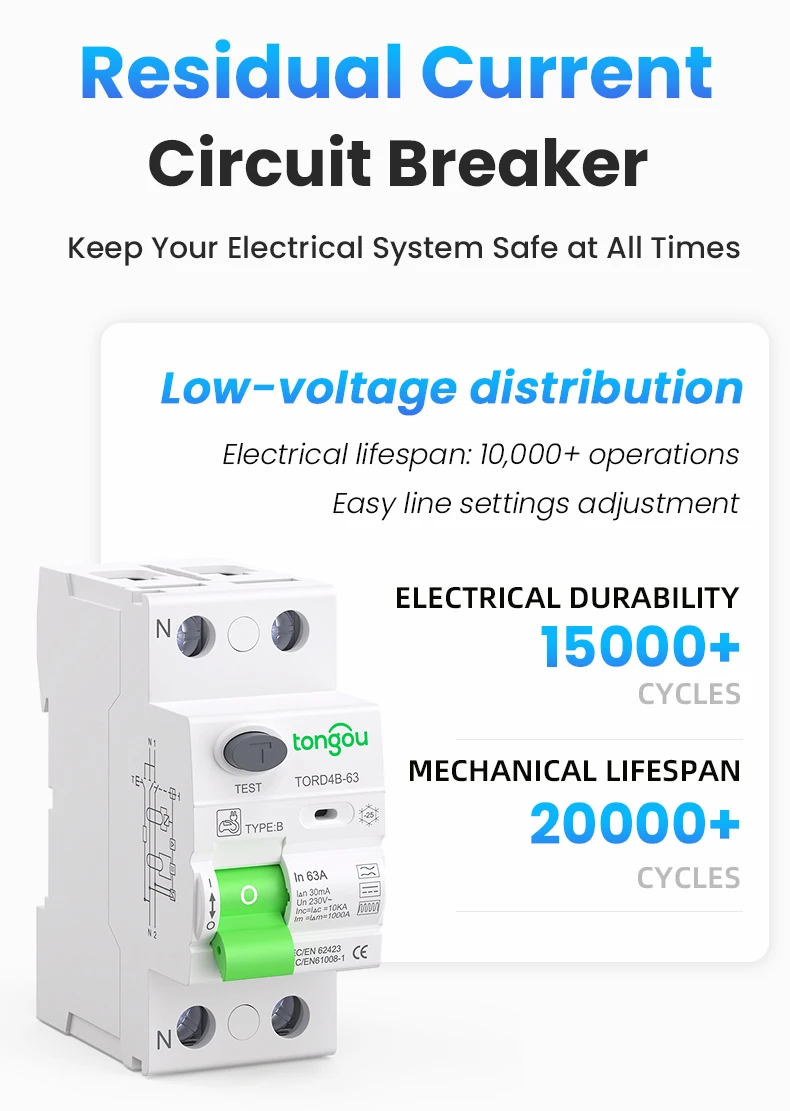

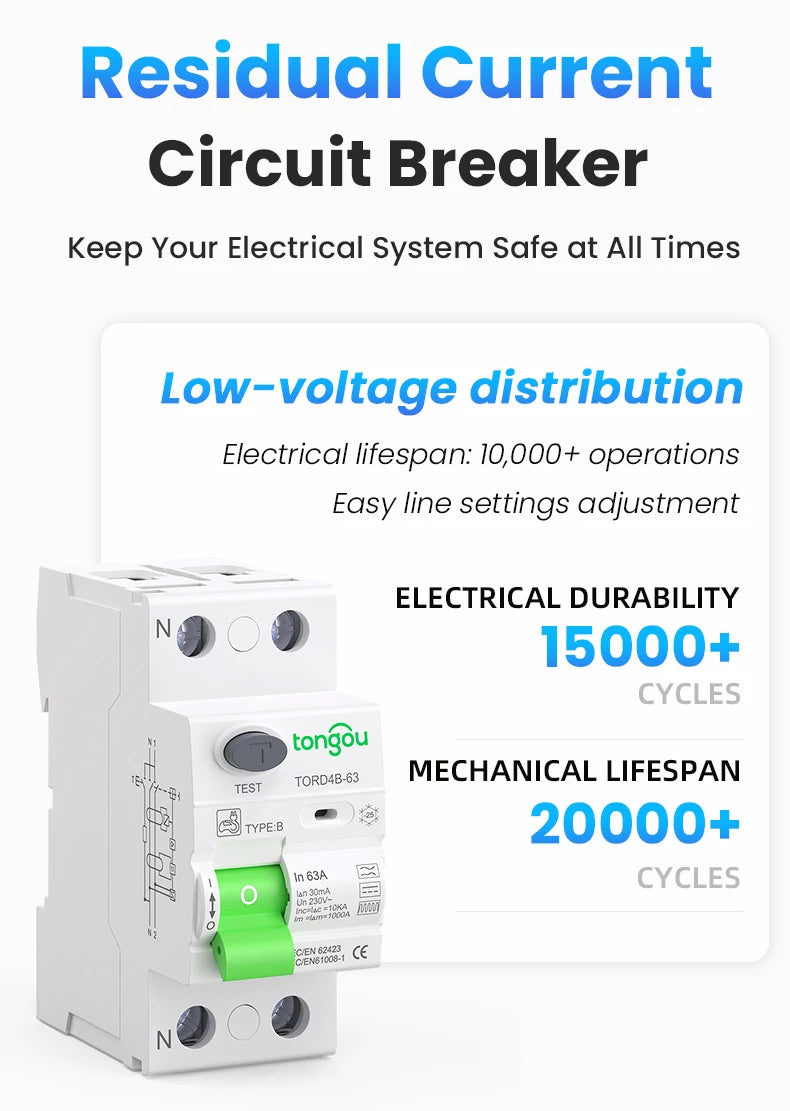

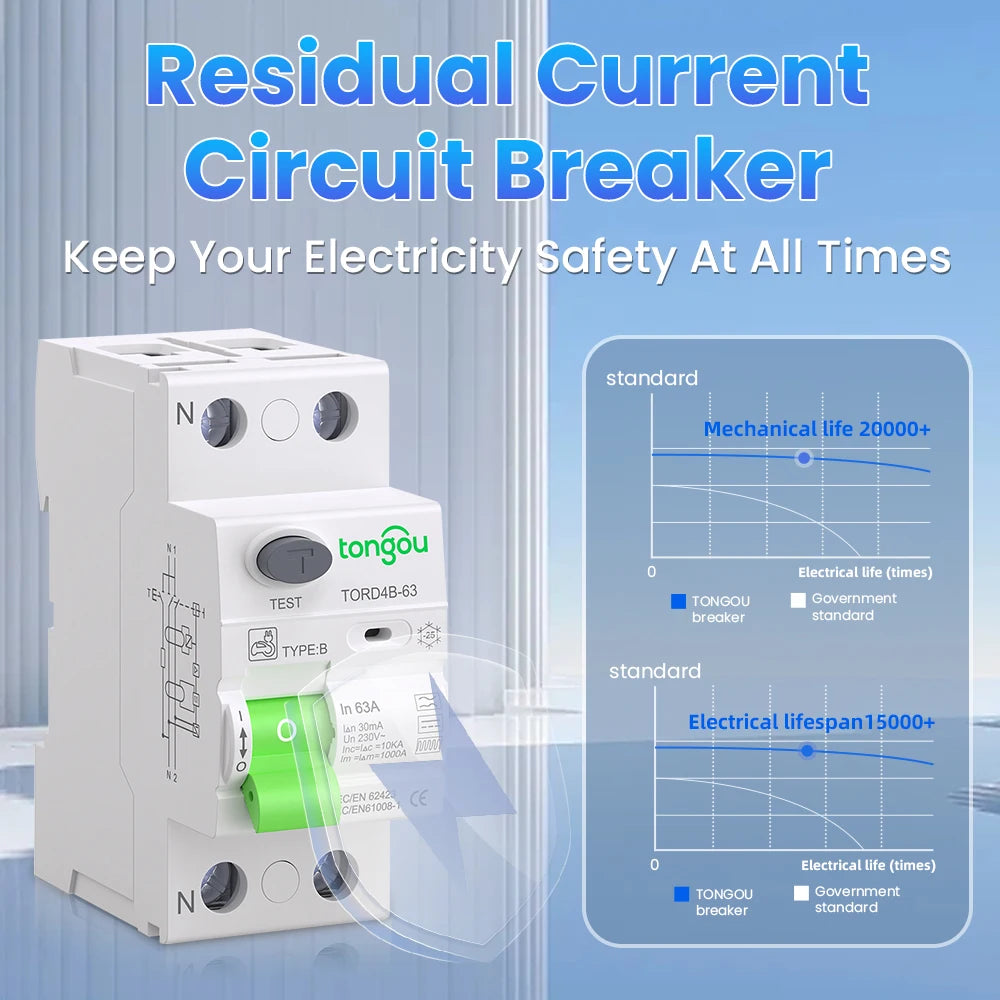

Electro-mechanical endurance: More than 15000 cycles
Hign-concerned Chemical: None
Model: Electromagnetic Type
Model Number: TORD4B-63
Origin: Mainland China
Rated frequency: 50/60Hz
Rated residual operating current: 30 mA
Rated voltage: 230V/400V
Residual Current characteristic: B type
Type: Earth Leakage
semi_Choice: yes
General
Please note this is an RCCB (Residual Current Circuit Breaker) which provides leakage protection only. It does not include short-circuit protection. For complete protection including both leakage and short-circuit protection, please select our RCBO model (TOBD6)
-
Tips: 30mA, 100mA, 300mA is electromagnetic type, 10mA is electronic type.10mA cannot be tested with 5V battery.

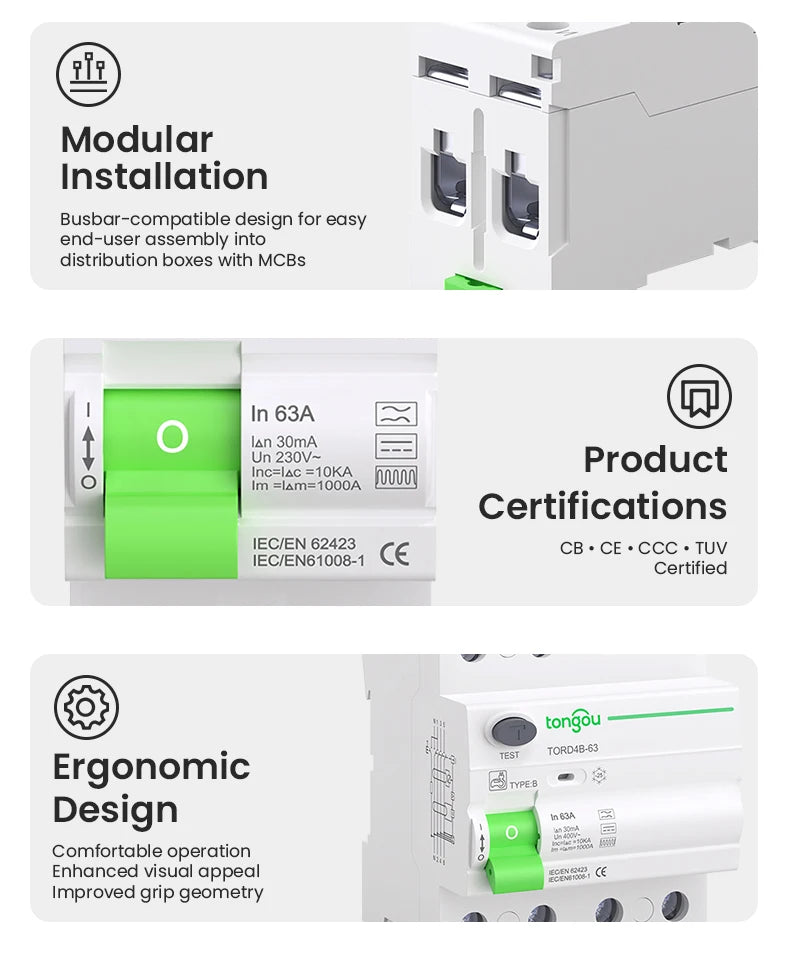

There is a wiring diagram above the test button, please follow the it. The power supply must enter from the top and output from the bottom. The neutral line on the left and the live line on the right.
The default rated voltage of the product is 230V, (110V needs to be customized, please contact customer service)

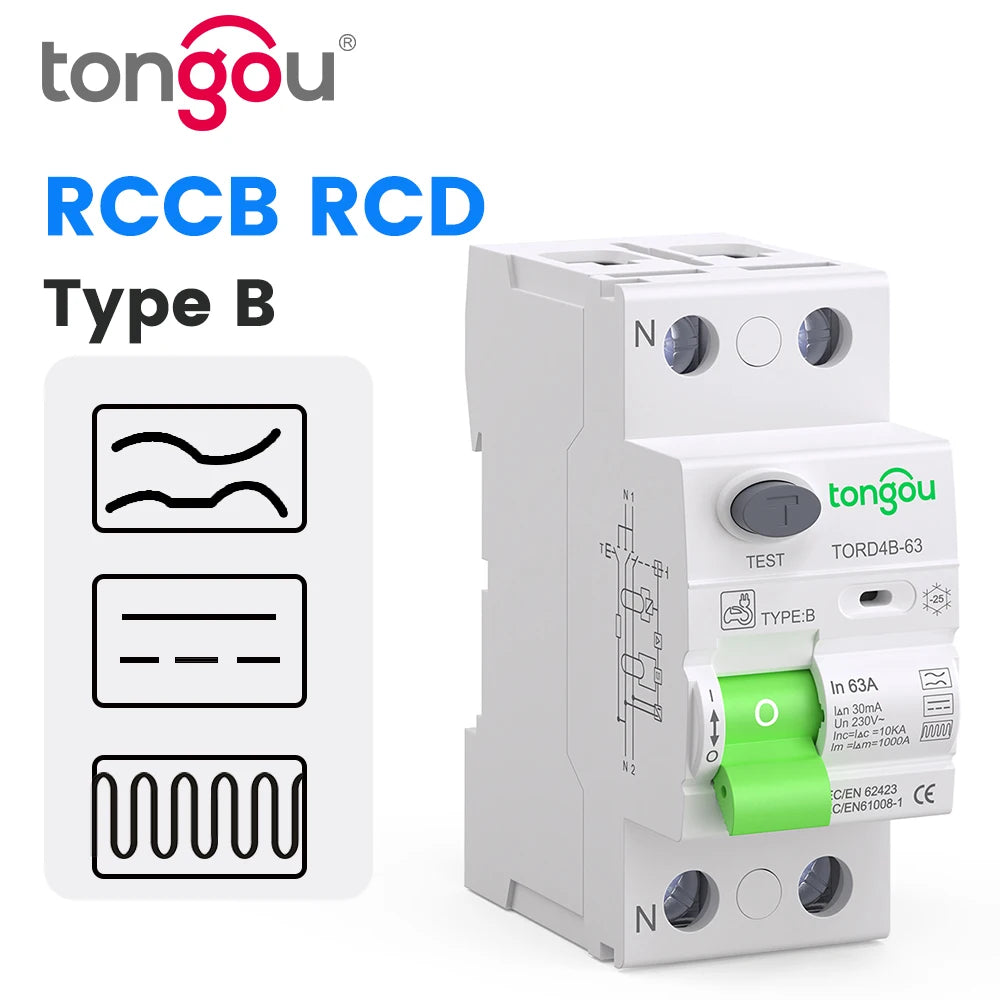

This is B Type Residual Current Circuit Breaker
-
Type B RCCBs, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire and/or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct type of RCCB.
View 'B' Type
-

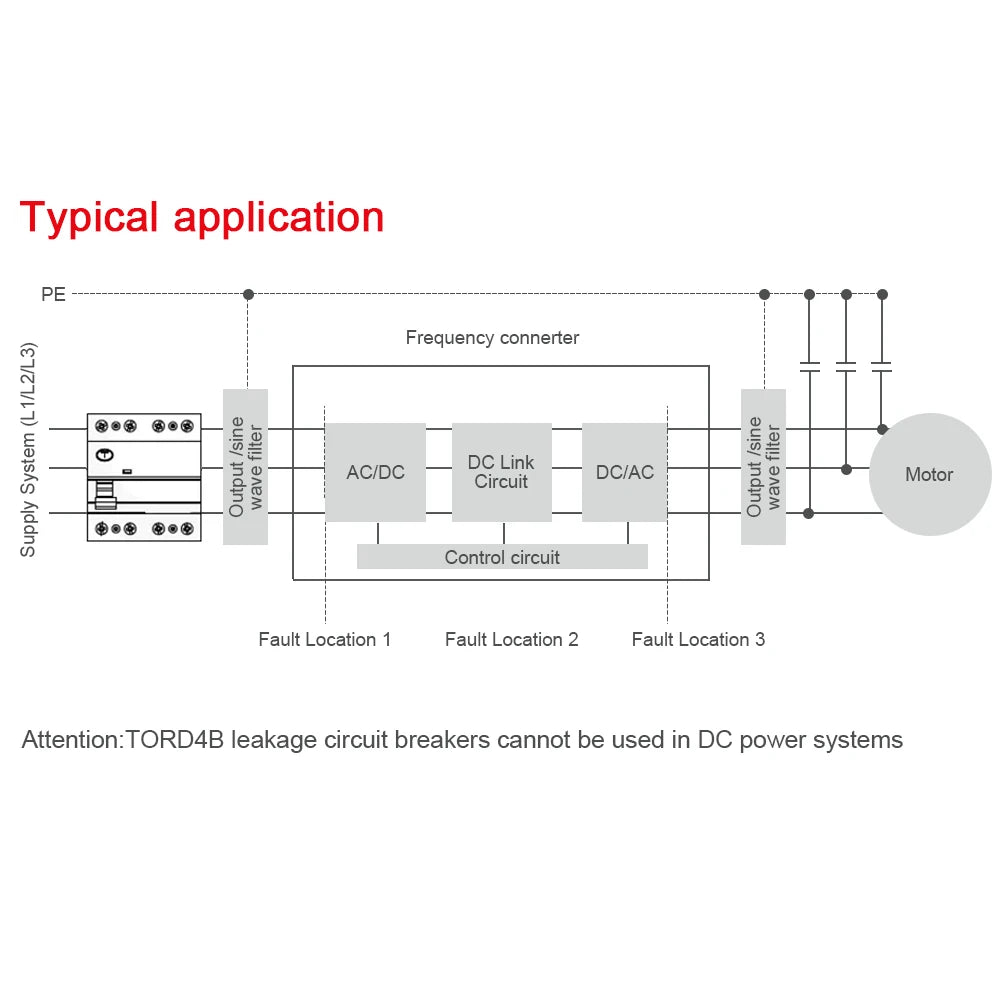

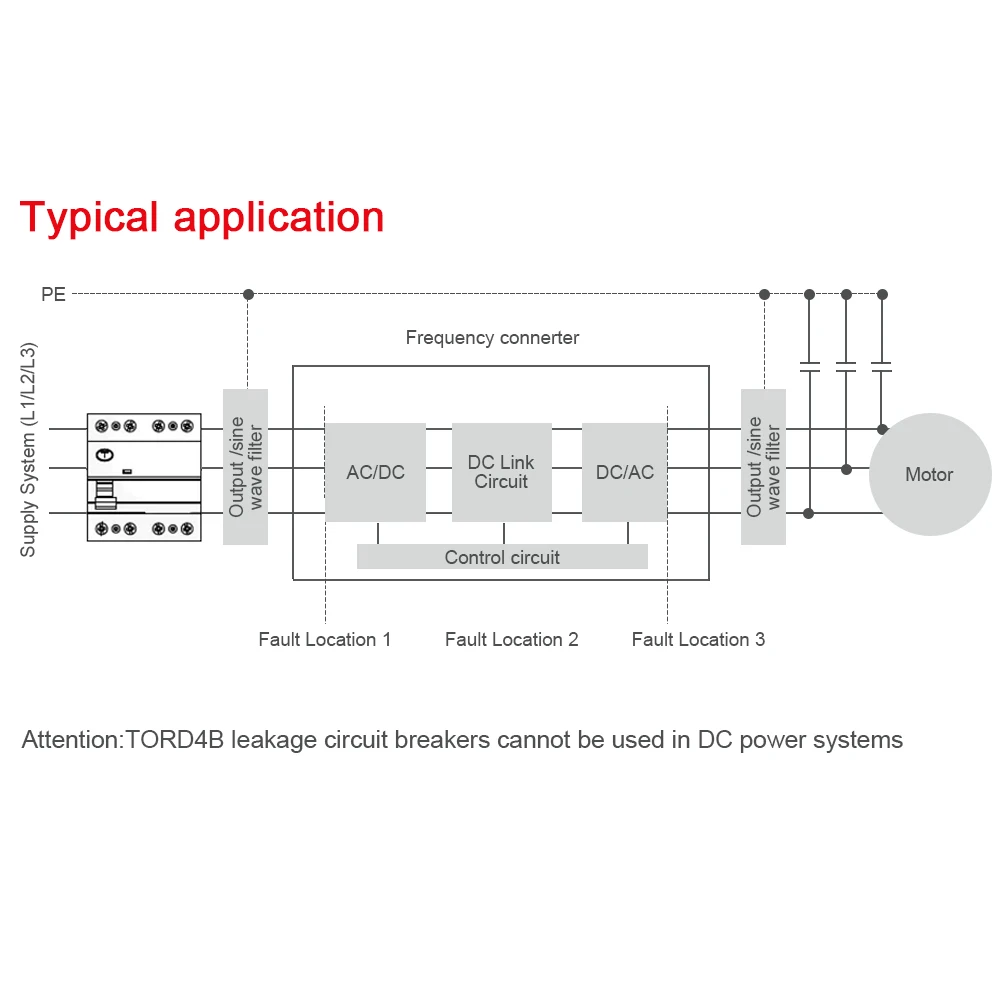

EV & PV installationsFrequency convertersUPS installationsHigh-frequency power convertersBuilding site power supply cabinets1.1 Function
-
Control electric circuits.Protect people against indirect contacts and additionalprotection against direct contacts.Protect installations against fire hazard due to insulation faults.Residual current circuit breakers are used in housing, tertiarysector and industry
-
1.2 SelectionDetectable wave formB classTripping is ensured for sinusoidal AC residual currents pulsed DCresidual currents,alternatingresidual sinusoidal currents up to1000Hz, pulsating direct residualcurrents and for smooth directresidual currents, whether applied suddenly or increasing slowly.Tripping sensitivity30mA -additional protection against direct contact.Tripping timeInstantaneous
It ensures instantaneous tripping (without time- delay).
