PowMr 60A MPPT Solar Charge Controller 3 Stages Charging for 12V 24V 36V 48V Battery 160VDC Solar Panel Can Parallel 12 Units
PowMr 60A MPPT Solar Charge Controller 3 Stages Charging for 12V 24V 36V 48V Battery 160VDC Solar Panel Can Parallel 12 Units
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

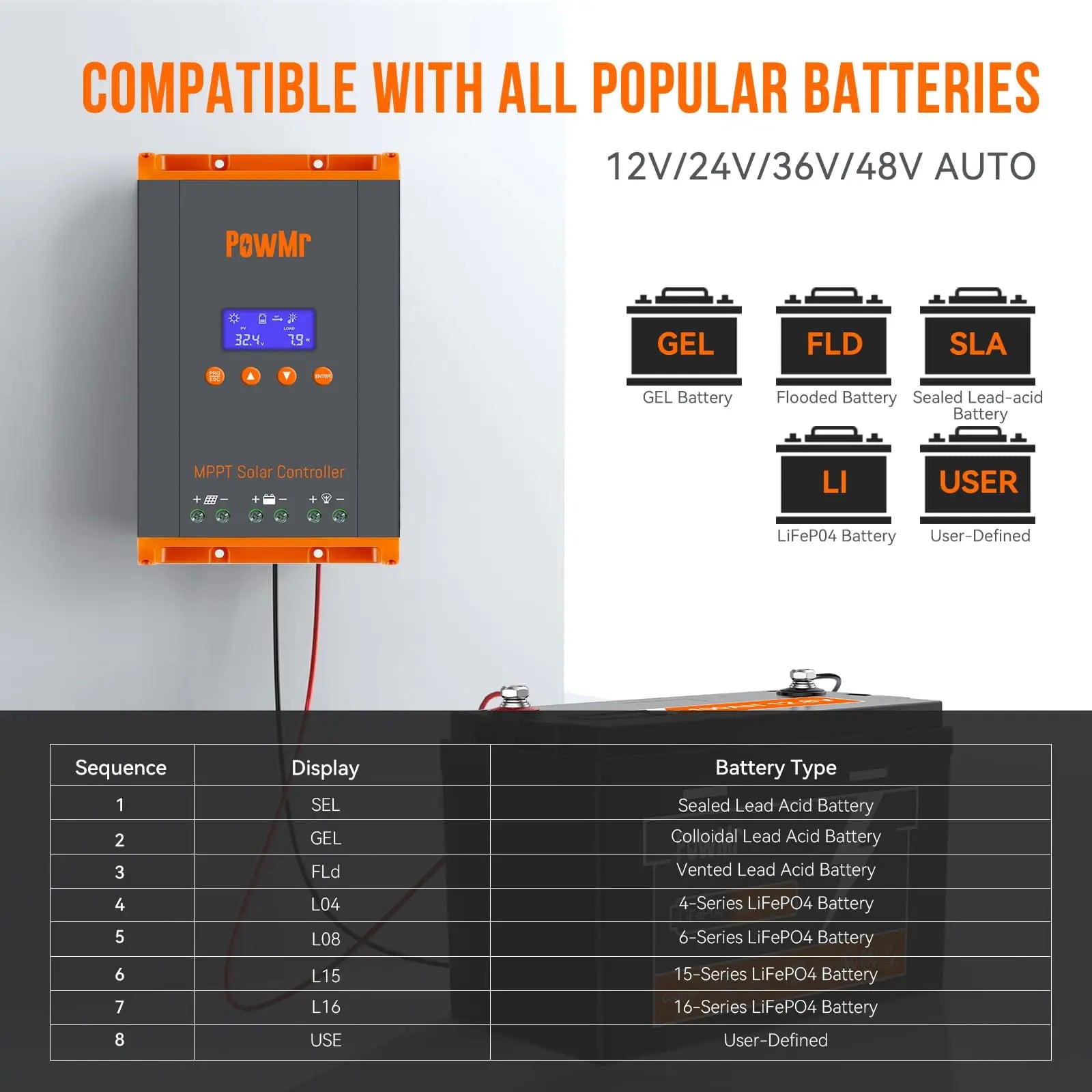

Battery Type: Venting/Sealed/Gel/NiCd/LED Acid/ Lithium Battery, Etc
Brand Name: PowMr
Certification: CE
Charging mode: MPPT Maximum Power Point trackling Automatically
Cool way: Forced Air cool
Dispaly: LCD Controller back light
Feature: No-VAT, No-TAX

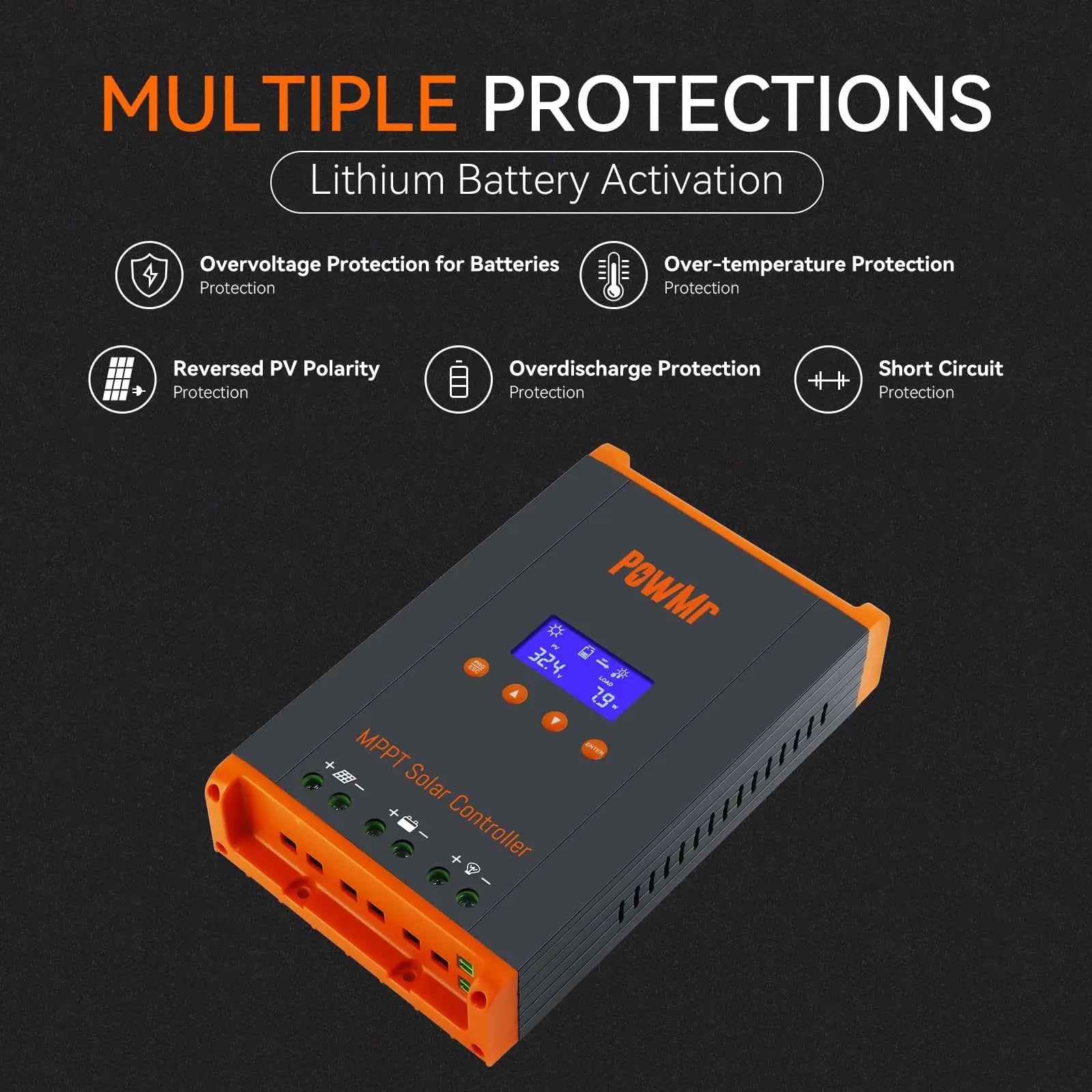

For home: Easy To Be Mounted With Overcharge protection, Input PV polarity reverse protection, all-Limited Protection
Is Smart Device: Yes
Item: Power Mr MPPT Solar Charge Controller 60A
Local shopping: 3-7 Days Delivery
Maximum Current: MPPT 60A
Model Number: HHJ60-PRO
Origin: Mainland China
Original Product: Stock in Gemany store
PV utilisation: ≥ 99% For 100% MPPT Technology
Product: MPPT Solar Charge Controller
is_customized: Yes



PowerMr 60A MPPT Solar Charge Controller 3 Internships Charging for 12V 24V 36V 48V Battery 160VDC Solar panel Can Parallel 12 Units
Introduction:
Our HHJ series solar controllers are superior for a wide range of solar energy applications. We offer a user-friendly custom open-program configuration interface, making the configuration process of solar energy systems quicker and smoother. It also empty more possibilities for expanding solar energy systems. Whether you are setting up a small-scale residential standard solar system or expanding your solar energy project, the HHJ series solar controller will be an essential partner.
Feature:
⚫Integrated Charging Presets
⚫Versatile Application

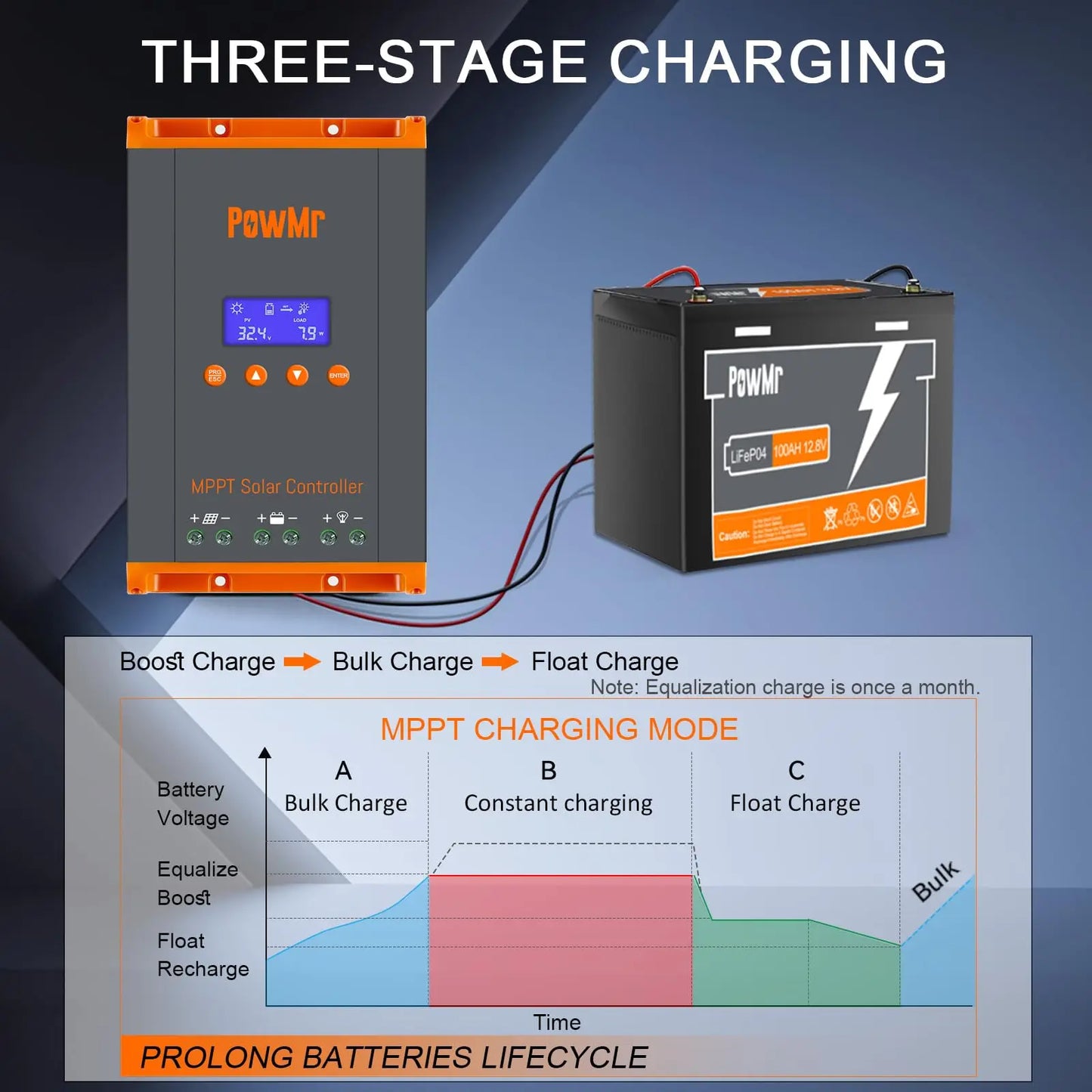

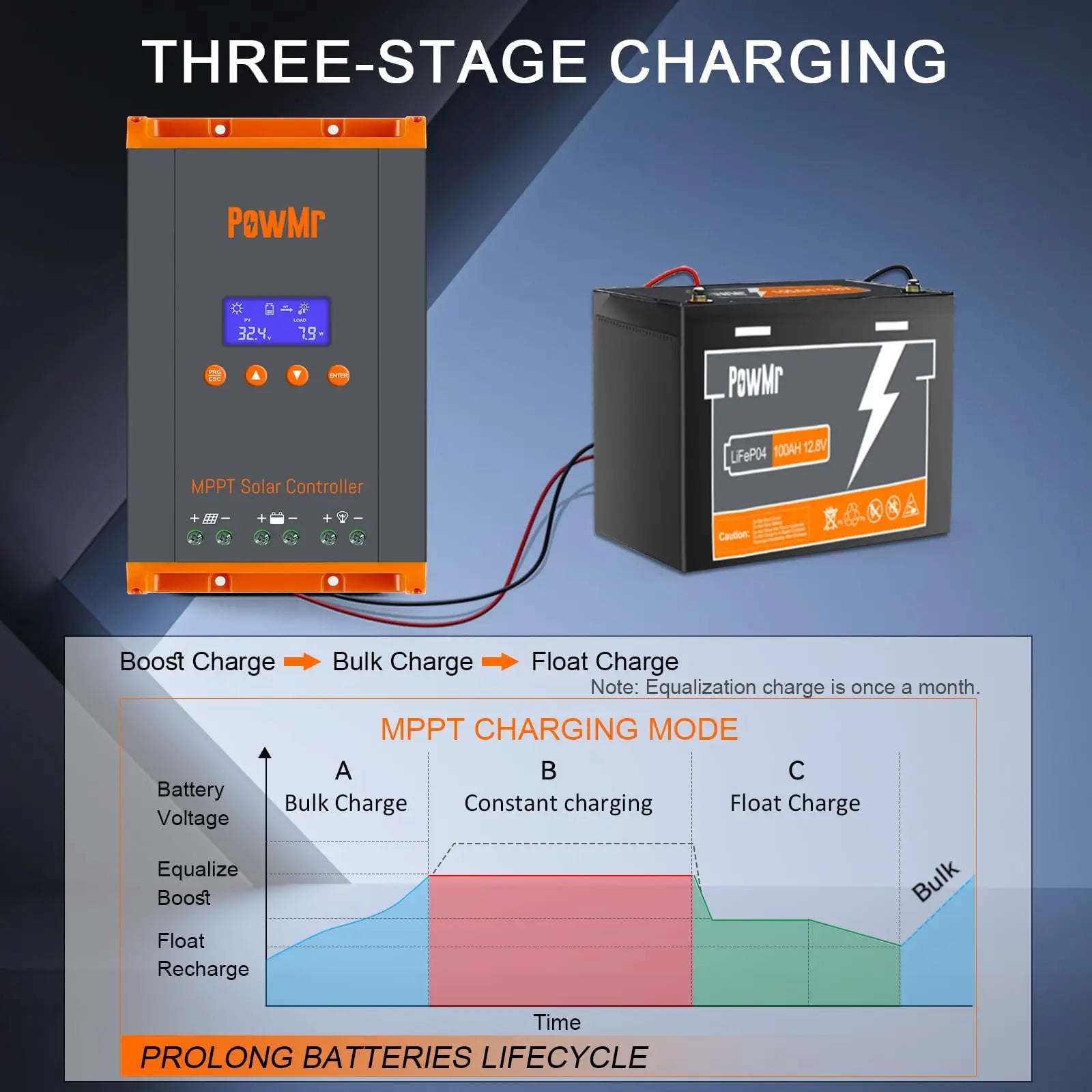

⚫Multi-Stage Charging Algorthm
⚫Maximum Power Point Tracking (MPPT) Technology
⚫High-Efficiency Charging

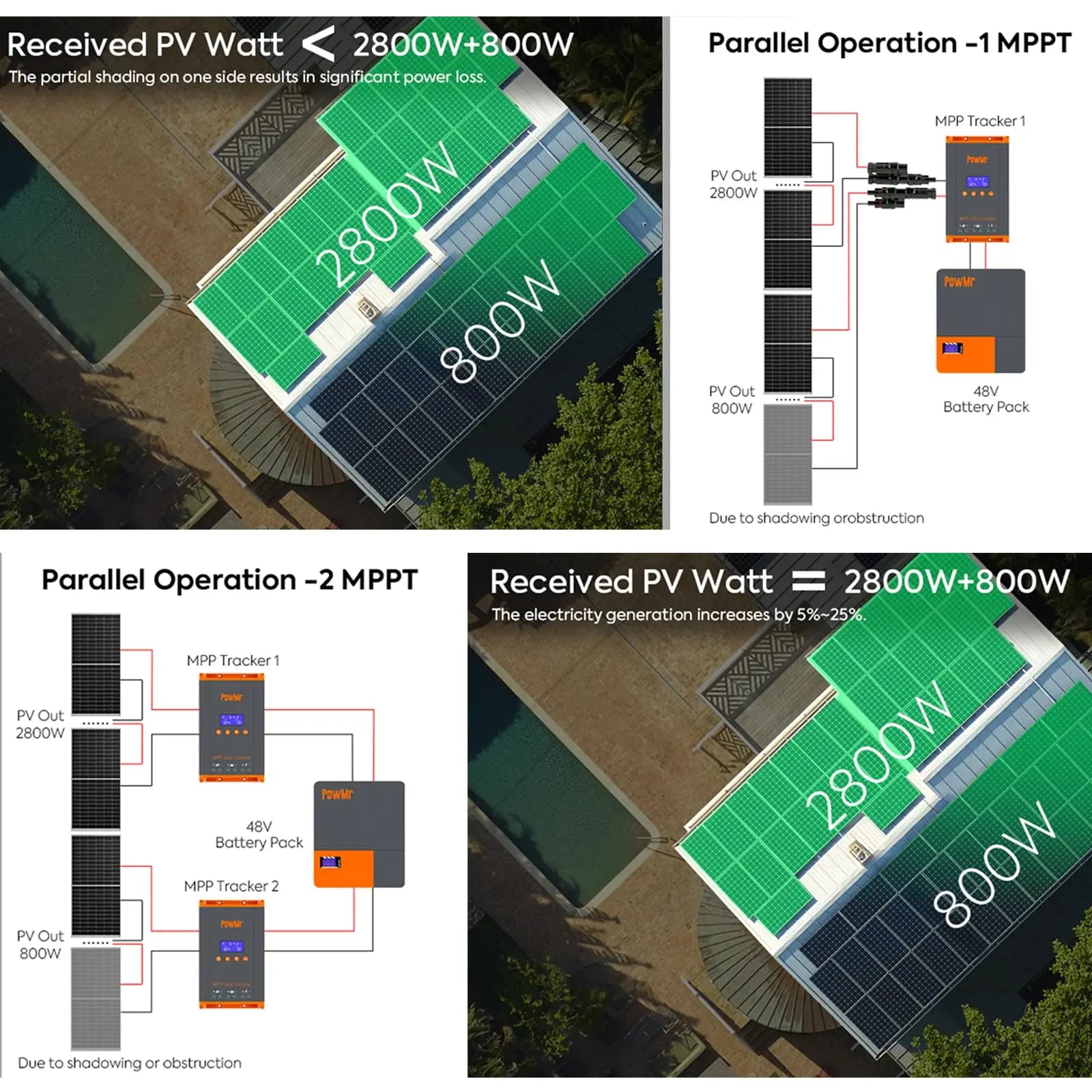

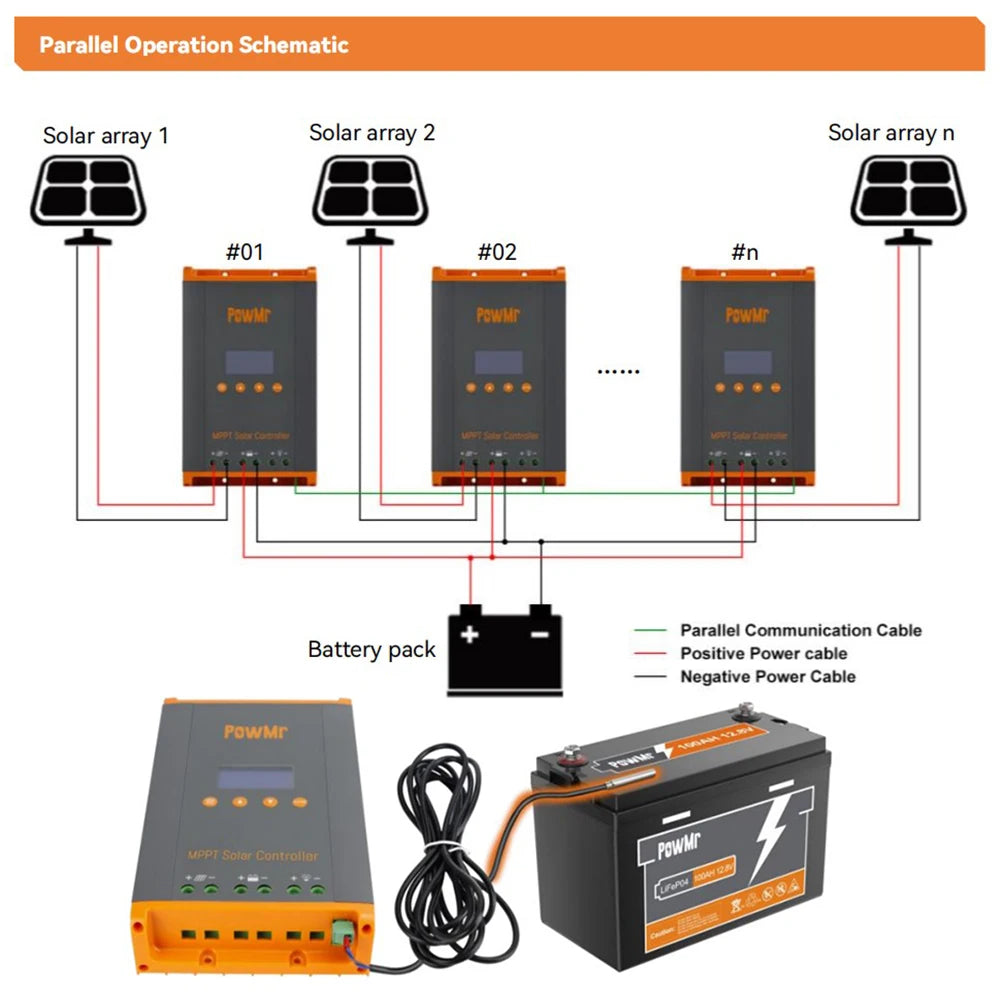

⚫Up to 12 Units in Parallel Supports
⚫Adaptive Boost Charging
⚫Durable and secure
⚫External Temperature Probe Configuration

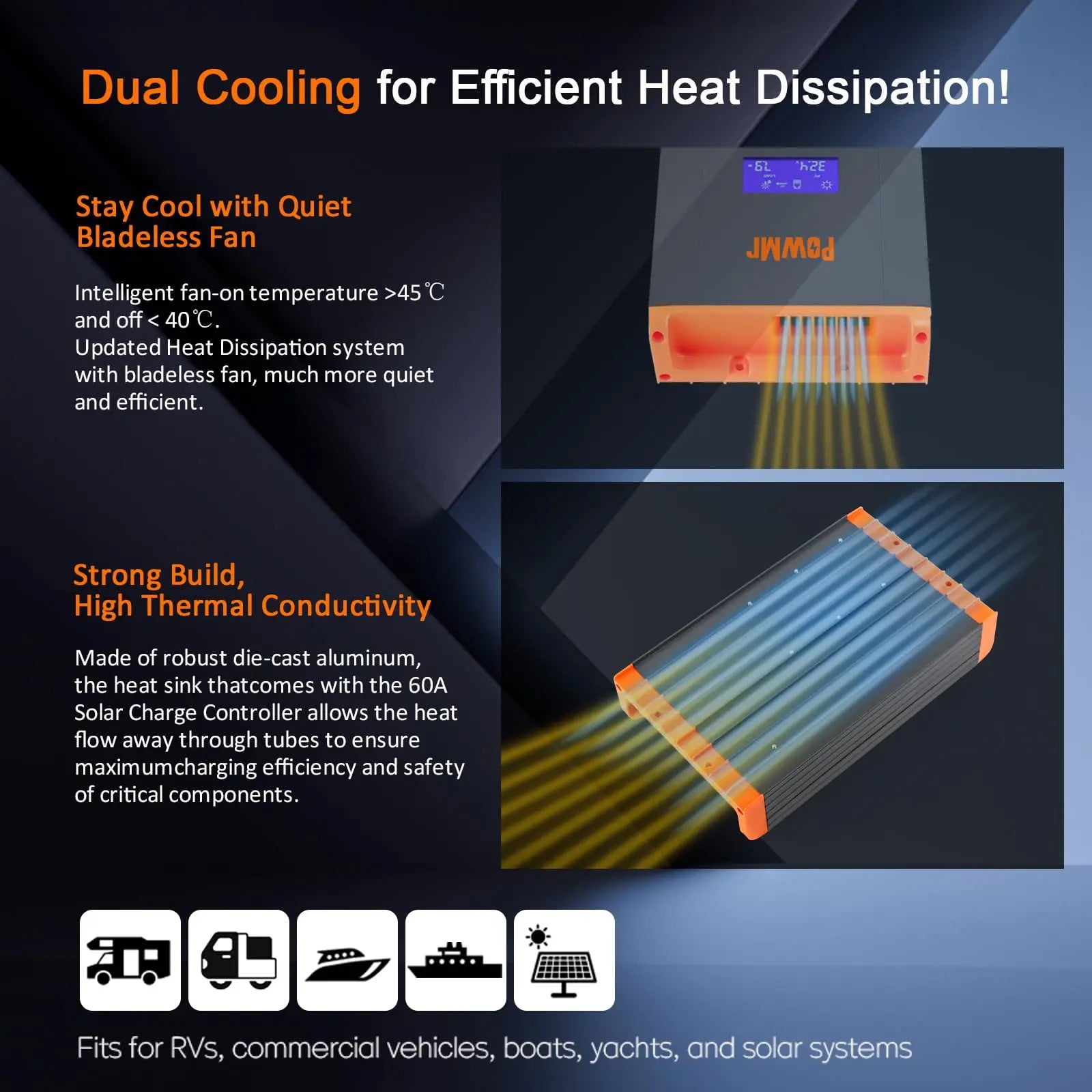

⚫Forced Air Cooling
⚫Lithium Battery Activation
Warning: Do not charge lithium batteries when the temperature is below 0 ° C.
Specification:
Models |
HHJ-60-PRO |
Solar Output Parameters | |
Max. Solar Array Open-Circuit Voltage |
160V |
Maximum Input Power: | |
For 12V System |
720W |
For 24V System |
1440W |
For 36V System |
2100W |
For 48V System |
2800W |
Input Travel Range: | |
For 12V System |
20V ~ 80V |
For 24V System |
37V ~ 105V |
For 36V System |
50V ~ 160V |
For 48V System |
72V ~ 160V |
Battery Charding Parameters | |
Charding Technology |
MPPT |
Charding Algorigithm |
3 internships |
Battery Power Auto-Detection | |
12V System |
DC9V ~ DC15V |
24V System |
Dc18V ~ dc29V |
36V System |
Dc30V ~ dc39V |
48V System |
SC40V ~ DC 60V |
Overcharge Protection |
60V |
Charging Limit Running |
61A |
Maximum Efficiency |
≥ 98. 1% |
Solar Utilisation Spate |
≥ 99% |
Load Terminal Output | |
Rated Output Current |
6A |
Maximum DC Output Regular |
8A |
Protection | |
Temperature Protection |
75 ℃ / 167 ℃ |
Fan start temperature |
> 45 ℃ / 104 ℃ |
Temperature fan Shutdown |
<40 ℃ / 95 ℃ |
General Specification | |

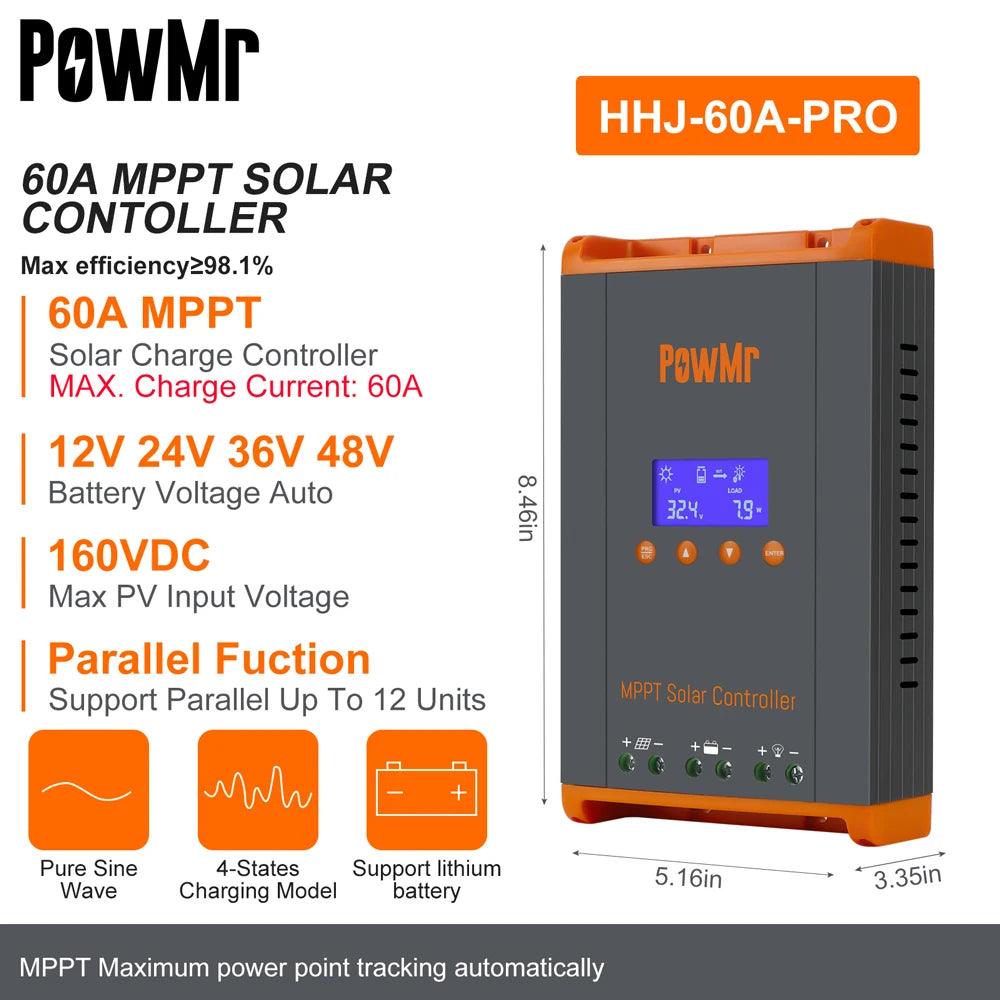

Dimensions |
215x130x85mm /8.46X5.12X 3.35in |
Net Weight |
990G/2.18lb |
Electrdiagnosis Compatibility |
EN61000, EN55022, EN55024 |
Level Protection |
IP21 |
Opera Temperature |
-20 ℃ ~ + 55 ℃ / -4 ℃ ~ 131 ℃ |
Storage Temperature |
-40 ℃ ~ + 75 ℃ / -40 ℃ ~ 167 ℃ |

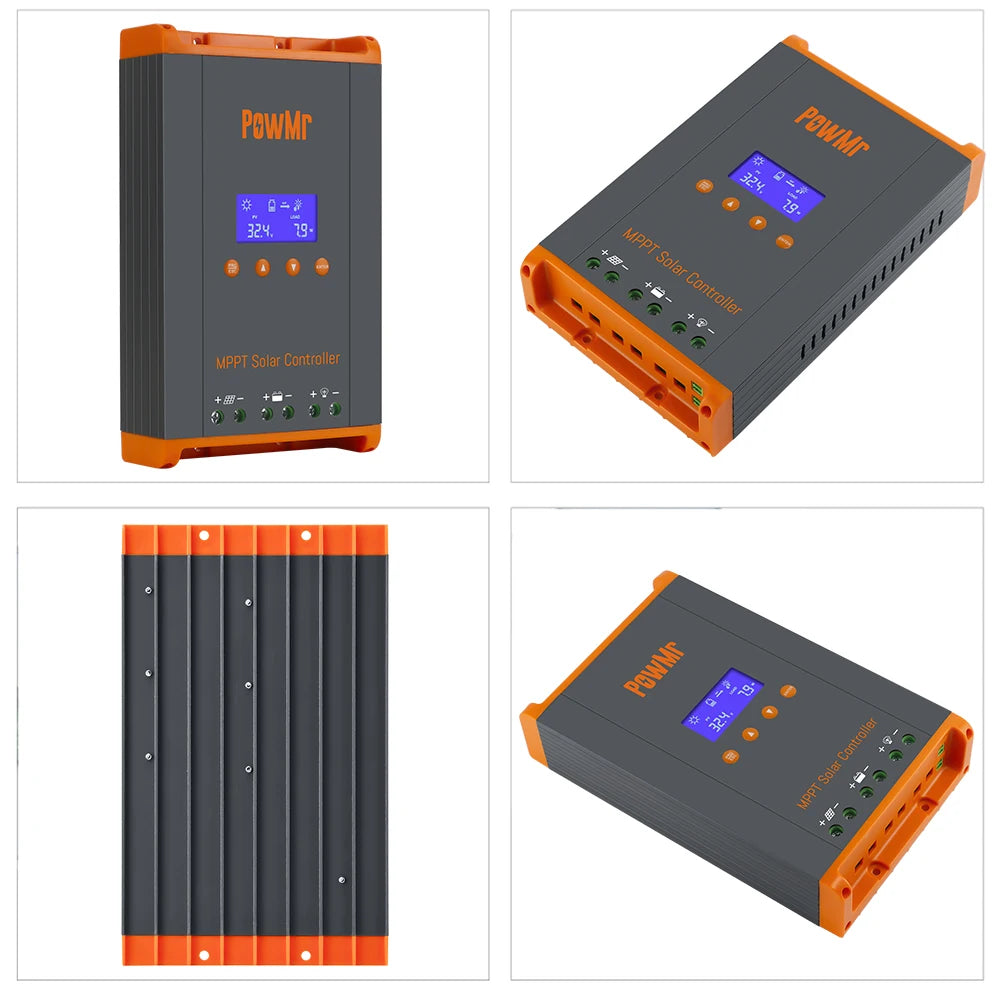

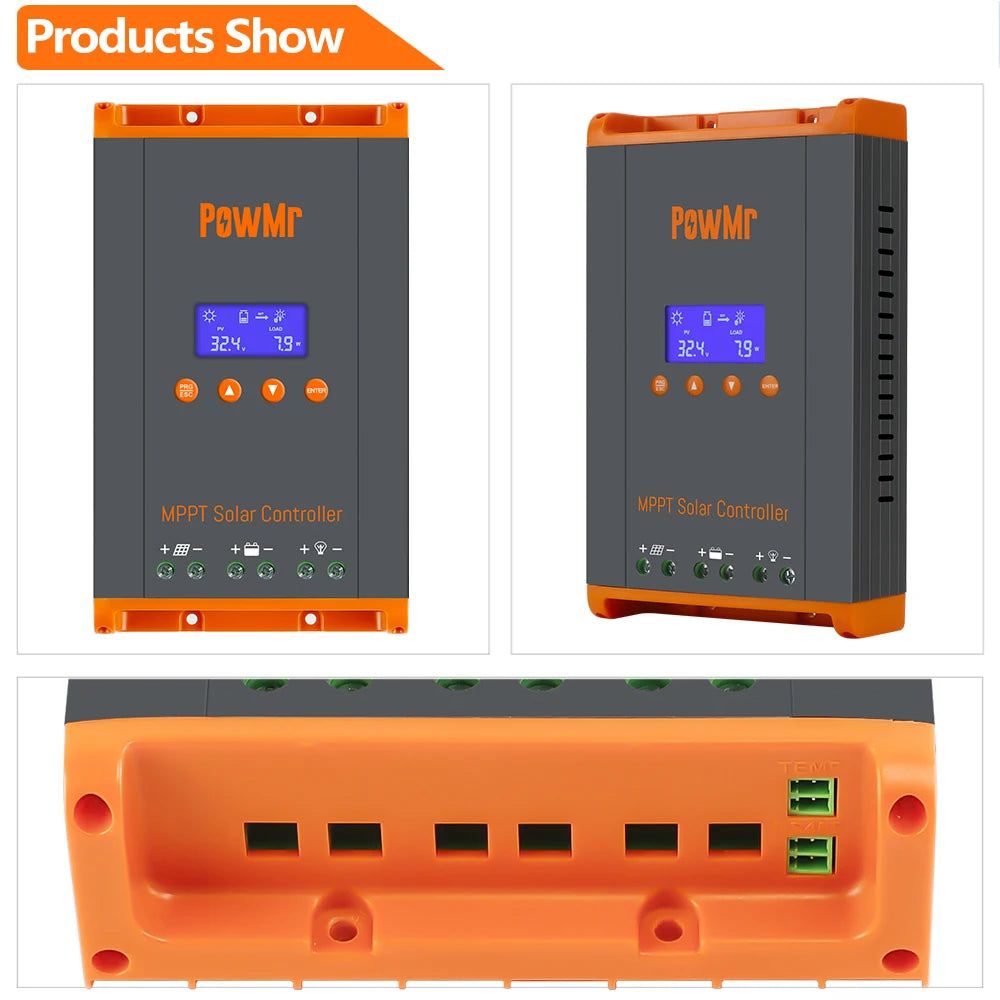

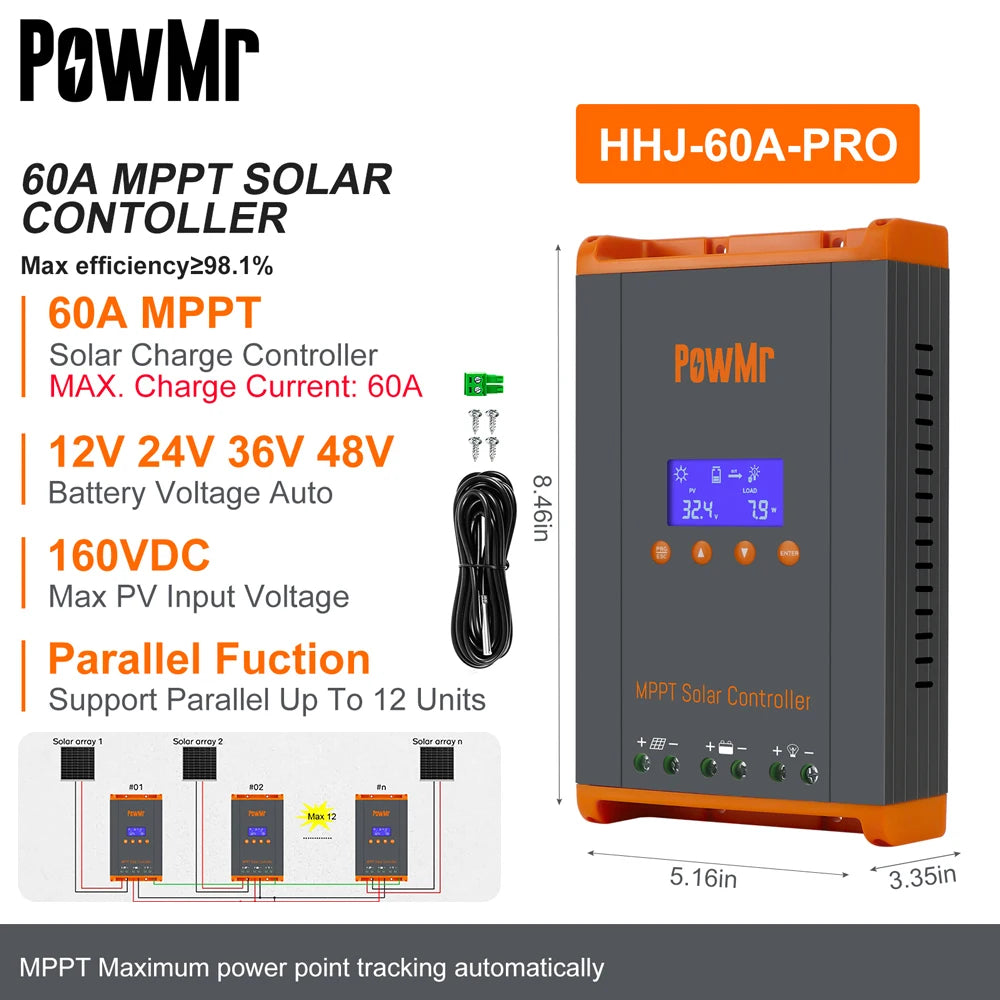

Product View:
