Use Manual

1. Download app and manual
2. Hardware connection
3. Startup

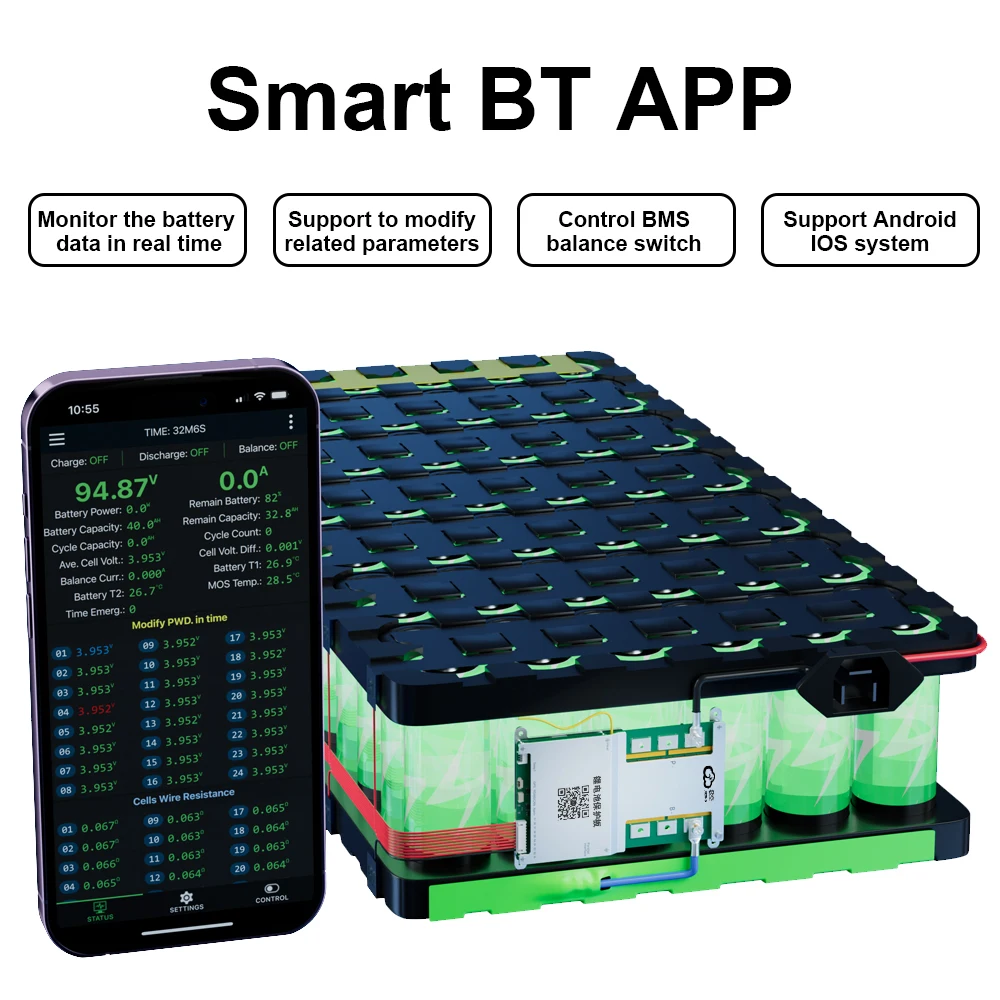

4. Open the app and connect the device
5. Set the number of strings and battery type
6. Check the battery status
Download link-IOS: Search (JIKONG BMS) in the APP STORE
Download link-Andriod : Search (JK BMS) in the Google STORE
Instructions: https://github.com/JIKBMS/files/tree/main
BMS protocol: https://github.com/syssi/esphome-jk-bms

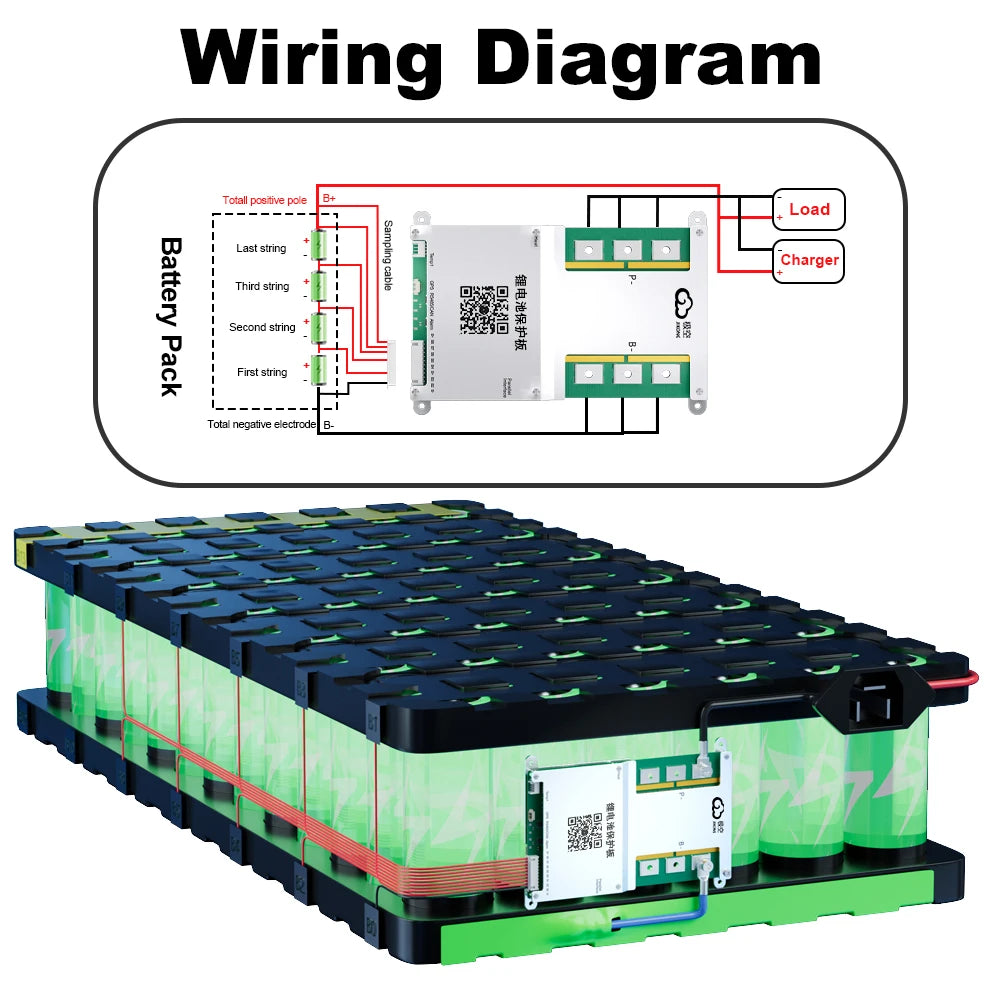

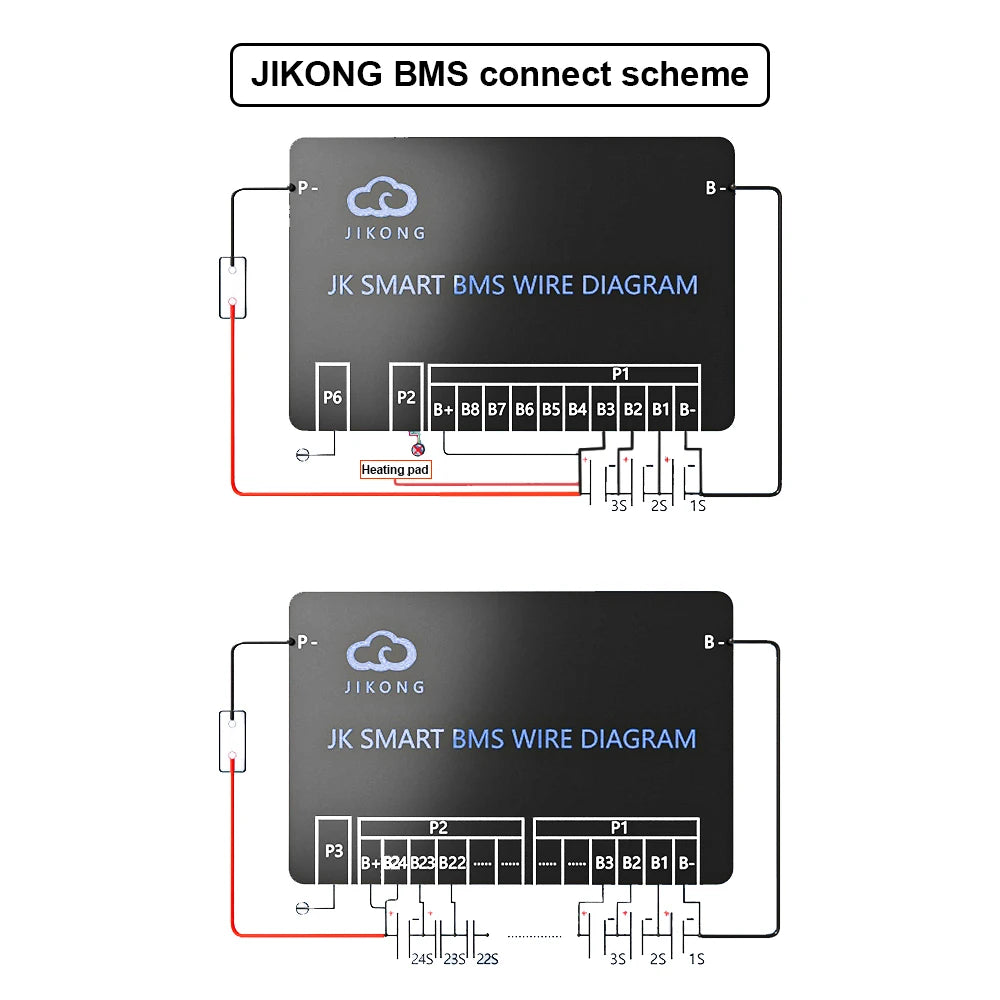

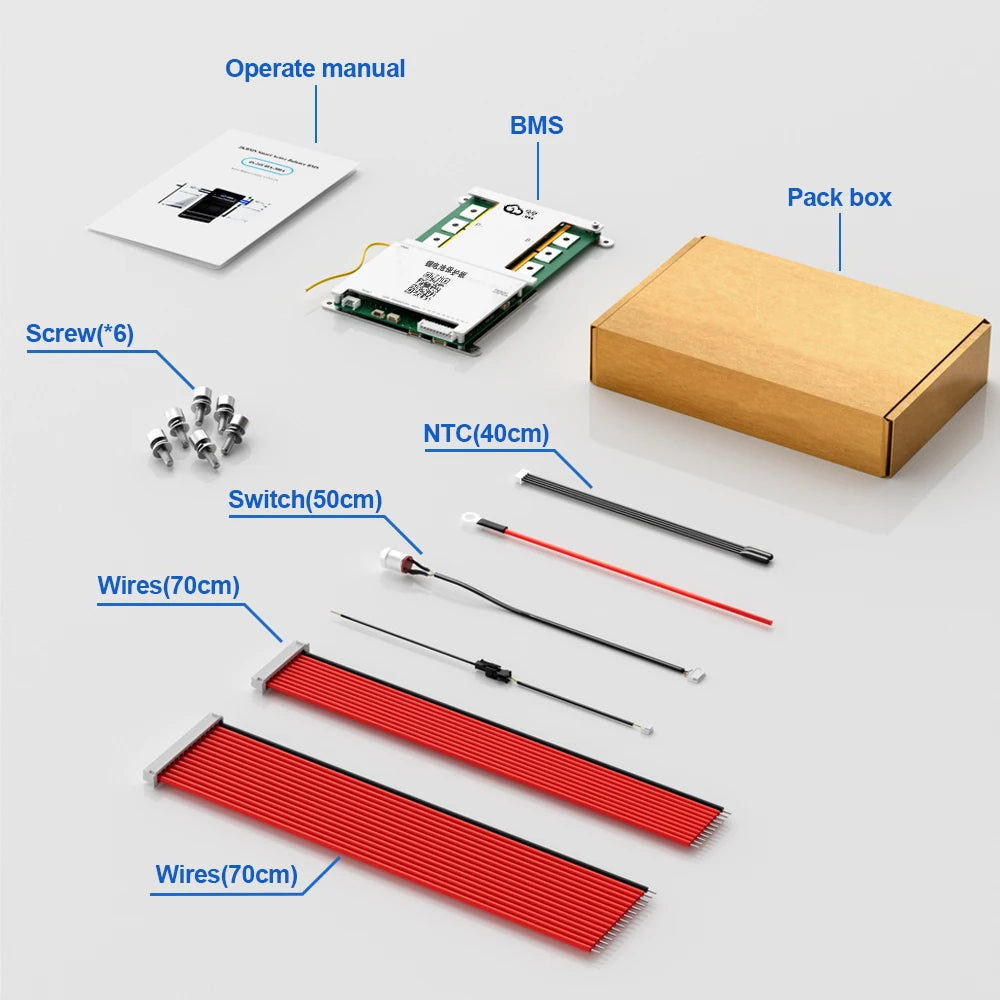

(1) Connect the protection board and battery pack according to the
following wiring diagram,Make sure that the last power cord is also
Connected to the main positive pole,The total voltage of the battery
pack must be greater than 20V(Default BMS)/10V(4S BMS) before
tarting up.
(2) Use the display activation button or additional switch to activate the
BMS.
(3) Turn on GPS and Bluetooth on your mobile phone.
(4) Make sure your mobile Bluetooth is turned on, then turn on APP
click on the top left corner of APP to search for devices, and click on
the device name to connect to the default password: 1234.
(5) Parameters need to be set for the first start-up Setting requires a
password, The default parameter is set to password 123456,Simply
set the number of units and battery type.
(6) Once the parameters are set, go back to the real-time status page,
check the battery status, no error message is prompted and normal
operation,blue is the highest voltage, red is the lowest voltage.

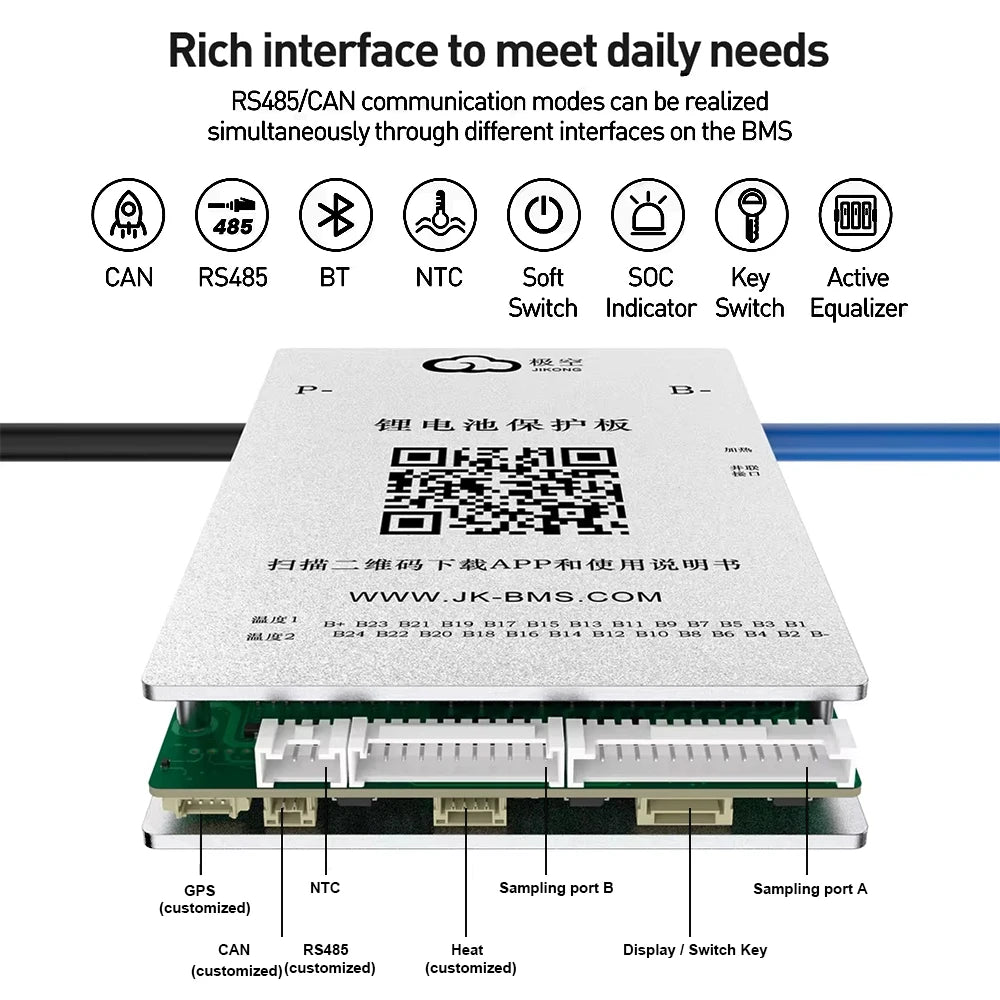

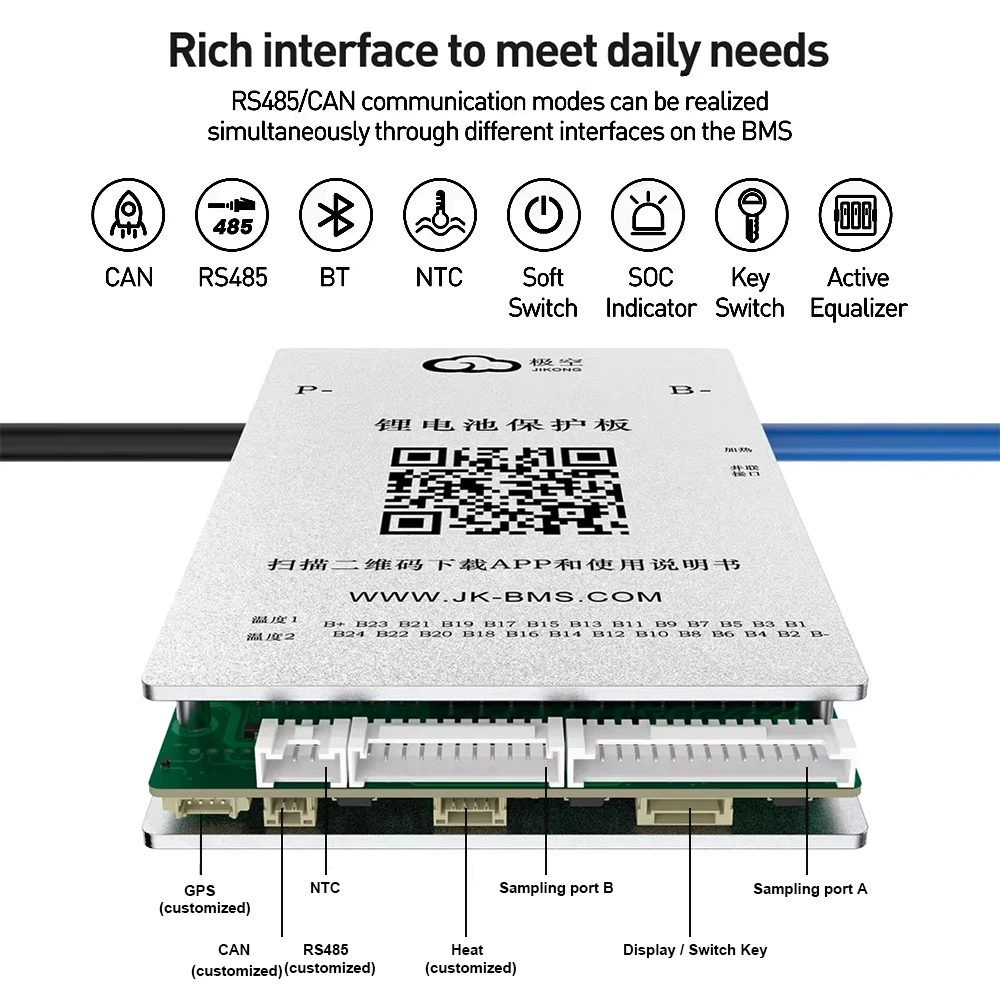

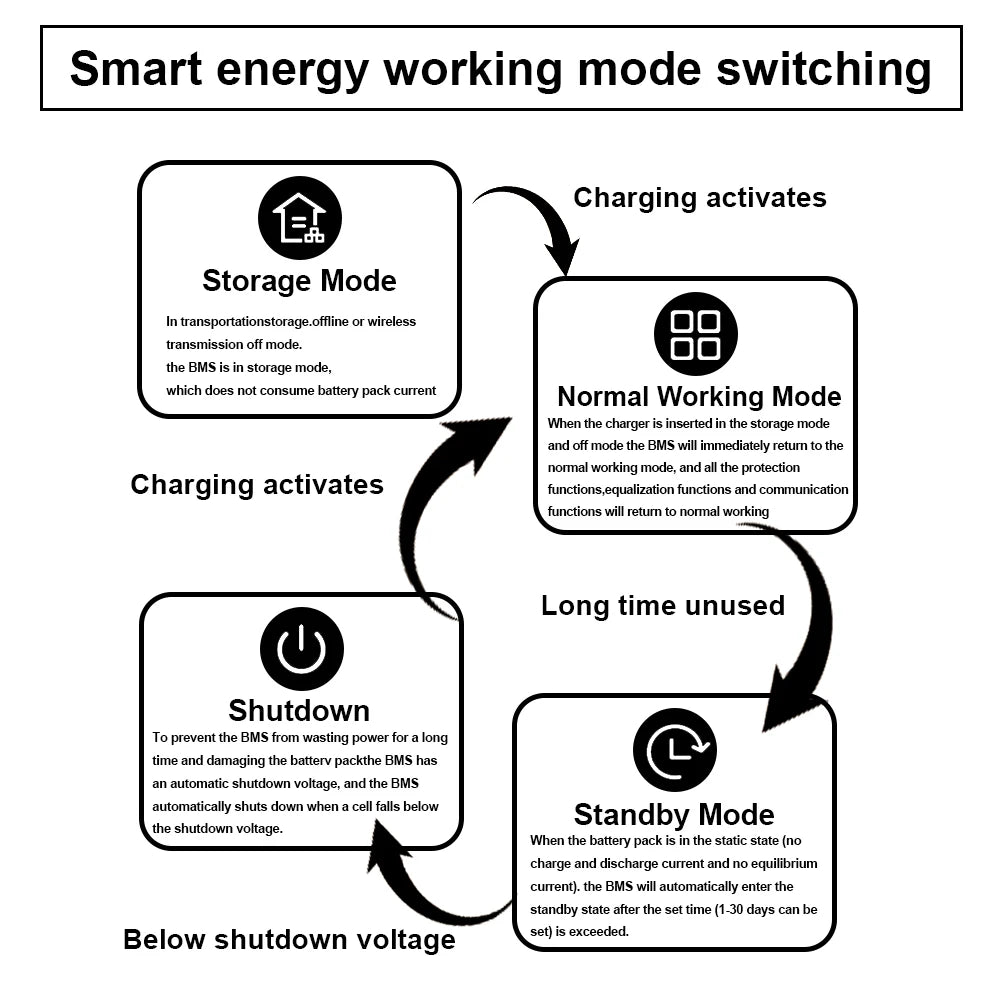

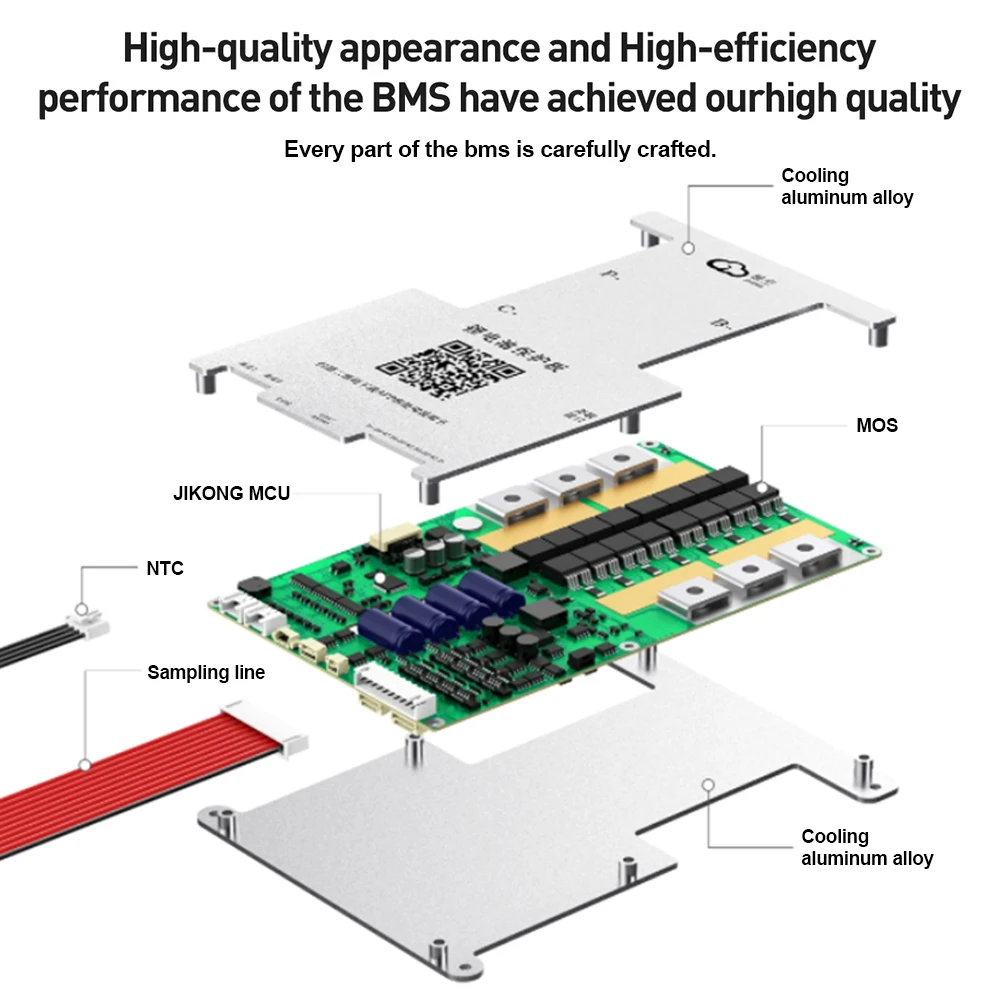

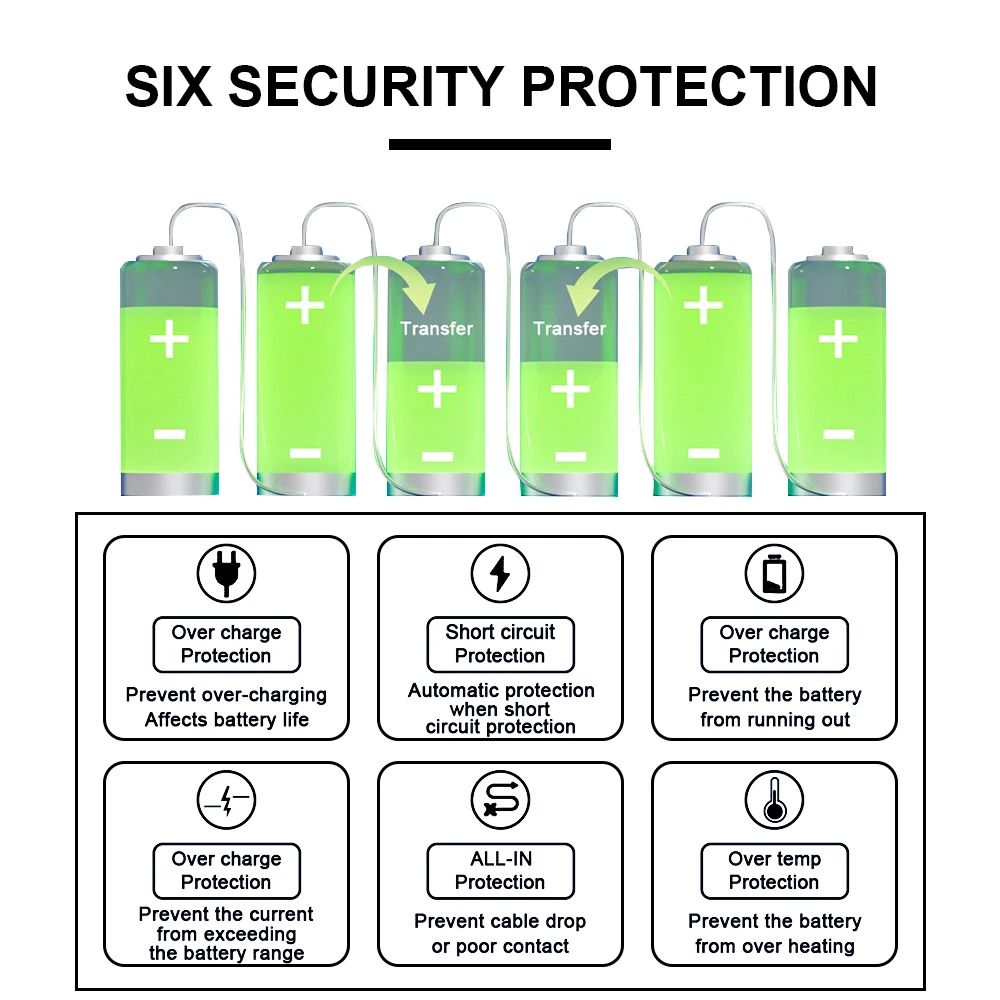

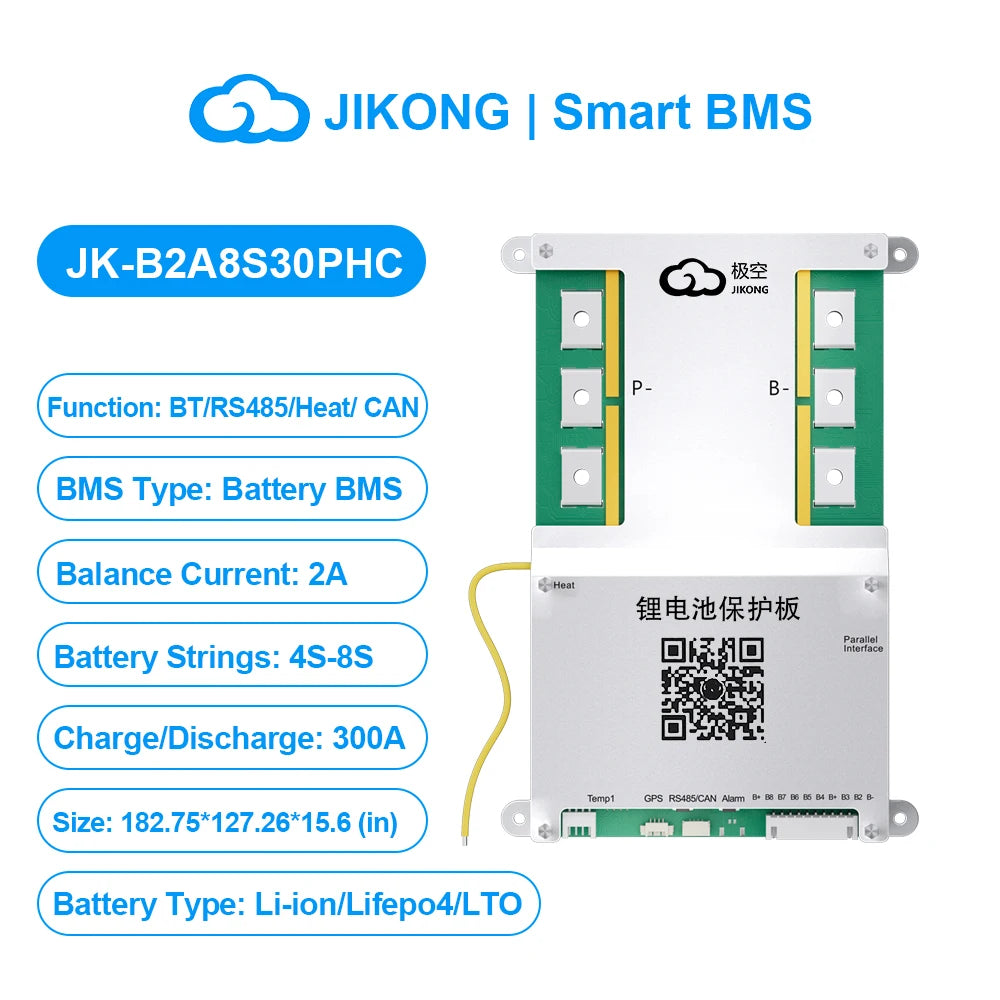

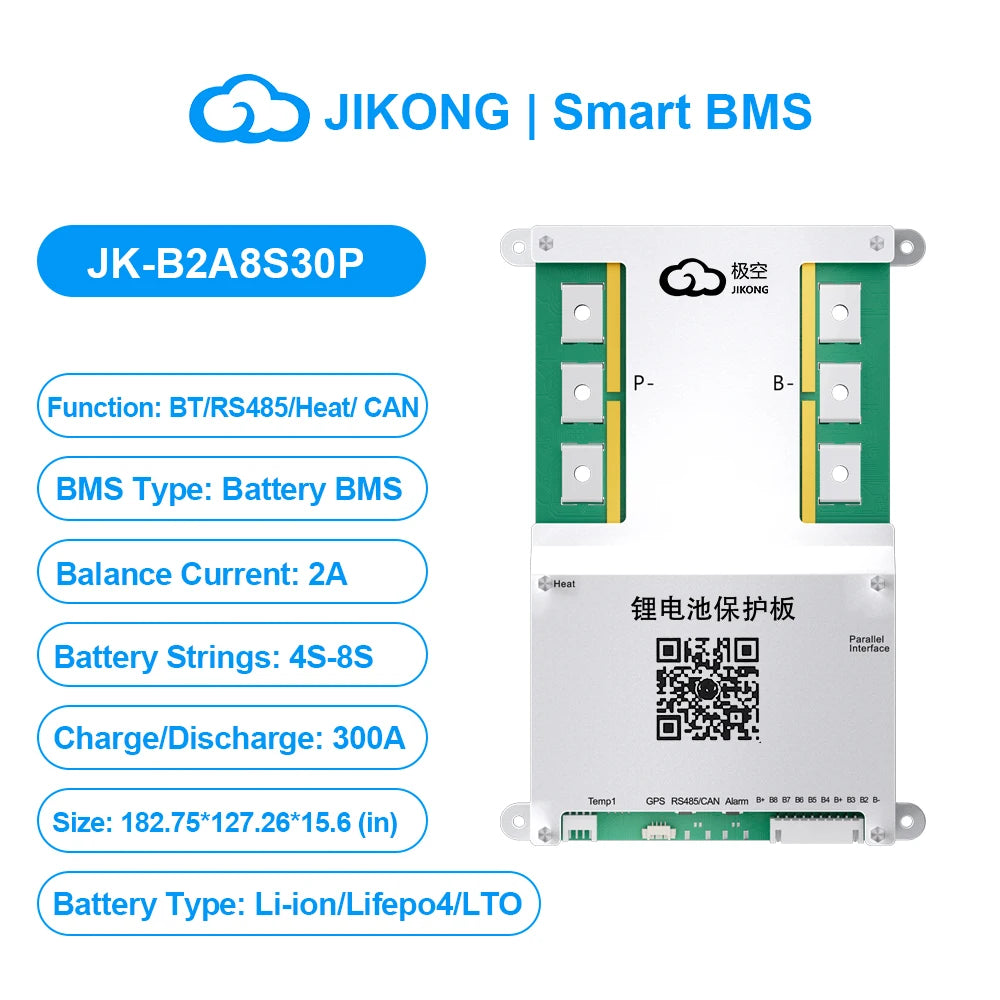

Interface Function Description:

1. Temperature sensor interface: All models of JKBMS are equipped with
2. RS485 interface: All models of JK BMS are configured with
3. LCD interface: All models of JK BMS are equipped with
4. CAN interface: Only configurations with"CAN"in the model
5. Heating interface: Only configured with"Heat" in the model

Heating function description:

1. The heating function is achieved by detect the battery temperature,combined with low
temperature protection during charging,the status of the charger to achieve electricity Pool heating control function.
2. Not all BMSs support the connection heating function, only BMSs with "Heat" in their models
support the connection heating function
3. The heating interface requires an external heating film or charger.
The green cable is connect to the heating film, and the red and black cables are connect to the charger. The maximum heating power is 3A, and the maximum heating voltage is 100V

Heating on condition:

1. The battery temperature is lower than the low-temperature protection temperature for charge
2. By connect the heating film for heating, the APP will activate heating, which will consume battery power.
3. Heat through the charger,this is related to the protection board hardware and charger.
Please place an order first Confirm the technical status.

FAQ

Do not turn on
1. Ensure that the last“B+*line of the cable has been connected to the
positive pole of the battery;
2. Start up after charging and ensure that the charger voltage is greater
than 4V of the battery pack voltage;
3. Check whether the charger has voltage output.

Inaccurate voltage

Measure the actual total pressure of the battery pack with a multimeter
and fill the actual total pressure in the "voltage calibration" on the
parameter setting page.

Inaccurate current

1. B - and P - of the protection board are two 7awg wires, both of which
need to be connected in parallel,otherwise it will lead to current error;
2. Measure the actual current of the battery pack with a clamp meter and
fill the actual current into the "current calibration" on the parameter setting
page; the larger the actual current, the higher the calibration accuracy;

1. An initial capacity estimated according to the monomer voltage when
the protection board is powered on for the first time, which is inaccurate
2. After the protection board is discharged to the cut-off voltage and
then fully charged,the capacity is calibrated, and the charging process
cannot be interrupted.

The designed string number is inconsistent with the actual string number

1. Check whether the "unit quantity" in the parameter setting is set
correctly;
2. If there is no voltage in two or more strings in the middle, check
whether the acquisition cable falls off.
