Hybrid Solar Inverter 6.2KW 4.2KW 3.2KW 2.2KW Solar Inverter Controller 12V 24V 48V 120A MPPT Hybrid Inverter with WIFI Off Grid
Hybrid Solar Inverter 6.2KW 4.2KW 3.2KW 2.2KW Solar Inverter Controller 12V 24V 48V 120A MPPT Hybrid Inverter with WIFI Off Grid
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Battery Voltage: 48VDC
Brand Name: EASUN POWER
Certification: CE,FCC
Communication Interface: RS232/RS485(Standard) / GPRS/WIFI
Hign-concerned Chemical: None
Is Smart Device: Yes
MAX.PV Array Power: 6500W
Maximum Charging Current: 120A
Model Number: SMH-III-6.2KW SMH-III-4.2KW
Origin: Mainland China
Output Current: 120A
Output Frequency: 50Hz/ 60Hz (Auto detection)
Output Type: SINGLE
PV Working Voltage: 55-450V
Rated Power: 6200W
Size: 423*310*120mm
Solar Inverter -6200VA 6.2KW: Support BMS
Surge power: 14000VA
Weight: 10.15KG
With WIFI: YES
is_customized: Yes
Hot selling product recommendation:

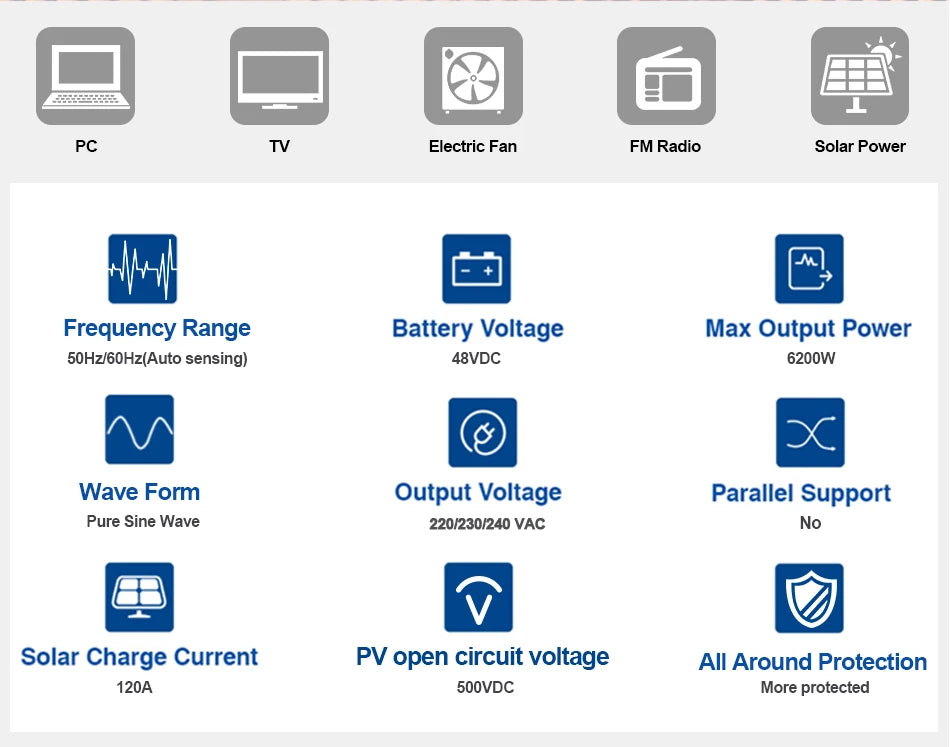

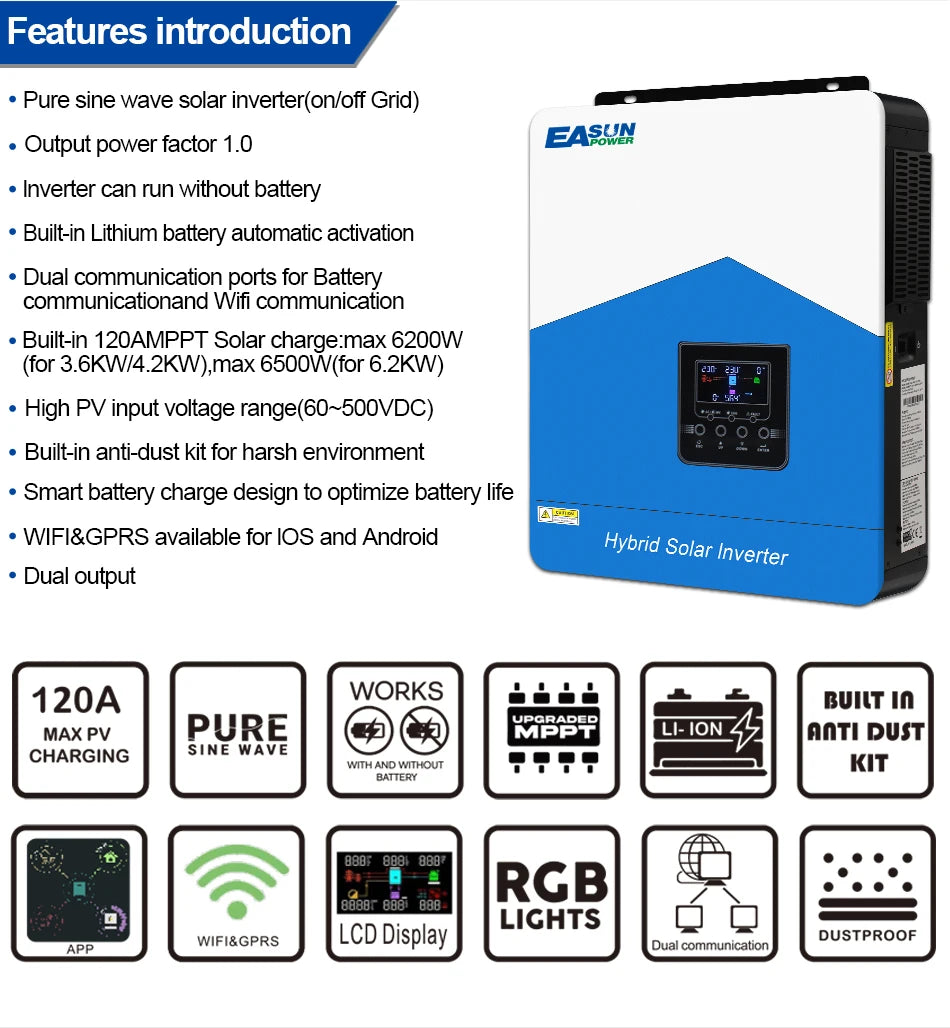

Features:

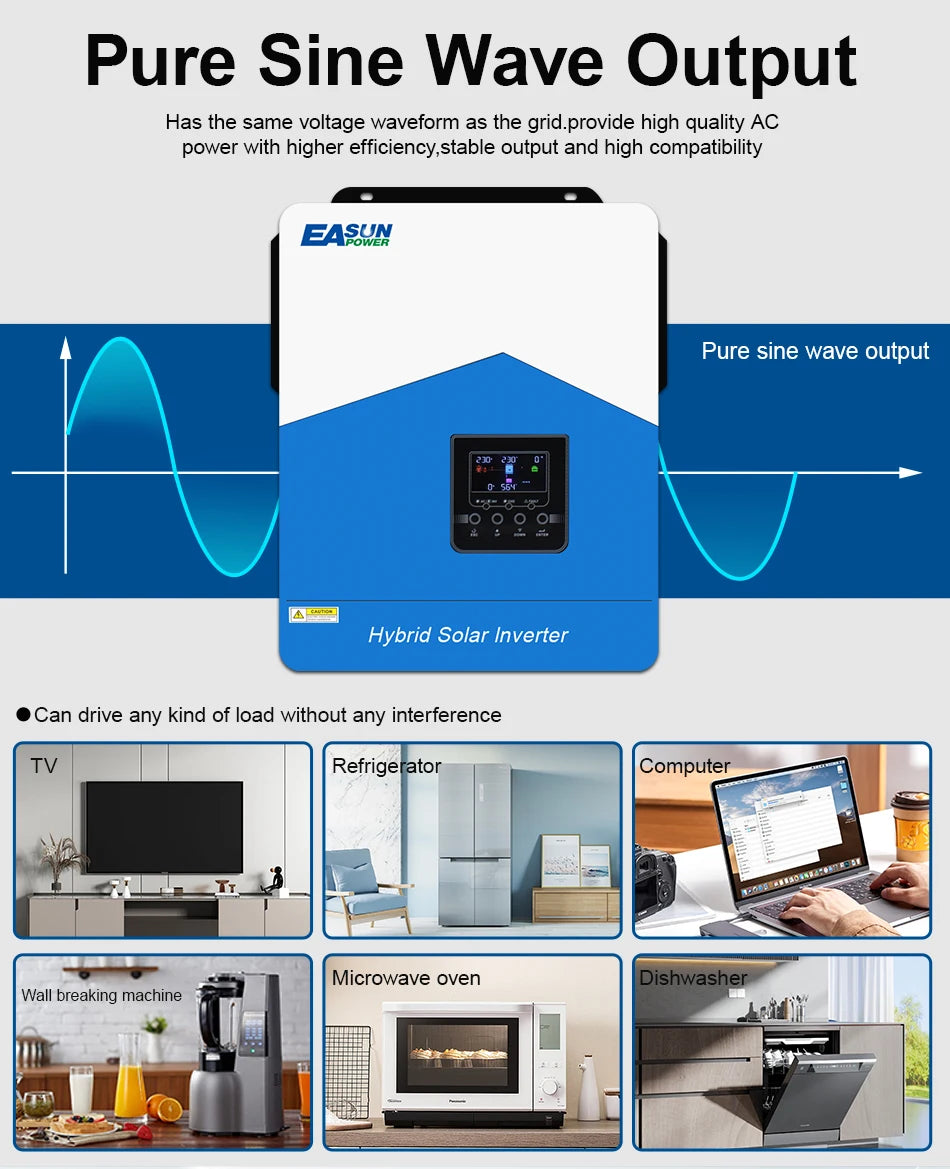

1)Pue sine wave inverter
2)Configurable input voltage range for home appliances and personal computers via LCD setting
3)Configurable battery charging current based on applications via LCD setting
4)Configurable AC/Solar Charger priority via LCD setting
5)Compatible to mains voltage or generator power
6)Auto restart while AC is recovering
7)Overload/ Over temperature/ short circuit protection
8)Smart battery charger design for optimized battery performance
9)Cold start function

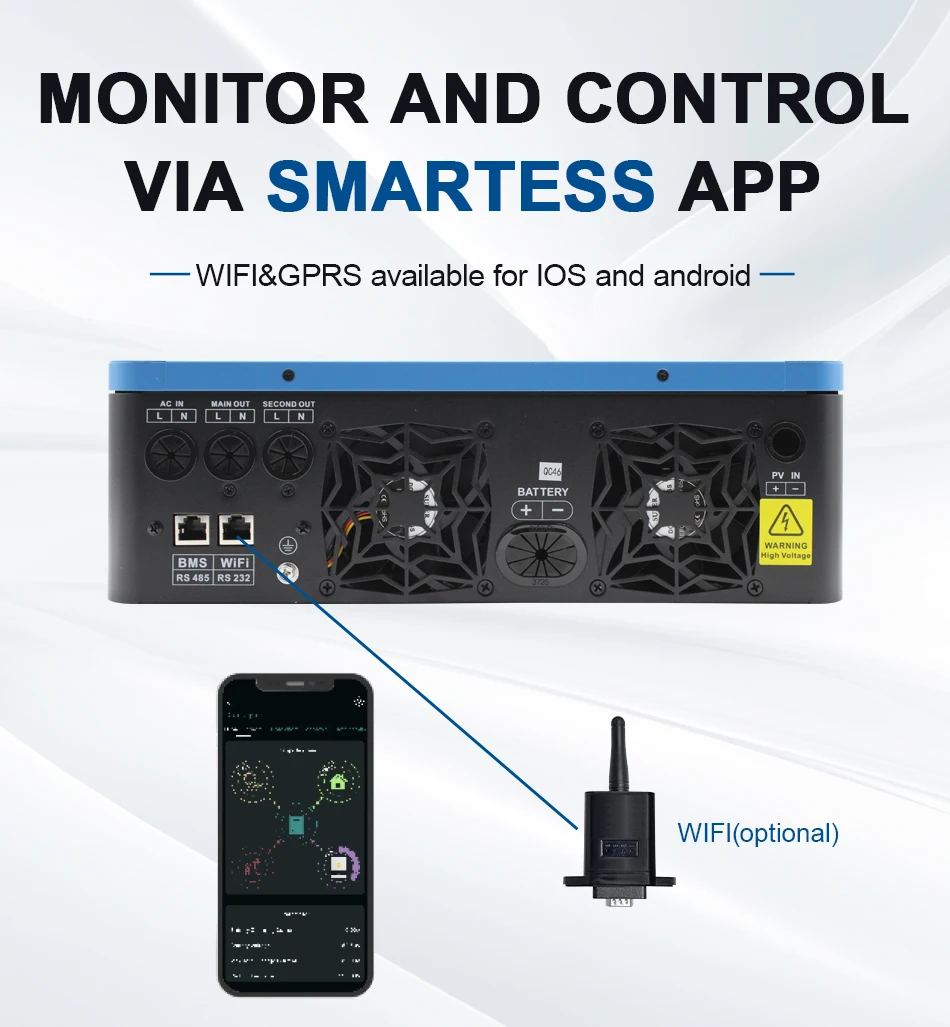

10)WIFI Included (Please set 05 option as "USE", then connect the WIFI)
EASUN POWER Brand Service Description:
1. Shipping time:1-2 working days after receiving the order
2. Logistics delivery time: subject to the platform's timeliness; Ukrainian address: Time limit is 25-45 days;
EU address: Direct delivery from overseas warehouse, delivery time is 5-10 days
3. Product Warranty Period: The warranty period for all products in the store is 1 year
4. All products ordered in the store come with corresponding product manuals for delivery
5. Some products with more than 2 items can enjoy a 1% discount.
6. Tariff issue (EU countries): Final payment=Total amount paid (excluding VAT and tax)
Models |

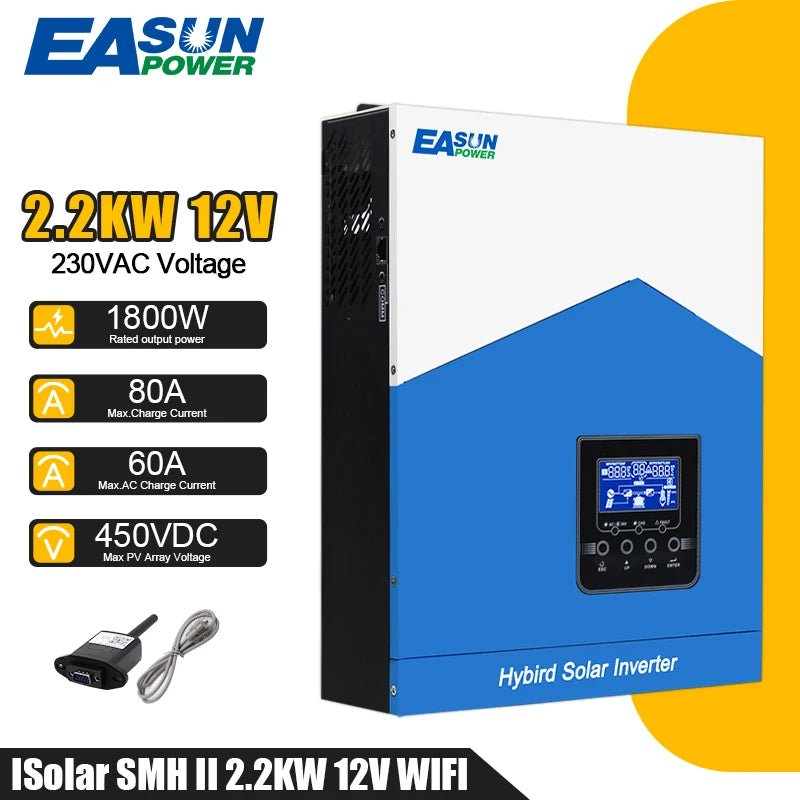

ISolar-SMH-II-2.2KW |

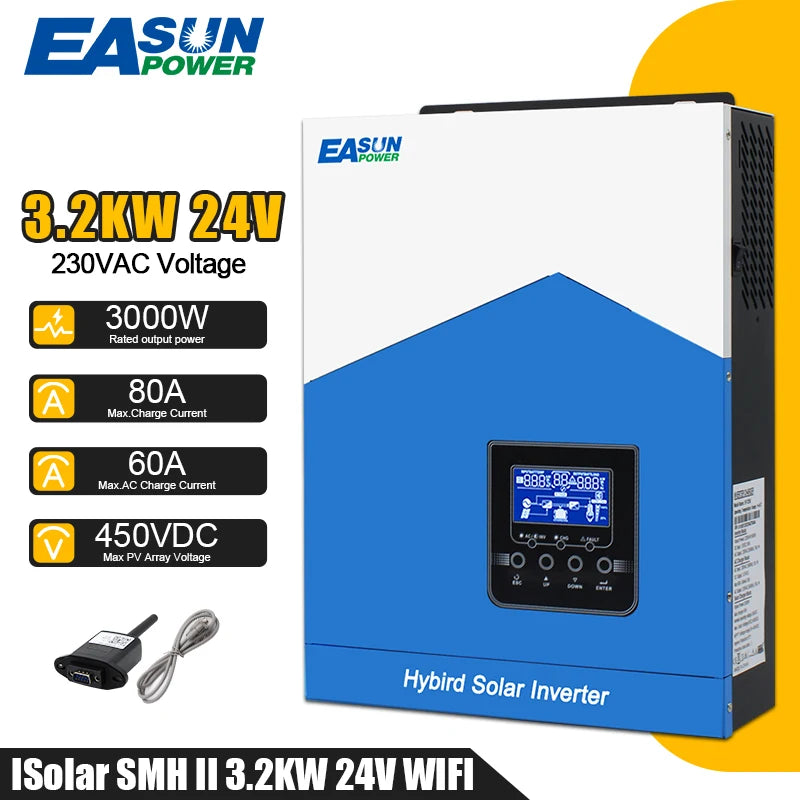

ISolar-SMH-II-3.2KW |

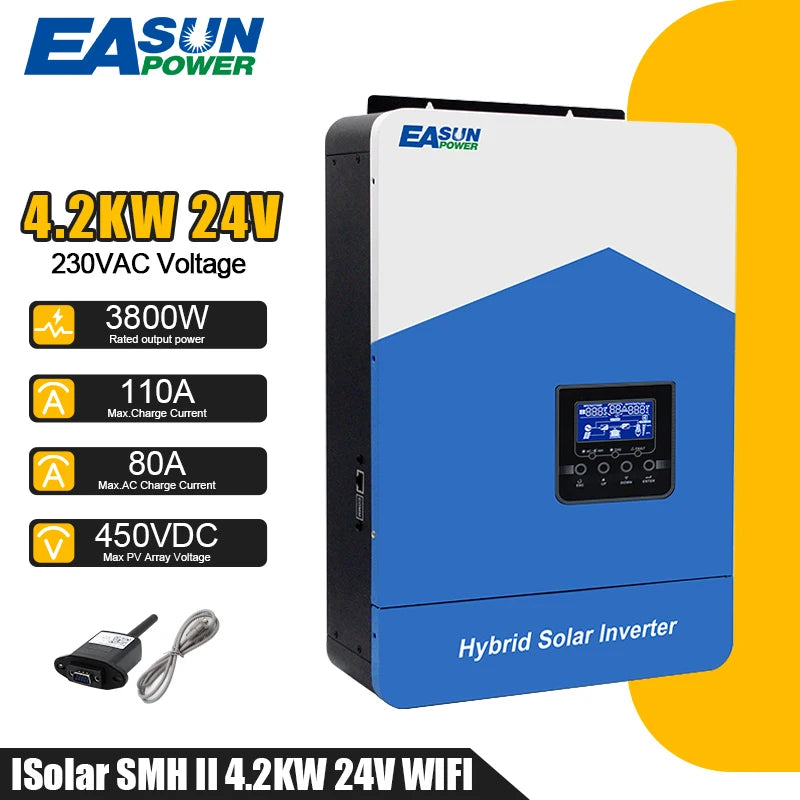

ISolar-SMH-III-4.2KW |
ISolar-SMH-III-6.2KW |
Rated Power |
2200VA/1800W |
3200VA/3000W |
4200VA/4200W |
6200VA/6200W |
INPUT | ||||
Voltage |
230Vac |
|||
Selectable Voltage Range |
(170Vac~280Vac)±2%;(90Vac-280Vac)±2% |
|||
Frequency Range |
50Hz/60Hz (Auto detection) |
|||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
|||
Surge power |
4400VA |
6400VA |
8400VA |
12400VA |
Transfer Time |
10ms(for personal computers)/20ms(for home appliances) |
|||
Waveform |
Pure Sine Wave |
|||
BATTERY&AC CHARGER | ||||

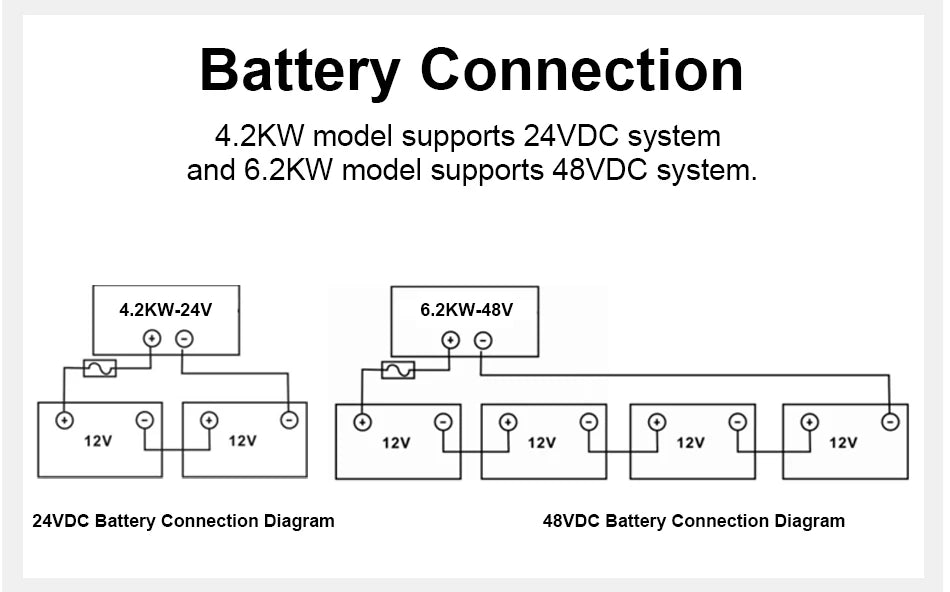

Battery Voltage |
12VDC |
24VDC |
24VDC |
48VDC |
Floating Charge Voltage |
13.5VDC |
27VDC |
27VDC |
54VDC |
Over-charge Protection |
15.5VDC |
31VDC |
31VDC |
61VDC |
Maximum charge current |
60A |
60A |
80A |
80A |
SOLAR CHARGER | ||||
MAX.PV Array Power |
2000W |
3000W |
6200W |
6500W |
MPPT Range Operating Voltage |
55-450VDC / 60-500V |
|||
Maximum PV Array Open Circuit Voltage |
450VDC |
|||
Maximum Charging Current |
80A |
80A |
120A |
120A |
Maximum Efficiency |
98% |
|||
PHYSICAL | ||||
Dimension D*W*H(mm) |
405x286x98mm |
405x286x98mm |
423x290x100mm |
423x310x120mm |
Net Weight (kgs) |
4.5kg |
5.0kg |
9.5kg |
10.0kg |
Communication Interface |
RS232/RS485(Standard)/GPRS/WIFI |
|||
OPERATING ENVIRONMENT | ||||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|||
Operating Temperature |
-10°Cto55°C |
|||
