SPECIFICATIONS

Application: Toys,Power Tools,Home Appliances,Consumer Electronics,BOATS,Golf Carts,SUBMARINES,Electric Bicycles/Scooters,electric vehicles,Electric Wheelchairs,Electric Power Systems,Solar Energy Storage Systems,Uninterruptible Power Supplies,Electric Forklifts,Home Emergency Solar System,Golf cart, trolling motor, off grid life, rubber boat etc.

Brand Name: ESG

Capacity: 100ah/200AH

Cathode Materials: LiFePO4

Cycle Life: 6000 cycles

Dimension (L*W*H): 500*186*244

Material: ABS Containers

Max Load Quantity(cells): 16

Model Number: 12.8V/25.6V 100AH

OEM/ODM: Yes(Accepted)

Operating Temperature(℃): -15-40

Place of Origin: Guangdong, China

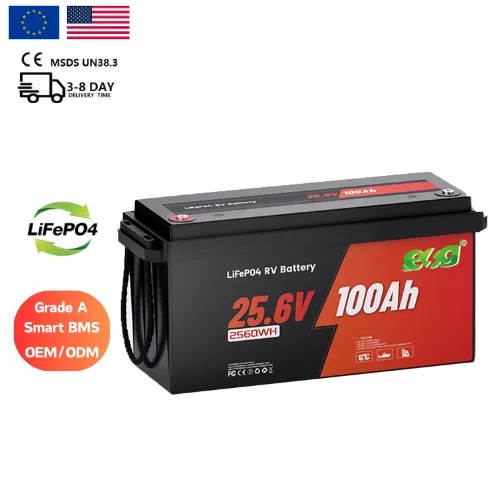

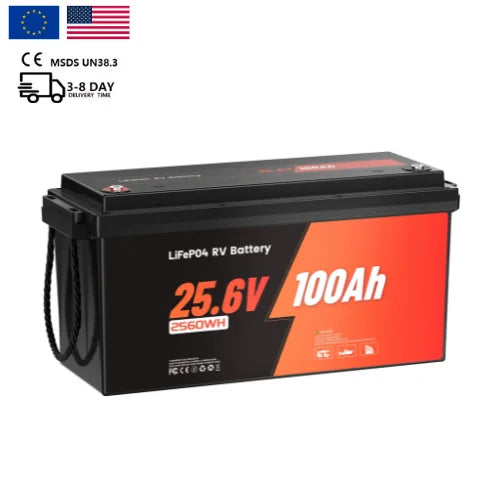

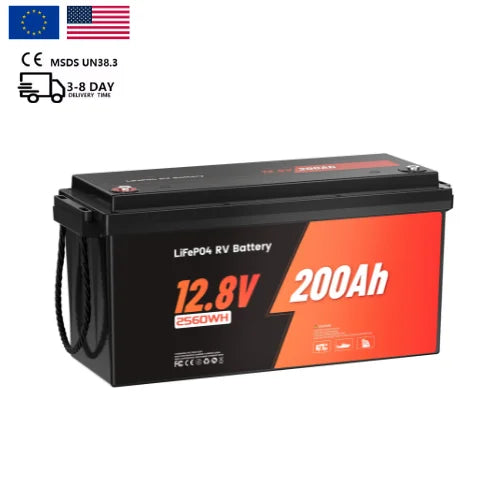

Product name: 12.8 Volt/25.6V LifePO4 Storage Batteries

Sealed Type: Lifepo4 Battery

Size ( L*W*H ): (229±1)mm*(138±1)mm*(216±2)mm

Usage: Power Wheels, Camping, Solar, Fish Finder

Voltage: 12.8 Volt/25.6V

Warranty: 3~5 years

Weight: 18kg

ESG Excellent quality Lifepo4 12.8V 12v 50Ah 60Ah 65Ah lithium ion

Phosphate Batteries

Why Choose US?

Why Choose US?

Why Choose US?







ESG 12V 12.8 Volt 12.8V55Ah 60Ah 65Ah Deep Cycles Rechargeable Certificate Lithium Ion Lifepo4 Battery



ESG 12V 12.8 Volt 12.8V55Ah 60Ah 65Ah Deep Cycles Rechargeable Certificate Lithium Ion Lifepo4 Battery



New quality ABS raw material
Use new ABS raw materials for impact resistance,

heat resistance and low temperature
Excellent electrical insulation, engineering grade material, widely used

ESG 12V 12.8 Volt 12.8V55Ah 60Ah 65Ah Deep Cycles Rechargeable Certificate Lithium Ion Lifepo4 Battery

High cycle, long life, cycle life more than 3000 times
Automotive grade cell, high waterproof shell, the same capacity for

longer endurance
Complete certification, with overseas export certification in many aspects

Rv energy storage
Travel outdoors
Communication base station
Solar energy photovoltaic

Nominal Voltage	12.8V
Nominal Capacity	65Ah  (C5,25℃)
Energy	832Wh
Internal Resistance	≤35mΩ
Cycle Life	>2000 cycles @1C 100%DOD
Months Self Discharge	<3 %
Efficiency of Charge	100% @0.5C
Efficiency of Discharge	96~99% @1C
Charge Voltage	14.6±0.2V
Charge Mode	0.2C to 14.6V,then 14.6V,charge current to 0.02C (CC/CV)
Charger Current	32.5A
Max. Charge Current	65A
Charge Cut-off Voltage	15.6V±0.2V
Continuous Current	35A
Max. Pulse Current	65A(<3s)
Discharge Cut-off Voltage	10V
Charge Temperature	0℃to45℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature	-20℃to60℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	0℃ to40℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance	IP56
Cell & Method	26650 4S17P
Plastic Case	ABS
Dimensions (in./mm.)	(229±1)mm*(138±1)mm*(216±2)mm
Weight	7.5±0.1kg
Terminal	M8
Protocol (optional)	SMBus/RS485/RS232
SOC (optional)	LED



1.Surface waterproof protection
The upper cover and bottom shell are injection molding, and the terminal

is fixed with glue
Good sealing, effectively prevent rain damage to the battery

2.Strong and durable long service life
New material production, environmental protection material, support

customization

3.Wear resistant utility



About Delivery
After the payment is completed, we will pack and deliver the goods as

soon as possible.

It depends on the quantity. Please contact the customer service to purchase

the products

Contact, please consult customer service for details.

The company has passed IS09001 quality system certification, IS01 4001:2015
environmental management system certification, and its products have passed a series of
international authoritative certifications such as SGS, UN38.3, CE, RoHS, MSDS, CNAS, etc.

1) Inner box - carton - pallet - load on container
2) Packaging also can be made by customers requirements

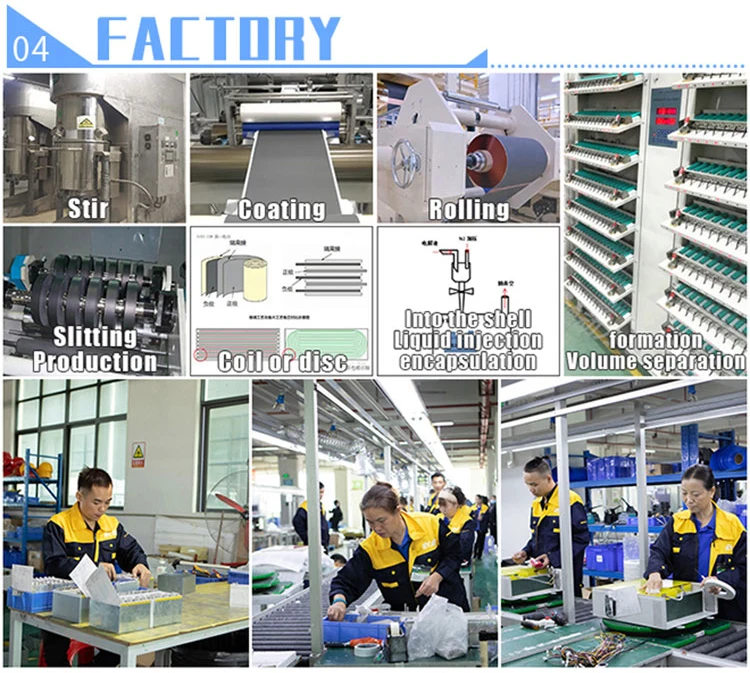

Guangzhou ESG New Energy Technology Co., Ltd. is mainly engaged in the research,

development, production and sales of new energy products such as lithium batteries,

lead-acid batteries, inverters and solar panels.
With the progress of solar cell technology and the development of low-power semiconductor

design technology, the application of solar cells to replace the traditional battery gradually

appeared. Adhering to the service concept of "scientific and technological innovation, quality

assurance, and creating value for customers" and "scientific and technological innovation,

quality assurance, and creating value for customers", under the guidance and innovation of

our professional R&D staff, we have established friendly cooperative relationships with various

power supply companies and power plants in China's electric power system by virtue of the

exquisite appearance and superior electrical performance of EsenGAu's products.

At the same time, we have also developed a wide range of foreign markets, products are

exported to Japan, Korea, the United States, Europe, Australia and other places.

1.ESG 35 years brand experience
2.China first technology .Got the patent which Let battery 30% longer life.
3. Battery doctor. Factory got battery detector patent.It can analyze and repair faulty

batteries,
4.Delivery fast :12V7AH 50,000 units per day, hot-selling models 100AH, 200AH keep in

stocks So 48 hours delivery
5.Complete certificate. We keep ISO, CE, UL CCC, ROHS, TUV, SGS, IEC UN38.3

certificates
6.One of 5 major suppliers designated by the China government for tender.



Q1: What's the warranty of your battery?
A: We provide one year warranty for all the products except for artificial damage or soaking.
Q2:Is this product safe?
A: Over-charge, over-discharge, over-load and short-circuit protection.
Q3: What's the lead time?
A: 1.Sample orders: 1-3 working days
2.Bulk orders: 3-7 working days according to different quantities
3.OEM: 7-12 working days on receipt of sample confirmation
Q4: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but we will ask a sample fee.

Sample fee will be returned back in future order.
Q5: Is it the capacity of your battery real?
A: All of our batteries are real full capacity with top quantity, competitive price& long lifecycle.
