EASUN POWER Hybrid Solar Inverter Pure Sine Wave MPPT 6.2KW 4.2KW 3.2KW 2.2KW 12V 24V 48V 220v Solar Charger Power Home Inversor
EASUN POWER Hybrid Solar Inverter Pure Sine Wave MPPT 6.2KW 4.2KW 3.2KW 2.2KW 12V 24V 48V 220v Solar Charger Power Home Inversor
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Battery Voltage: 12V 24V 48V
Brand Name: EASUN POWER
Certification: CE,FCC,RoHS
Communication Interface: RS232/RS485(Standard) / GPRS/WIFI(Optional)
Frequency Range: 50Hz/60Hz (Auto detection)
Hign-concerned Chemical: None
Input Voltage: 230Vac
MAX PV Array Power: 2K 3K 4K 6KW
MPPT Range Operating Voltage: 55-450VDC
Maximum charge current: 80A 110A
Model Number: SMH-II
OUTPUT Voltage: 230VAC5%
Off-grid inverter: Solar Charge Controller
Origin: Mainland China
Output Current: 80A/120A
Output Frequency: 50HZ/60HZ
Output Power: 1 - 200KW
Output Type: SINGLE
Rated Power: 4200VA/4200W
Size: 348*282*105mm
Type: DC/AC Inverters
Wave form: Pure Sine Wave
Weight: 10KG
advantage 1: home-appliance
advantage 2: power bank
advantage 3: Frequency converter 12V 220V
advantage 4: Power supply 12 volts
advantage 5: inverter
hybrid solar inverter 24v: inwerter hybrydowy 24v
inversores solares: onduleur solaire hybride
inverter 24v hybrid: inversor solares hibrido
inwerter hybrydowy: inversor hibrido 24v
is_customized: Yes
1.For EU country customers：
2.For Brazilian customers：
We will ship to you from our Brazil warehouse,delivery time for 2-10 workdays.

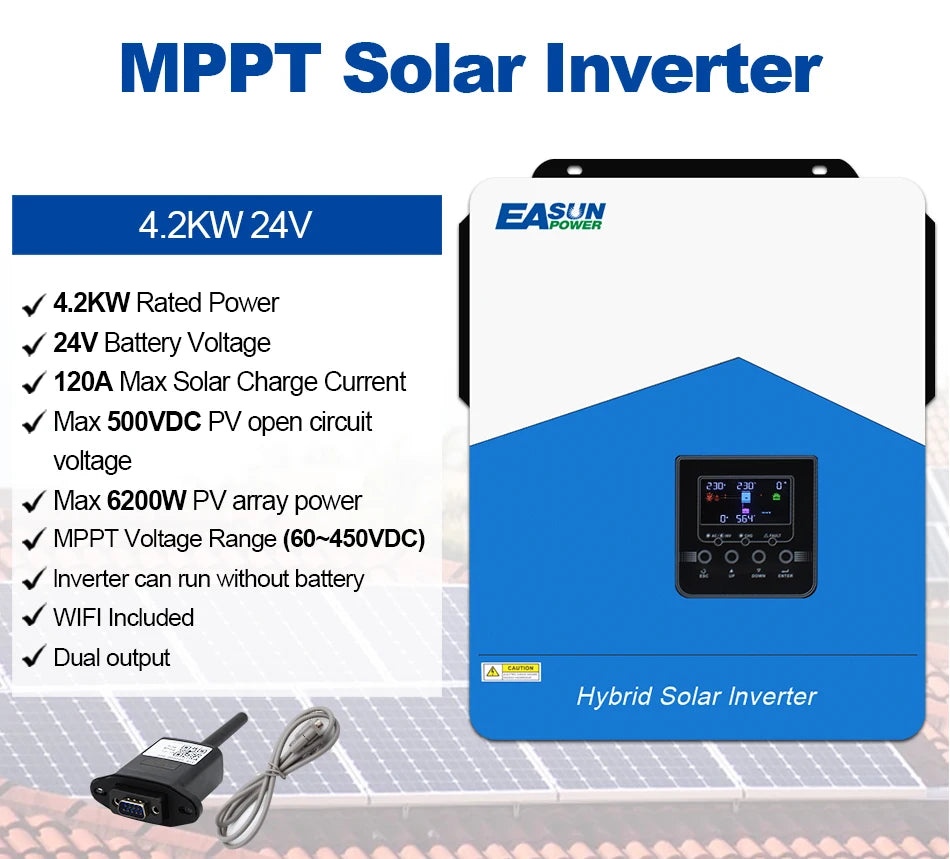

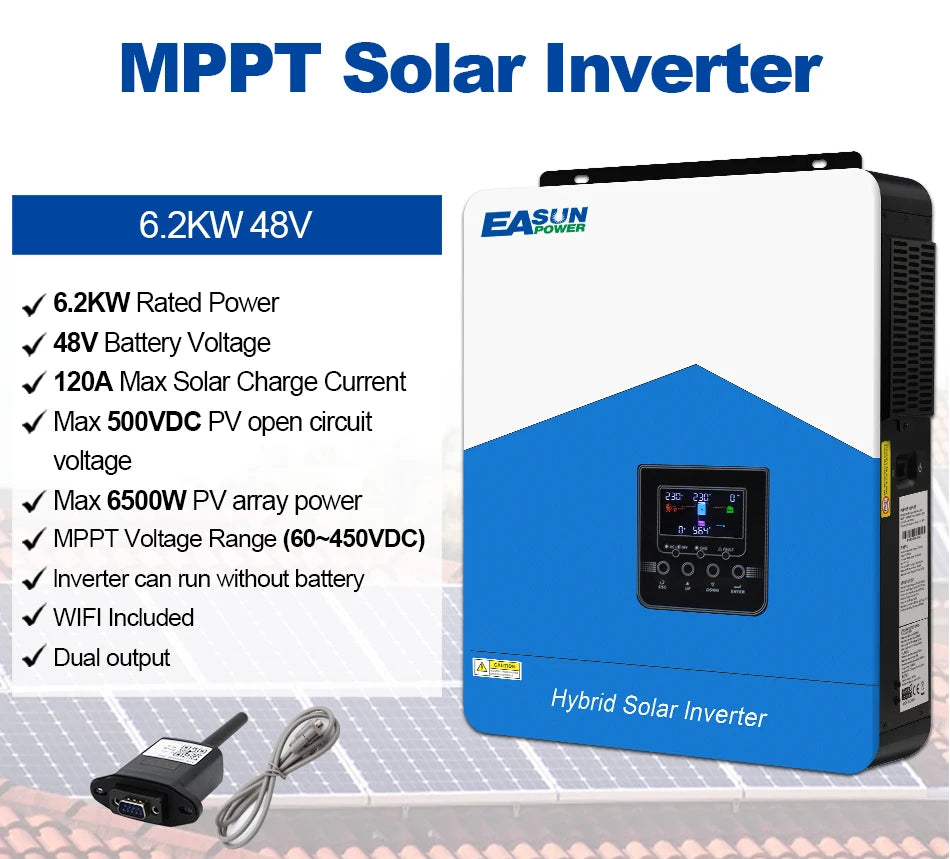

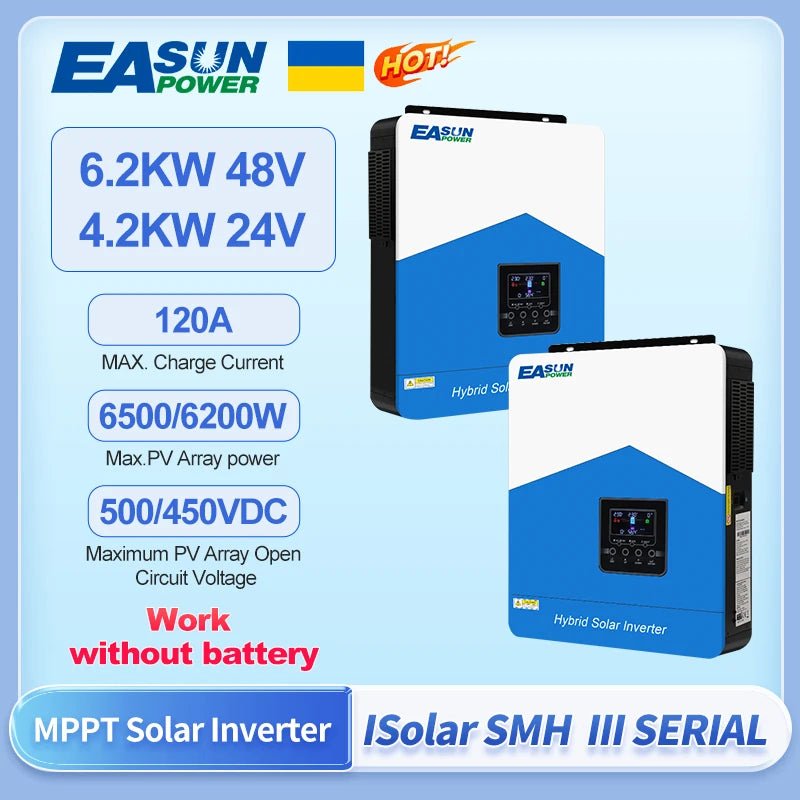

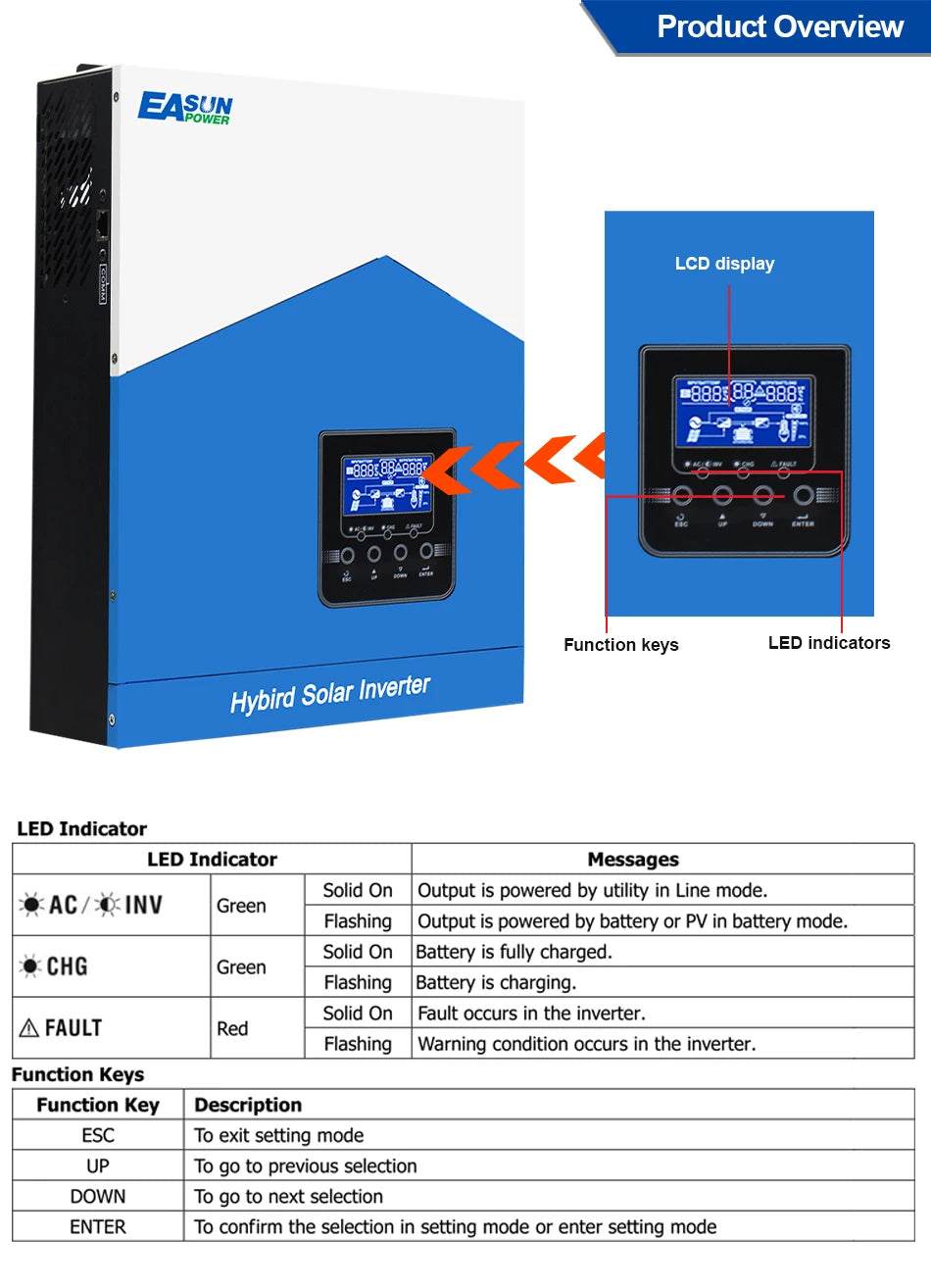

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Models |
ISolar-SMH-II-2.2KW |
ISolar-SMH-II-3.2KW |
ISolar-SMH-III-4.2KW |
ISolar-SMH-III-6.2KW |
Rated Power |
2200VA/1800W |
3200VA/3000W |
4200VA/4200W |
6200VA/6200W |
INPUT | ||||
Voltage |
230Vac |
|||
Selectable Voltage Range |
(170Vac~280Vac)±2%;(90Vac-280Vac)±2% |
|||
Frequency Range |
50Hz/60Hz (Auto detection) |
|||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
|||
Surge power |
4400VA |
6400VA |
8000VA |
14000VA |
Transfer Time |
10ms(for personal computers)/20ms(for home appliances) |
|||
Waveform |
Pure Sine Wave |
|||
BATTERY&AC CHARGER | ||||
Battery Voltage |
12VDC |
24VDC |
24VDC |
48VDC |
Floating Charge Voltage |
13.5VDC |
27VDC |
27VDC |
54VDC |
Over-charge Protection |
15.5VDC |
31VDC |
31VDC |
61VDC |
Maximum charge current |
80A |
80A |
120A |
120A |
SOLAR CHARGER | ||||
MAX.PV Array Power |
1800W |
3000W |
4200W |
6200W |
MPPT Range Operating Voltage |
55-450VDC |
|||
Maximum PV Array Open Circuit Voltage |
450VDC |
|||
Maximum Charging Current |
80A |
80A |
120A |
120A |
Maximum Efficiency |
98% |
|||
PHYSICAL | ||||
Dimension D*W*H(mm) |
405x286x98mm |
405x286x98mm |
423x290x100mm |
423x310x120mm |
Net Weight (kgs) |
4.5kg |
5.0kg |
10.0kg |
10.0kg |
Communication Interface |
(Standard)/GPRS/WIFI |
|||
OPERATING ENVIRONMENT | ||||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|||
Operating Temperature |
10°C to 55°C |
|||
Storage Temperature |
15°C to 60°C |
|||

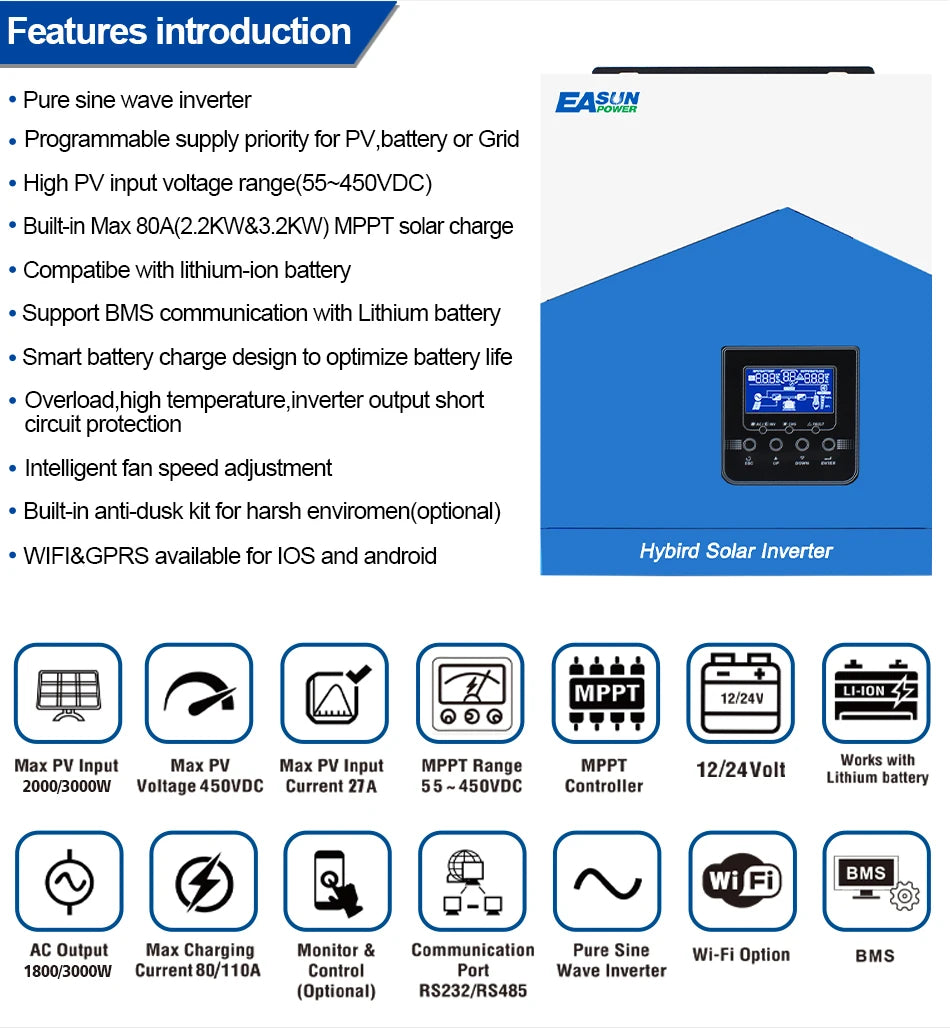

Features
●Pure sine wave inverter,
●Configurable input voltage range for home appliances and personal computers via LCD setting,
●Configurable battery charging current based on applications via LCD setting,
●Configurable AC/Solar Charger priority via LCD setting,
●Compatible to mains voltage or generator power,
●Auto restart while AC is recovering,
●Overload/ Over temperature/ short circuit protection,
●Smart battery charger design for optimized battery performance,
●Cold start function,

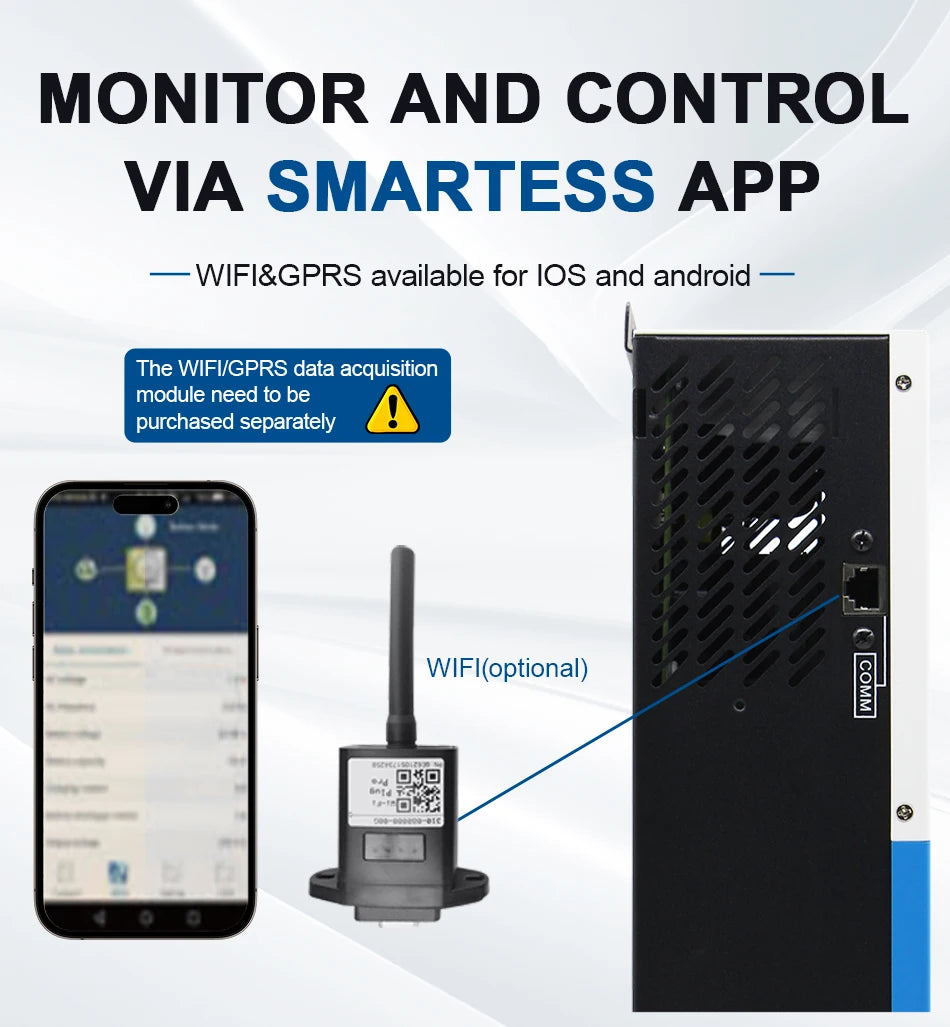

●WIFI(Optional),
●Can connect to lithium battery,
●Intelligent fan speed adjustment.
FAQ | |
Question |
Answer |
What is an off-grid inverter? |
Off-grid inverter working mode: connect solar panels to supply power to the load and charge the battery at the same time; you can use the grid or battery to supply power to the load; but cannot feed electricity into the grid;PV+ battery supplies power to the load. When the energy is insufficient, it will automatically switch to bypass mode. |
What is an Hybrid inverter ? |
Hybrid inverter working mode: Hybrid inverters are also called switched inverters. It not only has the function of an off-grid inverter, but also can sell the power stored in the battery to the grid company;PV panel + battery supply power to the load, and it can also supply power to the load through the PV+ grid |
What batteries can the inverter support? |
Lithium battery, lead-acid battery, gel battery |
Lithium battery type |
LIFEPO4 and PYLON battery types are all lithium batteries |
What is the inverter battery voltage requirement? |
1KW inverter is equipped with 12V battery; 2KW-3KW inverter is equipped with 24V battery; 4KW-5KW inverter is equipped with 48V battery, which can connect batteries in series or parallel |
What types of solar panels can the inverter support? |
Polycrystalline solar panel, monocrystalline solar panel |
Which inverter supports BMS battery communicationfction |
At present, only SMK 5KW and SMV III 3KW/5KW machines have BMS communication ports (RS485) and support lithium battery communication. SM 5KW and SM II 5KW models need external MODBUS BOX to support communication. |
How many solar panels can be connected to the inverter? |
Each inverter must first confirm the solar panel MPPT working voltage range and PV Array Power (you can check the inverter parameter table on the product page). The input voltage of the solar panel cannot exceed the maximum value; the power of the solar panel that can be connected cannot exceed the maximum value, |
Can the inverter work without a battery? |
Inverter models that can work without battery: Off-grid inverter:SML II 3.5KW; SML II 5.5KW; SM II 5KW; SMV III 3KW; SMV III 5KW; SMR II 3KW; SMP 5KW; SMR II 5KW; SML II 3.2KW; SML II 5KW; SMS III 3K ;SMS III 5KW Hybrid inverter: all models can work without battery, https://powland.aliexpress.com/store/group/Hybrid-Solar-Inverter/4246039_517919884.html?spm=2114.12010612.0.0.2fbd1909SLOG0e |
Can inverters work in parallel? |
If you need inverters that can work in parallel, you can contact us before purchasing and we will recommend the model for you; |
Can the inverter be connected to the wind turbine? |
Yes, but you can only connect the output of the wind turbine to the battery, not the inverter |
Can the inverter be connected to the generator? |
Can be connected to gasoline generators, diesel generators, the output of the generator is connected to the AC Input of the inverter,The generator power cannot be less than 2 times the inverter power |

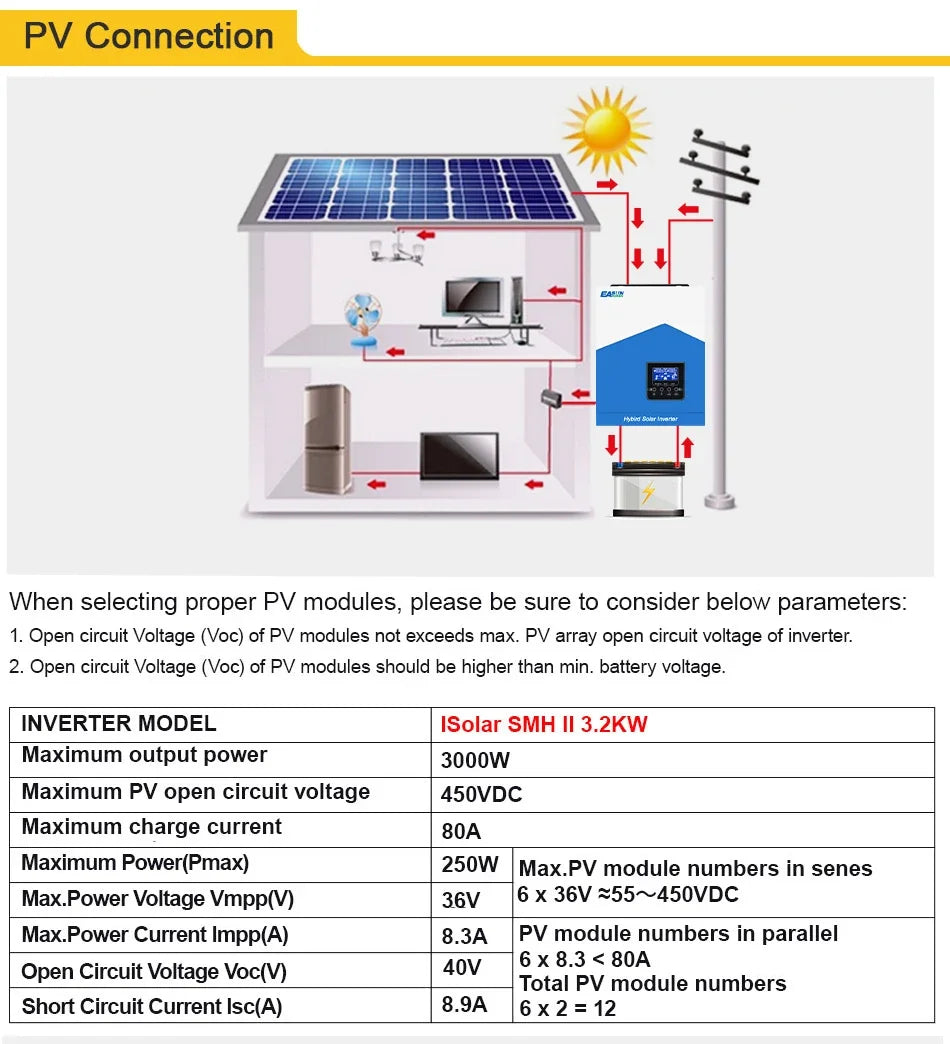

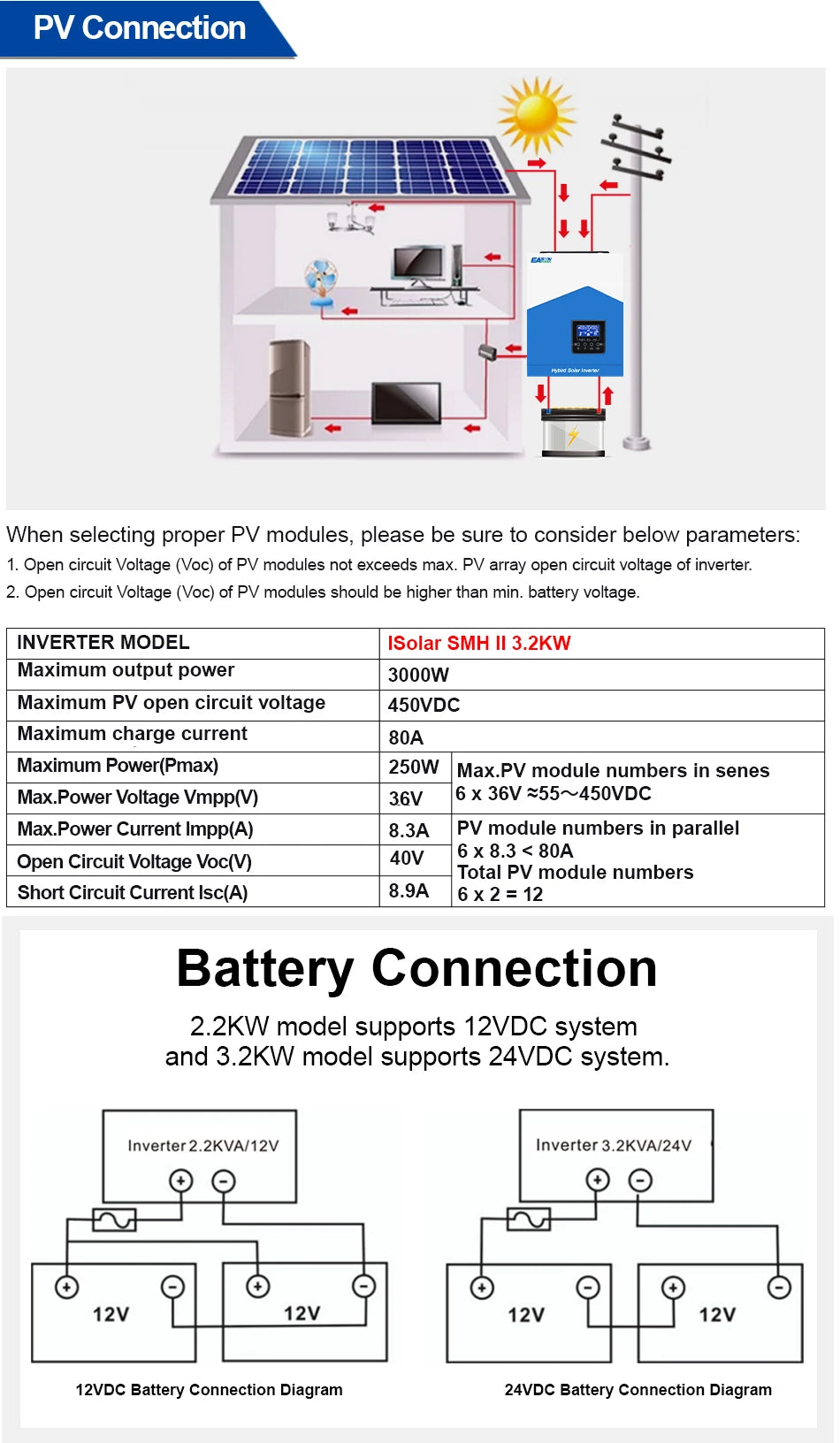

How to connect solar panels? |
According to the VMP voltage specification of the solar panel, the PV working voltage range connected to the inverter in series, and the open circuit voltage does not exceed the maximum voltage of the inverter.The PV voltage of inverter II and III models should be connected in series above 200V |
What are the factors of solar panel output power? |
1. The output power of solar panels is mainly related to light irradiance and installation angle. The power of each period will be different, it will decrease in the morning and evening, and will increase at noon. 2. The shadow effect. When the solar panel is under light and blocked, it will affect its MPPT tracking. Whether it is completely blocked or partially blocked, it will affect the output power. 3. Hot spot effect, mainly due to damage to the battery panel |
What is the no-load loss of the inverter? |
The no-load loss of the inverter is about 1A. For example, 24V inverter, the no-load loss is about 24W. You can refer to the manual;No-load loss is mainly reflected in: display screen, auxiliary power supply, DC-AC Conversion, booster circuit, etc. |
Can the generator start and stop automatically? |
The inverter has the function of automatically starting and stopping the generator |
