EASUN POWER Hybrid Solar Inverter 4KW 2KW Pure Sine Inverter 24V 12V Dropshipping Solar Inverter Charger power bank Inversor
EASUN POWER Hybrid Solar Inverter 4KW 2KW Pure Sine Inverter 24V 12V Dropshipping Solar Inverter Charger power bank Inversor
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Battery Voltage: 12V 24V
Brand Name: EASUN POWER
Certification: CE,FCC,RoHS
Hign-concerned Chemical: None
Model Number: ISolar-SMG-II-2KW-12V-Wifi
Off-grid inverter: Solar Charge Controller
Origin: Mainland China
Output Power: 1 - 200KW
Output Type: SINGLE
Type: DC/AC Inverters
Wave form: Pure Sine Wave
Weight: 7KG
advantage 1: home-appliance
advantage 2: power bank
advantage 3: Frequency converter 12V 220V
advantage 4: Power supply 12 volts
advantage 5: inverter
is_customized: Yes

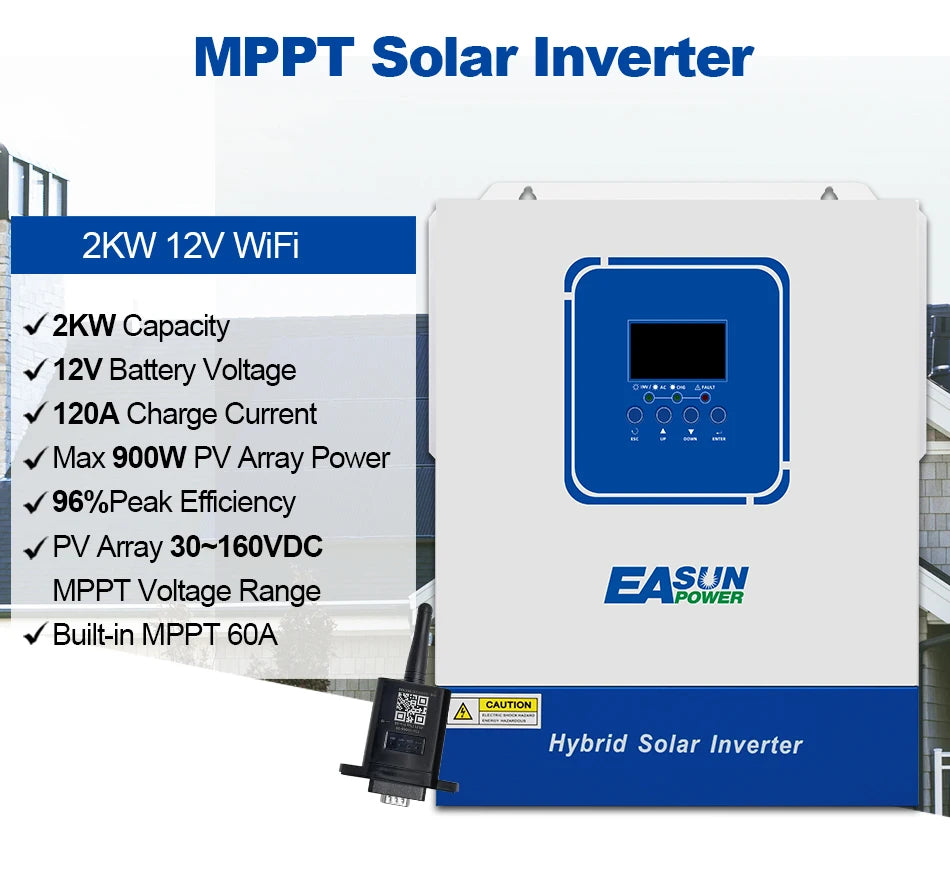

EASUN POWER 4KW 2KW Hybrid Solar Inverter Pure Sine Wave 24V 12V 230V Off Grid Inverter 100A Mppt Solar Controller With WIFI
Note：Ship directly from Europe, you can receive the package within 1-7 days within the EU
Performance characteristics:
1.Pure sine wave inverter，Built-in MPPT solar charge controller

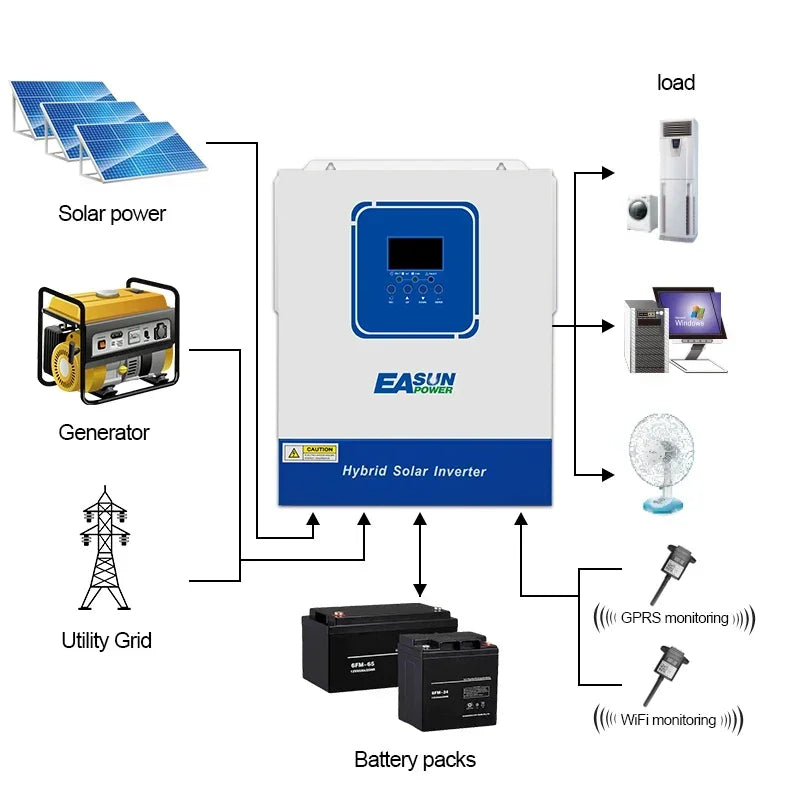

2.WIFI-GPRS remote monitoring

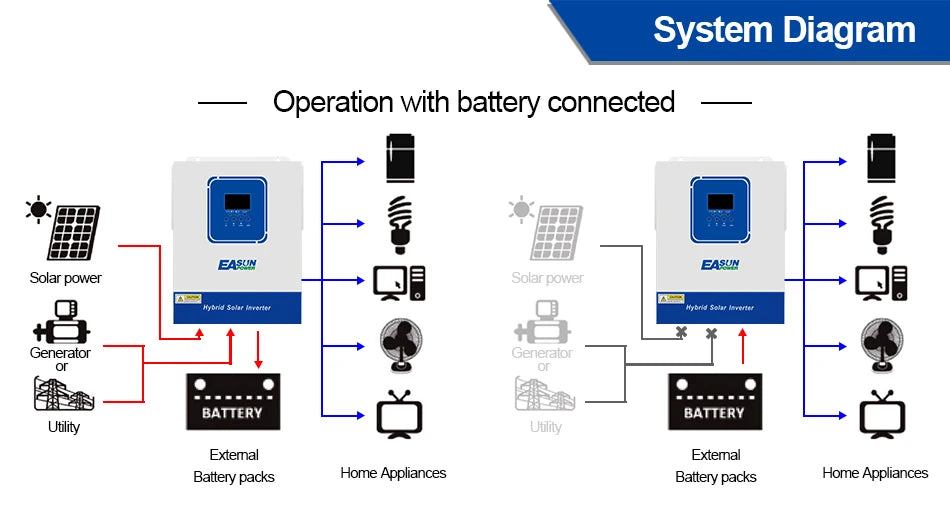

3.Supports connection of lead-acid battery and lithium battery,Compatible to mains voltage or generator power
4.Possessing complete short circuit protection, overvoltage and undervoltage protection, overload protection, back filling protection, etc.

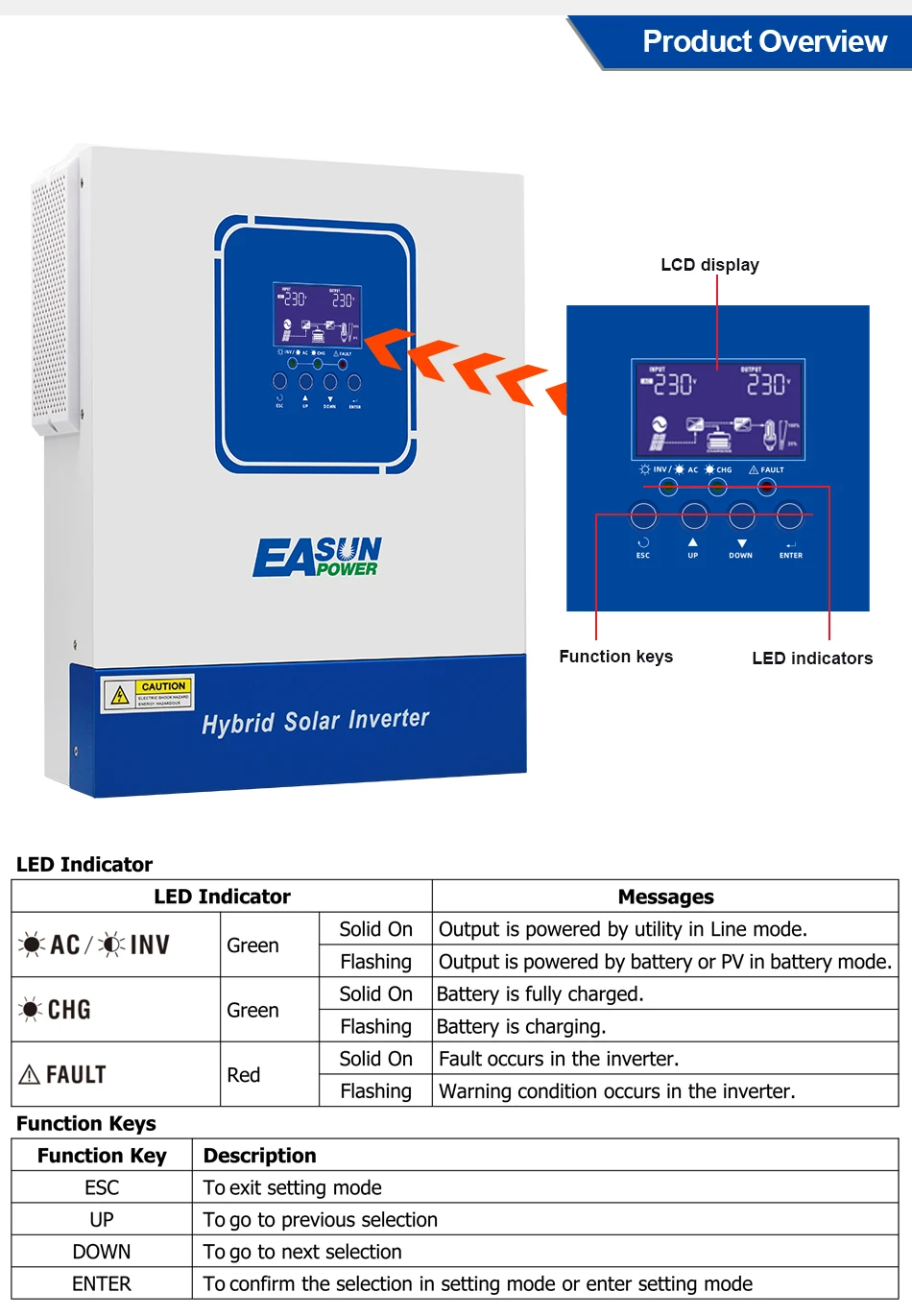

5.Configurable input voltage range for home appliances and personal computers via LCD setting
6.Configurable battery charging current based on applications via LCD setting

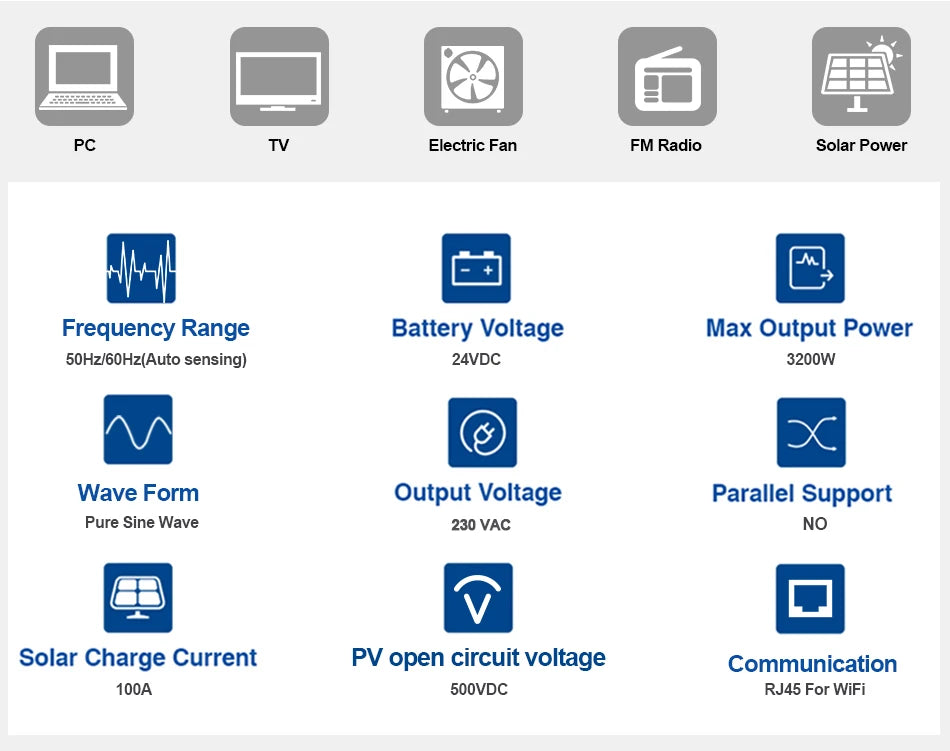

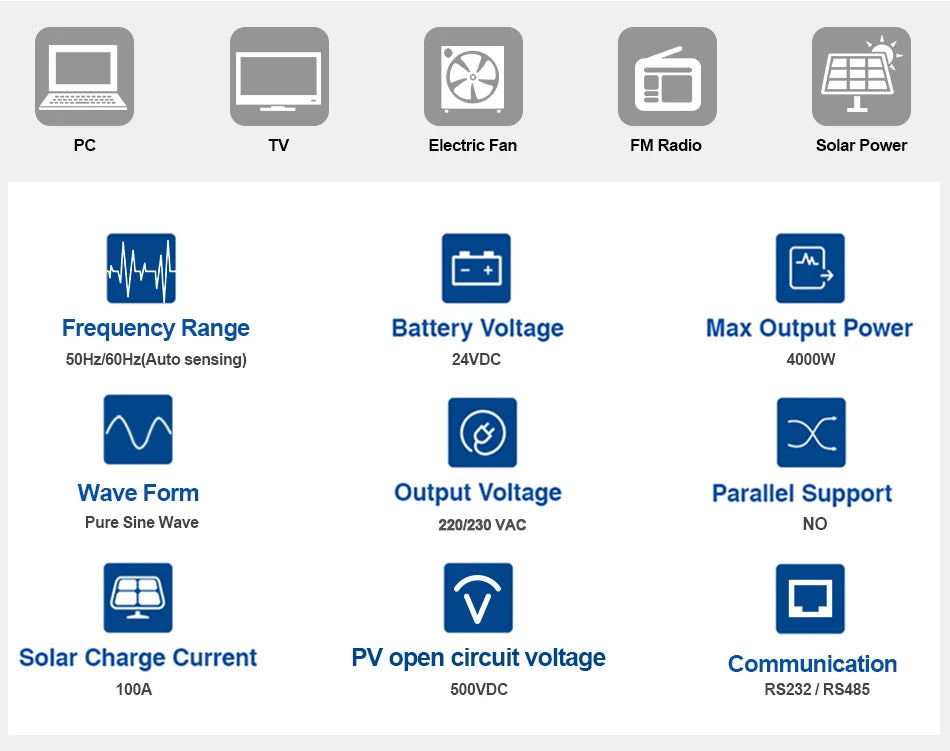

MODEL |
SMG-II-2KW-12V-WiFi |

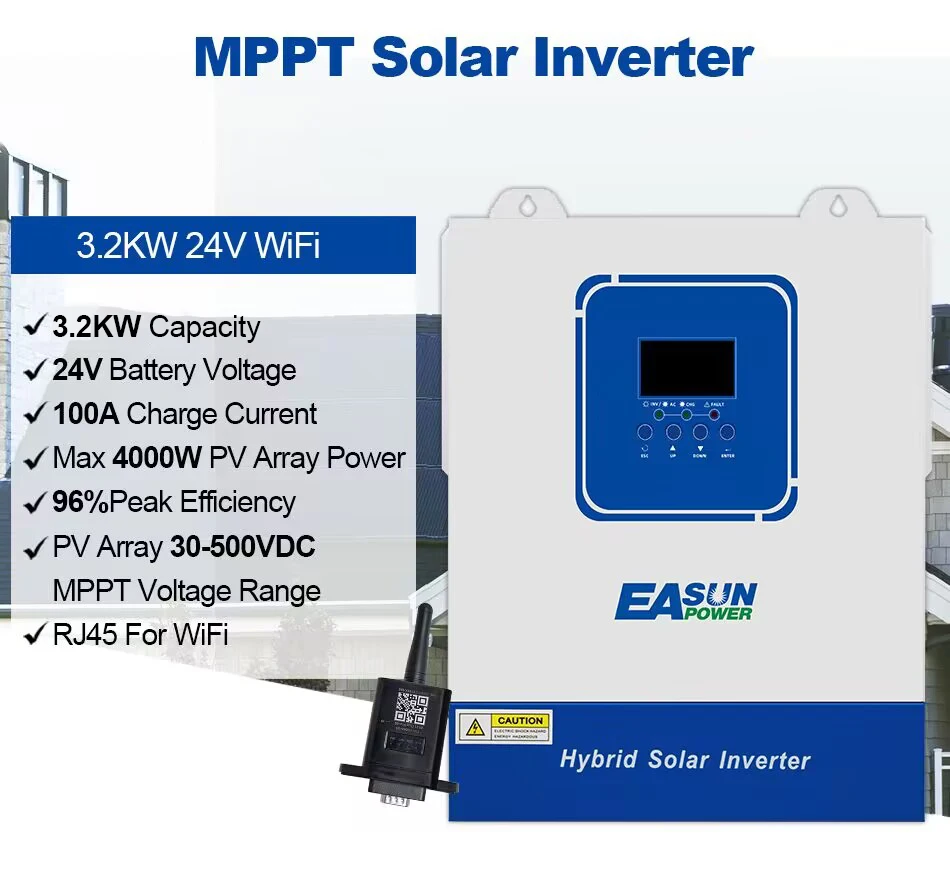

SMG-II-3.2KW-24V-WiFi |

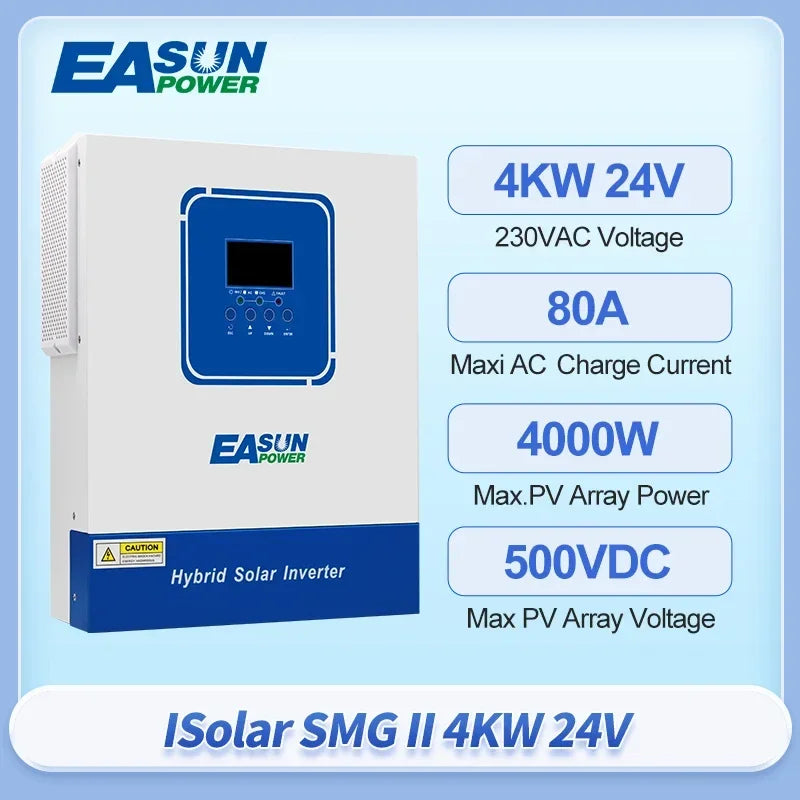

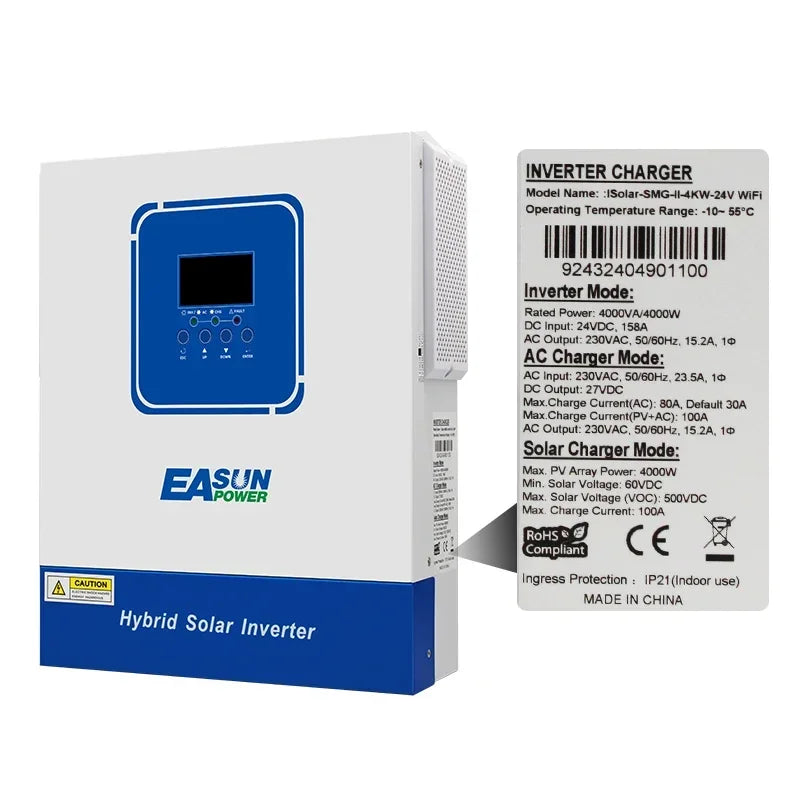

SMG-II-4KW-24V-WiFi |
CAPACITY |
2KVA/2KW |
3.2KVA/3.2KW |
4KVA/4KW |
Support BMS |
YES |
NO |
YES |
With Wifi |
YES |
YES |
YES |
INPUT | |||
Nominal Voltage |
220/230VAC |
||
Acceptable Voltage Range |
170-280VAC(ForpersonalComputer);90-280VAC(ForHomeAppliances) |
||
Frequency |
50/60Hz(Auto sensing) |
||
OUTPUT | |||
Nominal Voltage |
220/230VAC±5% |
||
Surge Power |
3000VA |
7000VA |
7000VA |
Wave form |
Pure Sine wave |
||
Transfer Time |
10Ms(ForpersonalComputer);20Ms(ForHomeAppliances) |
||
Peak Efficiency(PV to INV) |
96% |
96% |
96% |
Peak Efficiency (Battery to INV) |
93% |
93% |
93% |
Over load Protection |
5s@>=150%load;10s@110%-150%load |
||
Power Factor |
1 |
||
BATTERY | |||
Battery Voltage |
12VDC |
24VDC |
24VDC |
Floating Charge Voltage |
13.5VDC |
27VDC |
27VDC |
Over Charge Protection |
14.1VDC |
28.2VDC |
33VDC |
Solar Charger&AC Charger | |||
Solar Charger TYPE |
MPPT |
||
Max.PV Array power |
900W |
4000W |
4000W |
Max.PV Array Open Circuit Voltage |
160VDC |
500VDC |
500VDC |
PV Array MPPT Voltage Range |
30VDC~160VDC |
30VDC ~ 500VDC |
60VDC ~ 500VDC |
Max.Solar lnput Current |
30A |
15A |
15A |
Max.AC Charge Current |
80A |
60A |
80A |
Max.Charge Current (AC+PV) |
120A |
100A |
100A |
PHYSICAL | |||
Dimensions,DxWxH(mm) |
358x295x105 |
330* 278*100 |
358* 295*100 |
NetWeight(Kgs) |
6 |
6.5 |
7 |

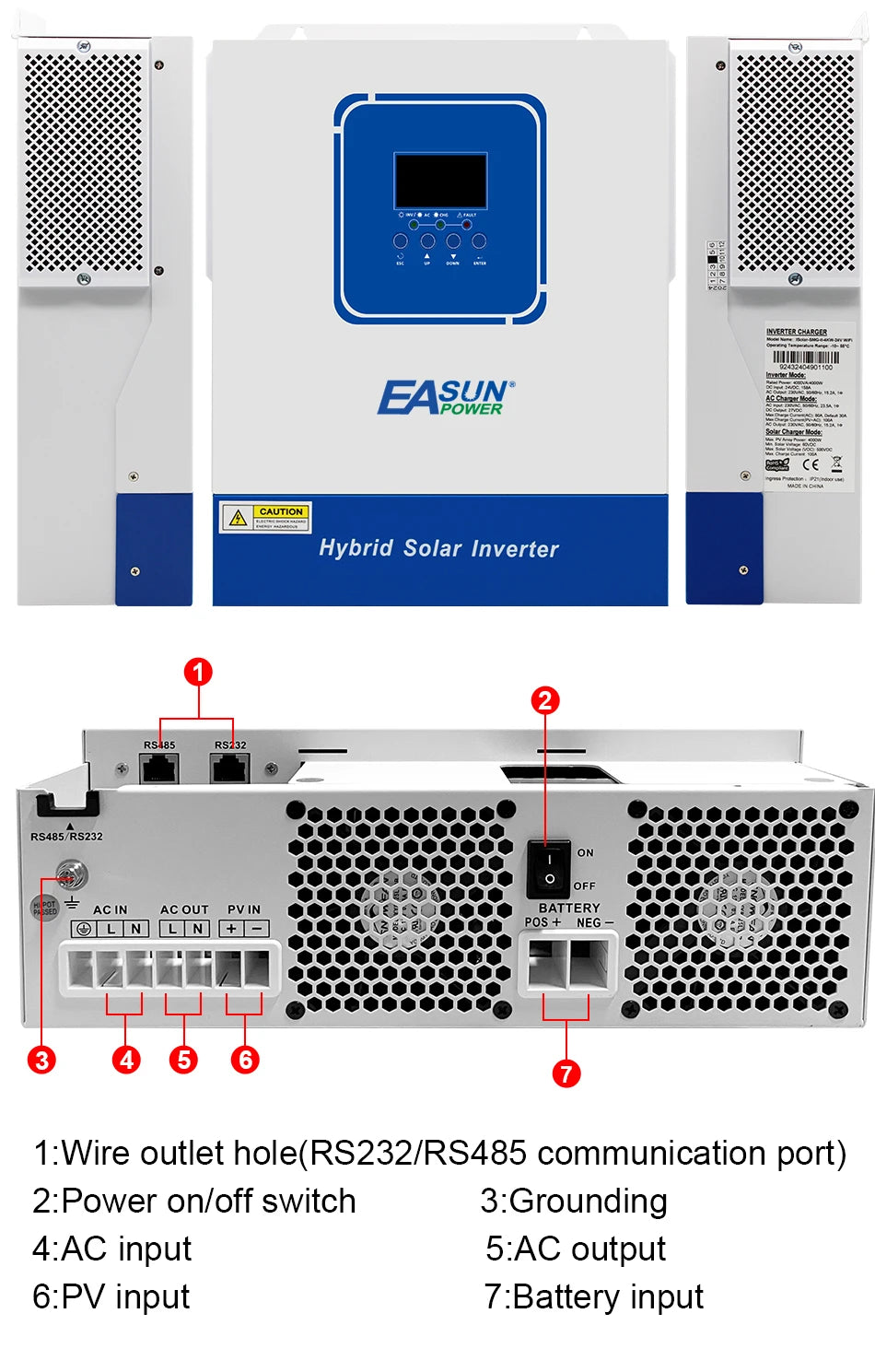

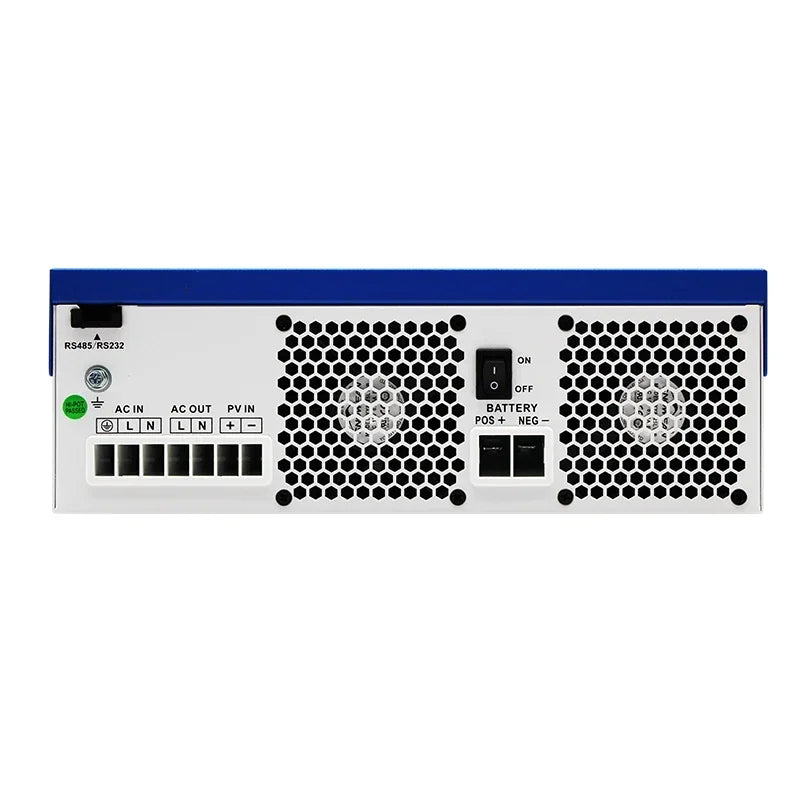

Communication lnterface |
RS232 / RS485 /WIFI |
RS232 / WIFI |
RS232 / RS485 /WIFI |
ENVIRONMENT | |||
OperatingTemperatureRange |
-10℃to 50℃ |
||
Storagetemperature |
-15℃to 60℃ |
||
Humidity |
5% to 95%RelativeHumidity(Non-condensing) |
||
