EASUN POWER 60A MPPT Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery
EASUN POWER 60A MPPT Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Application: Solar System Controller,Solar Working Station,Voltage Controller,Lighting Controller,Charger Controller
Battery System Voltage: 12V 24V 36V 48V
Brand Name: EASUN POWER
Certification: CE
Choice: yes
Enclosure: IP21
Fan-off temperature: <40℃
Fan-on temperature: >45℃
Gross weight (Kg): 1.2KG
Hign-concerned Chemical: None
Is Smart Device: Yes

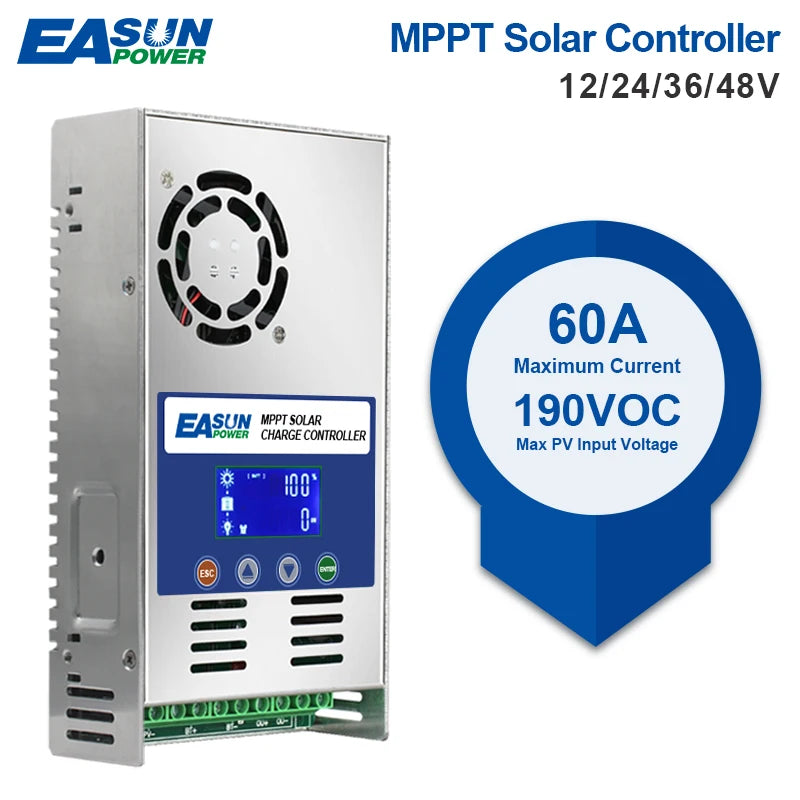

Max Solar Input Voltage: 190VOC
Maximum Current: 60A
Model Number: ICharger-4860
Origin: Mainland China
PV utilization: 99%
Quality: 100% genuine
Temperature protection: 75℃
The maximum PV input power: 720W/12V; 1440W/24V2160W/36V; 2880W/48V
is_customized: Yes
EASUN POWER 60A MPPT Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery

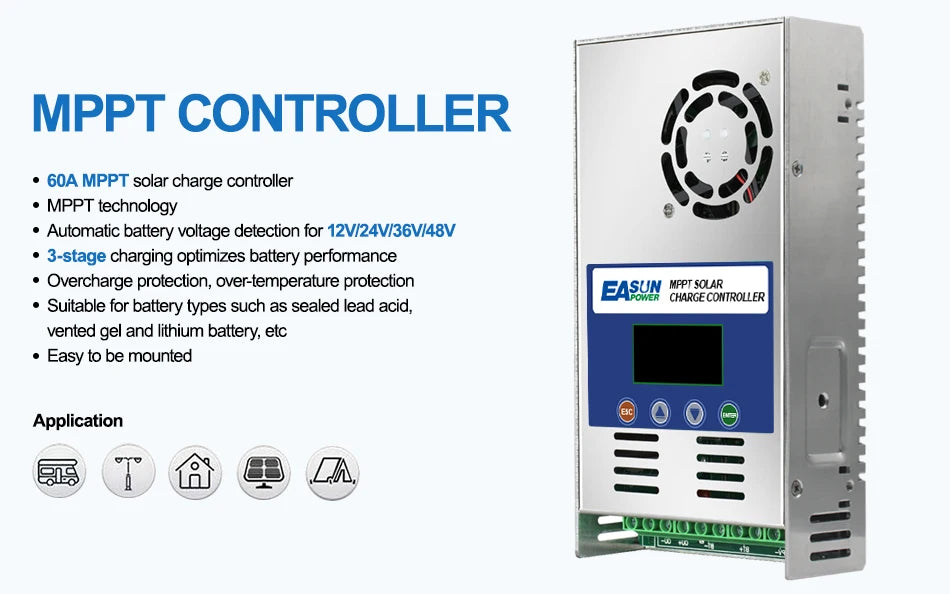

100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance

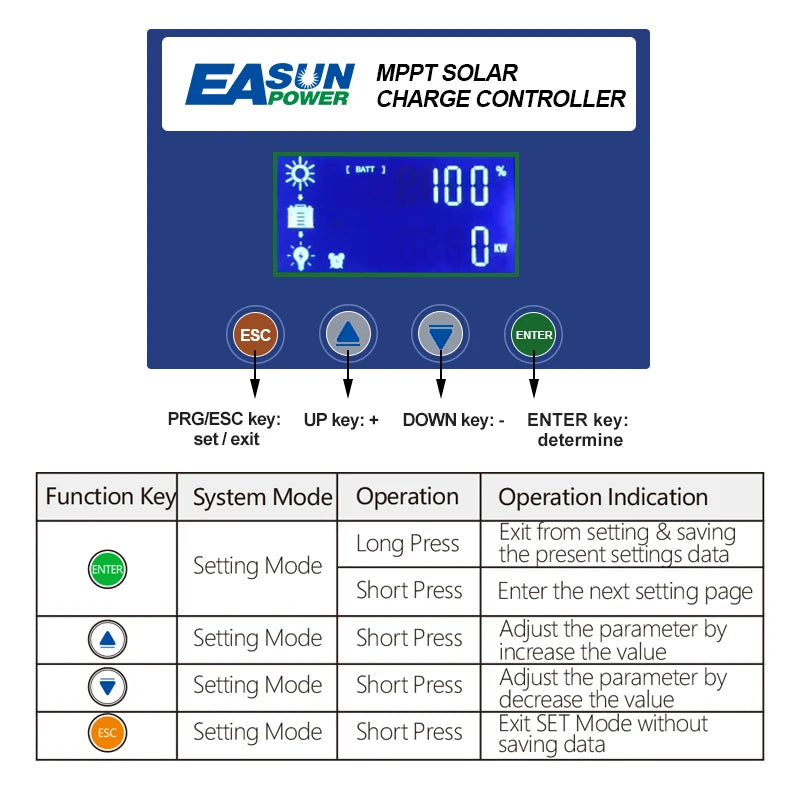

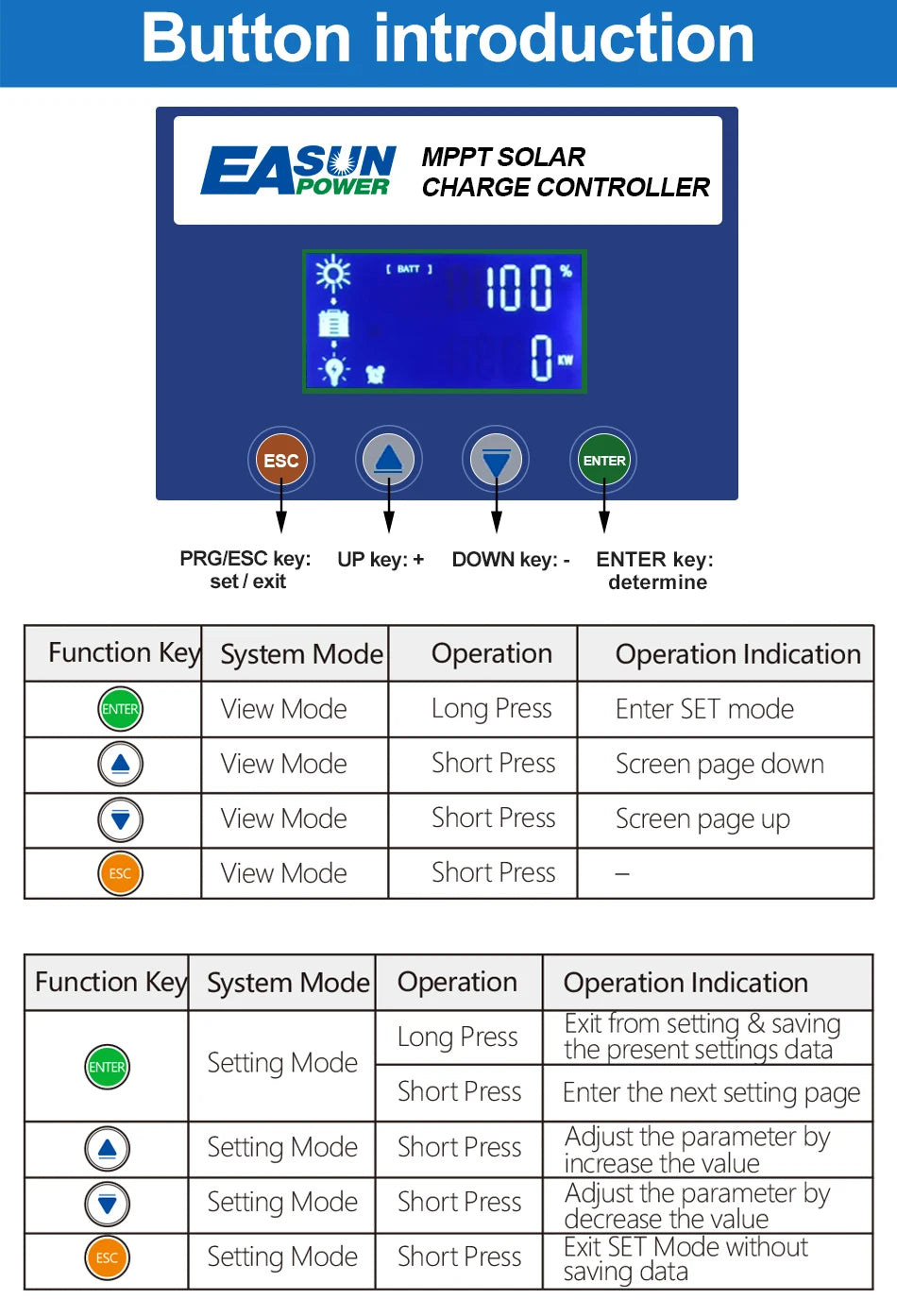

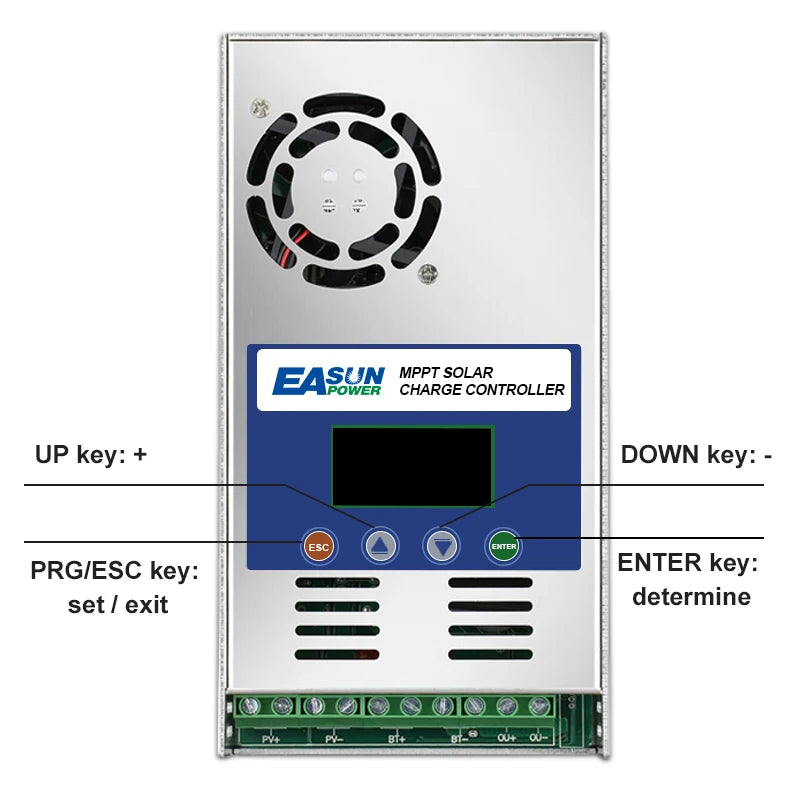

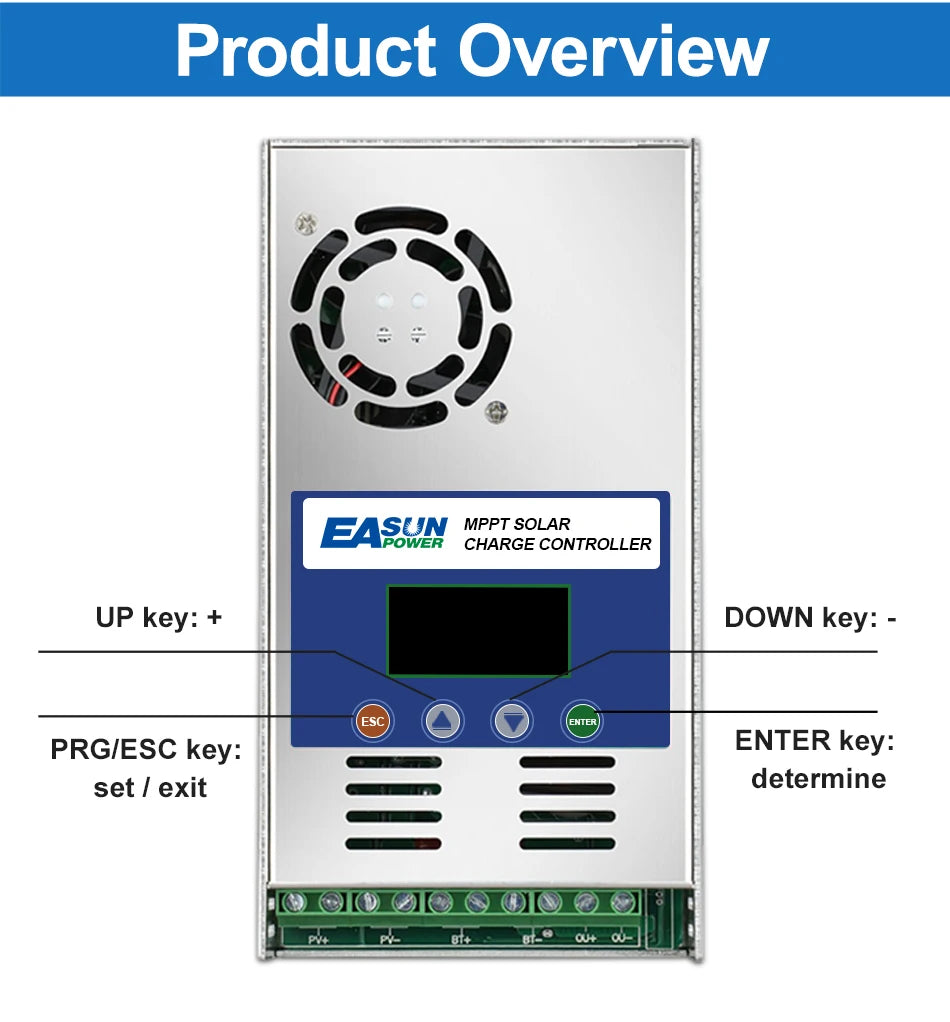

Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

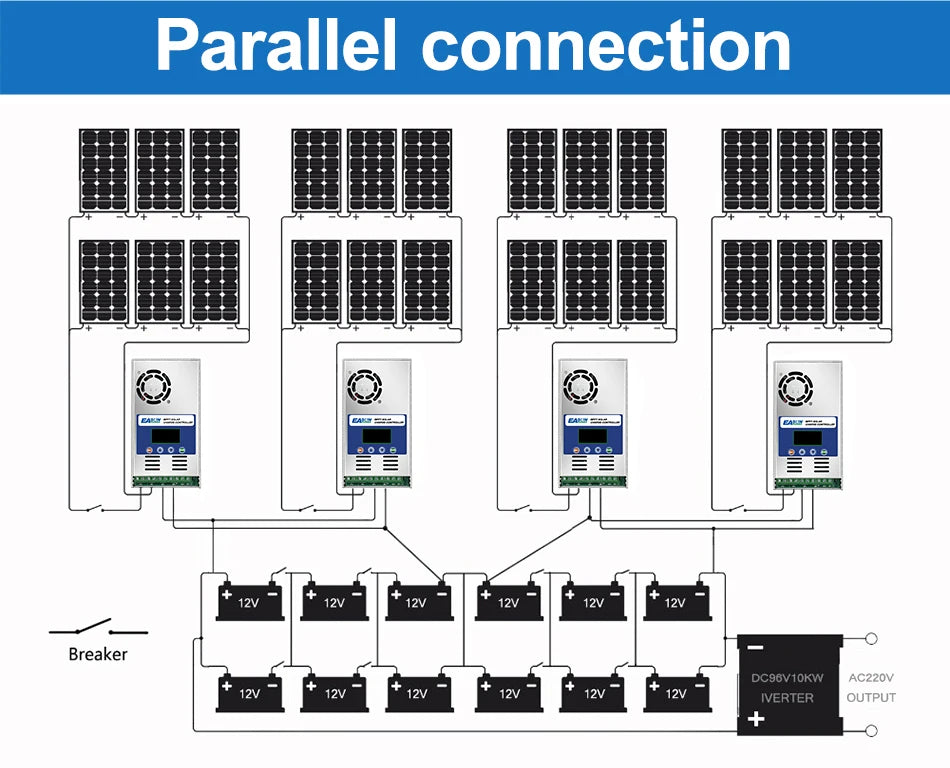

you can Put two pieces60Ain parallel ,So total isMPPT 120A
Support unlimited parallel connection
Item |
Parameter |
||||||
Models |
ICharger MPPT 6048 |
||||||
Chargingmode |
3-stage:constantcurrent(MPPT),constantvoltage,floating |
||||||
SystemVoltage |
12/24/36/48/Auto |
||||||
MaxPVInputPower |
720W/12V; 1440W/24V2160W/36V; 2880W/48V |
||||||
MaxPVInput Voltage |
190Voc |
||||||
|
Batteryvoltageautomaticrecognition |
12Vsystem(DC8.7V-DC15.5V)；24Vsystem(DC16V-DC31V) 36Vsystem(DC33V-DC41V)；48Vsystem(DC42V-DC64V) |
||||||
Overchargingprotectionvoltage |
12V system (16V)；24V system (32V)36Vsystem(48V)；48Vsystem(64V) |
||||||
Limitedcurrentprotection |
61A |
||||||
Maxefficiency |
≥98.1% |
||||||
PVutilization |
≥99% |
||||||
AutoTemperatureCompensation |
-3mV/2V/ºC |
||||||
ProtectionFunction | |||||||
Temperatureprotection |
75℃ |
||||||
Fan-ontemperature |
>45℃ |
||||||
Fan-offtemperature |
<40℃ |
||||||
Properties | |||||||

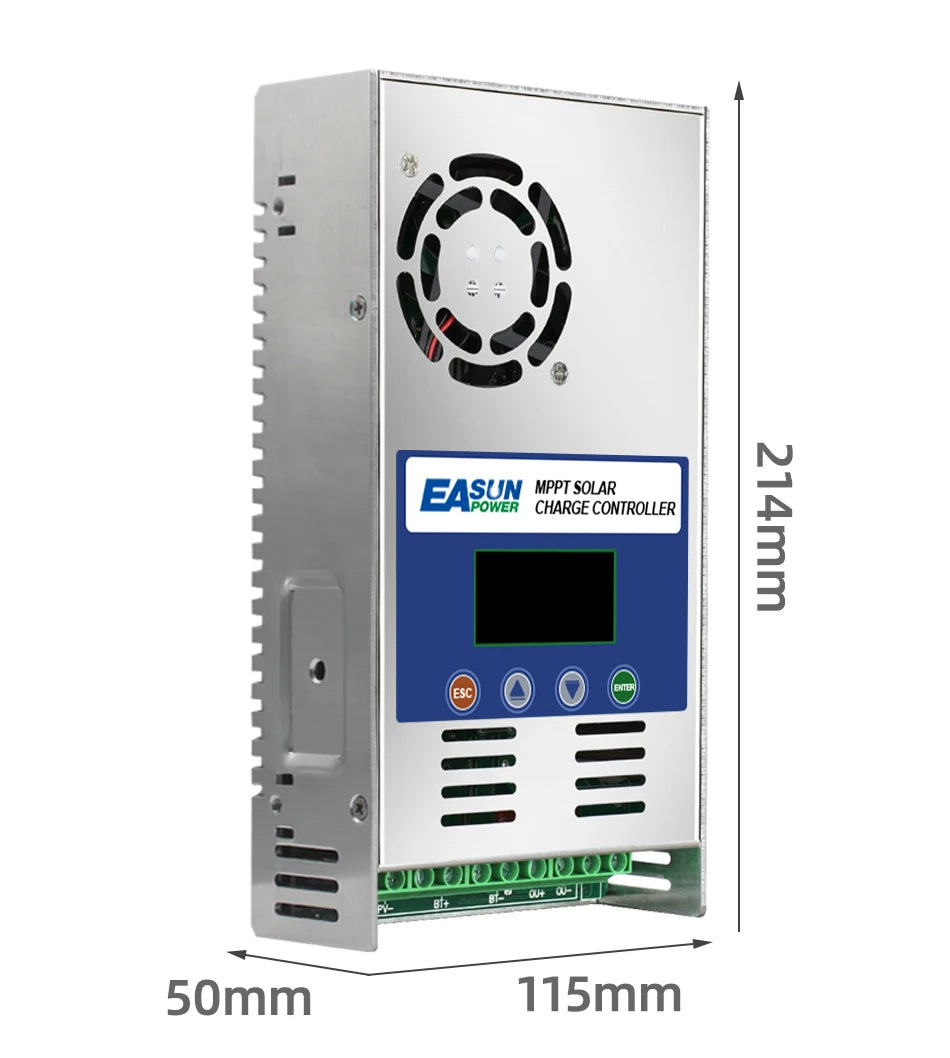

Size(mm) |
214x115x50 |
||||||
Netweight(Kg) |
1.1 |
||||||
Grossweight(Kg) |
1.2 |
||||||
Electromagneticcompatibility |
AccordtoEN61000,EN55022,EN55024 |
||||||
Enclosure |
IP21 |
||||||
Environmentaltemperature |
-20℃~+55℃ |
||||||
Storagetemperature |
-40℃~+75℃ |
||||||

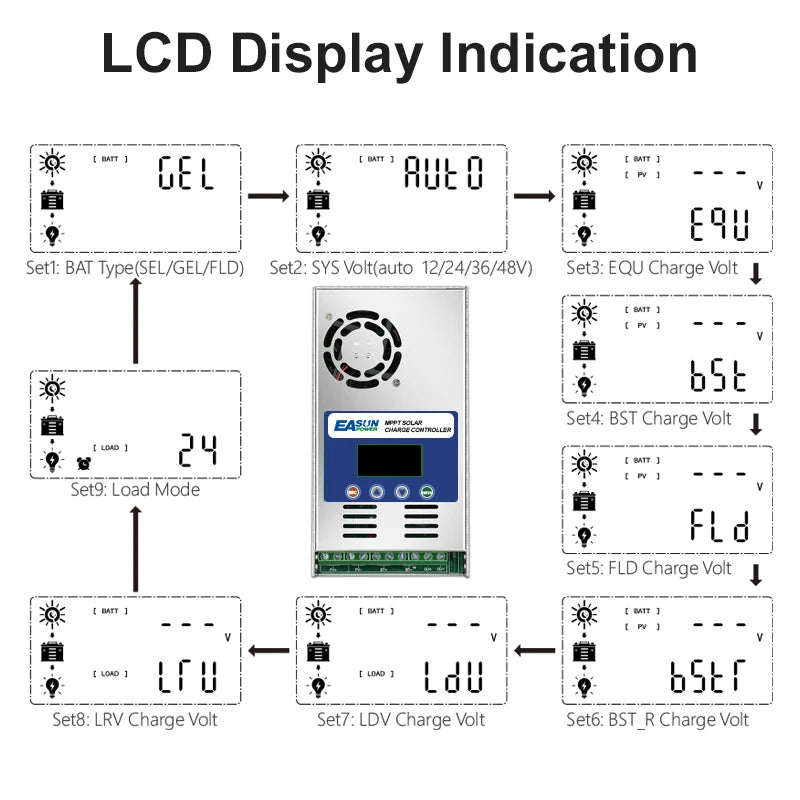

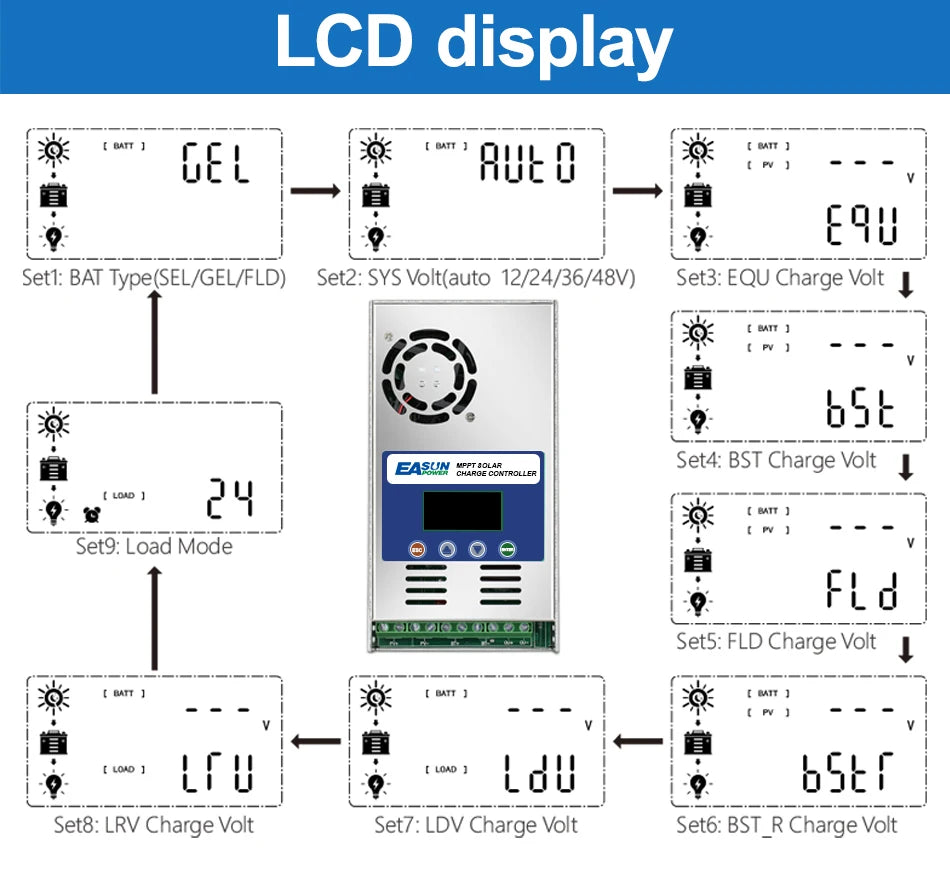

BatteryParameters | |||||||
BatteryType |
SystemVolt |
EQU |
BST |
FLD |
BST_R |
LRV |
LDV |
GEL |
Auto |
14.2V |
14.2V |
13.8V |
13.2V |
12.6V |
12.0V |
SEL |
Auto |
14.6V |
14.4V |
13.8V |
13.2V |
12.6V |
12.0V |
FLD |
Auto |
14.8V |
14.6V |
13.8V |
13.2V |
12.6V |
12.0V |
USE |
Auto/12/24/36/48V |
Definedbyusers |
|||||
LI |
12/24/36/48V |
--- |
Definedbyusers |
--- |
--- |
Definedbyusers |
|
|
ThemaximumPVinputpower(ThetotalpowerratedofPVcan’tbeoverthiswattthatwillbreakthe controller.) |
12Vsystem(360W) |
12Vsystem(480W) |
12Vsystem(600W) |
12Vsystem(720W) |
|||
24Vsystem(720W) |
24Vsystem(960W) |
24Vsystem(1200W) |
24Vsystem(1440W) |
||||
36Vsystem(1080W) |
36Vsystem(1400W) |
36Vsystem(1800W) |
36Vsystem(2100W) |
||||
48Vsystem(1440W) |
48Vsystem(1700W) |
48Vsystem(2200W) |
48Vsystem(2800W) |
||||
