SPECIFICATIONS

Brand Name: Daiertek

Choice: yes

Fuse slot: 6

Fuse type: Standard (ATC/ATO)

Hign-concerned Chemical: None

Input Rated Current: 75A

Input Rated Voltage: DC 12V - 32V

Item Height: 5.2

Item Length: 12

Item Weight: 192

Item Width: 5

Material: ABS

Maximum Output Current: 20A per circuit

Model Name: FB-1901

Origin: Mainland China

Product Size: 120 * 50 * 52mm

Rated Current: 70A

Year: 2023 Year

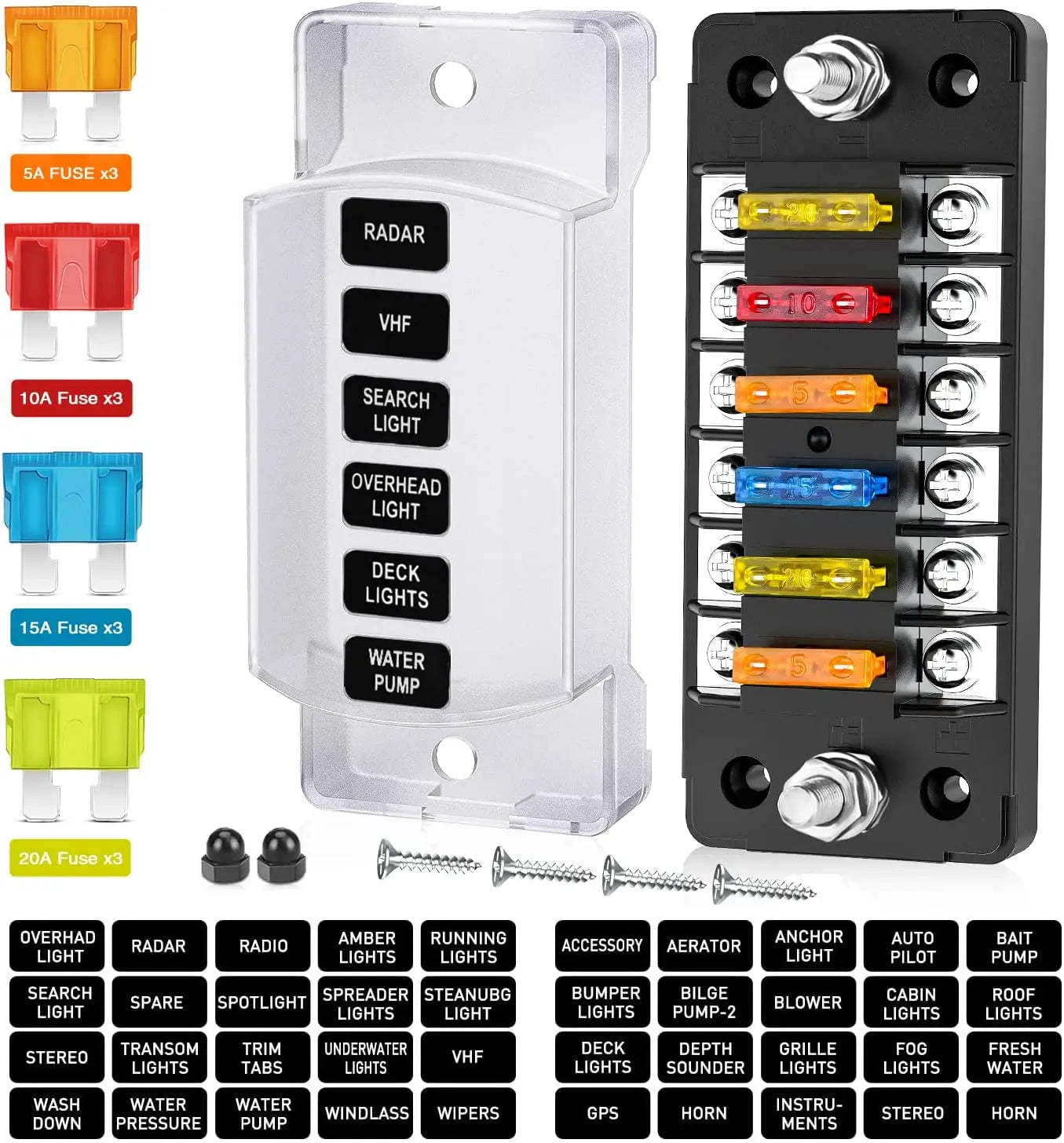

DaierTek 6 Way Fuse Block Blade Fuse Box with Negative Bus 6 Circuit Fuse Holder Fuse Block w/Negative Bus For 12V 24V Auto

About this item

• ★【NEW DESIGN 6 WAY FUSE BOX】 6-Way Blade Fuse Block accepts 1A to 20A ATC/ATO(middle size) fuses. It has positive and negative sides, which means that each positive terminal screw has a negative terminal screw to make your circuit clear at a glance. This device is intended for branch circuit protection and has good conductivity. Max. 32V DC operating voltage. Max. 20 Amp per circuit & 75 Amp per panel.

• ★【PREMIUM QUALITY & SAFE MATERIAL】Made of environment friendly PBT material, this fuse holder meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon.

• ★【PROTECTION COVER & PRE-PRINTED DIY STICKERS】Transparent plastic cover with screw nut, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses. Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor.

• ★【WIDE APPICATION】This 6 Circuit Fuse Block widely used in Car, Truck, Boat, Tankers, Marine, SUV, Yacht, RV, Van, Ships etc. Each fuse of fuses box can be connected to any circuit of electrical appliances. For example: car dome light, auto headlight, width lamp, fog lamp, warning lights, car refrigerator, car charger and car fan, car TV.etc.

• ★【PACKAGE INCLUDED】Package includes 1 x 6 Way Blade Fuse Block with Protection Cover, 4 x 20A Fuse, 2 x 15A Fuse, 2 x 10A Fuse, 4 x 5A Fuse, 4 x Screw, 2 x Sticker. If you have any questions about this 6-way fuse box holder, please feel free to contact us. Our costumer service team always be there for you.

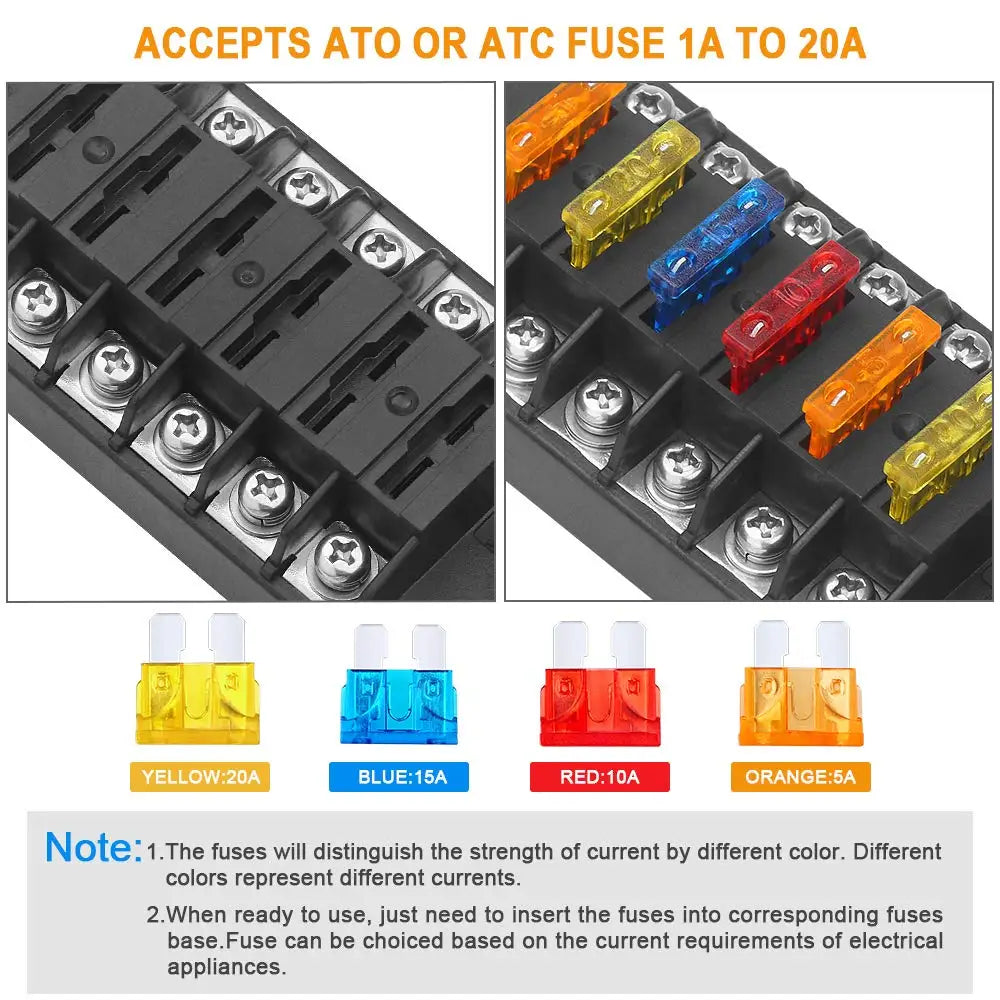

6 circuits with negative bus, accept ATC/ATO(middle size) standard fuses.

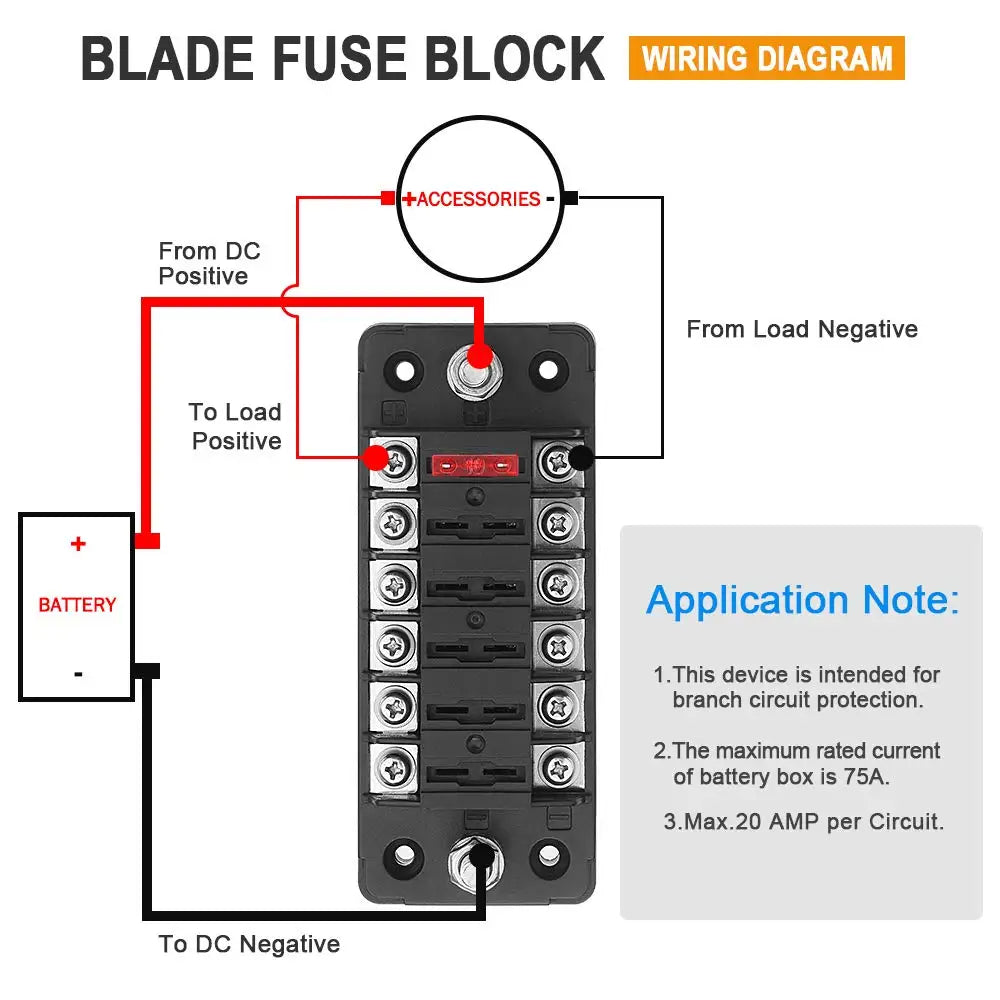

This device is intended for branch circuit protection and has good conductivity.

Max. 32V DC operating voltage. Max. 20 Amp per circuit & 75 Amp per panel.

Each positive terminal has a negative terminal to make your circuit clear at a glance.

Made of high quality PBT material, this fuse holder meets all the standards of an ideal fuse box.

It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon.

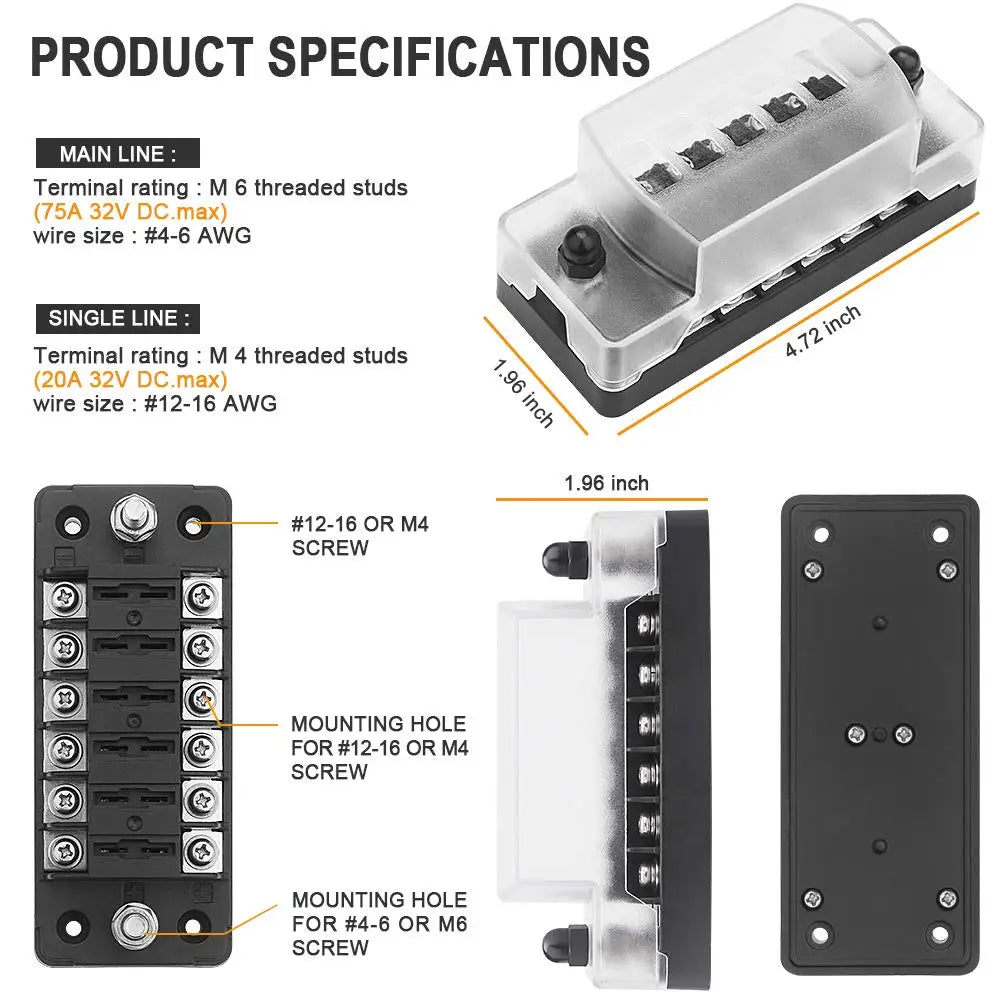

Main Line

• terminal rating : M6 threaded studs (75A 32V DC.max)

• wire size : #4-6 AWG

Single Line

• terminal rating : M4 threaded studs (20A 32V DC.max)

• wire size : #12-16 AWG

SAFE Material

• Base: PA66

• Dust Cover: PC

• Terminal: Nickel plated copper

• Screw: Stainless steel

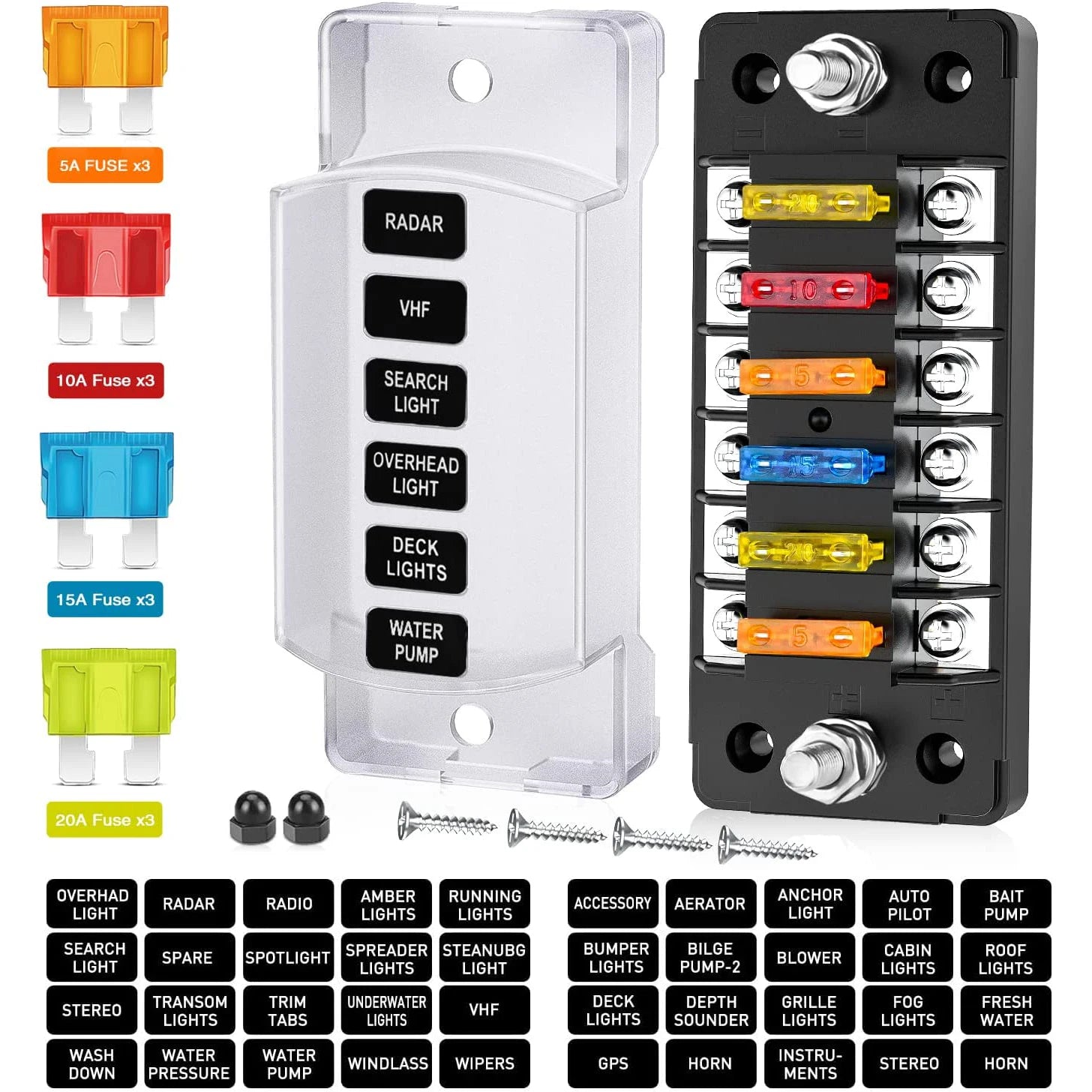

Package included

• 1 x 6 Way Blade Fuse Block

• 1 x PC Protection Cover

• 4 x 20A Fuse

• 2 x 15A Fuse

• 2 x 10A Fuse

• 4 x 5A Fuse

• 4 x Screw

• 2 x Cap Nut

• 2 x Sticker

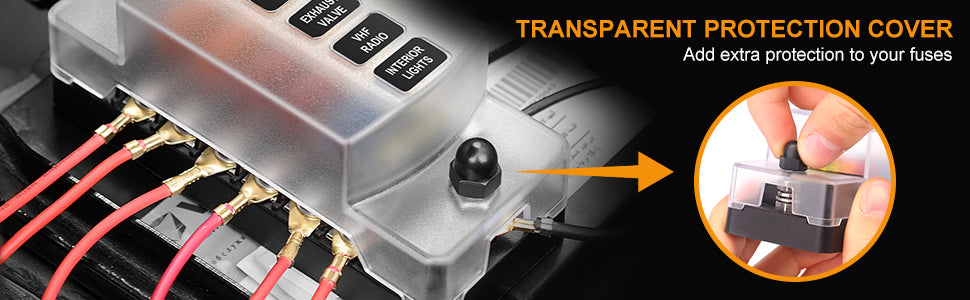

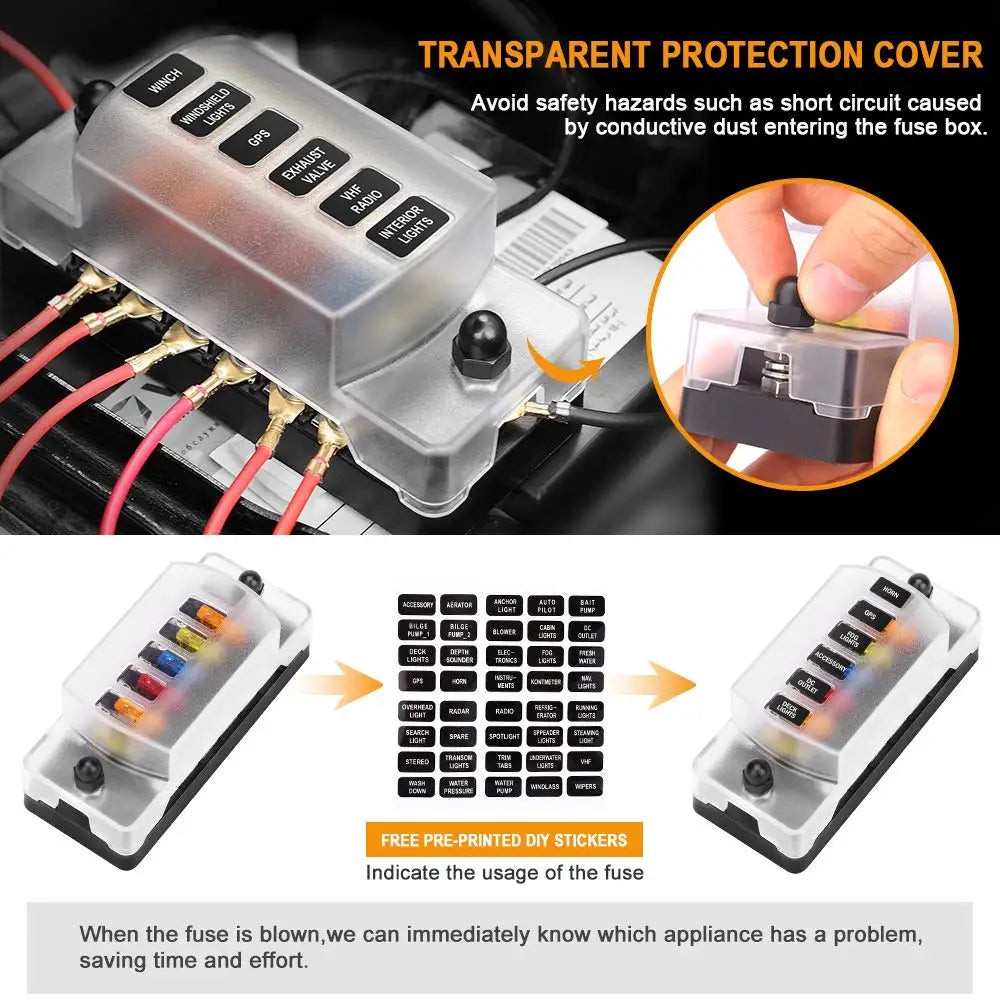

• PROTECTION COVER

Transparent plastic cover with cap nut, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses.

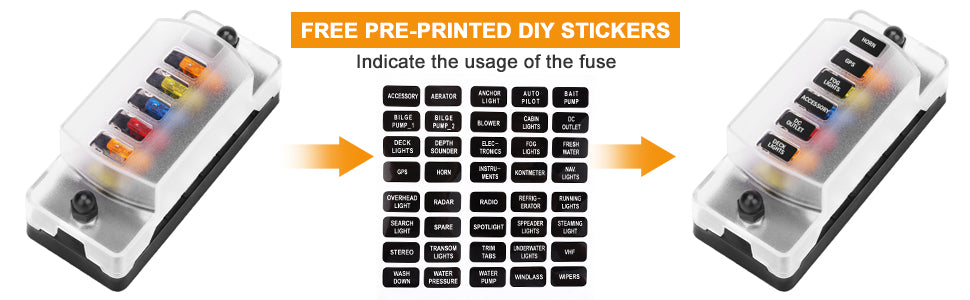

• PRE-PRINTED DIY STICKERS

Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor.

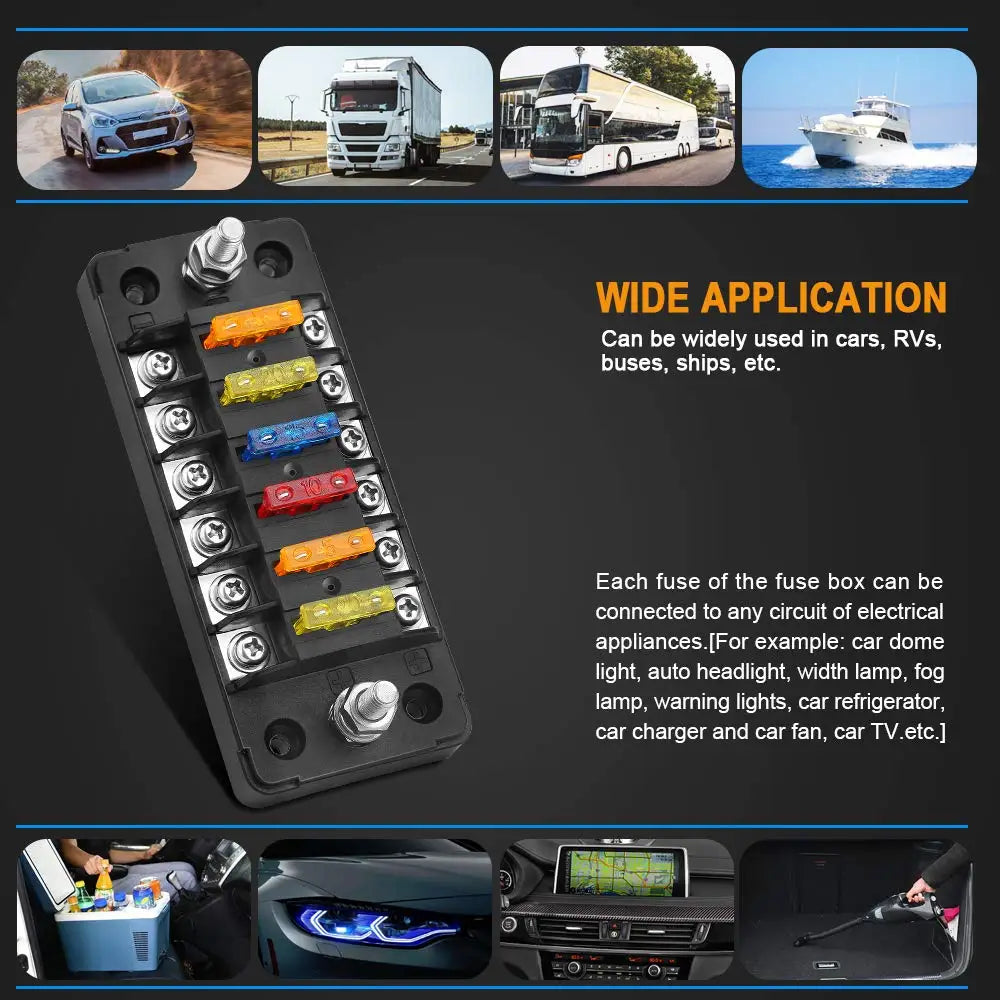

• WIDE APPICATION

• This 6 Circuit Fuse Block widely used in Car, Truck, Boat, Tankers, Marine, SUV, Yacht, RV, Van, Ships etc.

• Each fuse of fuses box can be connected to any circuit of electrical appliances.

• For example: car dome light, auto headlight, width lamp, fog lamp, warning lights, car refrigerator, car charger and car fan, car TV.etc.
