SPECIFICATIONS

Brand Name: LNCN

Choice: yes

External Testing Certification: ce

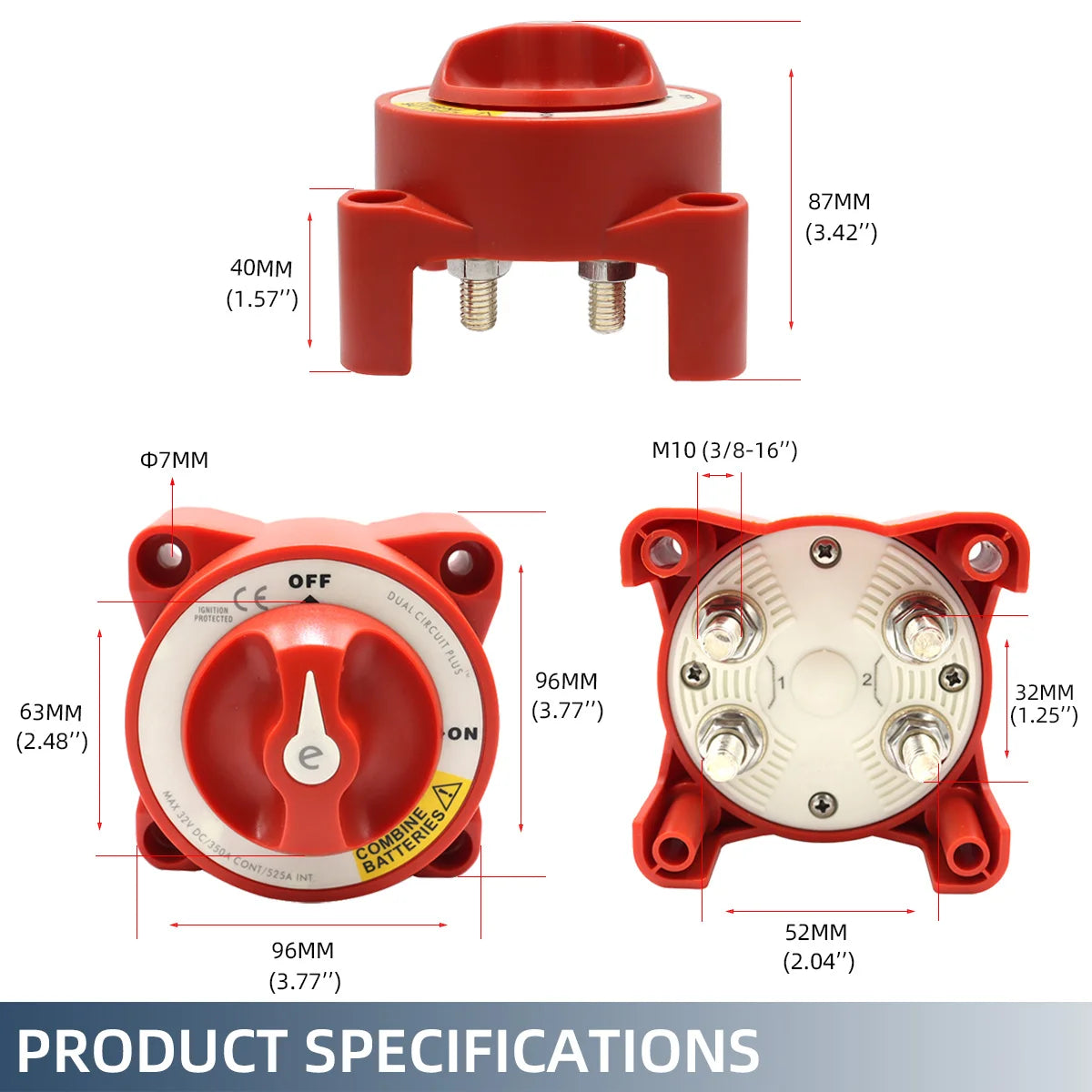

Item Diameter: 3.42

Item Height: 3.42

Item Length: 3.77

Item Type: Battery Switch

Item Weight: 0.5

Item Width: 3.77

Material: ABS plastic + copper

Model Name: 9001e,5511E, 11001, 5510E, 9002e, 9003e, 9004e

Origin: Mainland China

Special Features: e-Series Switch Cut Single Dual On/Off

Year: ALL

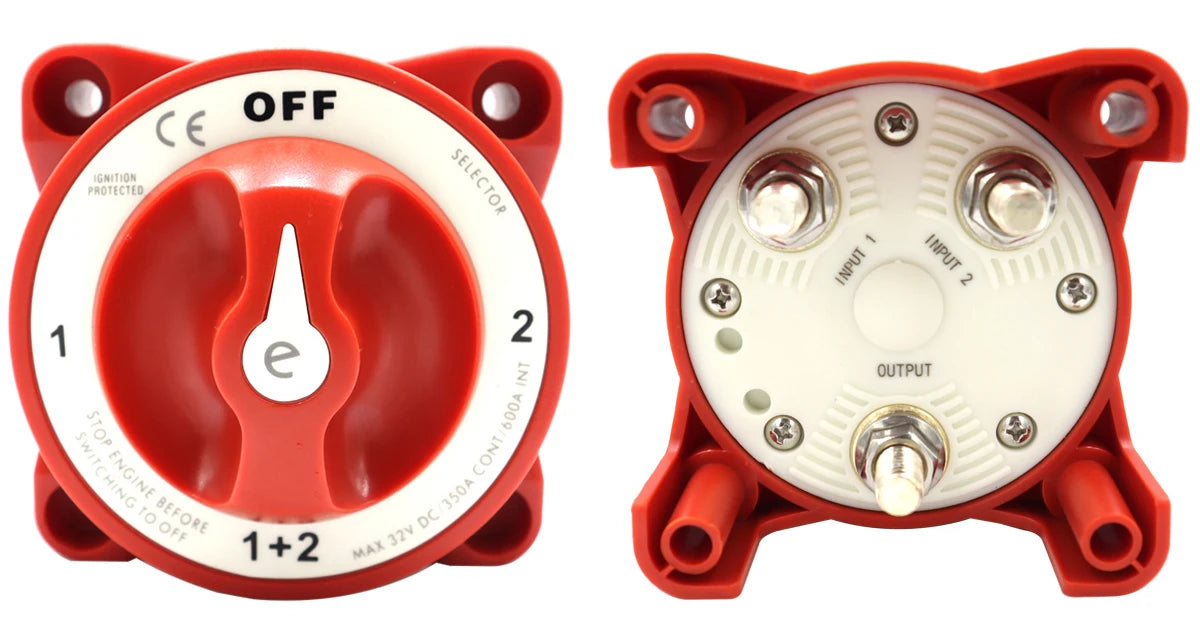

Manual Battery Switches - e-Series

350 Amps continuous rating for inboard gasoline or diesel engines.

Tin-plated copper studs for maximum conductivity and corrosion resistance

Accepts up to 4/0 AWG battery cables

Studs accepts 3/8" (M10) ring terminals

7/8" (22mm) stud length accepts multiple cable terminals

Blue Sea Systems one-piece terminal stud design never loosens over time

Fits most Perko and Guest low amperage battery switch hole patterns

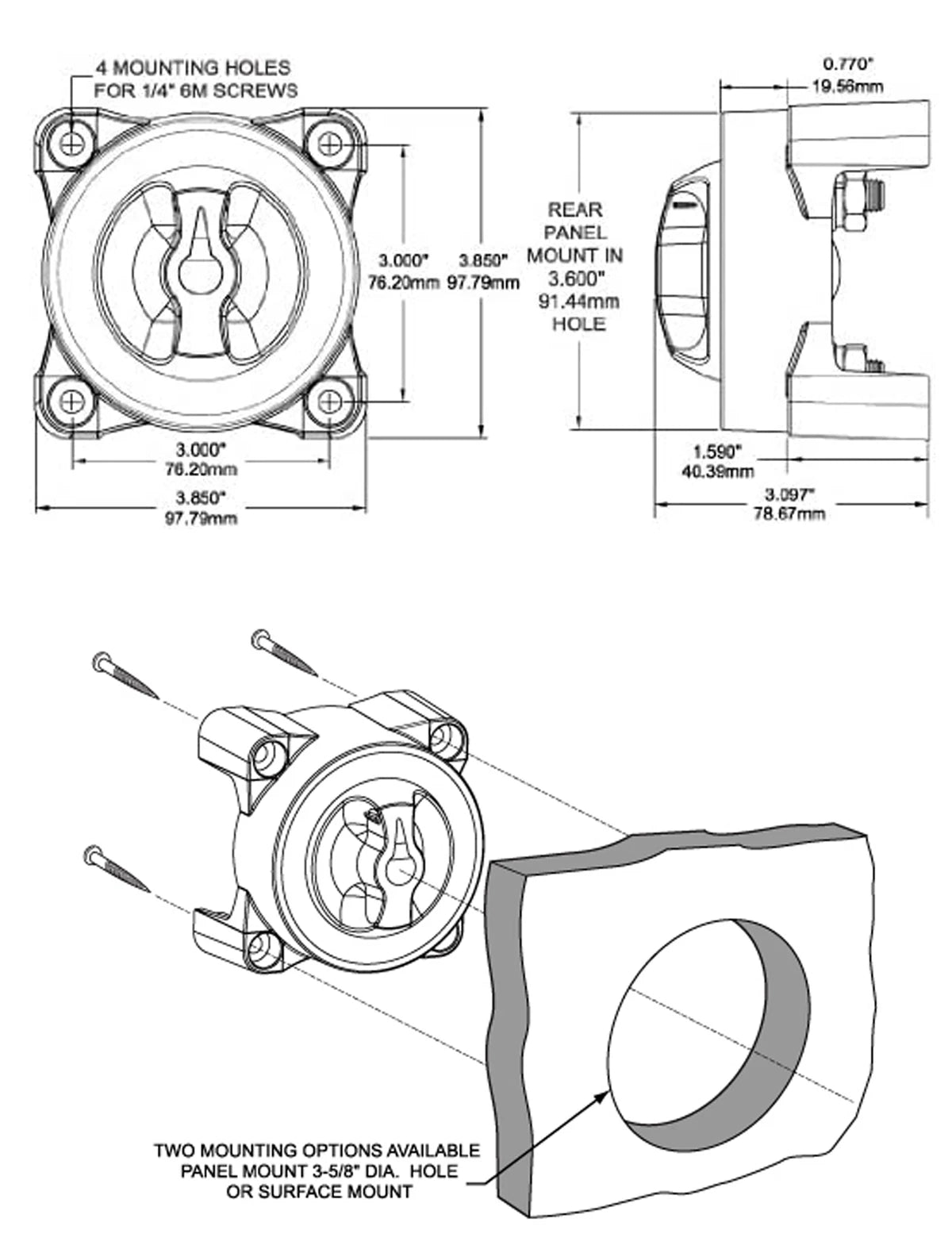

Case design allows surface, rear, or front panel mounting options

Tactile indicator conveys knob position by feel

Waterproof – rated IP66 from water projected in powerful jets

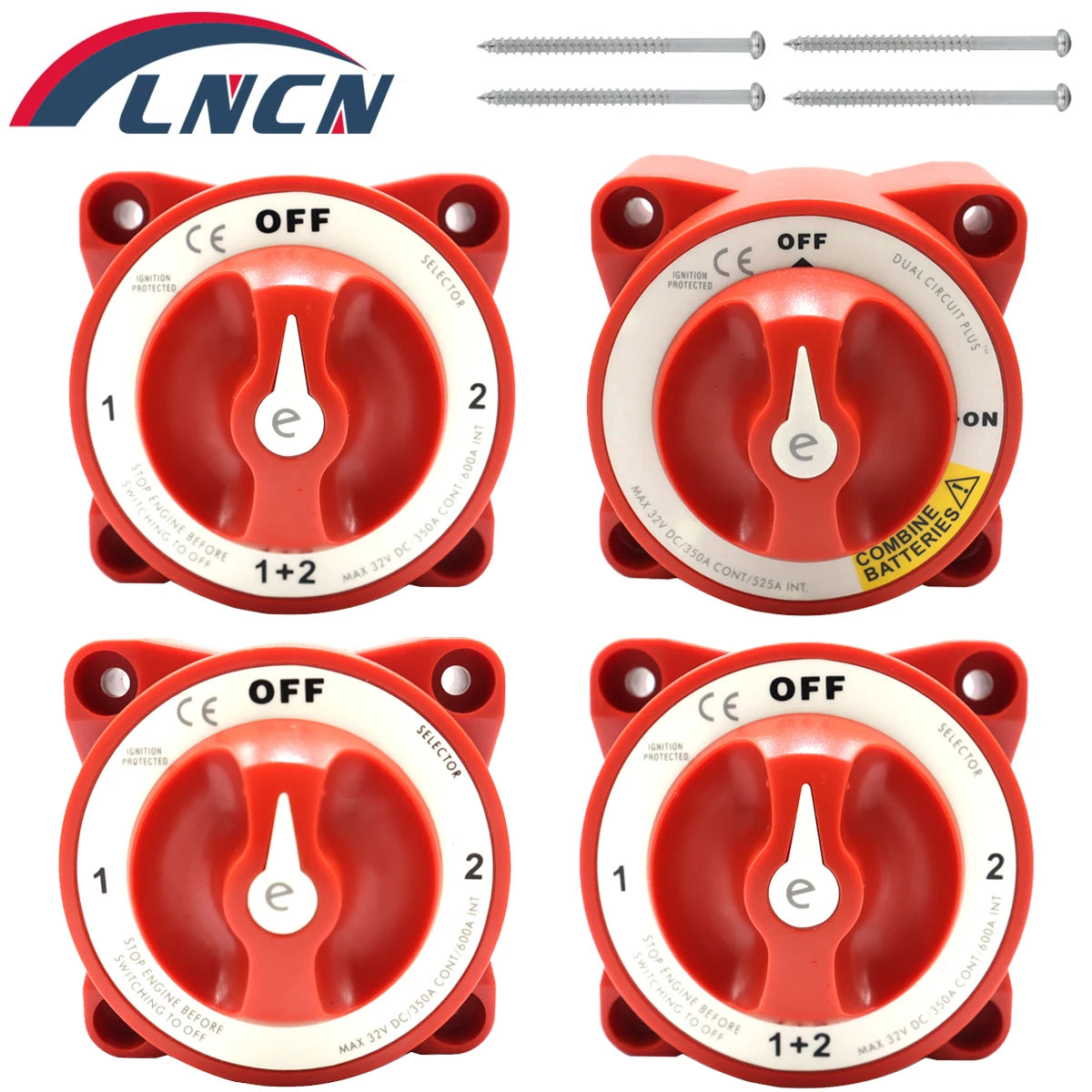

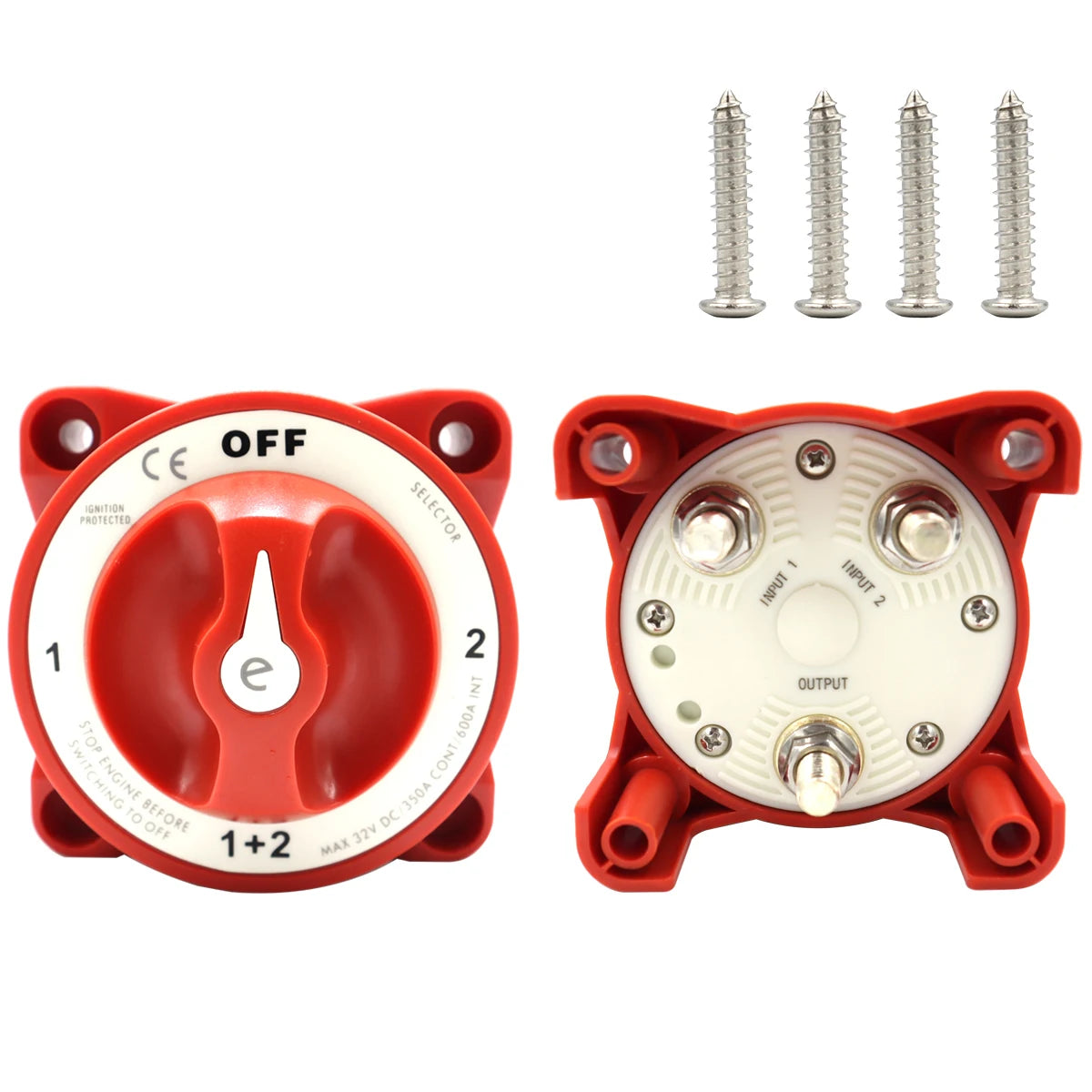

Package includes : 1 x Switches , 4 x Screw

Switch Type : Selector 4 Position

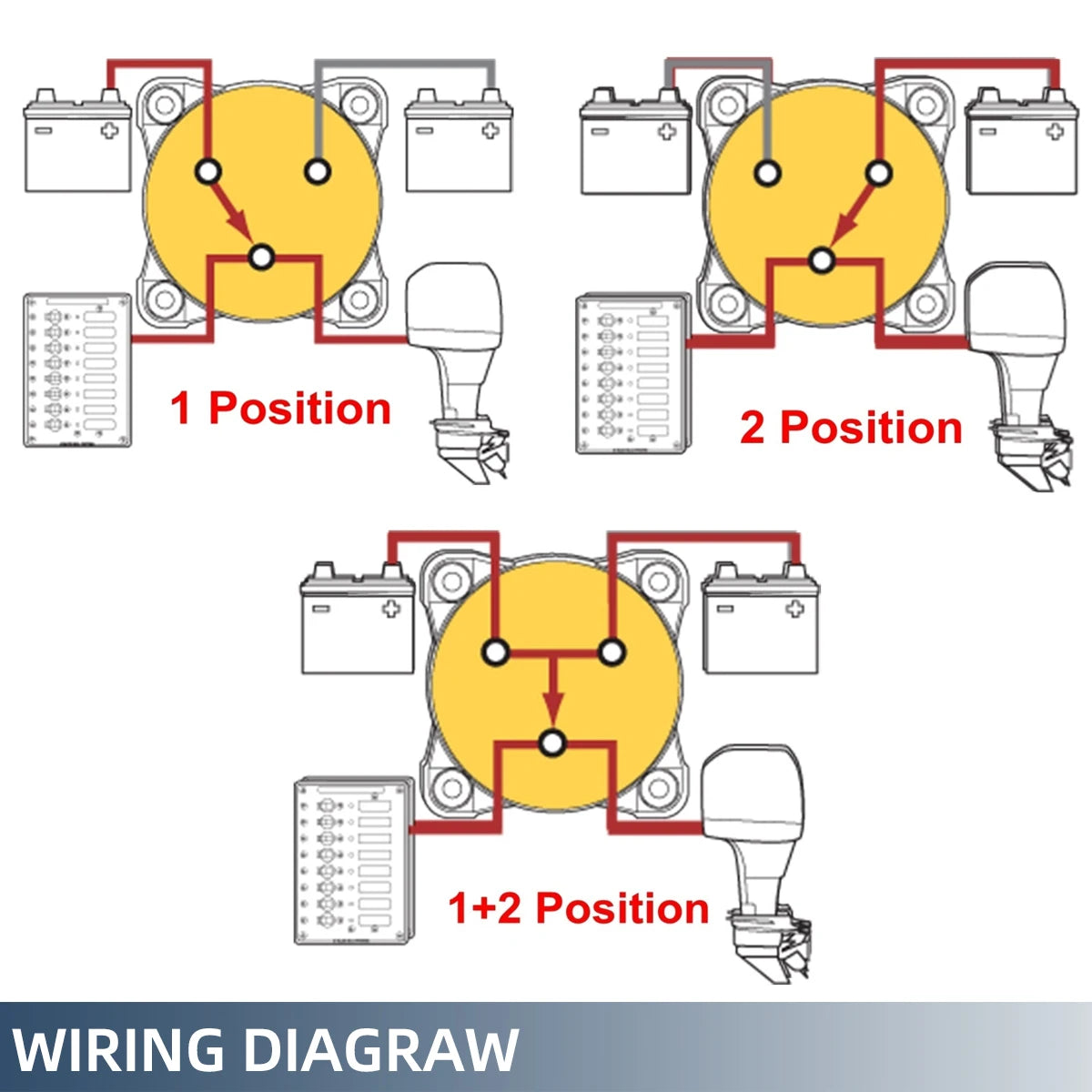

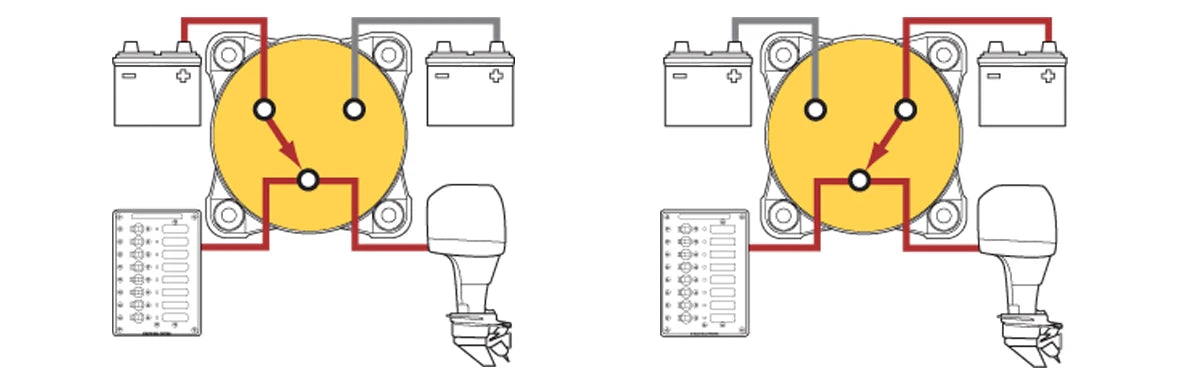

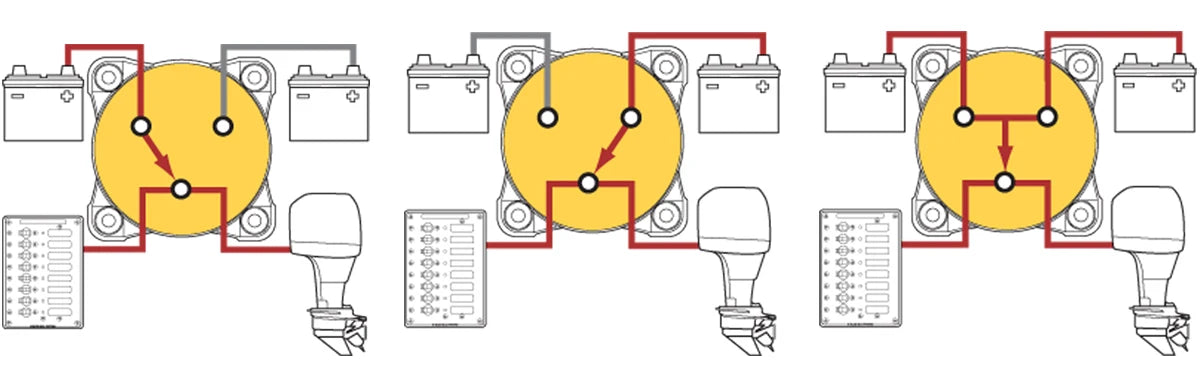

Switch set to 1  ,  Switch set to 2  ,  Switch set to 1 + 2

Switch Positions : 4

Battery Combine : Yes

position but OFF : No

Maximum Voltage : 32V DC

Terminal Stud Torque : 140 in-lb (15.82 Nm)

Continuous Rating : 350A

Intermittent Rating : 600A (5 min)

Cranking Rating 30 sec : 1200A

Battery Inputs : 2

Cable Clearance For 4/0 AWG Cables : 1.10in (27.94 mm)

Cable Size to Meet Ratings : 4/0 AWG (120mm²)

Mounting Holes : Accept 1/4" (M6) Screw

Stud Material : Tinned Copper

Terminal Stud Size : 3/8" - 16 (M10)

Weight : 1.15lb (0.52 kg)

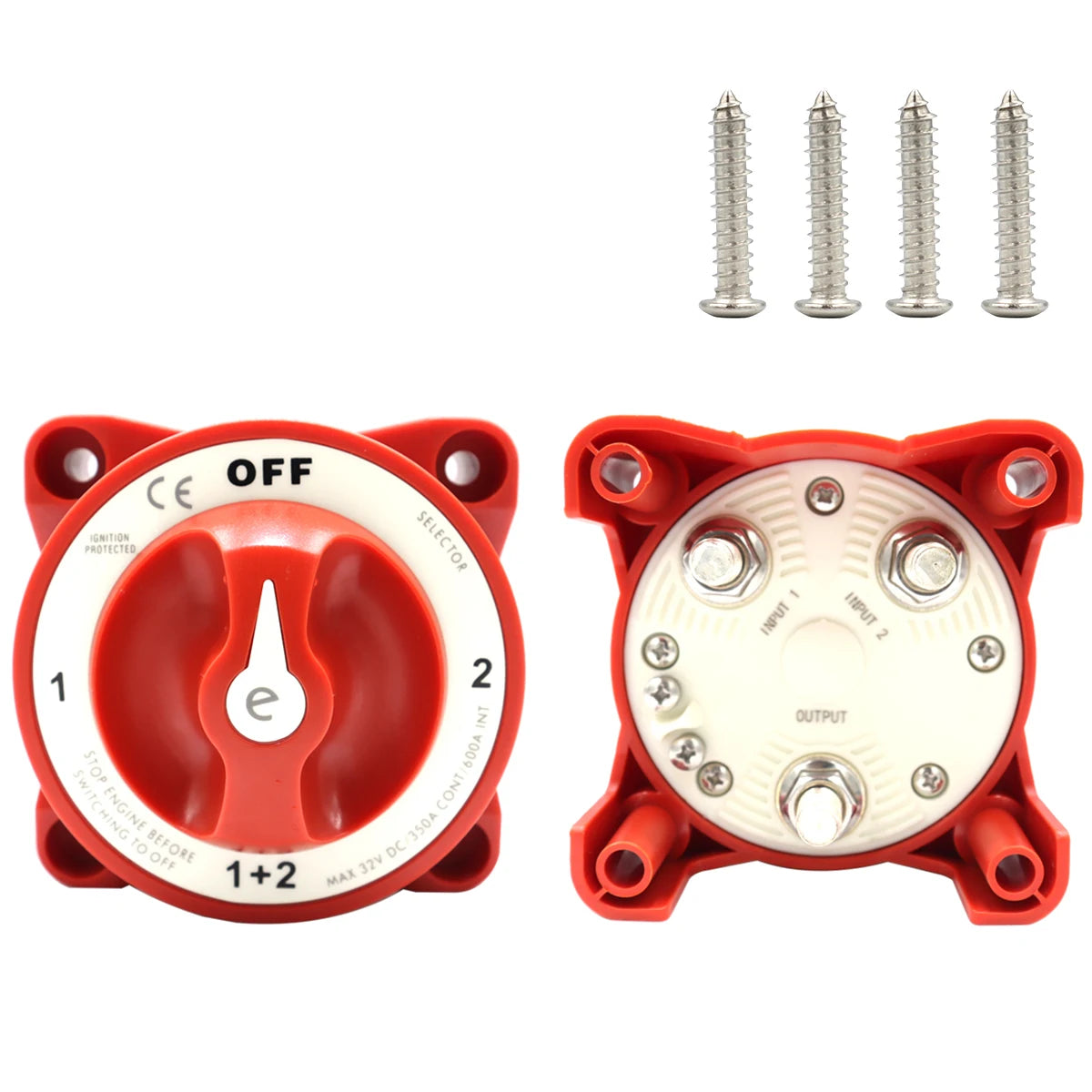

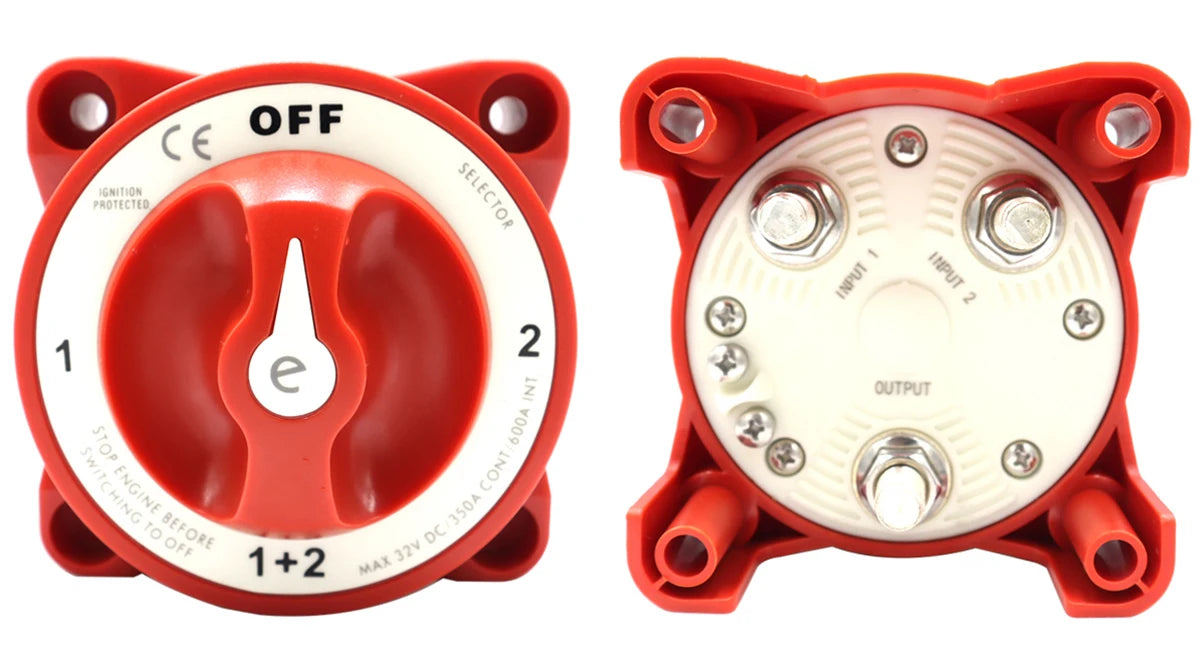

Switch Type : Selector 4 Position with AFD (Alternator Field Disconnect)

Switch set to 1  ,  Switch set to 2  ,  Switch set to 1 + 2

Switch Positions : 4

Battery Combine : Yes

position but OFF : Yes

Maximum Voltage : 32V DC

Terminal Stud Torque : 140 in-lb (15.82 Nm)

Continuous Rating : 350A

Intermittent Rating : 600A (5 min)

Cranking Rating 30 sec : 1200A

Battery Inputs : 2

Cable Clearance For 4/0 AWG Cables : 1.10in (27.94 mm)

Cable Size to Meet Ratings : 4/0 AWG (120mm²)

Mounting Holes : Accept 1/4" (M6) Screw

Stud Material : Tinned Copper

Terminal Stud Size : 3/8" - 16 (M10)

Weight : 1.15lb (0.52 kg)

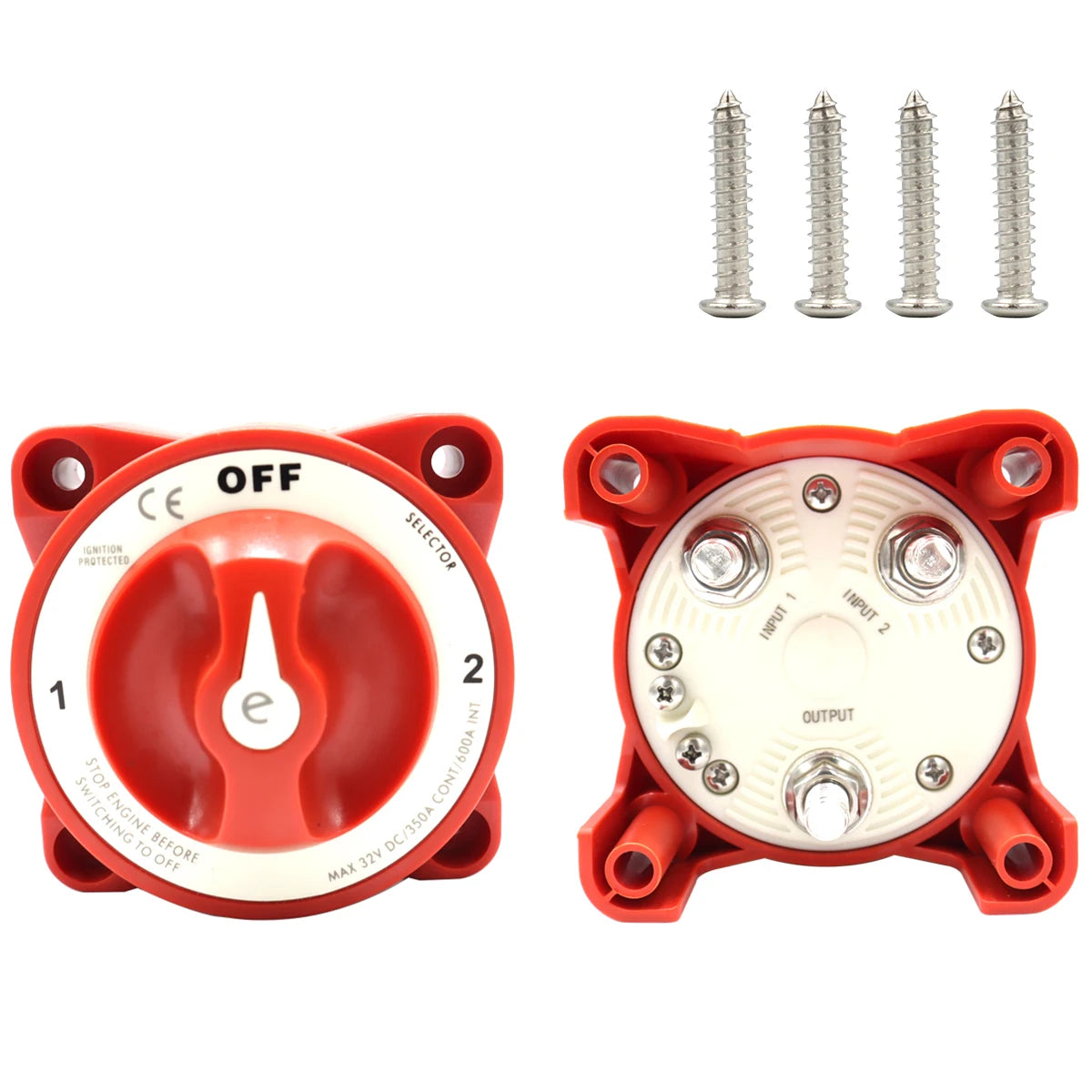

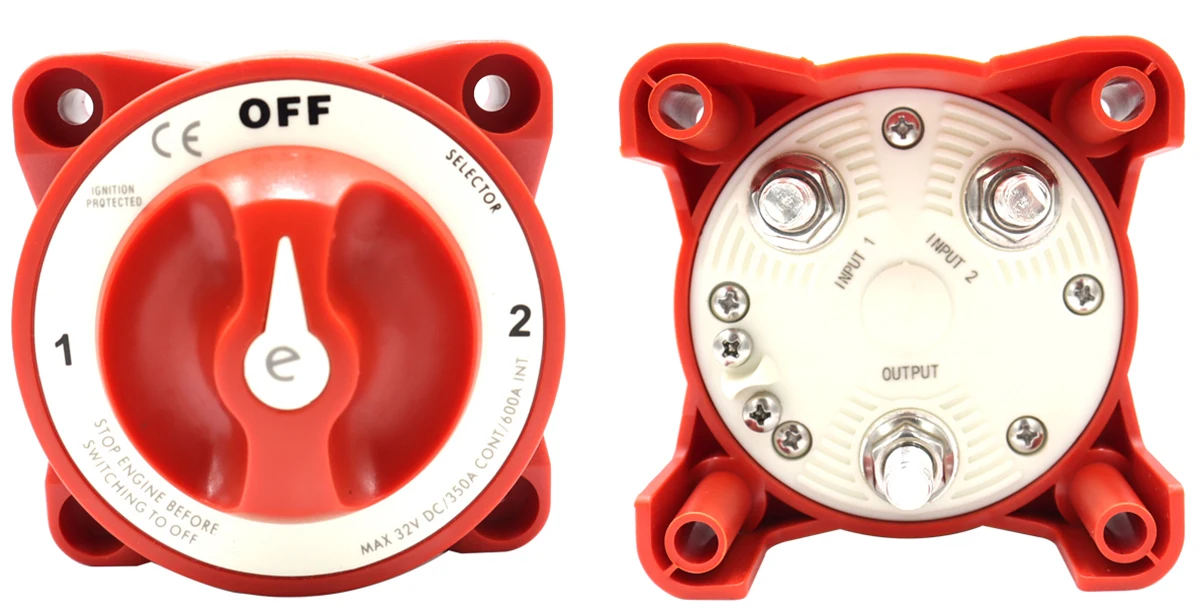

Switch Type : Selector 3 Position with AFD (Alternator Field Disconnect)

Switch set to 1  ,  Switch set to 2

Switch Positions : 3

Battery Combine : No

position but OFF : Yes

Maximum Voltage : 32V DC

Terminal Stud Torque : 140 in-lb (15.82 Nm)

Continuous Rating : 350A

Intermittent Rating : 600A (5 min)

Cranking Rating 30 sec : 1200A

Battery Inputs : 2

Cable Clearance For 4/0 AWG Cables : 1.10in (27.94 mm)

Cable Size to Meet Ratings : 4/0 AWG (120mm²)

Mounting Holes : Accept 1/4" (M6) Screw

Stud Material : Tinned Copper

Terminal Stud Size : 3/8" - 16 (M10)

Weight : 1.15lb (0.52 kg)

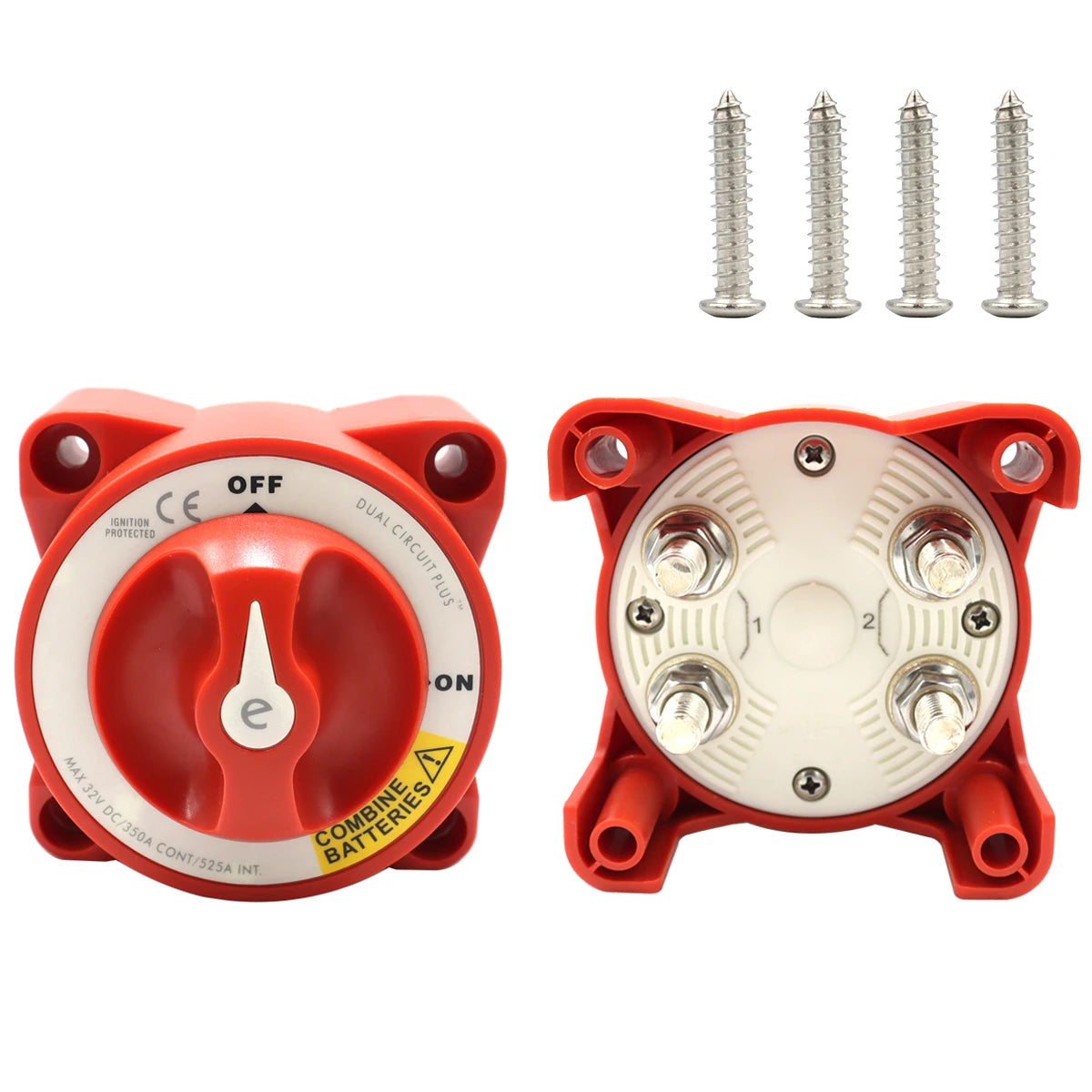

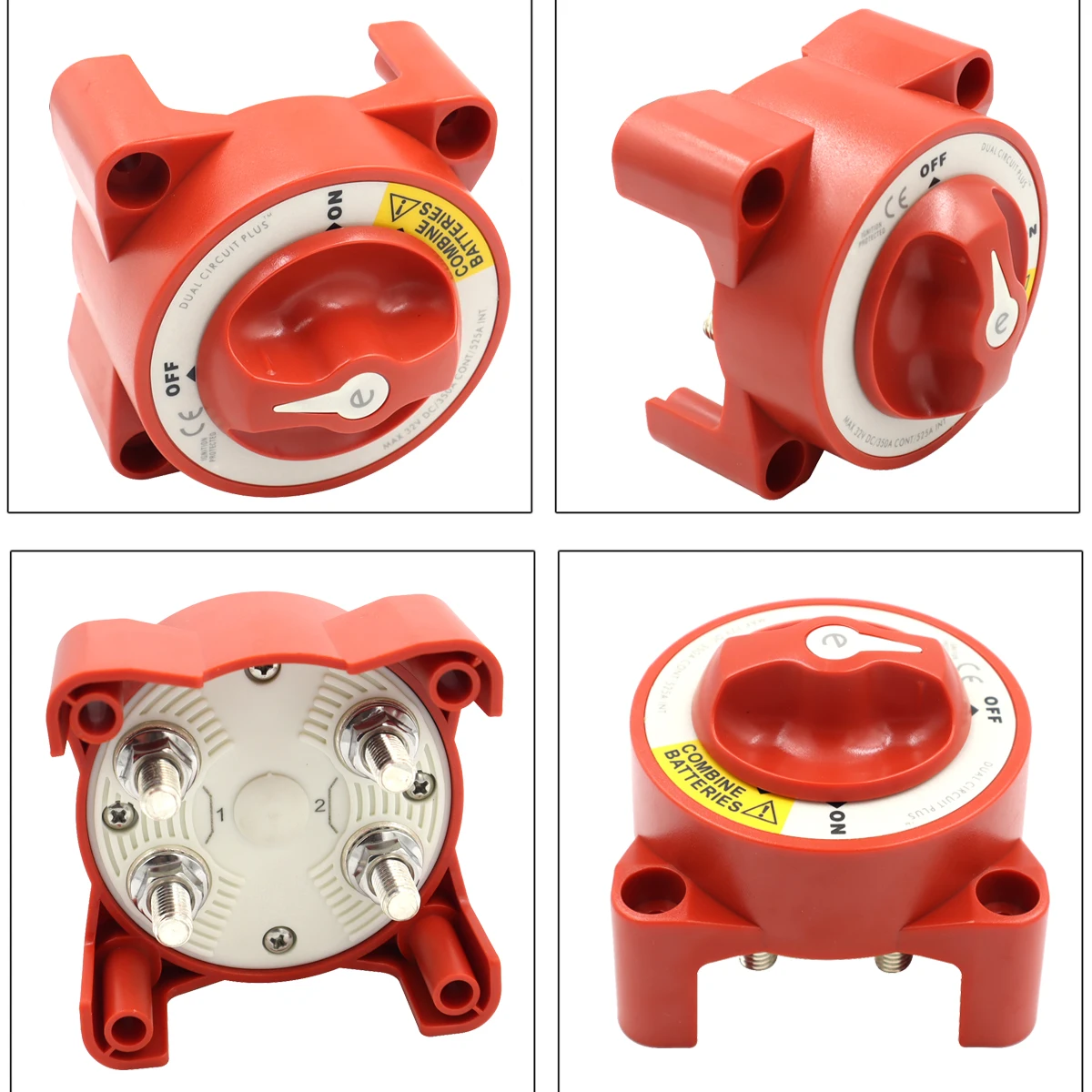

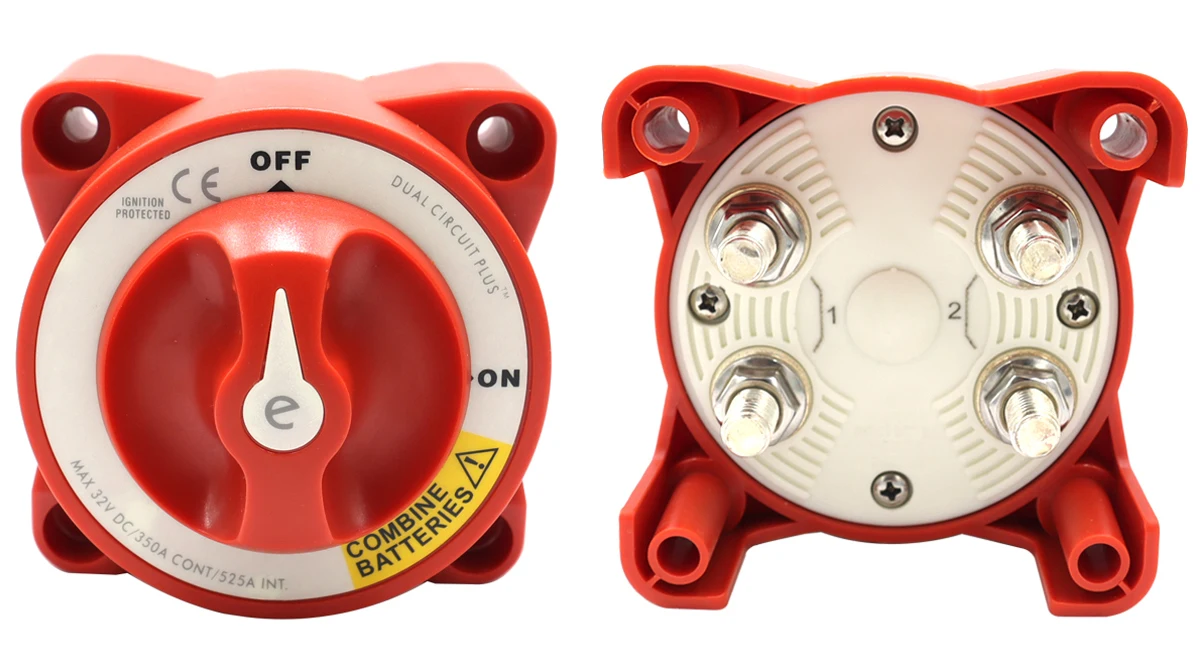

Switch Type : Dual Circuit Plus

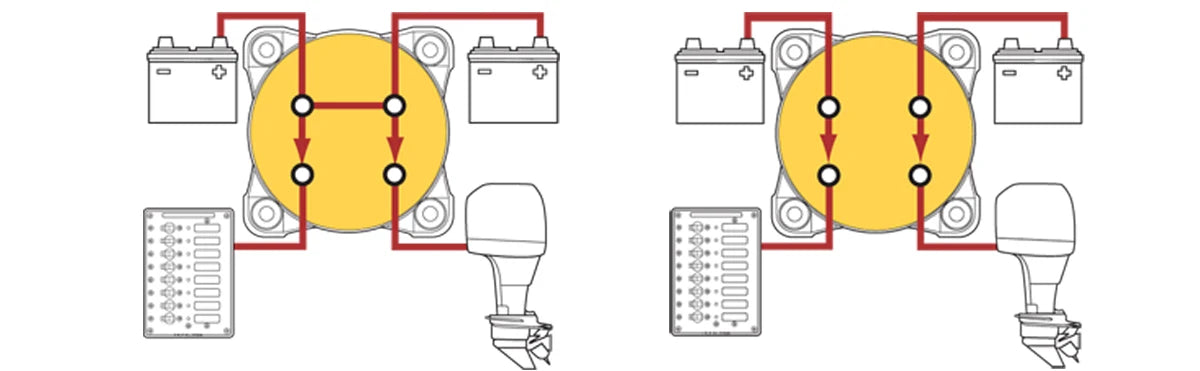

Switch set to COMBINE BATTERIES  ,  Switch set to ON

Switch Positions : 3

Battery Combine : Yes

position but OFF : No

Maximum Voltage : 32V DC

Terminal Stud Torque : 140 in-lb (15.82 Nm)

Continuous Rating : 350A

Intermittent Rating : 525A (5 min)

Cranking Rating 30 sec : 700A per circuit

Battery Inputs : 2

Cable Clearance For 4/0 AWG Cables : 1.10in (27.94 mm)

Cable Size to Meet Ratings : 4/0 AWG (120mm²)

Mounting Holes : Accept 1/4" (M6) Screw

Stud Material : Tinned Copper

Terminal Stud Size : 3/8" - 16 (M10)

Weight : 1.16lb (0.53 kg)
