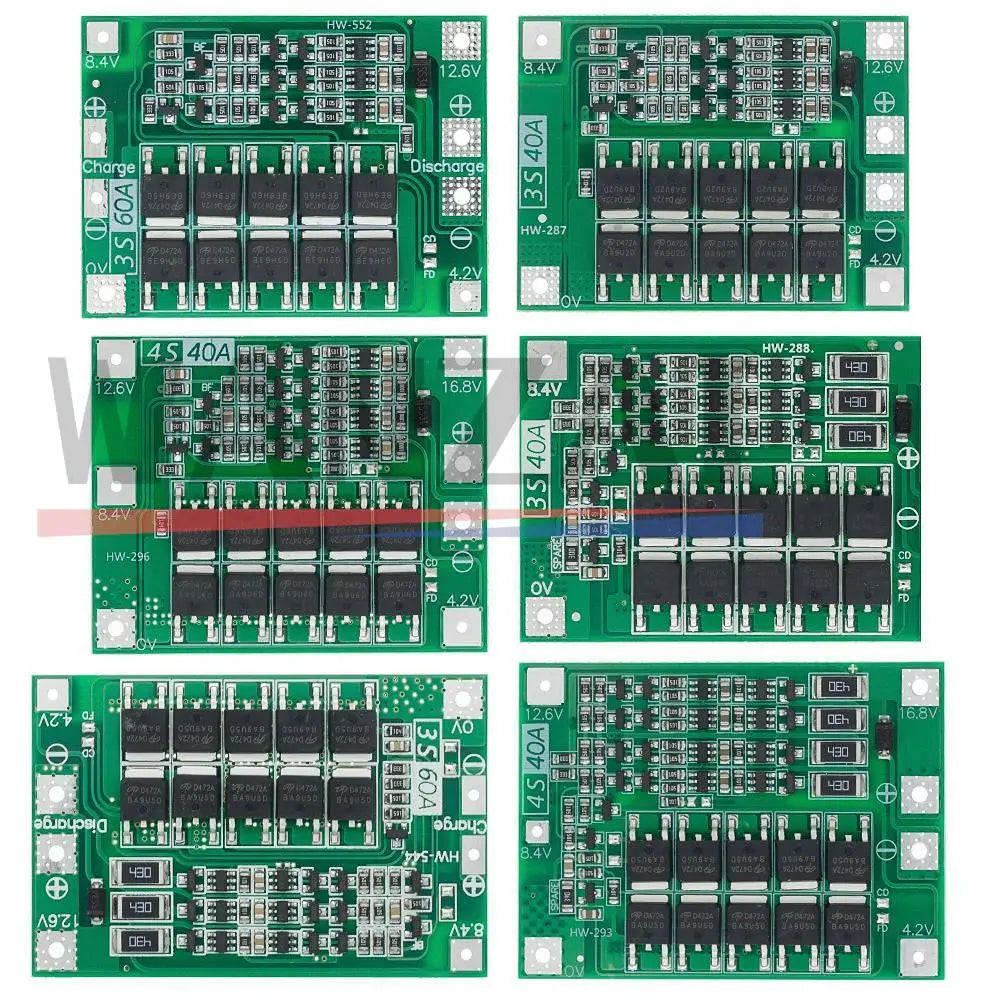

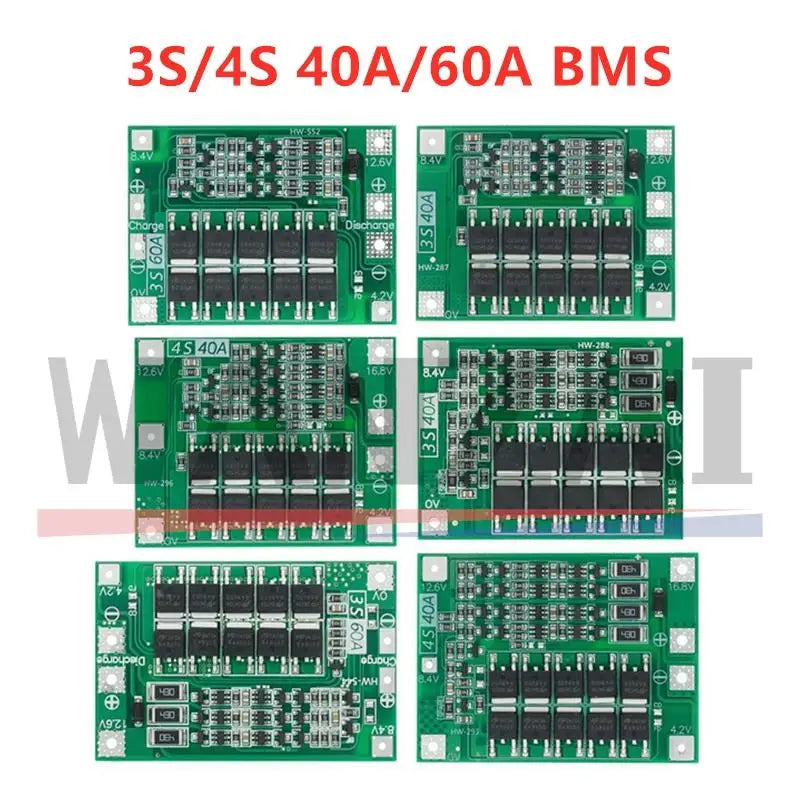

3S 4S 40A 60A Li-ion Lithium Battery Charger Protection Board 18650 BMS For Drill Motor 11.1V 12.6V/14.8V 16.8V Enhance Balance
3S 4S 40A 60A Li-ion Lithium Battery Charger Protection Board 18650 BMS For Drill Motor 11.1V 12.6V/14.8V 16.8V Enhance Balance
Prezzo di listino
€2,32 EUR
Prezzo di listino
€0,00 EUR
Prezzo scontato
€2,32 EUR
Prezzo unitario
per
Imposte incluse.
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Application: Computer
Brand Name: Bolantedz
Choice: yes
Condition: New
Dissipation Power: 3S 40A
Hign-concerned Chemical: None
Operating Temperature: 4S 40A
Origin: Mainland China
Package: SMD
Supply Voltage: 14.8V
Type: Logic ICs
is_customized: Yes
Introduction

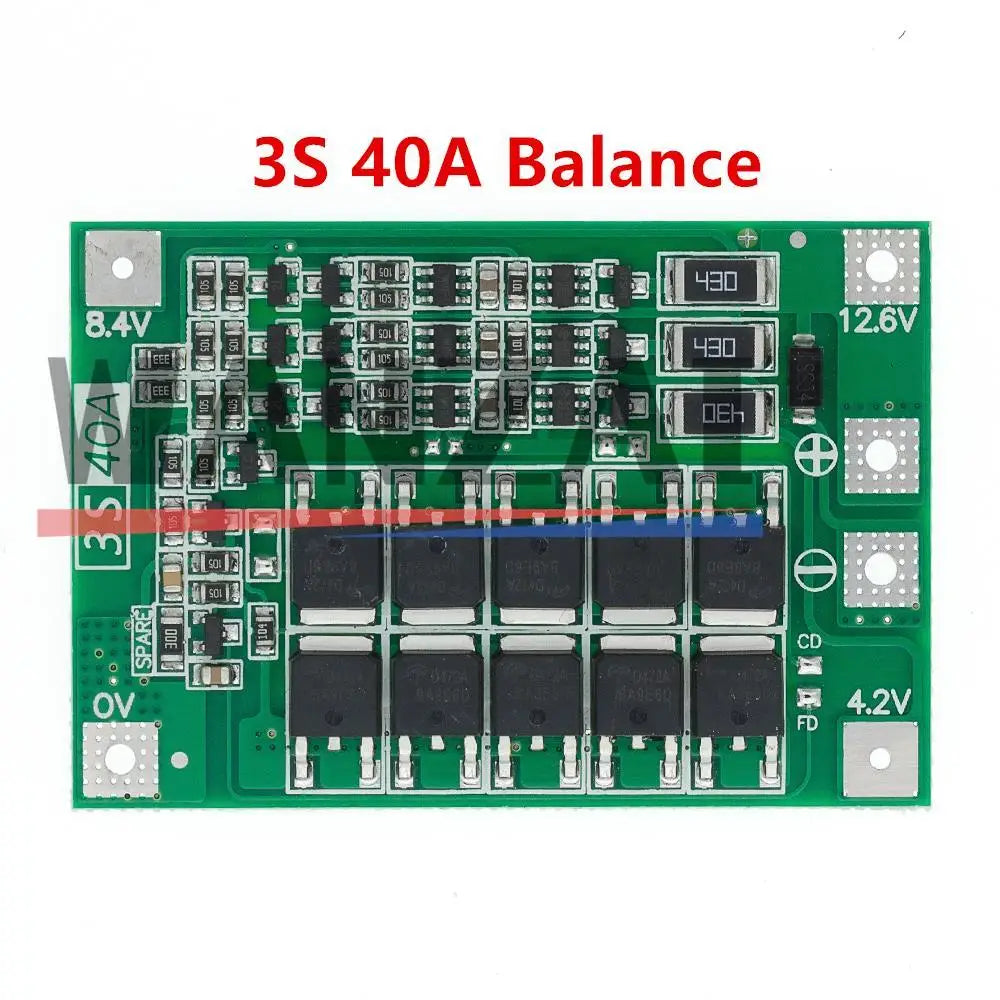

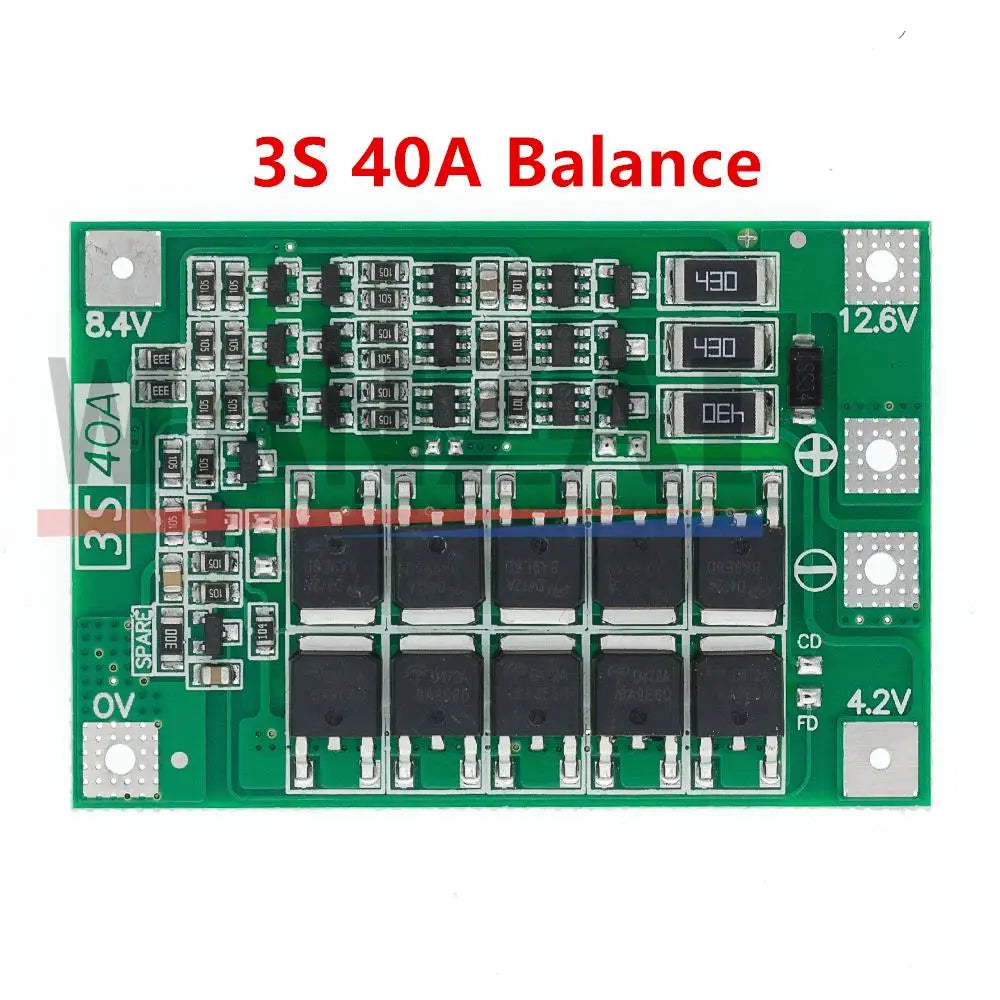

Product Name: 3 string 12.6V 40A lithium battery protection board
Charging voltage: DC 12.6V~13.6V
Continuous discharge current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current)
Continuous charging current: up to 20A

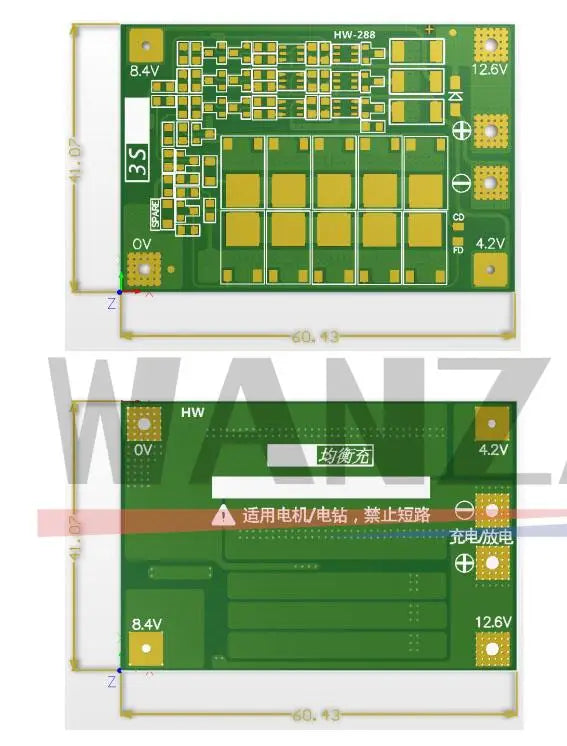

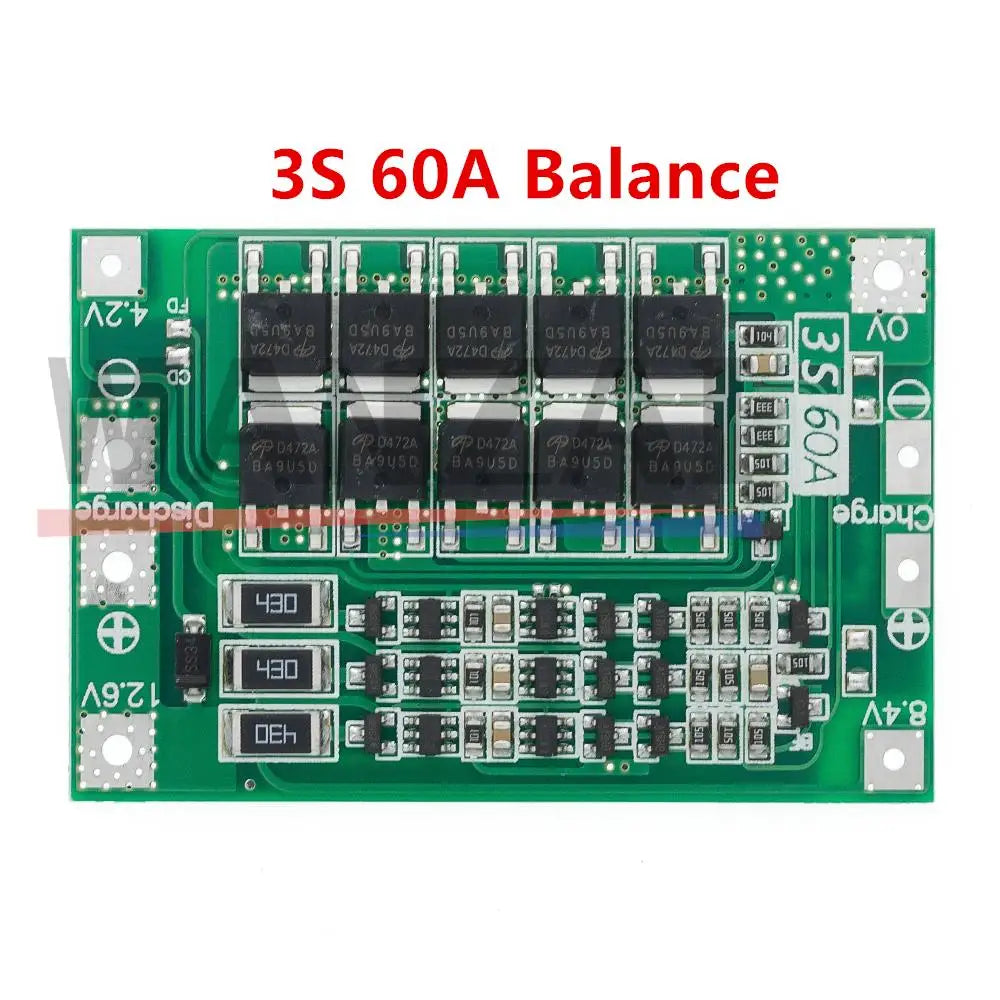

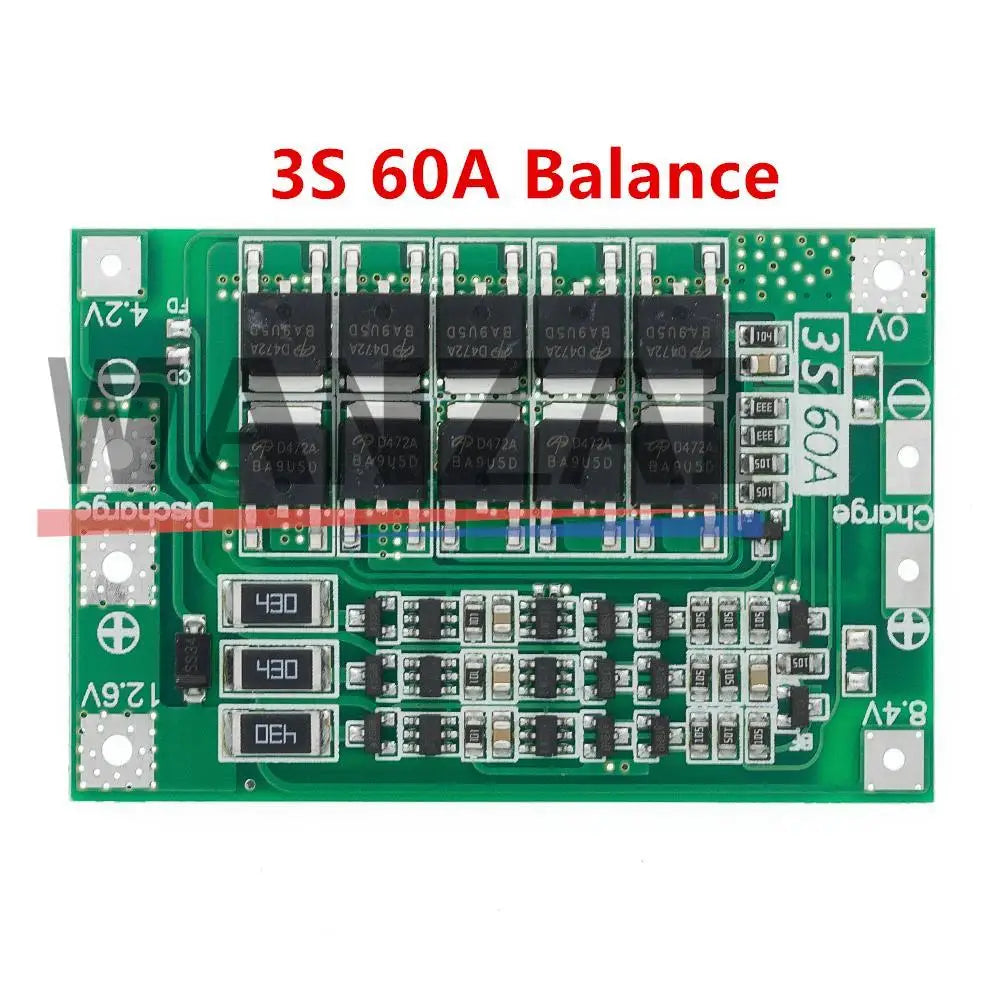

Balance VersionProduct size: 41*61*4mm

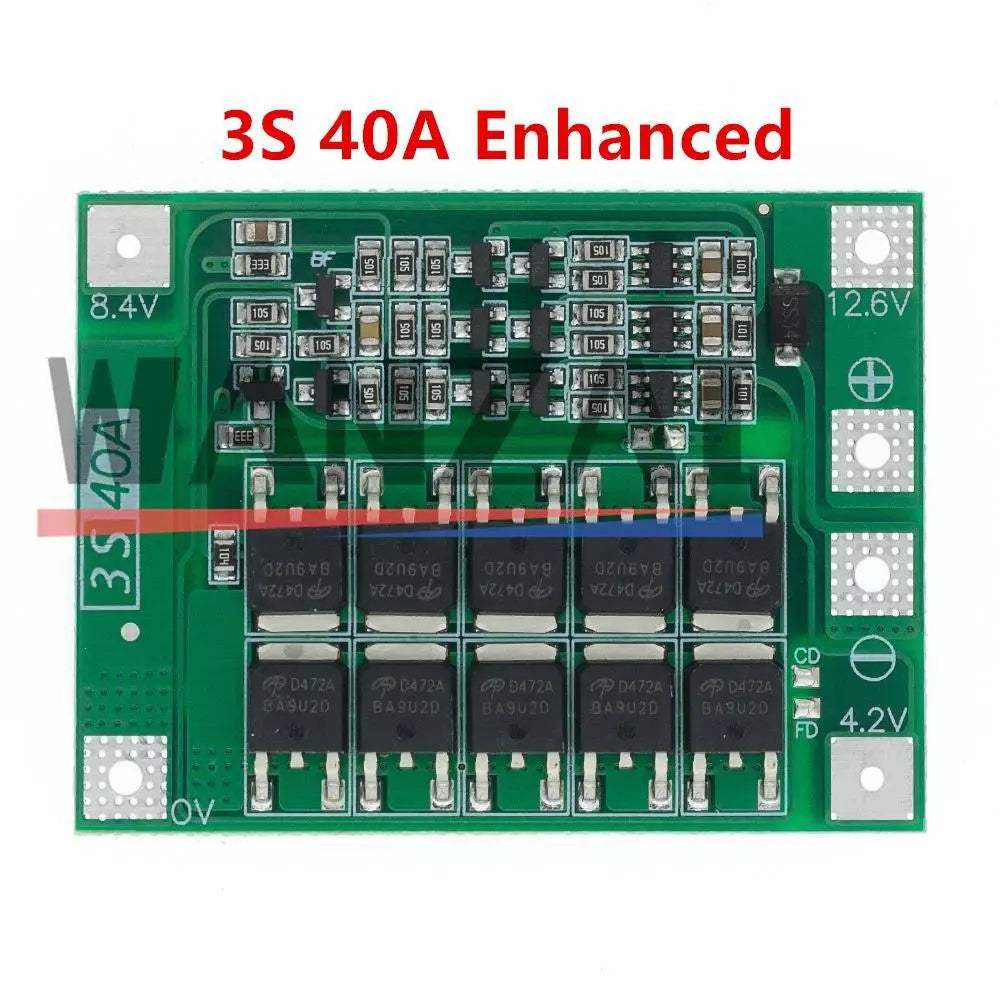

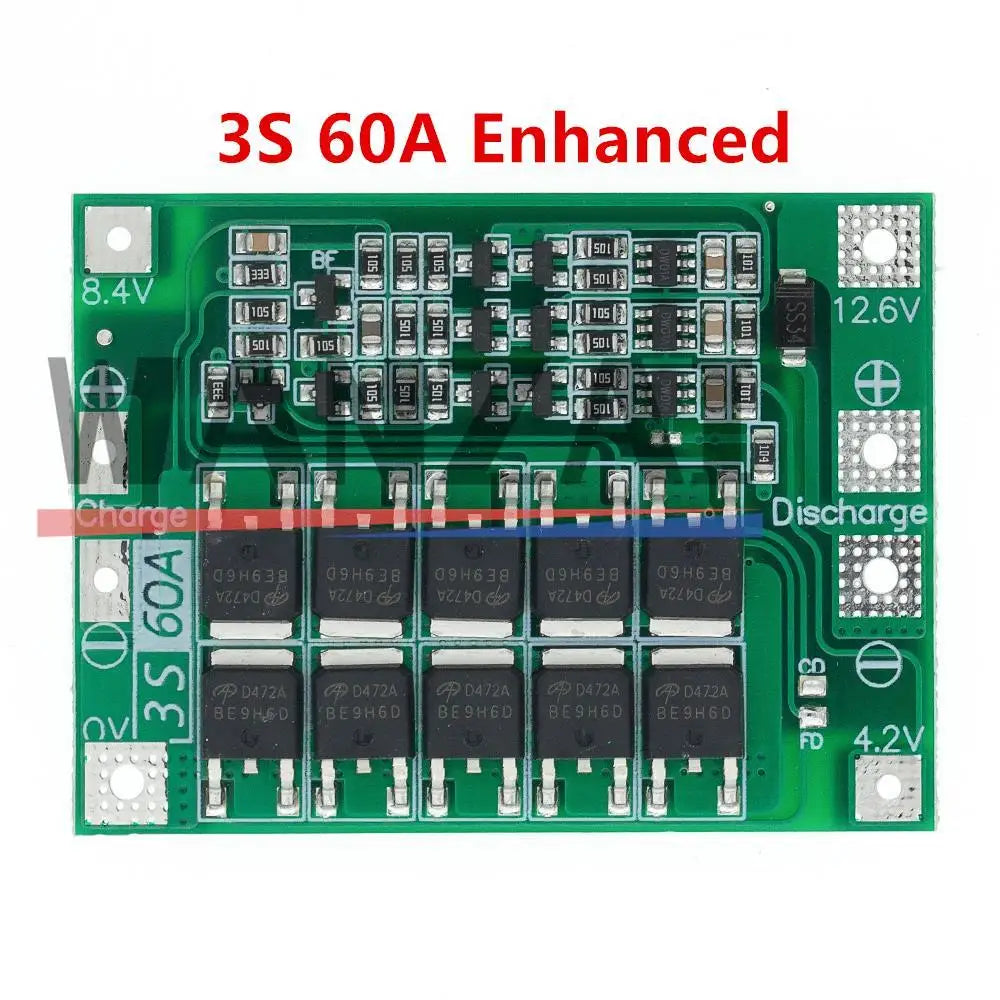

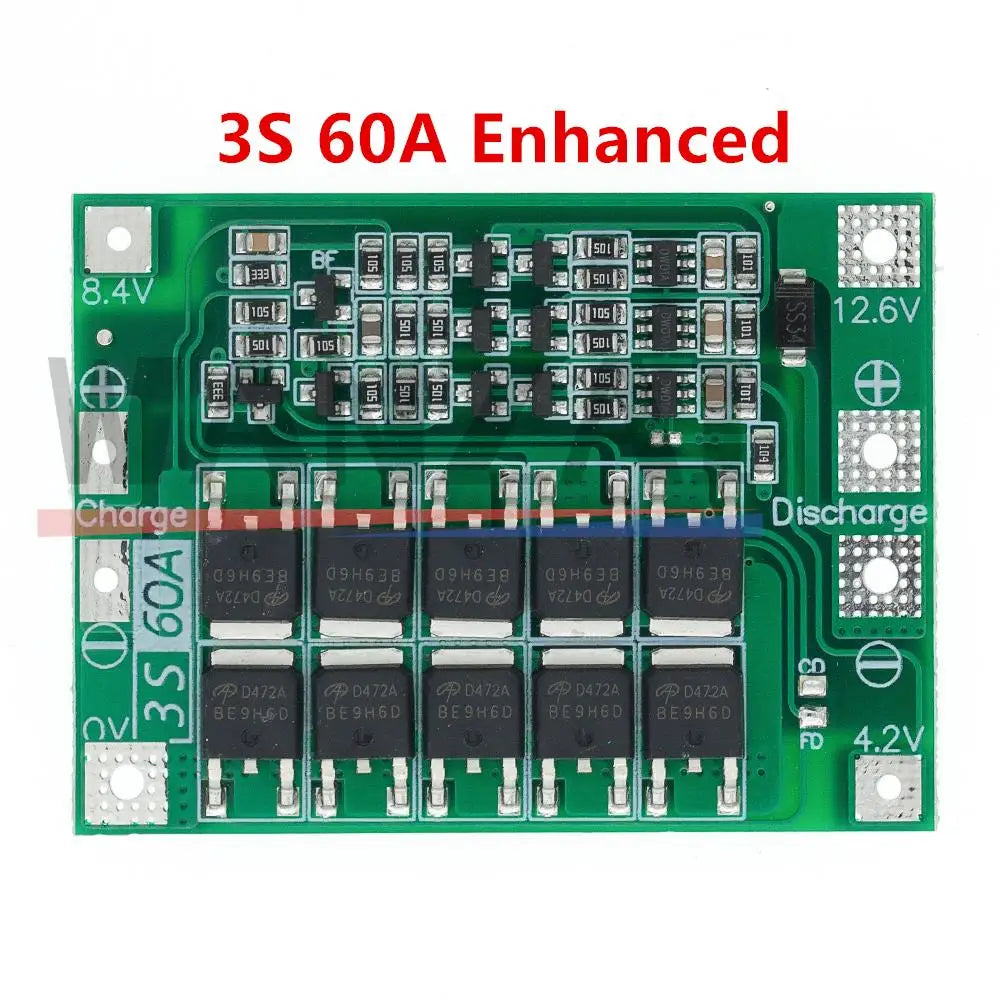

Enhance VersionProduct size: 41*55*4mm
Applicable choice: applicable to the nominal voltage of 3.7V, fully charged 4.2V lithium battery
(including 18650, 26650, polymer lithium battery), can be drilled below 170W
Note 1: Successfully start the drill requires 3 10C-20C power batteries, or 6 5C-10C power batteries (recommended power battery models: sony vtc4, vtc4A, vtc5A, vtc6) OV and 12.6V cable, use Copper wire of 3 square millimeters or more (nickel sheets cannot be used)
Note 2: Strictly connect 0V, 4.2V, 8.4V, 12.6V according to the diagram. Do not touch any components on the board when soldering the wire. Do not intentionally short circuit.
Note 3: When soldering the battery for the first time or when charging is in progress, as long as the single battery exceeds 4.2V, the "430" resistor will heat up and discharge (discharge to about 4.19V to stop heating). If the "430" resistor is severely hot, check if the wrong line is connected.
Hardware preparation

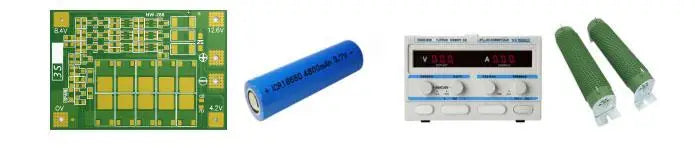

Prepare 3S 12.6V 40A lithium battery protection module, battery, power supply, high power load resistor

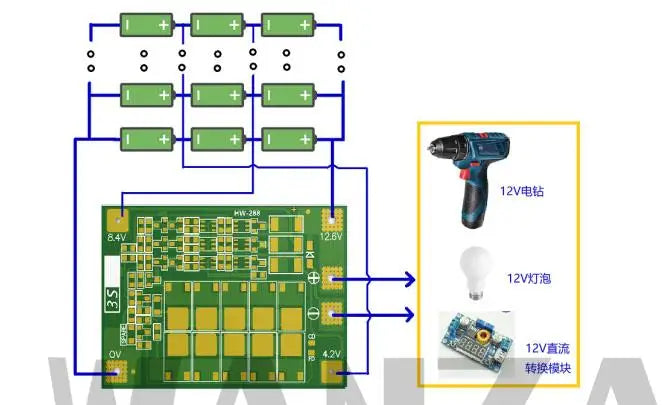

The figure below shows the module discharge diagram. The battery is 3 strings. The connected battery needs to meet the 40A discharge current. It can be realized by paralleling the battery or purchasing a battery with a large discharge current. For example, if the battery is 2000mAH and the discharge multiple is 10C, then only 3 strings of 2 are needed and the discharge current is 40A.

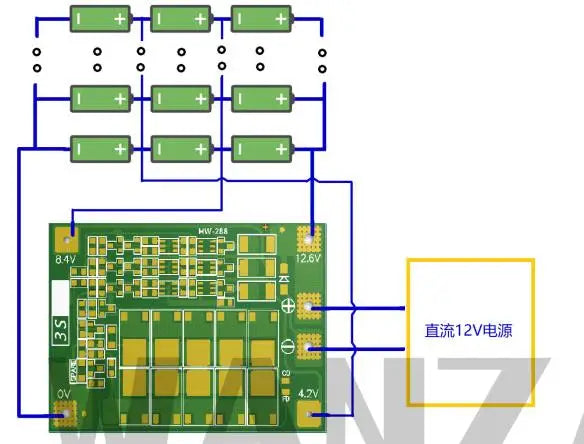

The figure below shows the battery charging diagram. The charging voltage is DC12.6V~13.6V. The charging current depends on the battery connected, and the maximum is no more than 20A. The module has a balanced charging path, and the equalization function works only when the battery performance is not much different.
Introduction

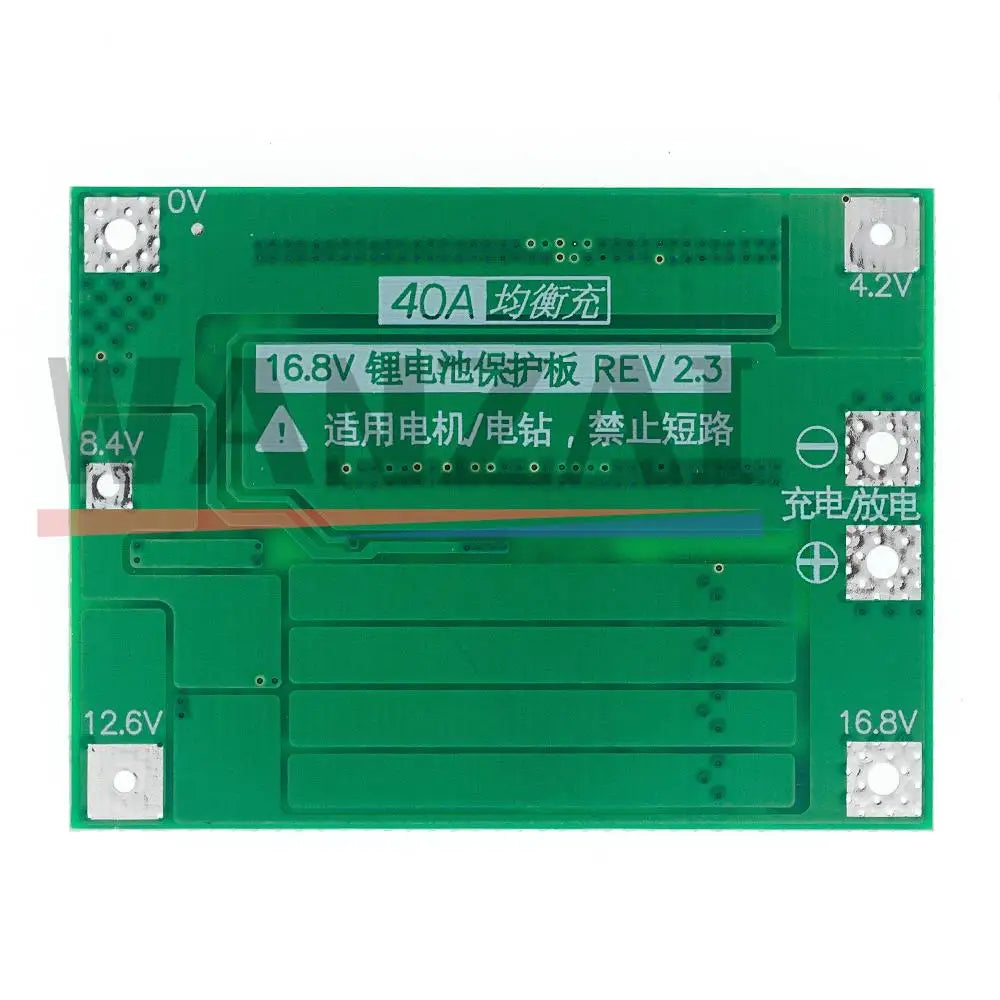

Product Name: 4 string 14.8V 16.8V 40A lithium battery protection board
Charging voltage: DC 16.8V~17V
Continuous discharge current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current)
Continuous charging current: up to 20A
Balance VersionProduct size: 45*60*4mm
Enhance VersionProduct size: 44*55*4mm
Applicable choice: applicable to the nominal voltage of 3.7V, fully charged 4.2V lithium battery
(including 18650, 26650, polymer lithium battery), can be drilled below 170W
Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill!!).
Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.
Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
Note 4: 4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.

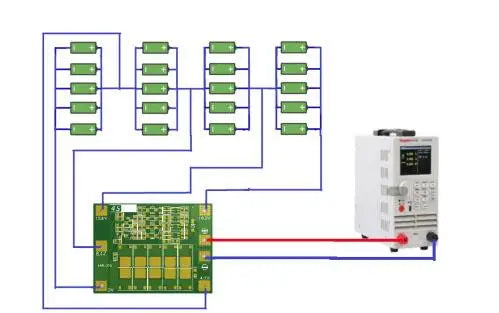

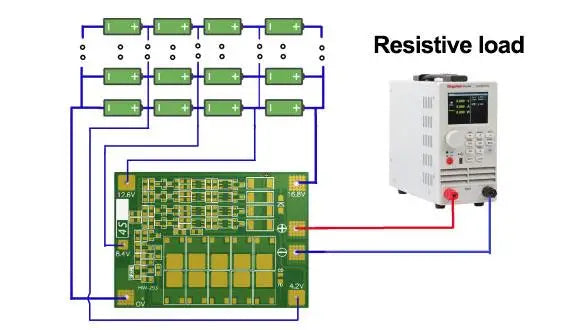

The figure below shows the module discharge diagram. The battery is 4 strings. The connected battery needs to meet the 40A discharge current. It can be realized by paralleling the battery or purchasing a battery with a large discharge current. For example, the battery 2000mAH, the discharge multiple 10C, then only need 4 series 2 and the maximum current can reach the discharge current 40A, stable discharge requires 4 strings 4 and can be, and need to pay attention to heat dissipation, the discharge battery power will drop rapidly.

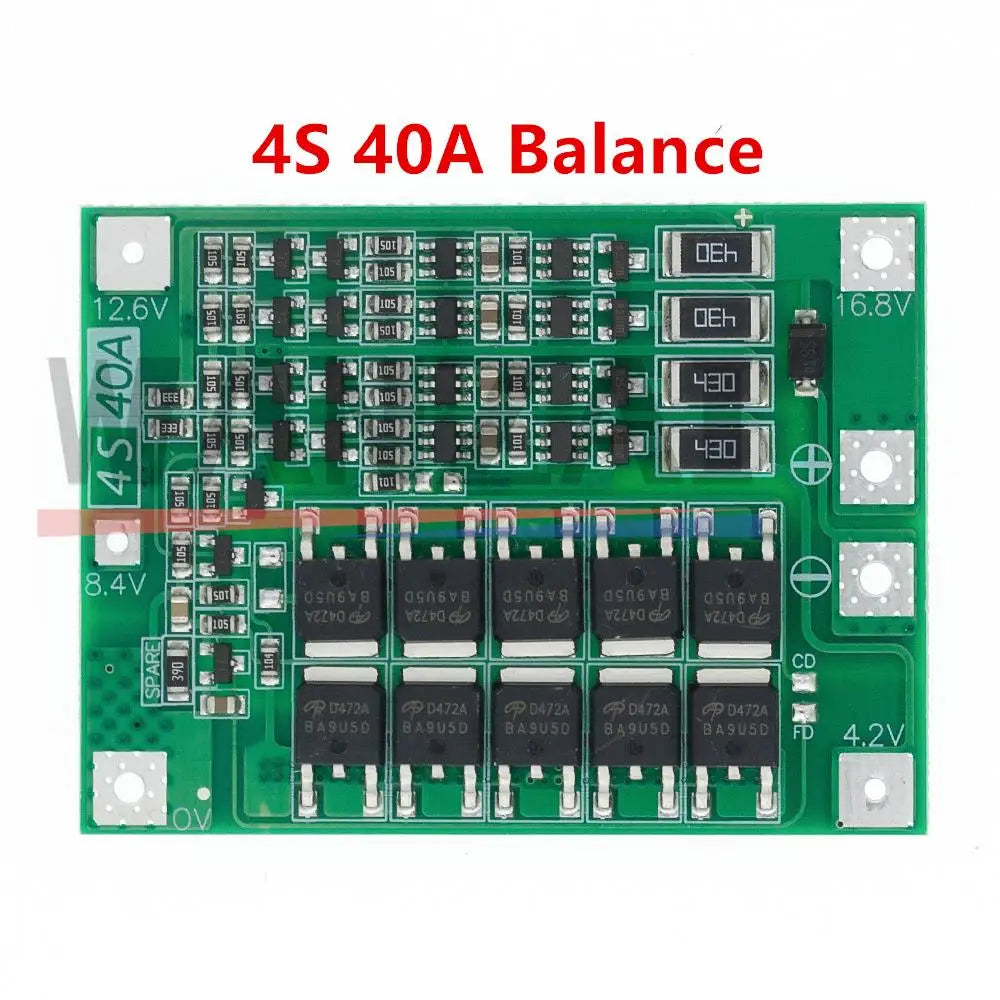

Balance Version:

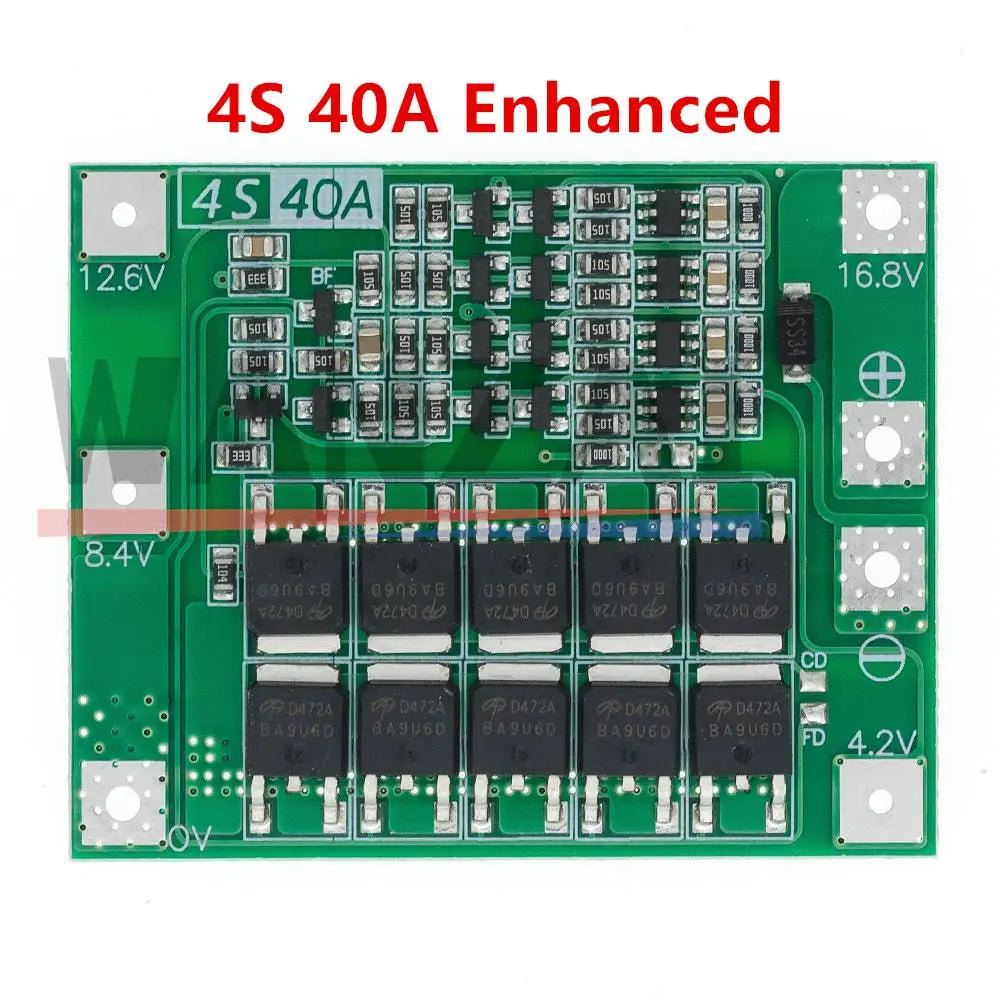

Enhance Version:

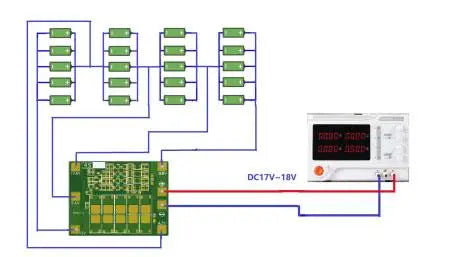

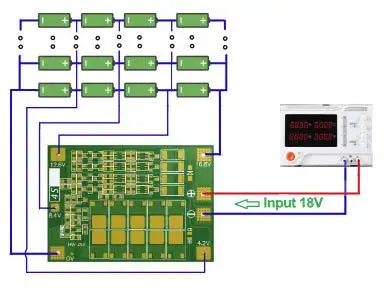

The picture below shows the battery charging diagram, 4 series of batteries, the actual full charge, voltage 16.8V, charging voltage DC17V-18V, charging current depends on the battery connected, the maximum does not exceed 20A.
Balance Version:
Enhance Version:
4 string 16.8V 40A lithium battery protection board (comes with recovery function-AUTO Recovery)
Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)
Product Size: 45 * 55 * 3.4mm (Standard Edition / Enhanced), 46 * 60 * 3.4mm (balanced version)
Product weight: 9.3g (standard / enhanced version), 10.3g (balanced version)
Charging voltage: 16.8V - 18.1V
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)
Continuous charge current (upper limit): 20A
Equalization version: suitable for starting current below 80A, power 135W below the drill.
