SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Condition: New

Hign-concerned Chemical: None

Model Number: 3S 4S 40A 60A Li-ion Lithium Battery Charger Protection Board

Origin: Mainland China

Type: Voltage Regulator

Features:
Charging Voltage: DC 16.8V~17V
Continuous Discharge Current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current)
Continuous Charging Current: up to 20A

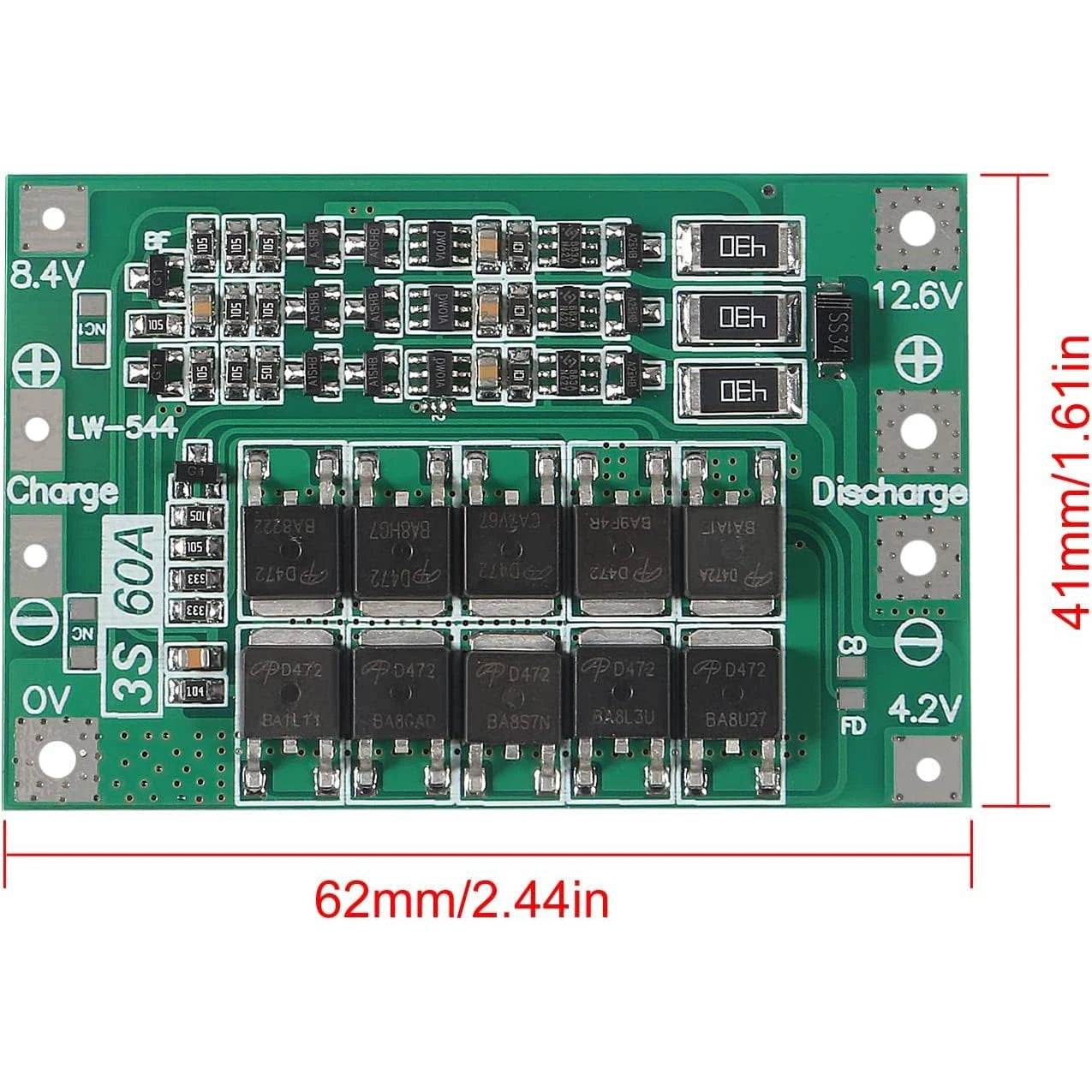

Enhance Version Product Size: 44*55*4mm
Applicable Choice: applicable to the nominal voltage of 3.7V, fully charged 4.2V lithium battery.
(including 18650, 26650, polymer lithium battery), can be drilled below 170W.

Note:
1.The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill).

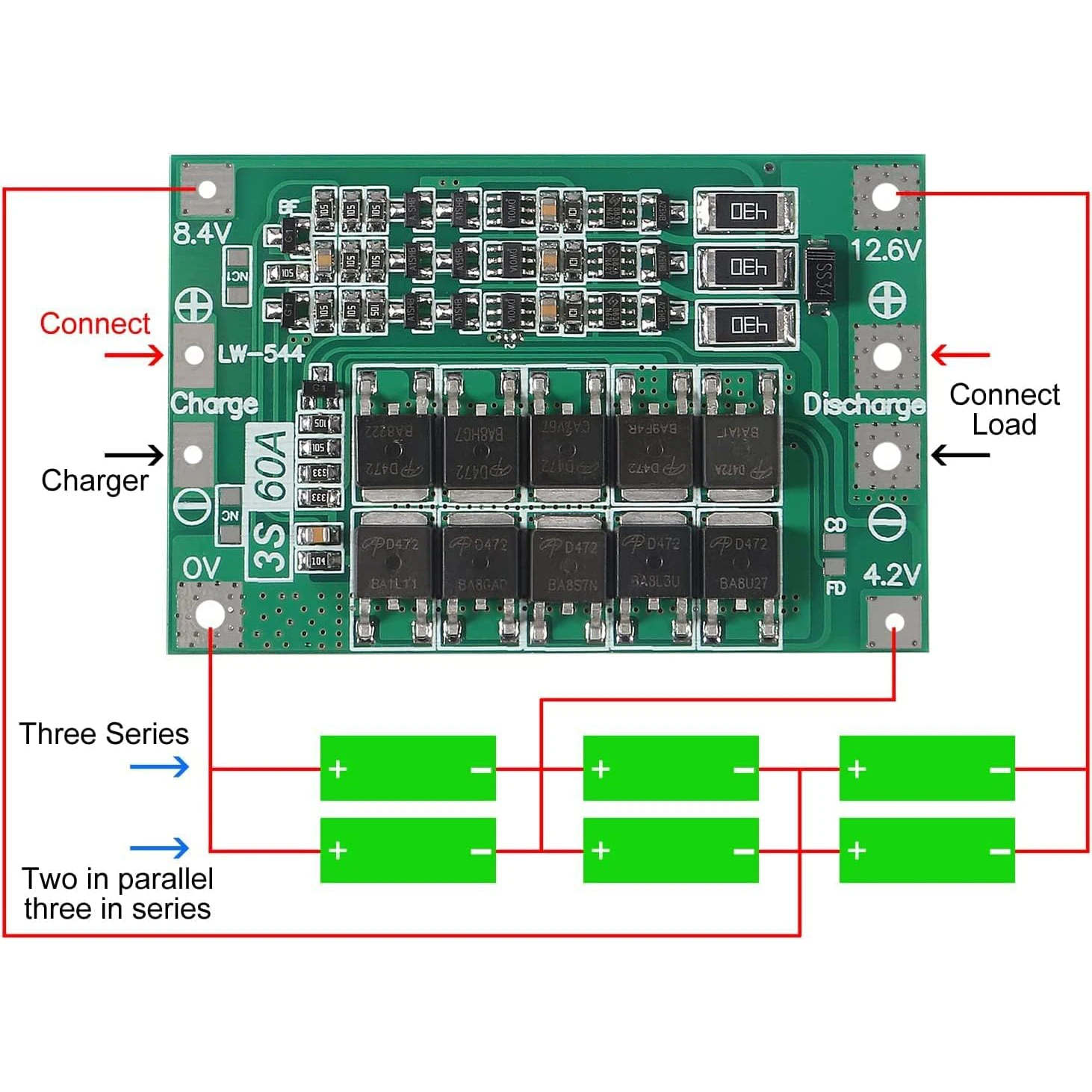

2.Strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.

3.When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.

4.4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.
