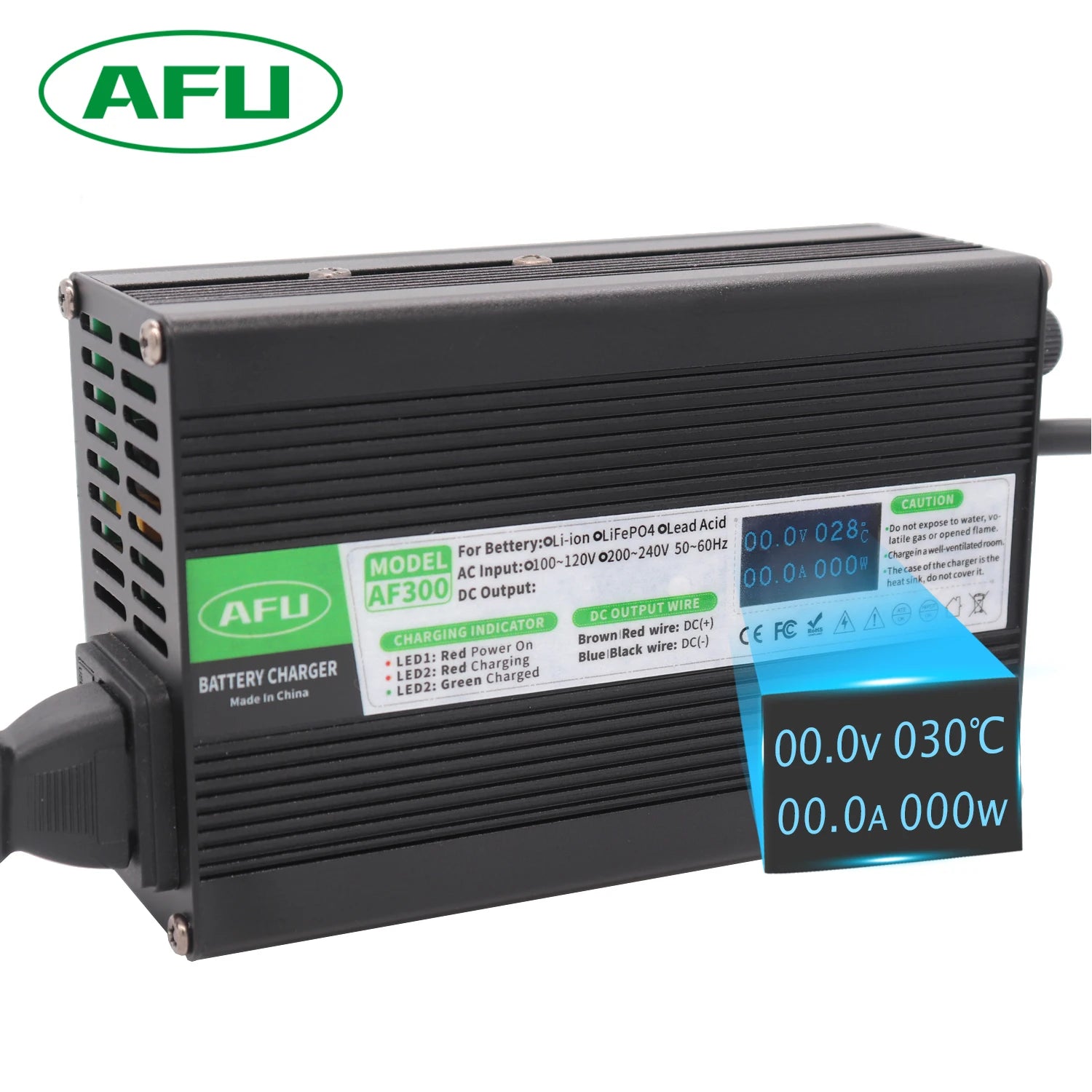

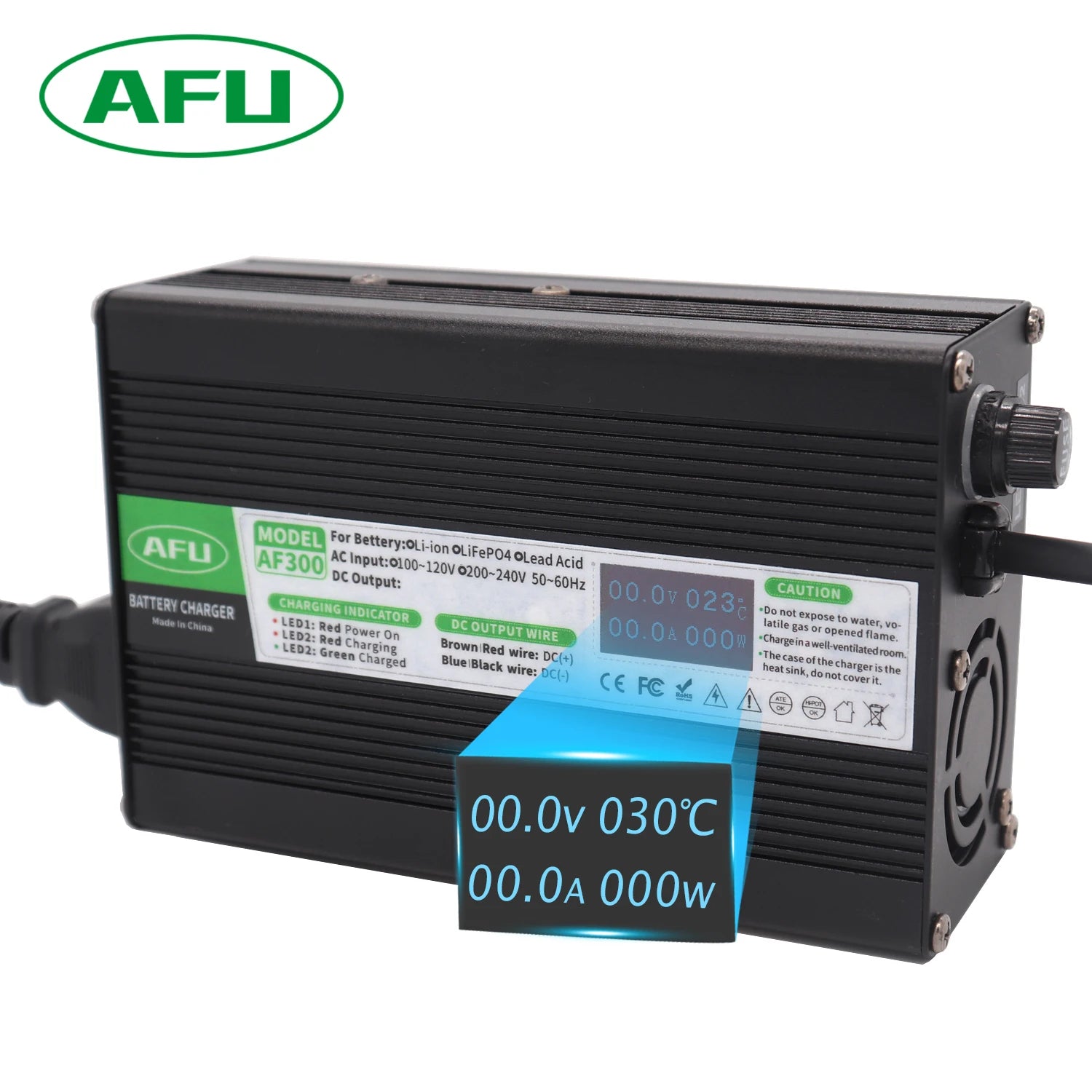

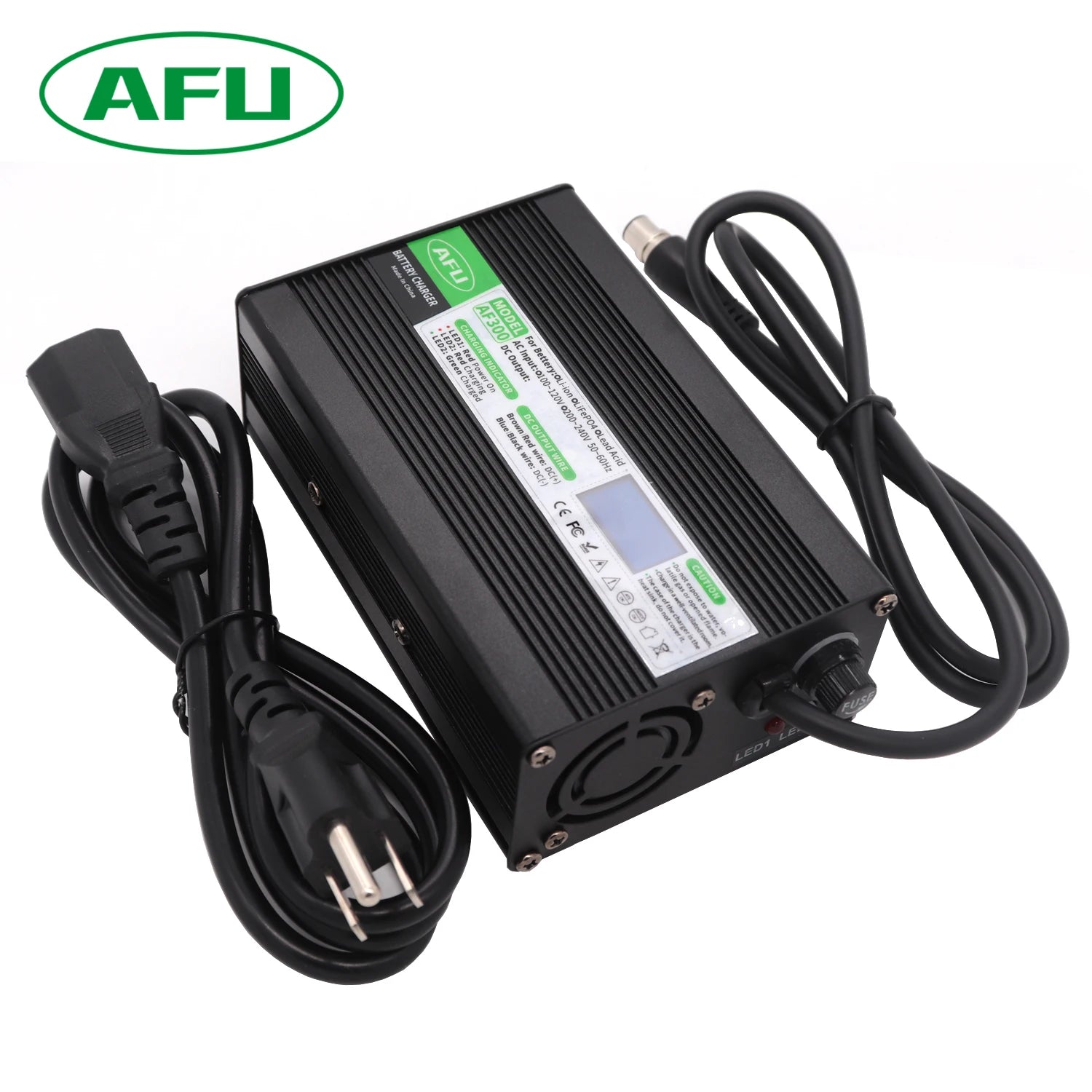

Product Name

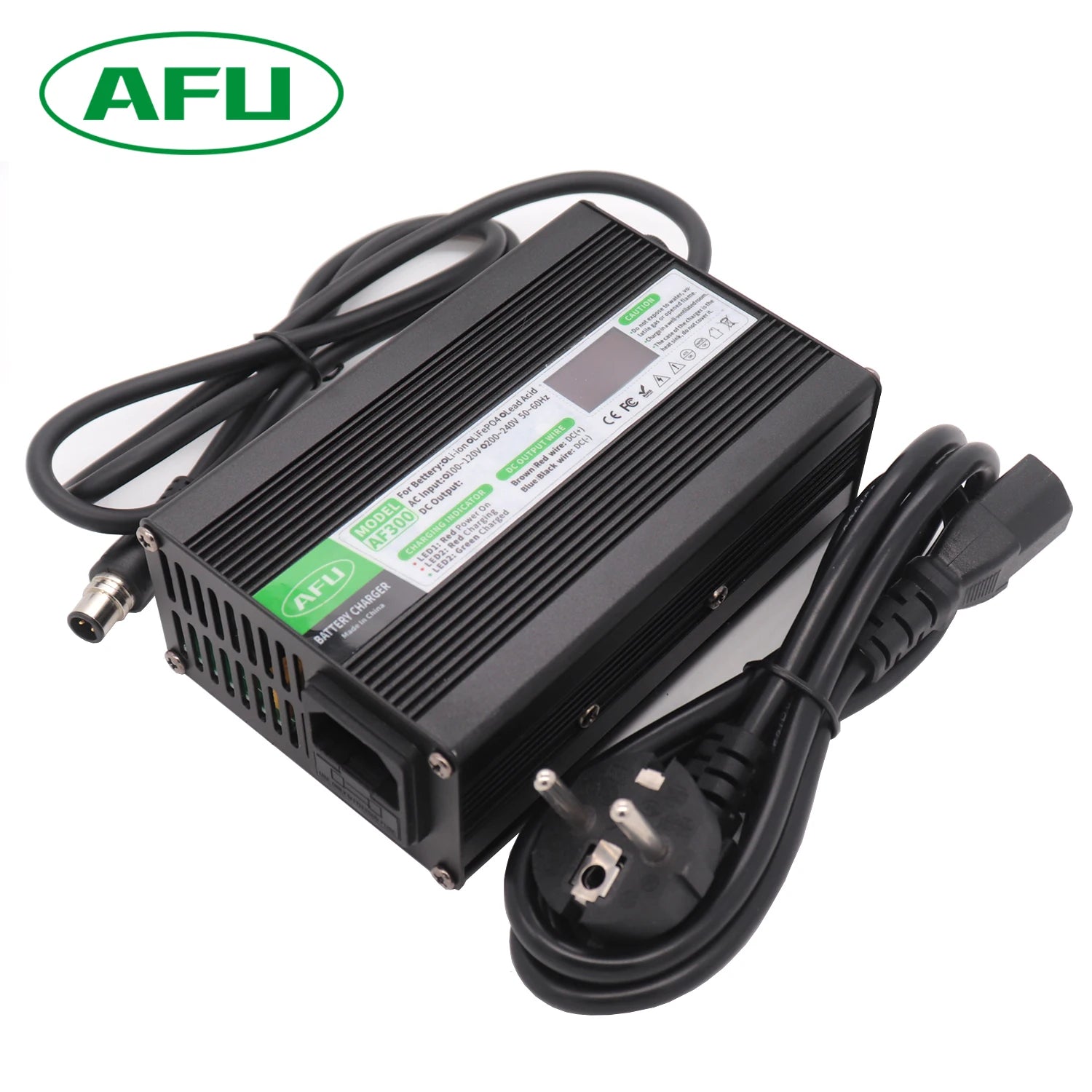

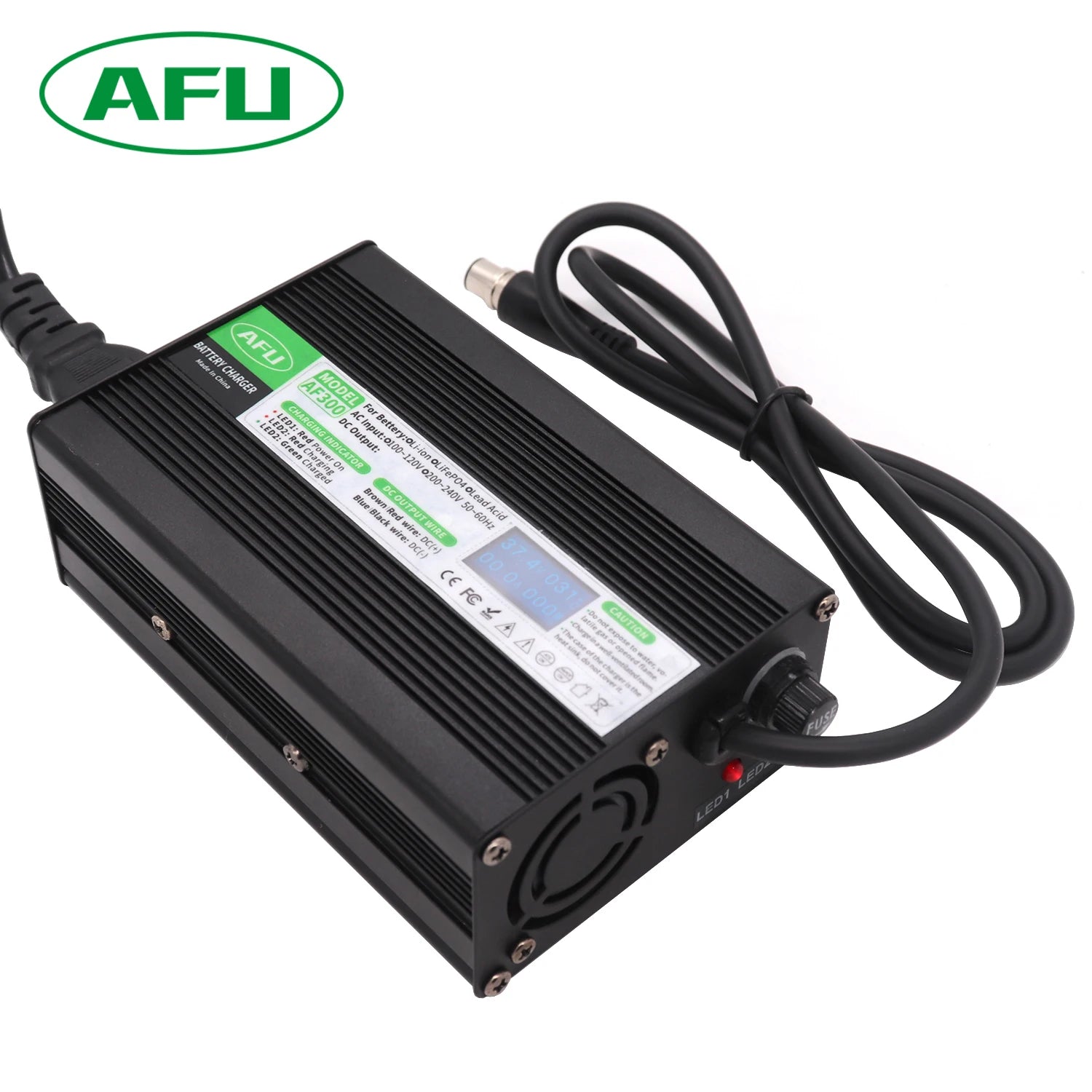

AF300 BATTERY CHARGER

Brand Name

 AFU

Model Number

AF300-29210B

AC Input Voltage

100~120V/200~240Vac

Frequency

50~60Hz

DC Output Voltage

29.2 Volt

DC Output Current

10Amp

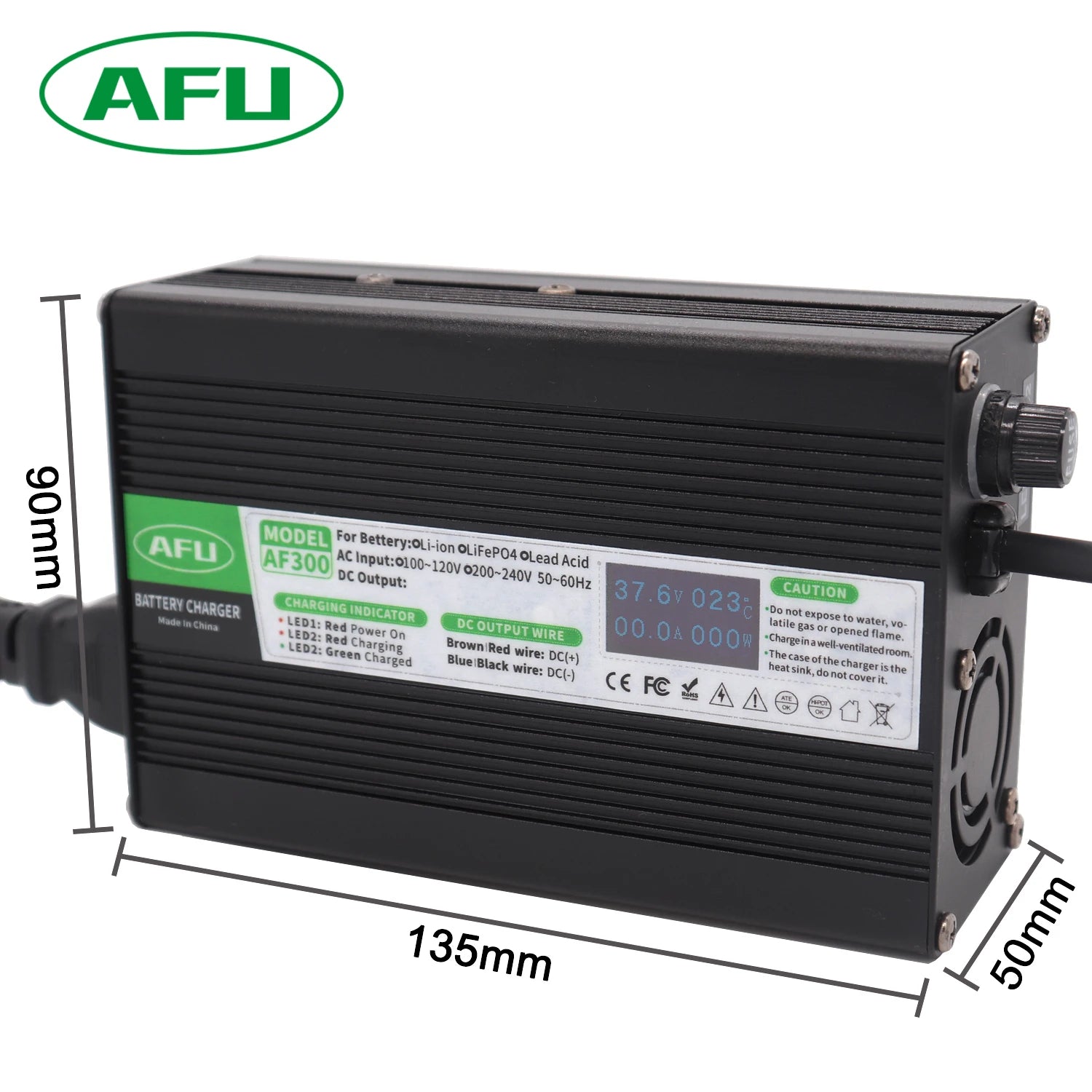

Dimension

135*90*50mm

Net Weight

0.8KG

Case Color

Black

Case Material

        Aluminum case

Suitable Battery Type

8S 24V LiFePO4 Battery (S=Series Connection)

Efficiency

≥85%

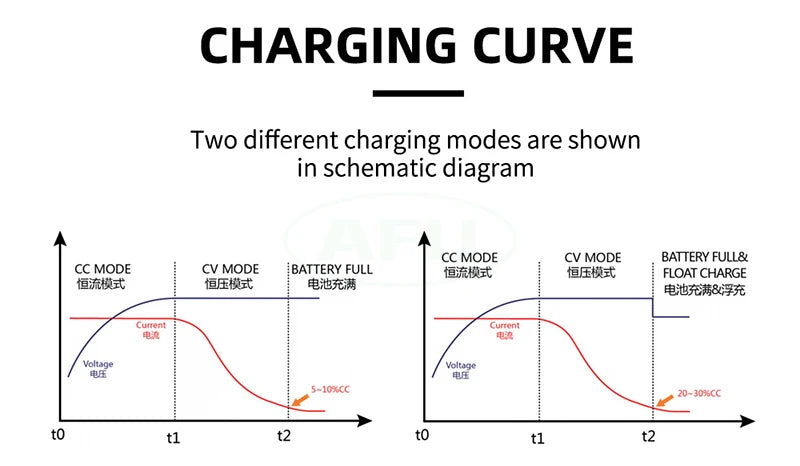

Charging Mode

Three-stage Intelligent Charging Mode: Constant Current~Constant Voltage~Trickle(Floating Charge) to Ensure Battery Fully Charged (Floating Charge is when Lead Acid charger)

Charging Indicator

Red and Green, double color instructions, Red logo charging, Green logo finished or standby

Operating/Storage

Conditions

Operating:Ambient temperature: -20~+40℃; RH: 5~95%; Max. altitude: 10000  meter

Storage:Ambient temperature: -40~+70℃; RH: 0~95%; Max. altitude: 20000 meters

Various Protection

Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge

Our Advantage

Safety certifications CE, RoHS, FCC Directive-compliant, Intelligent IC control ,full automatic transition of CC,CV and Float/Cut-off rickle, meet the demands for different Curve.

Aluminum case, Robust, Elegant, Safe, Stable, Reliable

Package Contents

*1xbattery charger

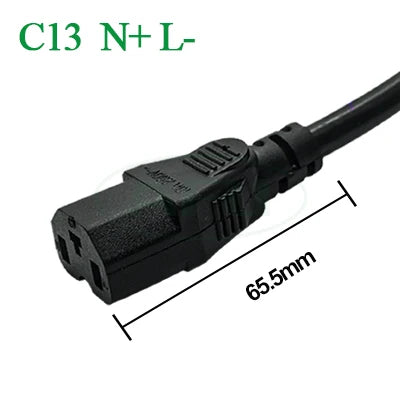

*1xInput Wire

*1xUser Manual

This battery charger is your affordable necessity without sacrificing performance.

It features an integrated MCU and PWM for power control.
