2 3 4 Position Battery Mass Switch Cut Single Dual M-Series Marine Boat 12-48V 100-300A Heavy Duty Isolator Disconnect Rotary
2 3 4 Position Battery Mass Switch Cut Single Dual M-Series Marine Boat 12-48V 100-300A Heavy Duty Isolator Disconnect Rotary
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore

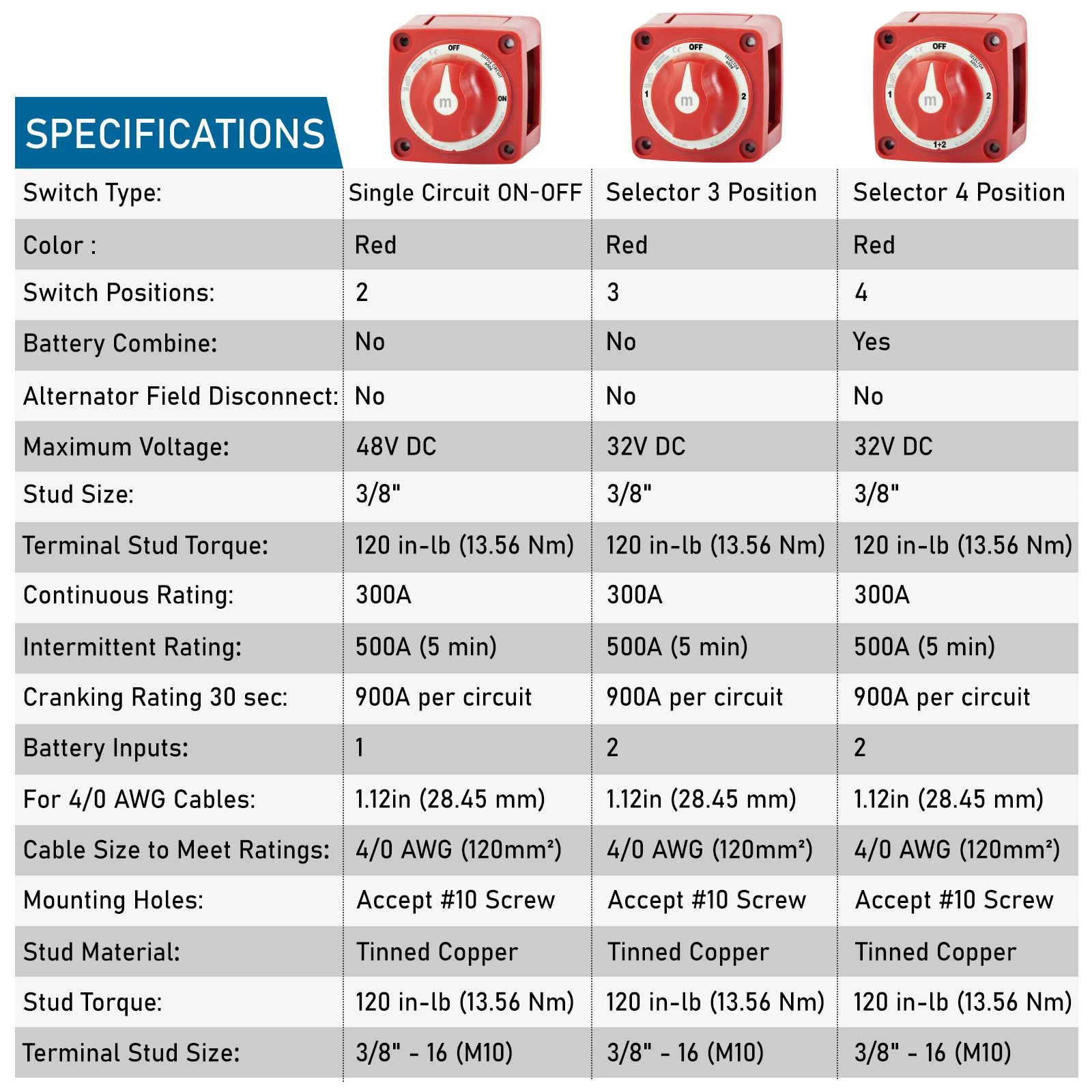

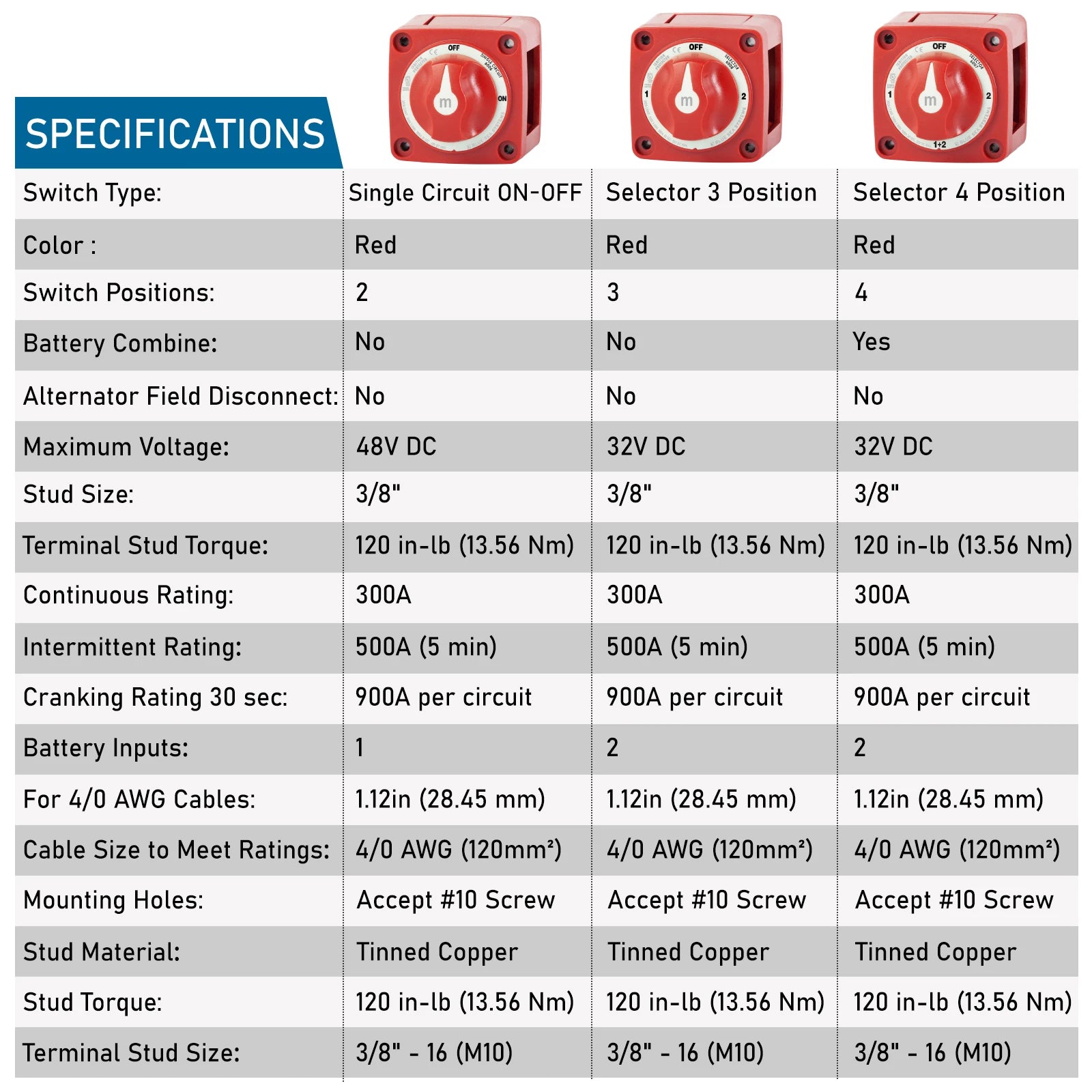

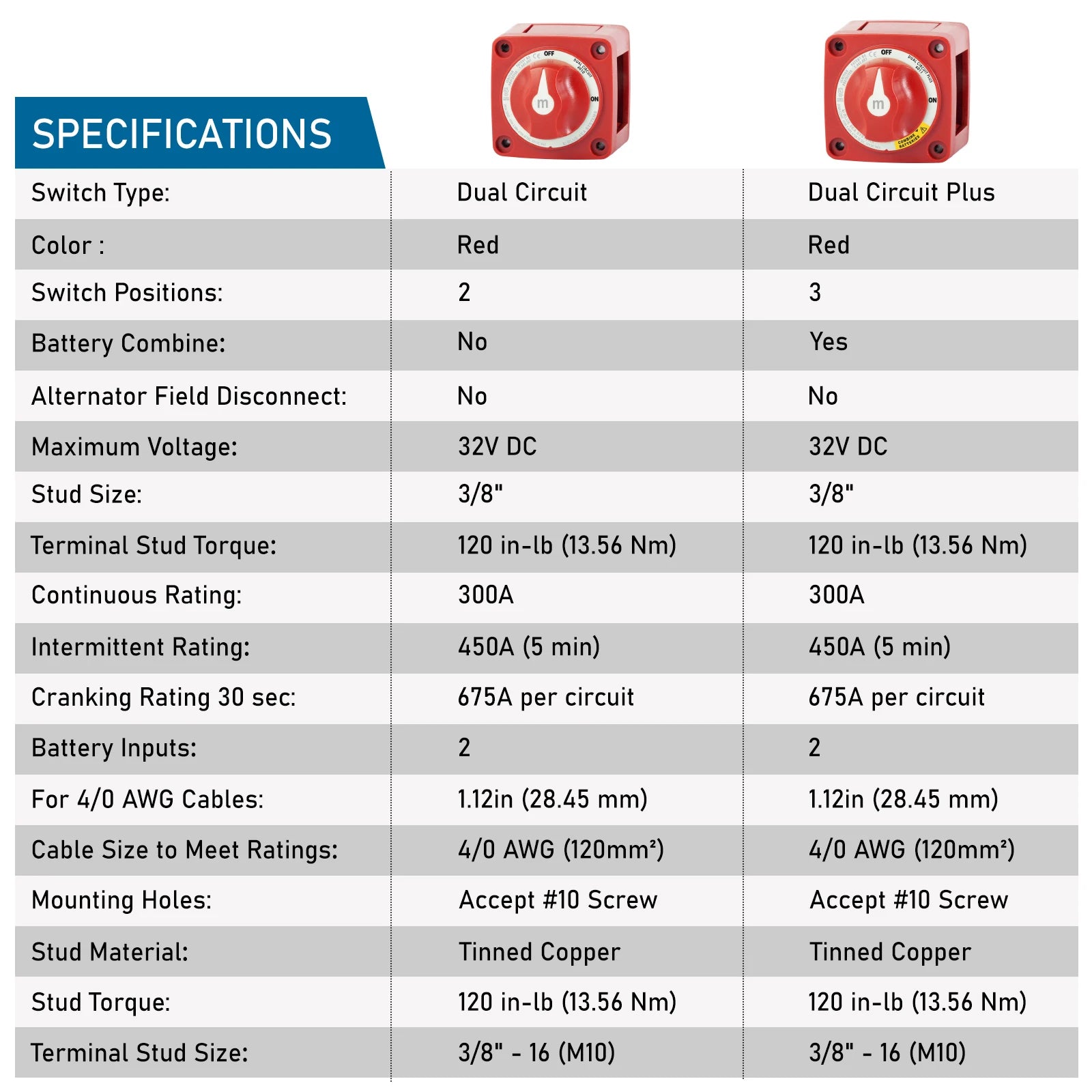

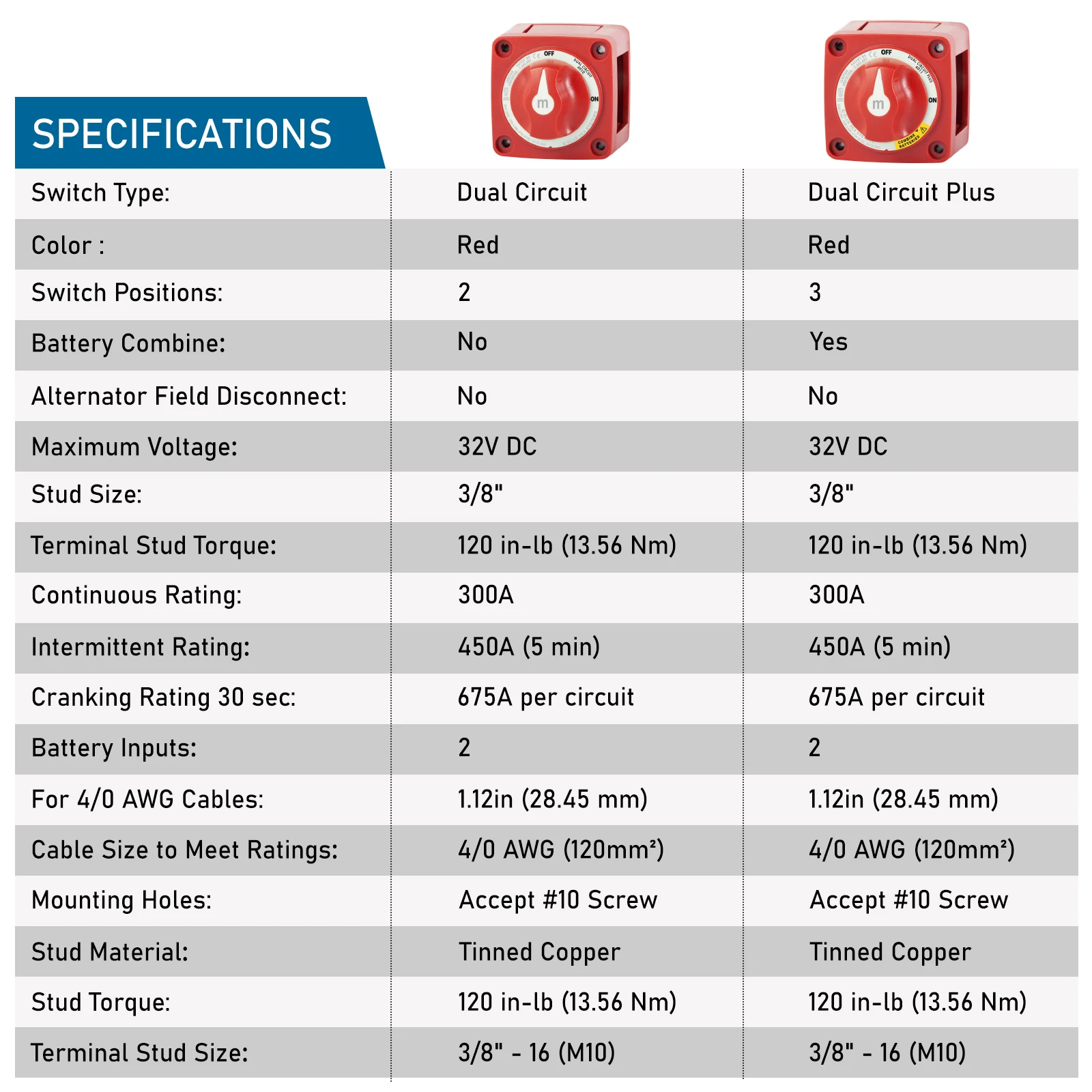

SPECIFICATIONS
Brand Name: CNSPEED
Choice: yes
Hign-concerned Chemical: None
Item Height: 10
Item Length: 8
Item Type: Battery Switch
Item Weight: 0.26
Item Width: 8

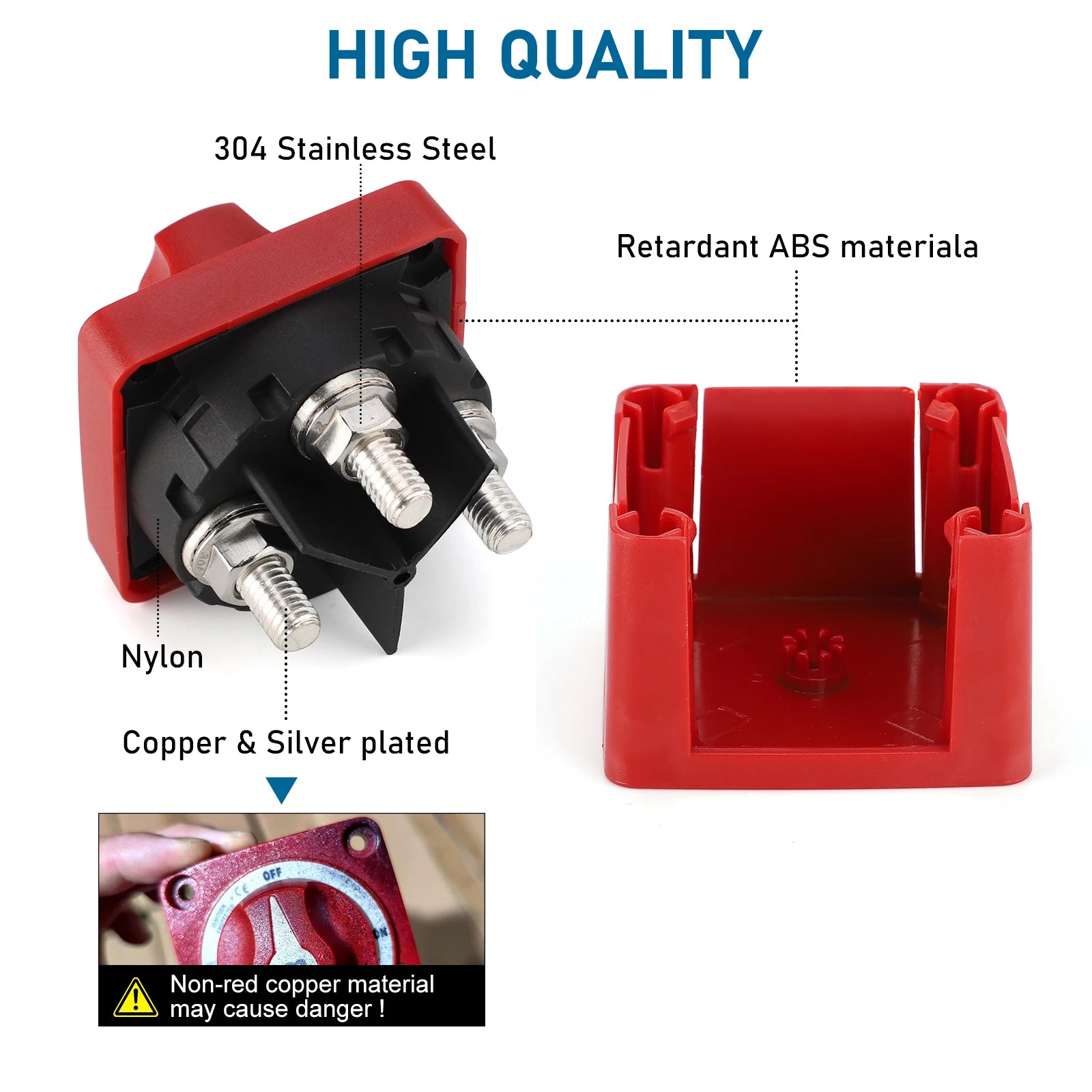

Material: ABS plastic + copper-plated silver inner core
Maximum working time: 500A (5MIN)
Model Name: SWH101-2S
OEM NO.: SWH101-106
Origin: Mainland China
Product description: 6006 M-Series Battery Switch
Special Features: Battery Switch
Terminal size: 3/8 inch-16 (M10)
semi_Choice: yes

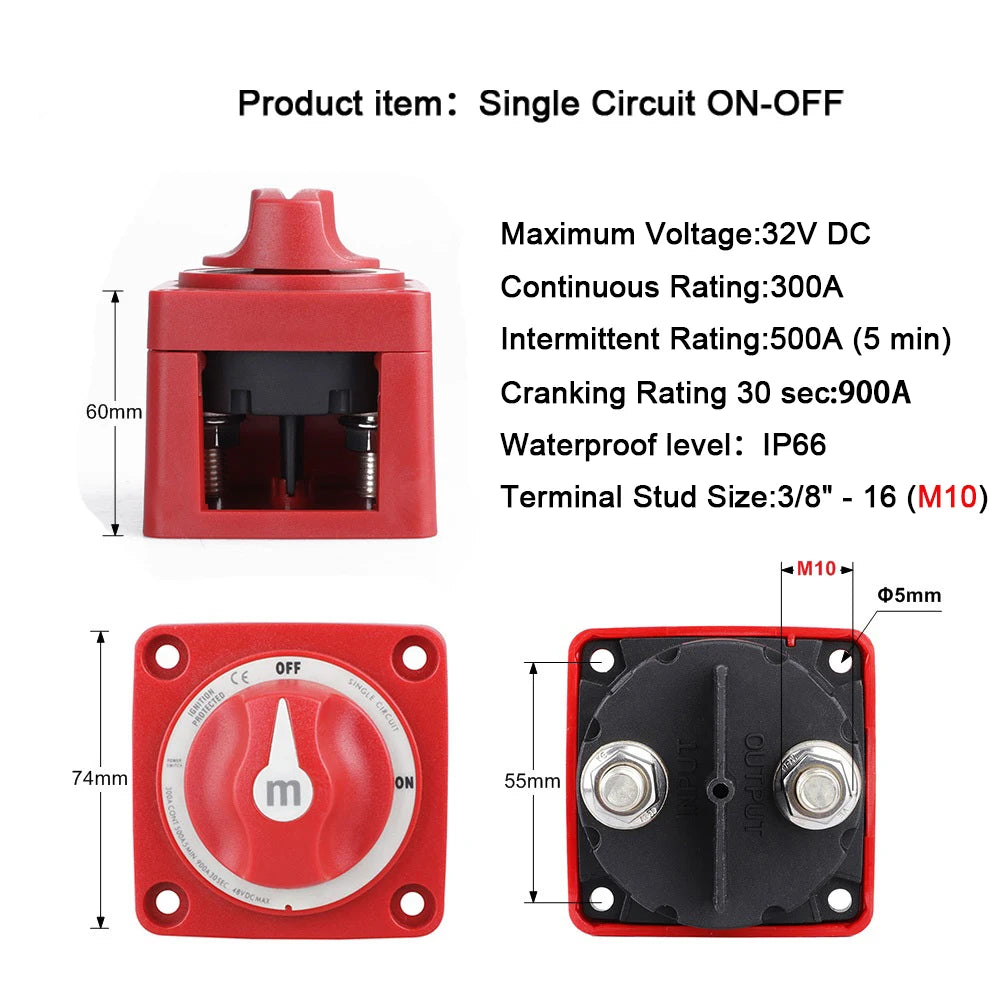

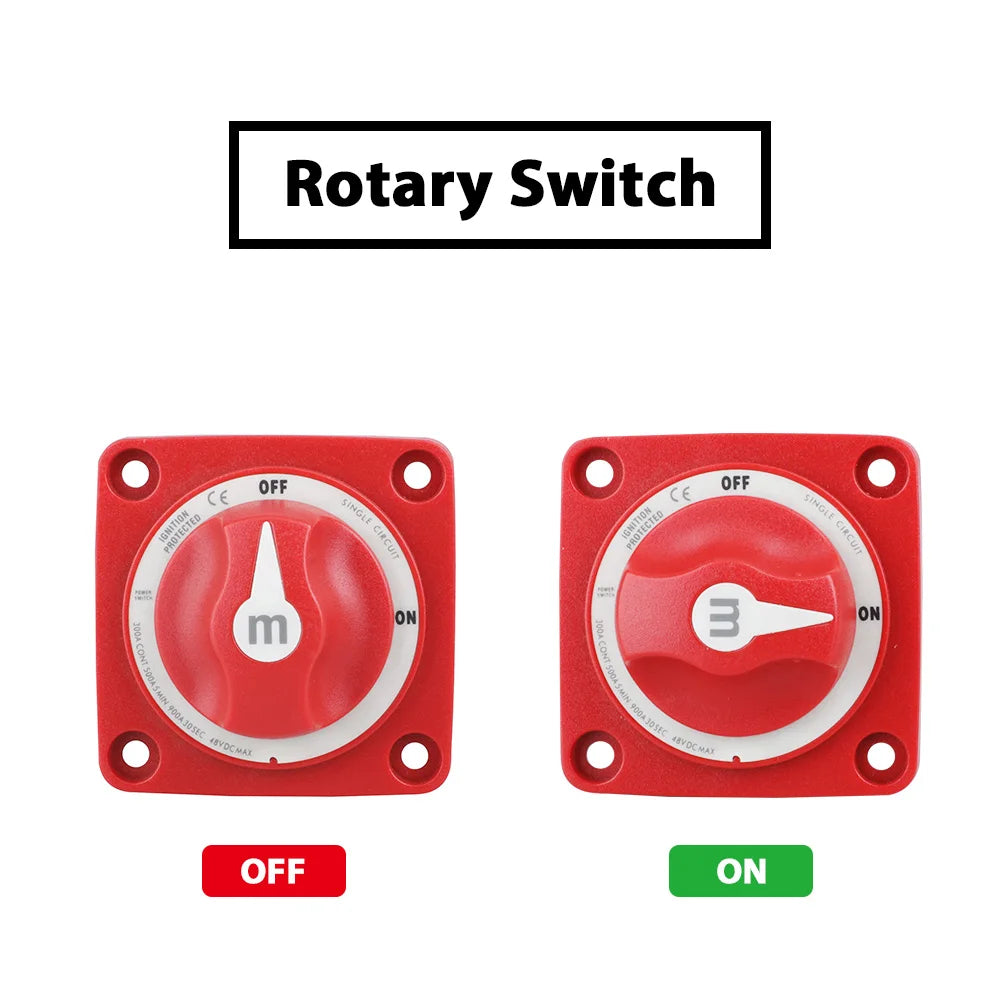

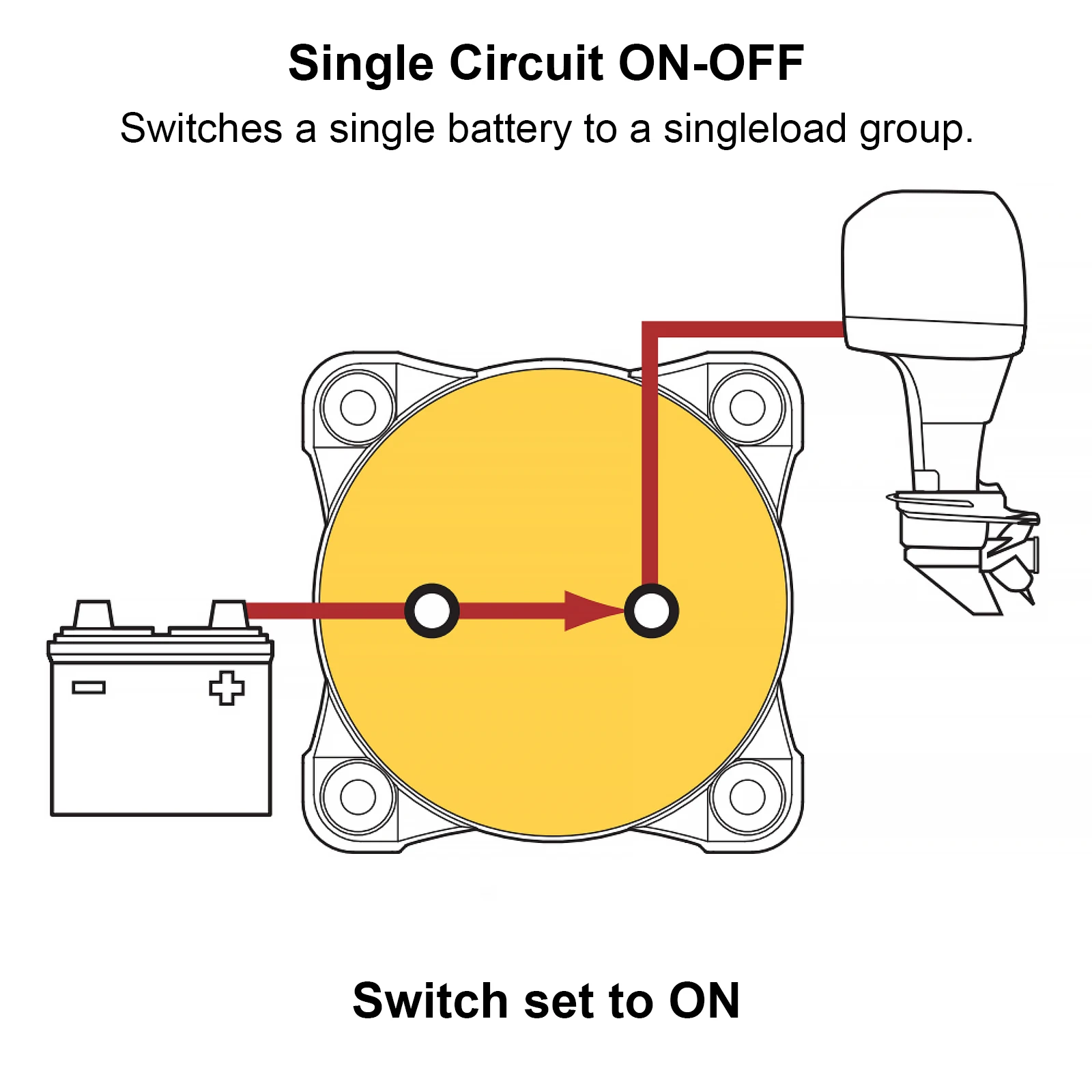

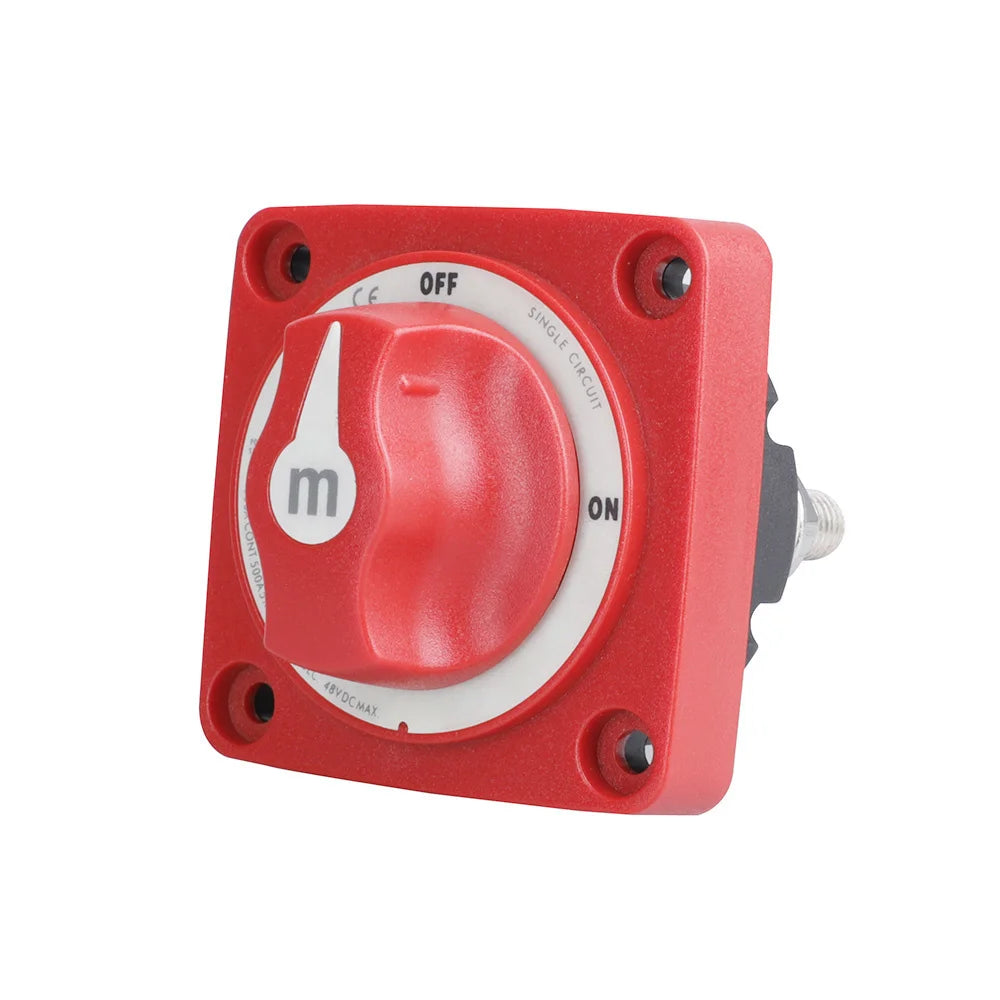

Switch Type :Single Circuit ON-OFF
Color :Red

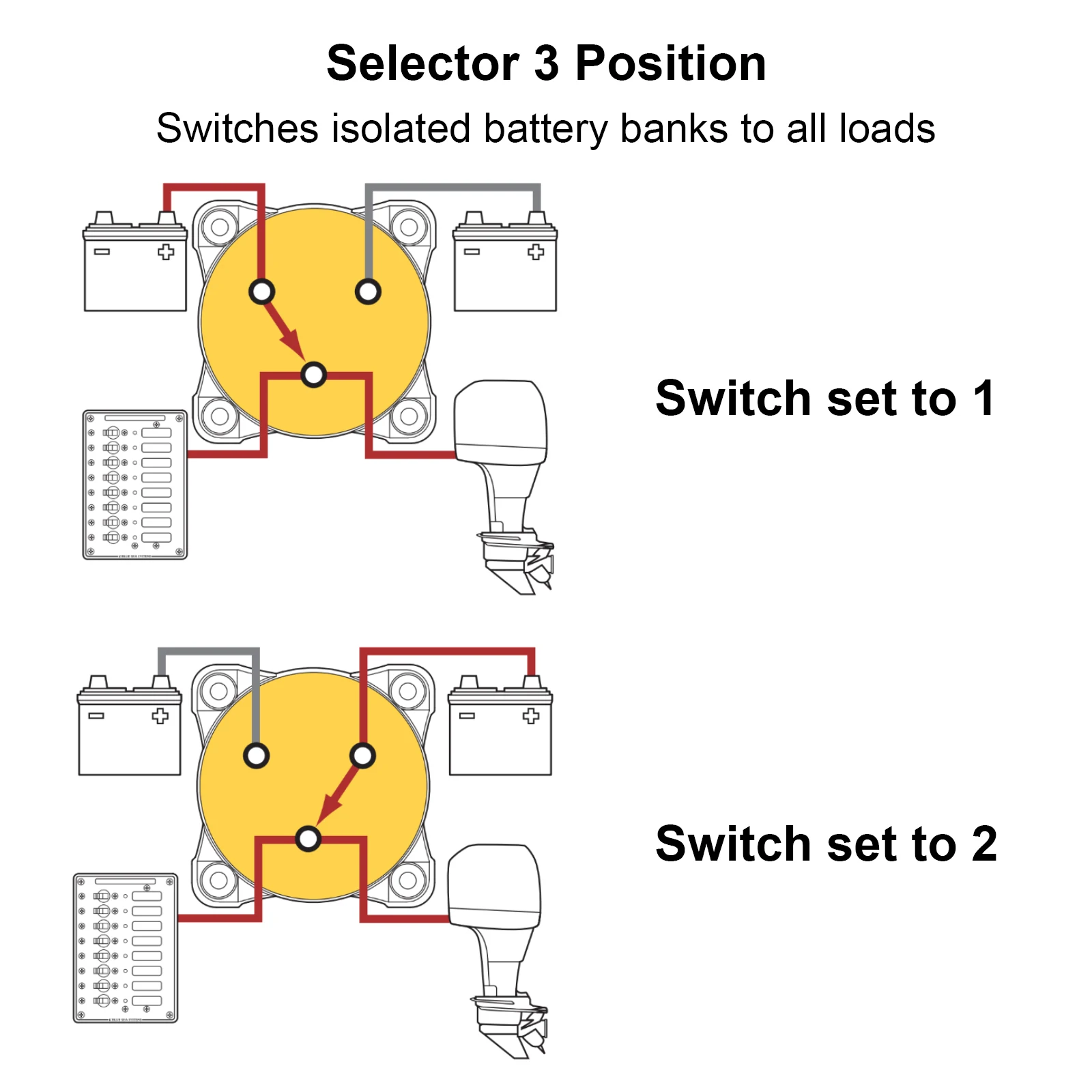

Switch Positions :2/3/4
Battery Combine : No
Alternator Field Disconnect :No
Stud Size :3/8"
Terminal Stud Torque :120 in-lb (13.56 Nm)
Battery Inputs :12V-48V
Cable Clearance For 4/0 AWG Cables "1.12in (28.45 mm)
Cable Size to Meet Ratings :"4/0 AWG (120mm²)

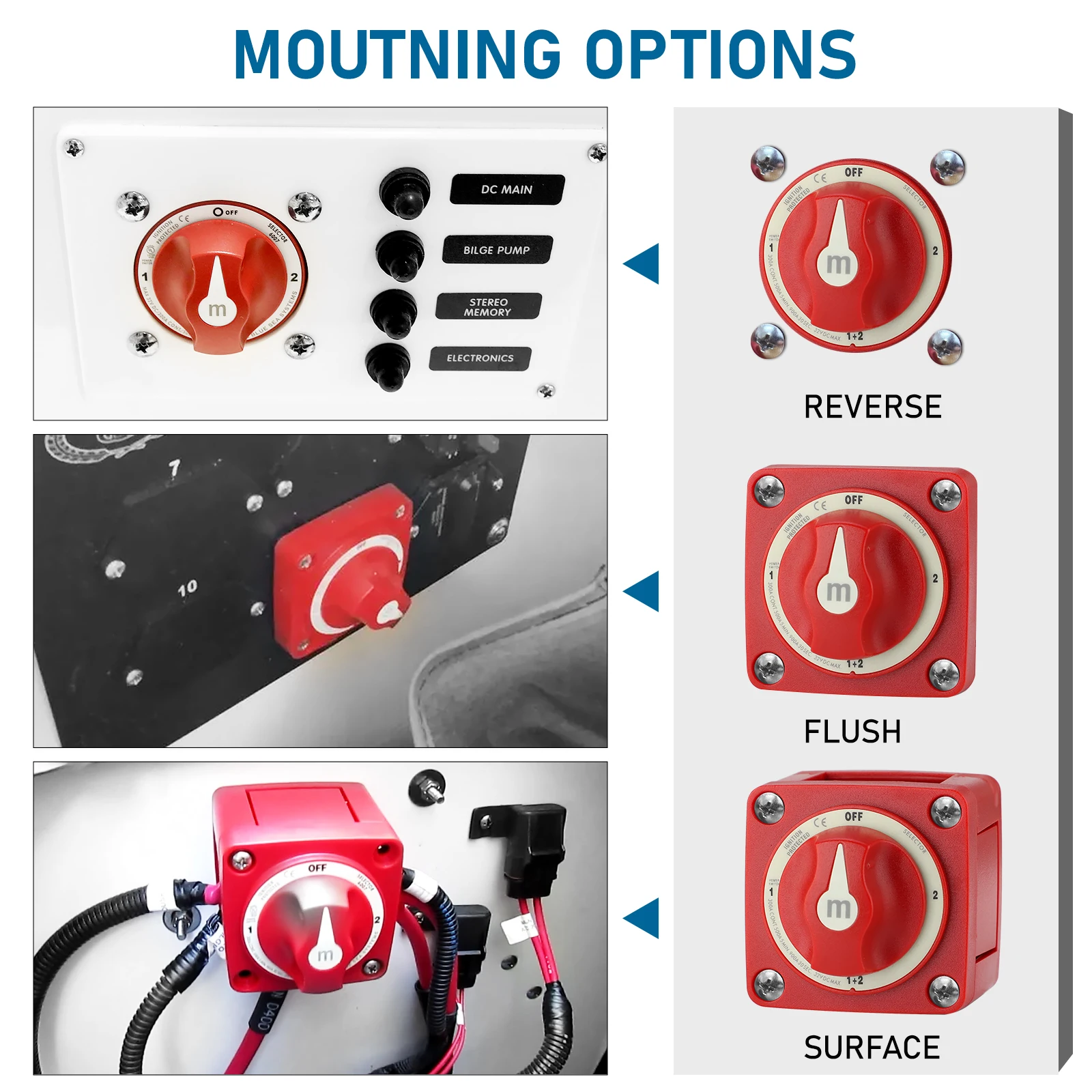

Mounting Holes : "Accept #10 Screw
Stud Material :"Tinned Copper
Terminal Stud Torque :"120 in-lb (13.56 Nm)
Terminal Stud Size : "3/8"" - 16 (M10)
Description:

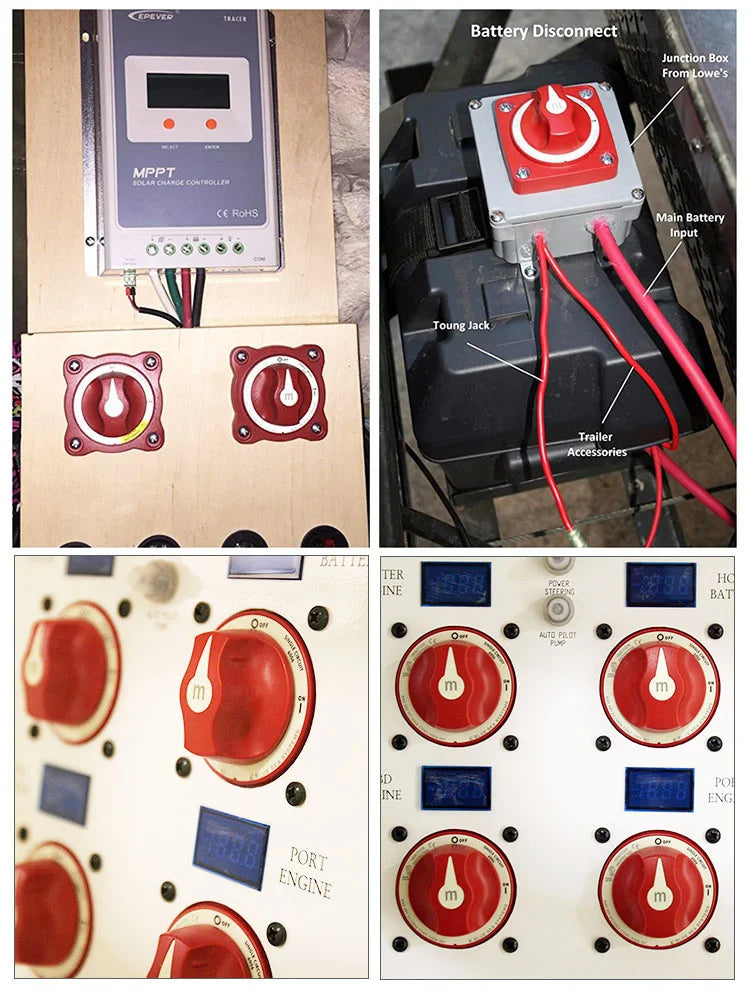

This Mini Battery Switch is suitable for smaller boats such as center consoles or runabouts. The rating of the switch is almost as high as the e-Series switches but its compact size makes it more suitable for smaller boats. If you are installing this with large battery cables such as 2/0 awg and above you will find it easier to use the bigger switch if space is available.
Packaged：
Marine boat cut single switch

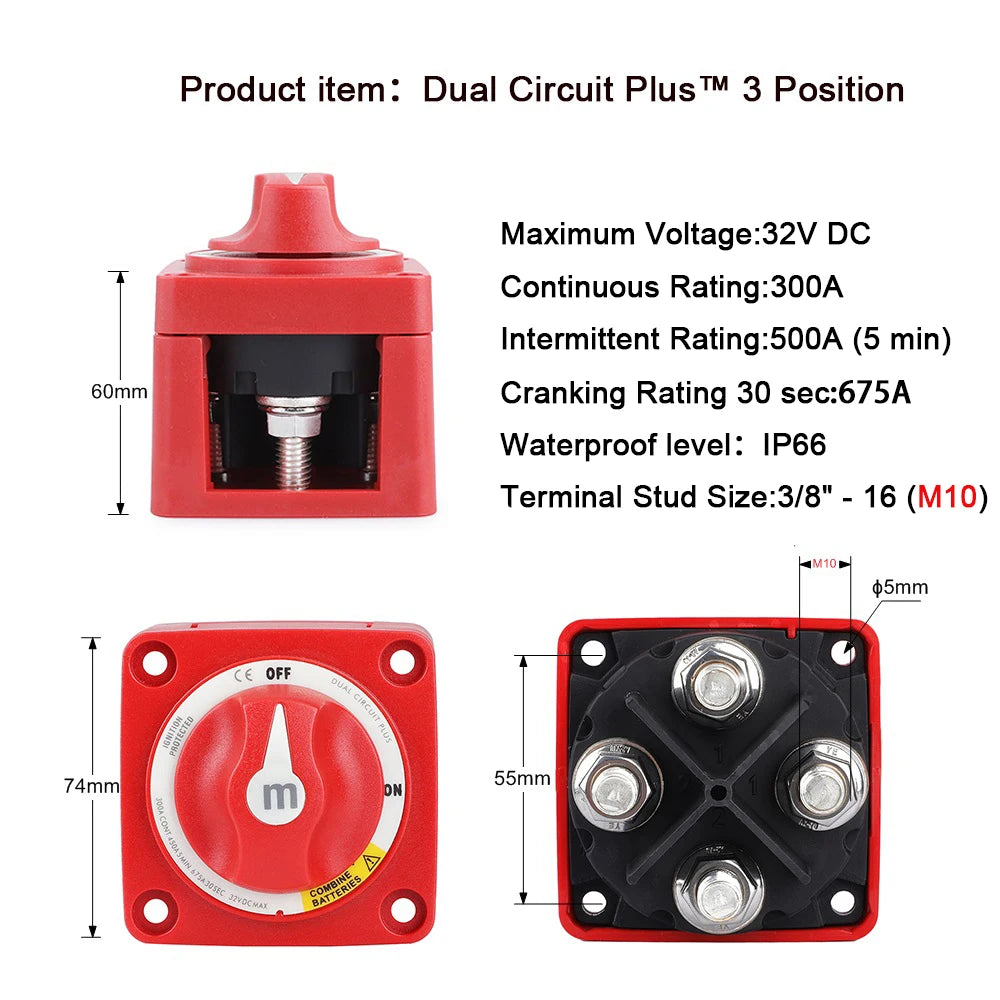

parameter
Detail:
