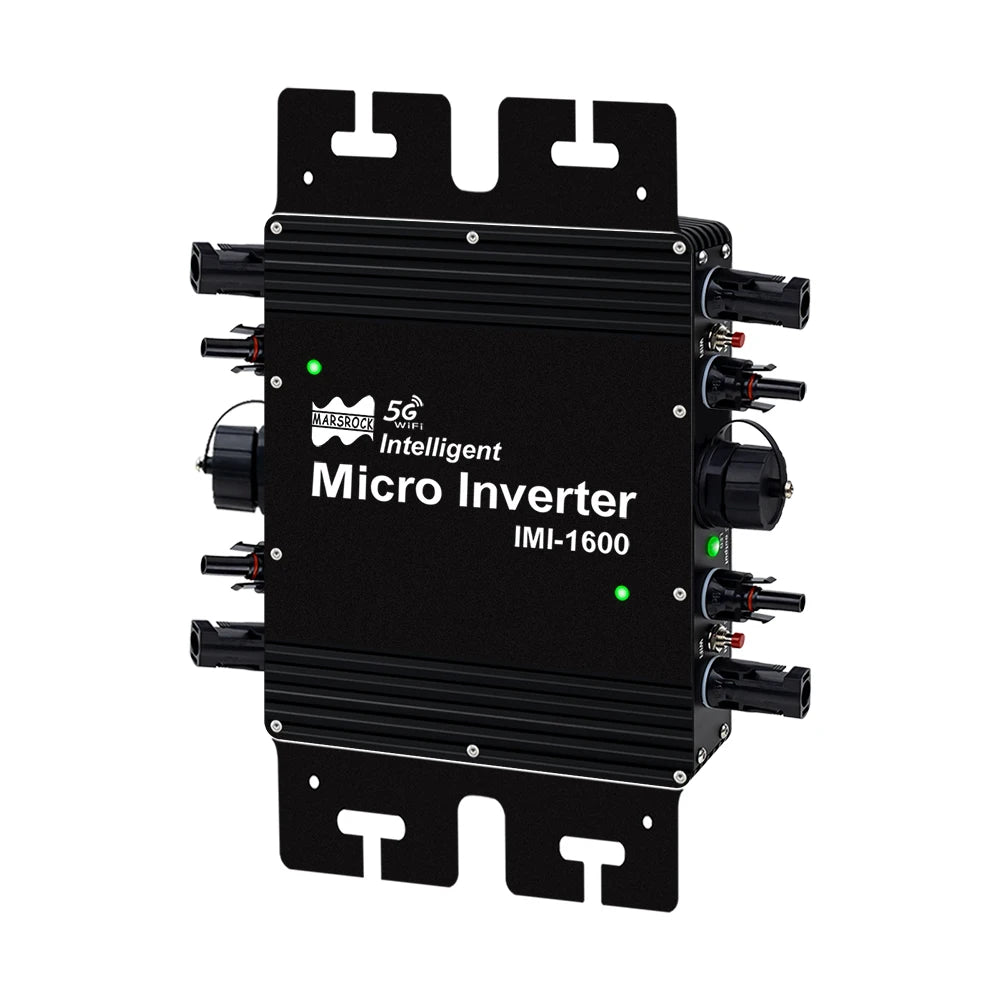

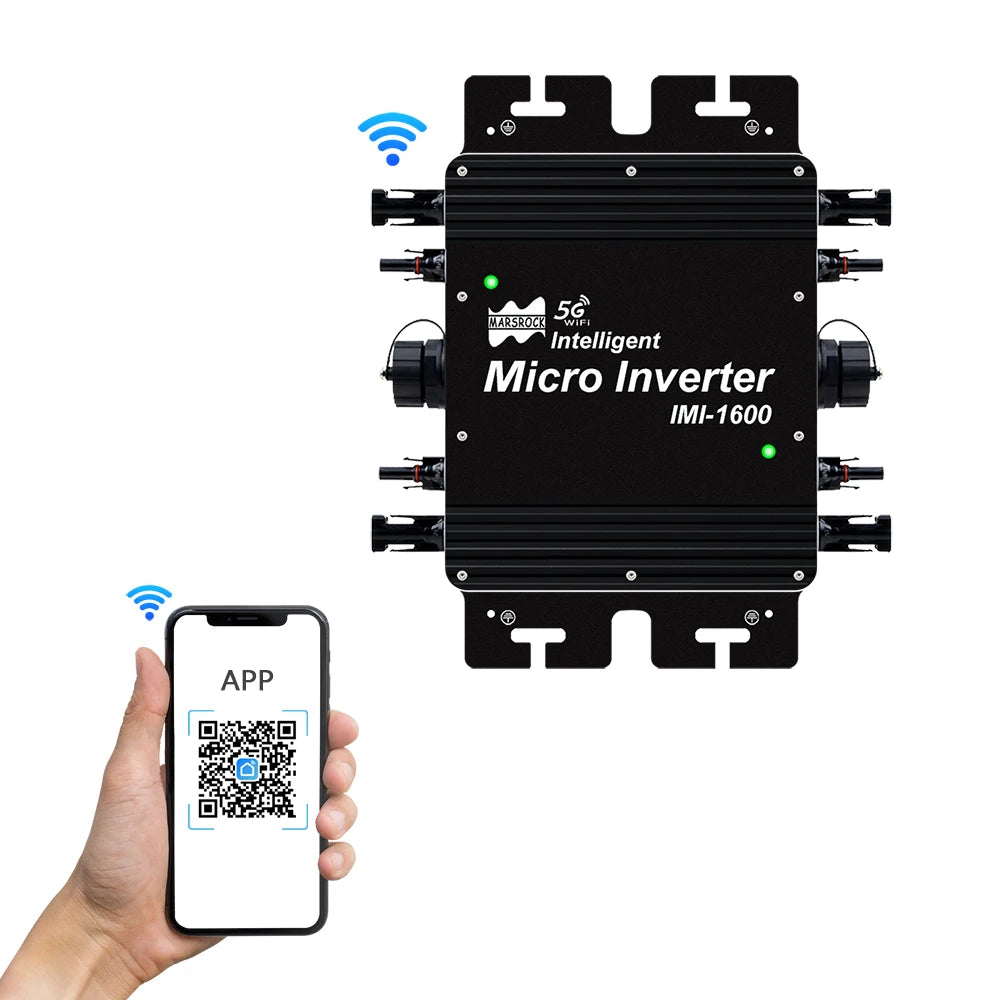

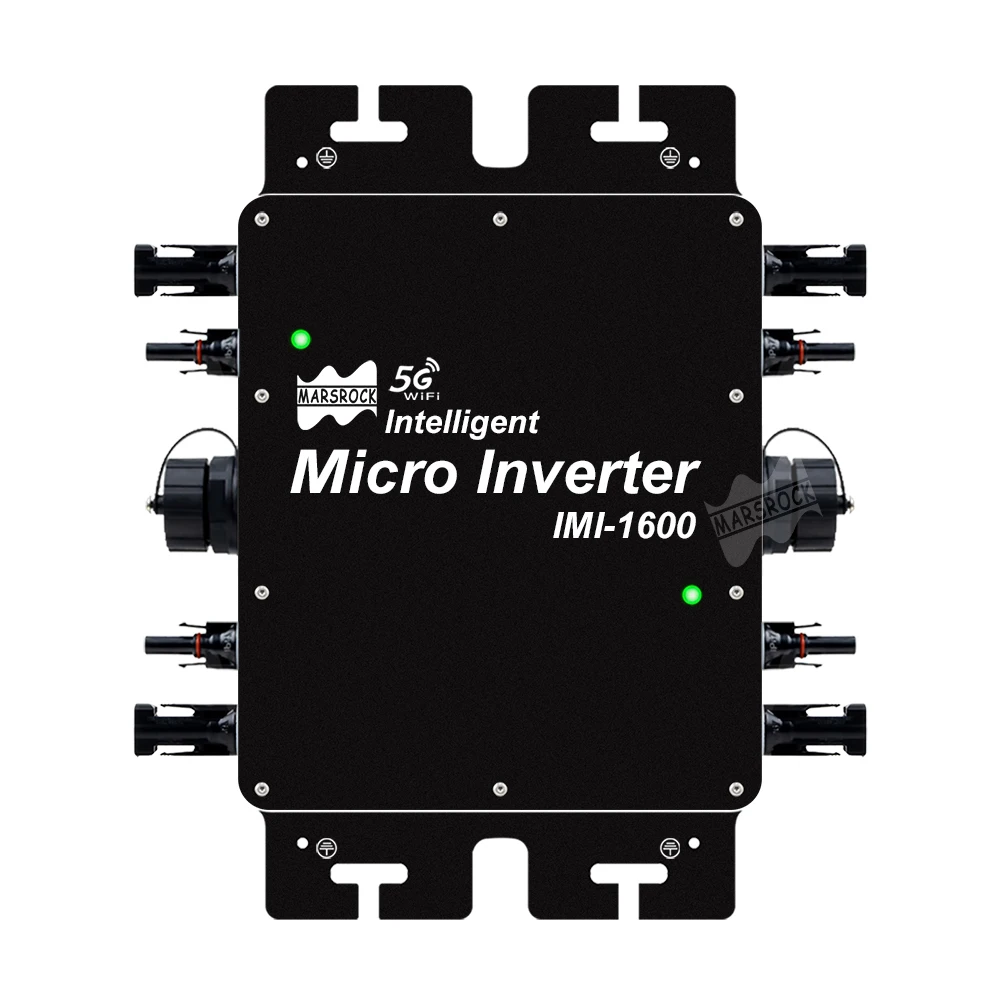

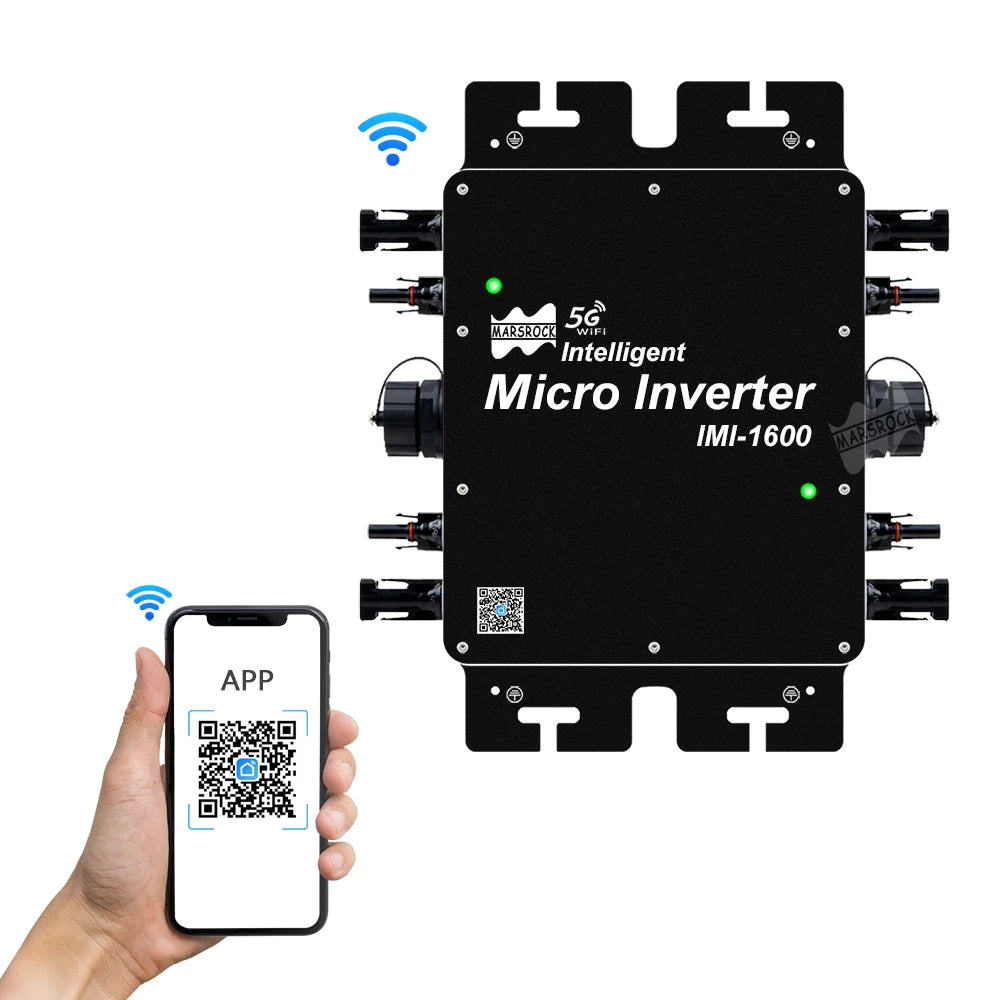

1600W Grid Tie Inverter with Smart WiFi Function DC 22-50V AC 230V Solar PV Grid Tie Micro Inverter Max connect 4X400W Solar PV
1600W Grid Tie Inverter with Smart WiFi Function DC 22-50V AC 230V Solar PV Grid Tie Micro Inverter Max connect 4X400W Solar PV
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Brand Name: MARS ROCK
Certification: CE
DC short current: 20A
Hign-concerned Chemical: None
Is Smart Device: Yes
MPPT: 23-50V
Max Input Current: 13A
Model Number: Solar inverter
Origin: Mainland China
Output Frequency: 50/60HZ
Output Power: 1600W
Output Type: Quad
Power: 1600W
Product name: solar micro inverter
Reccommend PV Voc: 33-50V
Recommend PV: 250-450W for 4panels
Start-Stop voltage: DC 22-50V
is_customized: Yes
PRODUCT PARAMETER
Model |
800W |
1600W |
Input Data |
||
Recommend PV |
250~400W*2 |
250~400W*4 |
Operation voltage |
20~50V(MPPT:22V~48V) |
20~50V(MPPT:22V~48V) |
Reccommend PV Voc |
33-50V |
33-50V |
Star/Max input voltage |
18V/52V |
18V/52V |
Max input current |
13A*2 |
7.5A*4 |
Output Data |
||
Max Output Power |
800W |
1600W |
Rated output current |
@120VAC 5A;@230VAC 2.6A |
@120VAC 5A;@230VAC 2.6A |
Rated voltage |
@120V(80~160VAC); @230V(180~270VAC) |
@120V(90~160VAC); @230V(190~270VAC) |
Max units per branch |
@120V: 5PCS;@230V:10PCS |
@120V: 2PCS;@230V:4PCS |
Rrequency |
50/60Hz(48~61Hz) |
50/60Hz(48~61Hz) |
Output Efficiency |
||
Static MPPT |
0.995 |
0.995 |
Power factor |
>99% |
>99% |
Max output |
0.95 |
0.95 |
Self consumption |
<1W |
<1W |
THD |
<5% |
<5% |
Exterior |
||
Ambient temperature |
- 40℃to + 85℃ |
- 40℃to + 85℃ |
Operating temperature |

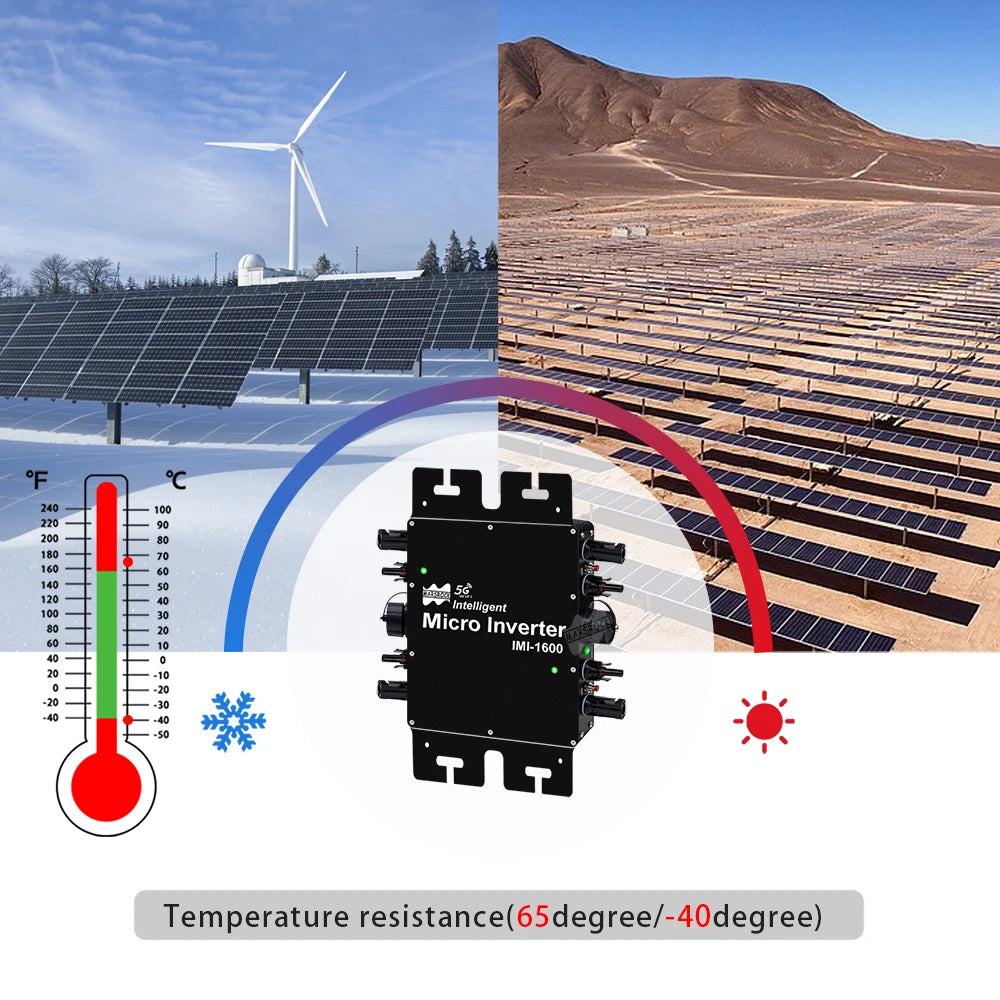

- 40℃to + 65℃ |
- 40℃to + 65℃ |
Dimensions（L×W×H) |
230x200x40mm |
365x230x40mm |
Weight |
2.45kg |
3.5kg |
Waterproof Rating |
IP65 |
IP65 |
Max current of AC bus cable |
20A |
20A |
Cooling |
Self-cooling |
Self-cooling |
Feature |
||
Power transmission mode |
Reverse transfer, load priority |
Reverse transfer, load priority |
Communication |
WIFI(QR code scanning, automatic matching internet) |
WIFI(QR code scanning, automatic matching internet) |
Design |
High frequency transformer, Glvanically isolated |
High frequency transformer, Glvanically isolated |
Equipment ground is provided by the PE in the AC cable |
||
Protection |
||
Electromagnetic compatibility |
EN50081.part1EN50082.part1 |
EN50081.part1EN50082.part1 |
Grid disturbance |
EN61000-3-2 Safety EN62109 |
EN61000-3-2 Safety EN62109 |
Grid detection |
DIN VDE 1026 UL1741 |
DIN VDE 1026 UL1741 |
Certificate |
CE，RoHs, FCC |
CE，RoHs, FCC |
Description
IMI series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the surface erosion, built-in high-performance maximum power point tracking MPPT function better able to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology, . The inverter output power can provide load priority use, extra electricity to the grid, efficient use of the inverter to the power emitted, electricity transmission rate of up to 99%.
The convenient way to directly scan the QR code to connect to the network is a major feature of it, allowing non-professional users to monitor the power generation system data in real time through a smartphone.
Detail images
Feature

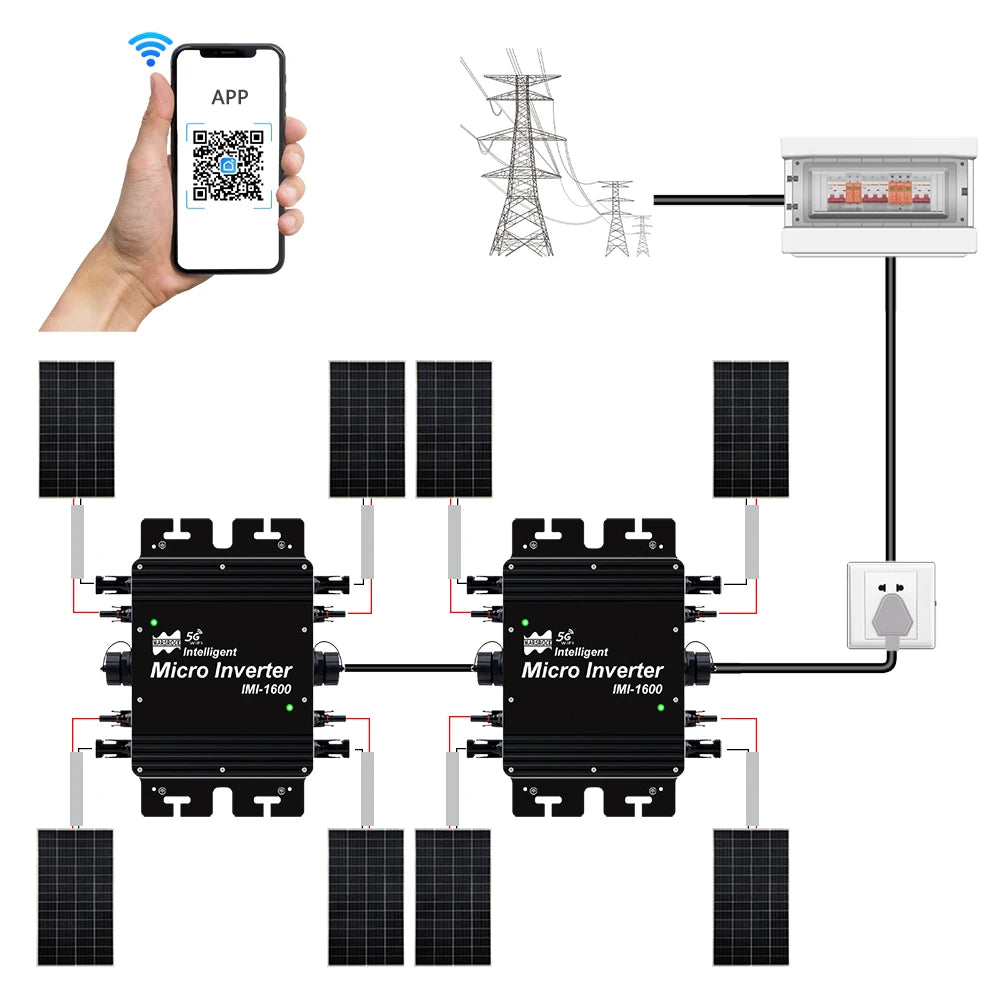

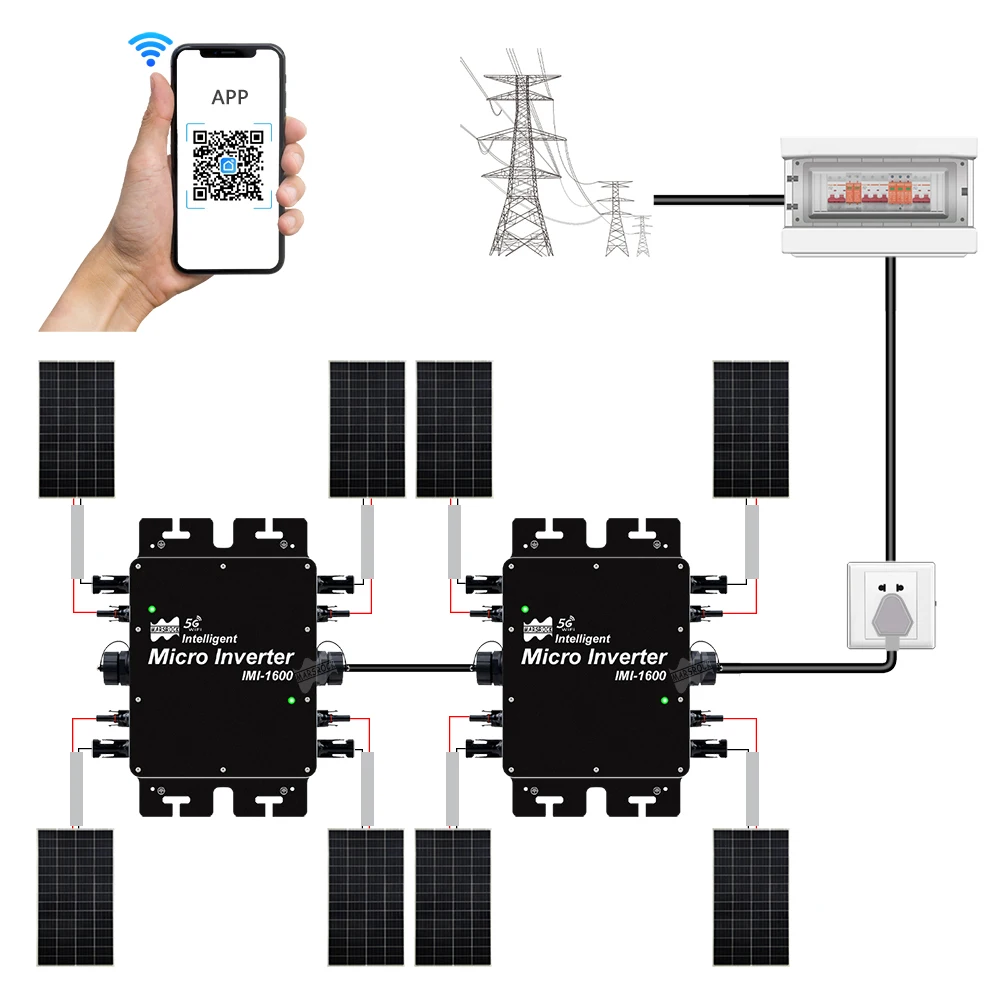

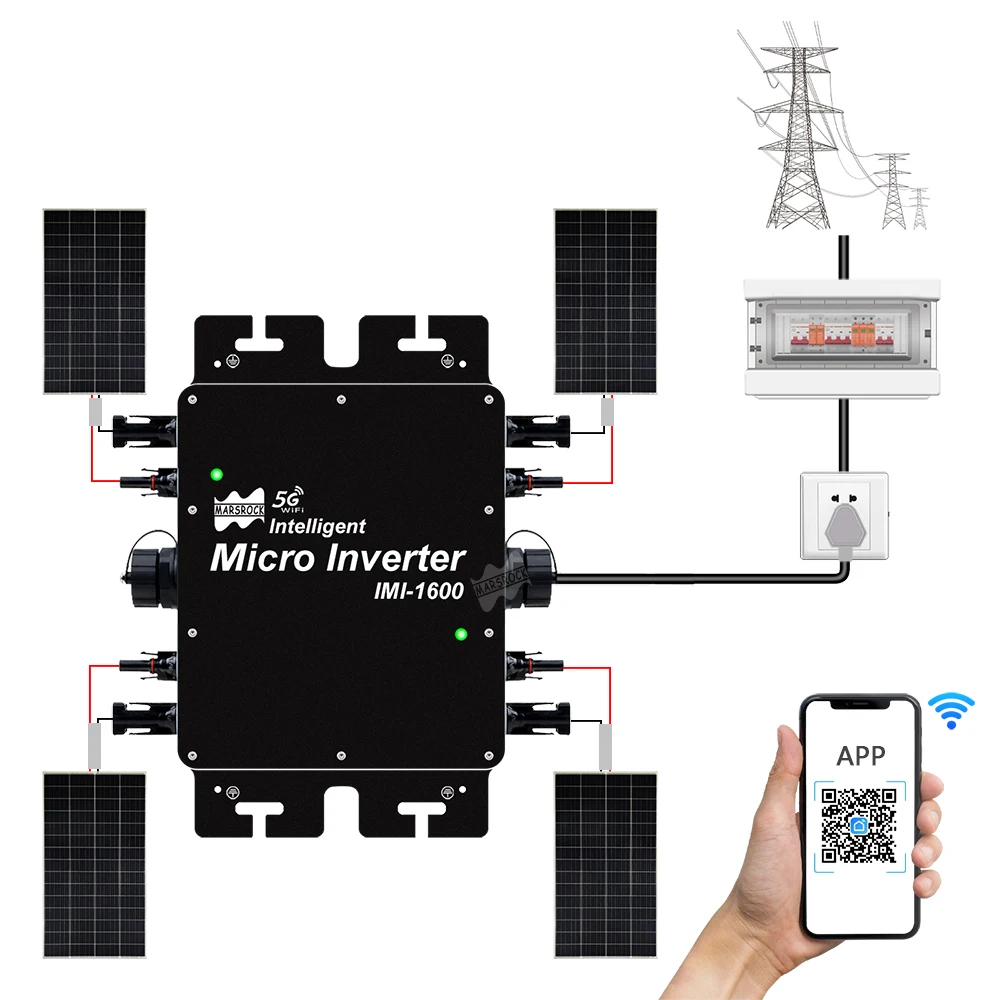

1.IMI Series adopt scanning the QR code to connect with internet which is easy to be operated through Smart Phone APP or PC to monitor power system data.

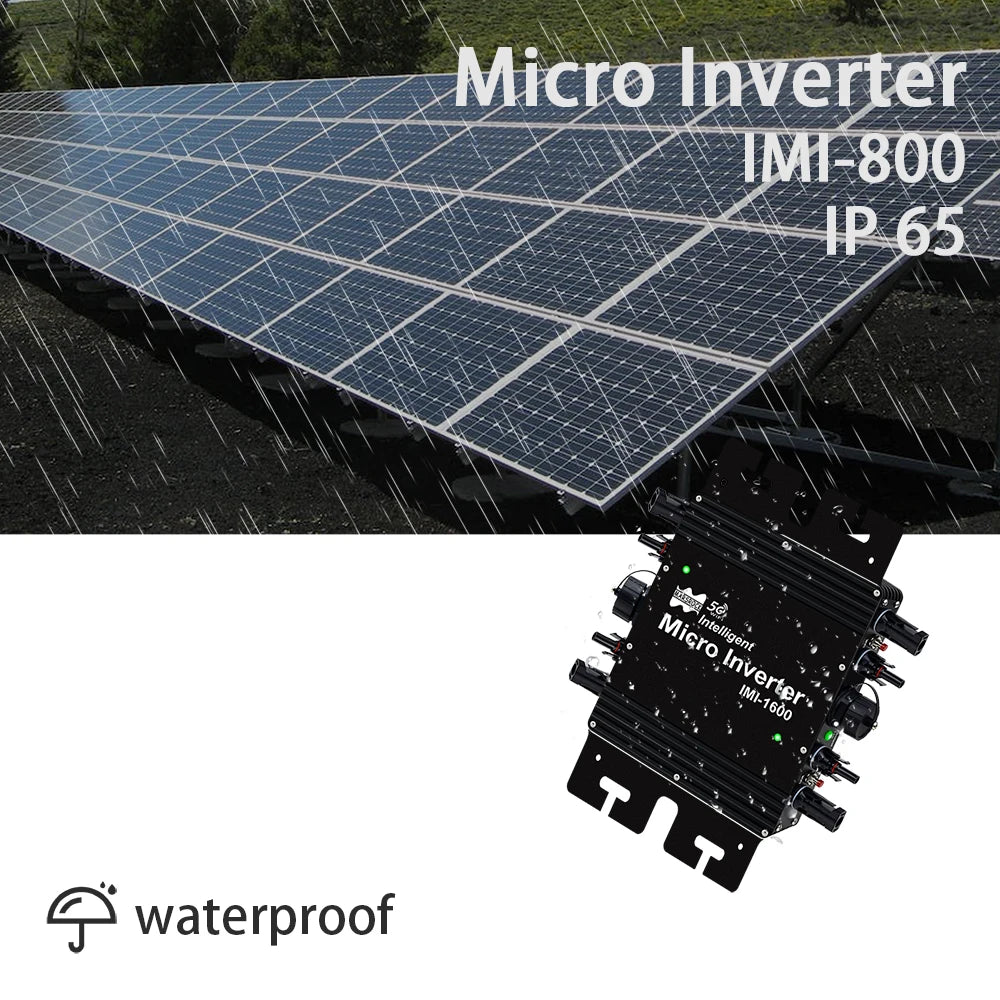

2.IMI inverter using IP65 waterproof streamline design, which can effectively prevent rainwater on surface erosion.
3.Built-in high performance maximum power point tracking function, can track changes in the solar luminosity and control different output power, effectively capture and collect sunlight and use of the inverter to the power emitted, electricity transmission rate of up to 99%.

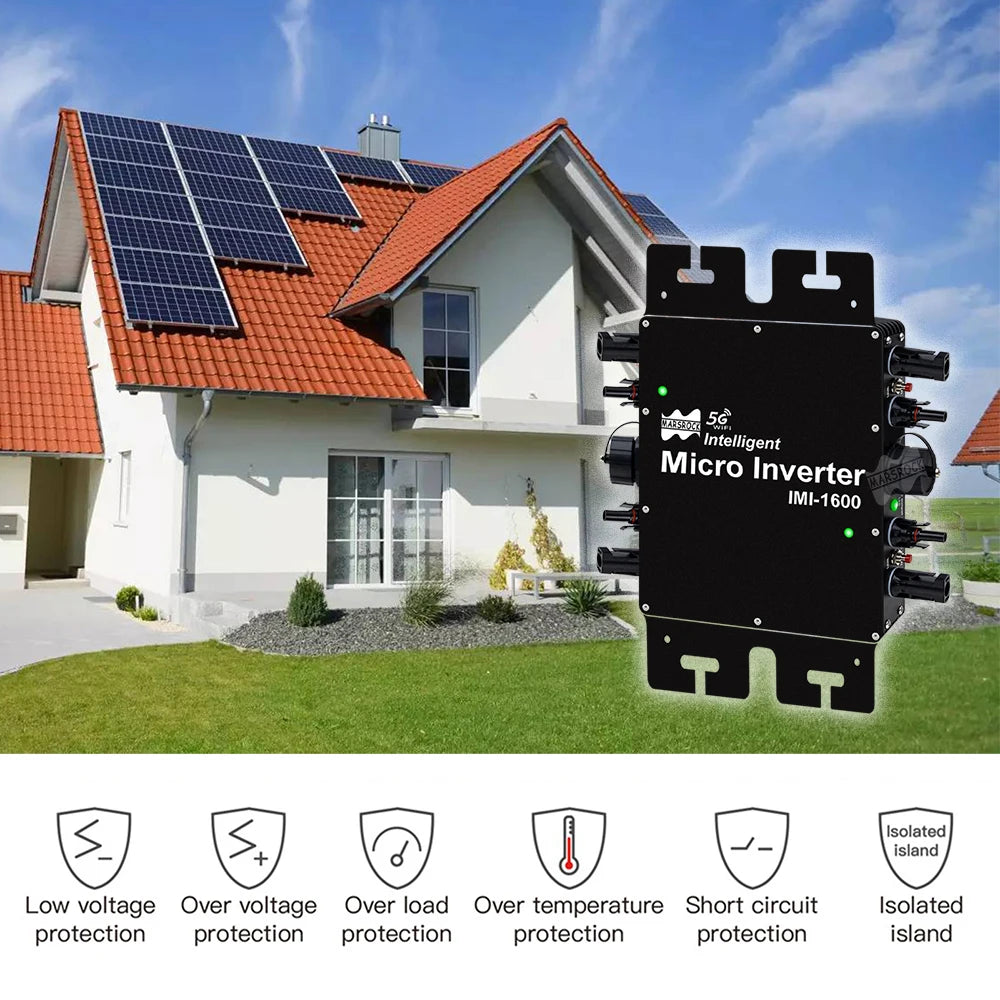

4.High precision phase detection;Over and under voltage protection; Over and under frequency protection; Islanding protection.
5.Flexible installation. The PV input power workable from 250-450W. DC input 20-50V design can suitable for 36Cells, 60 cells, 72 cells put into in series or in parallel.
