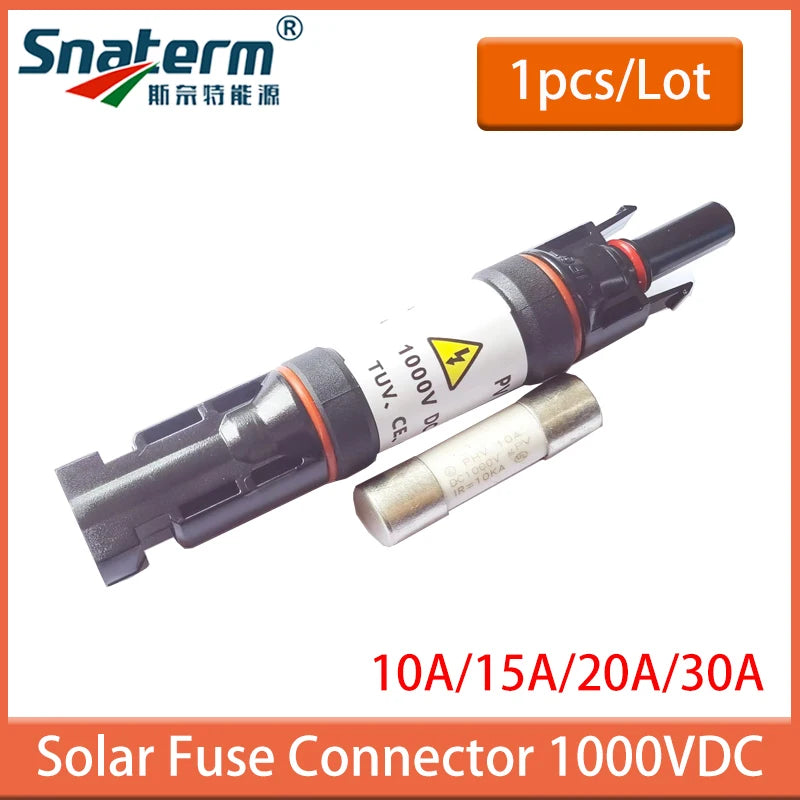

1000VDC 10A 15A 20A 30A DC Solar fuse Connector fusible holder with Inline Fuse for Solar Panel Systems TUV approved
1000VDC 10A 15A 20A 30A DC Solar fuse Connector fusible holder with Inline Fuse for Solar Panel Systems TUV approved
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Brand Name: Snaterm
Choice: yes
Hign-concerned Chemical: None
Model Number: 10A/15A/20A/30A Fuse
Origin: Mainland China
Voltage: 1000 V

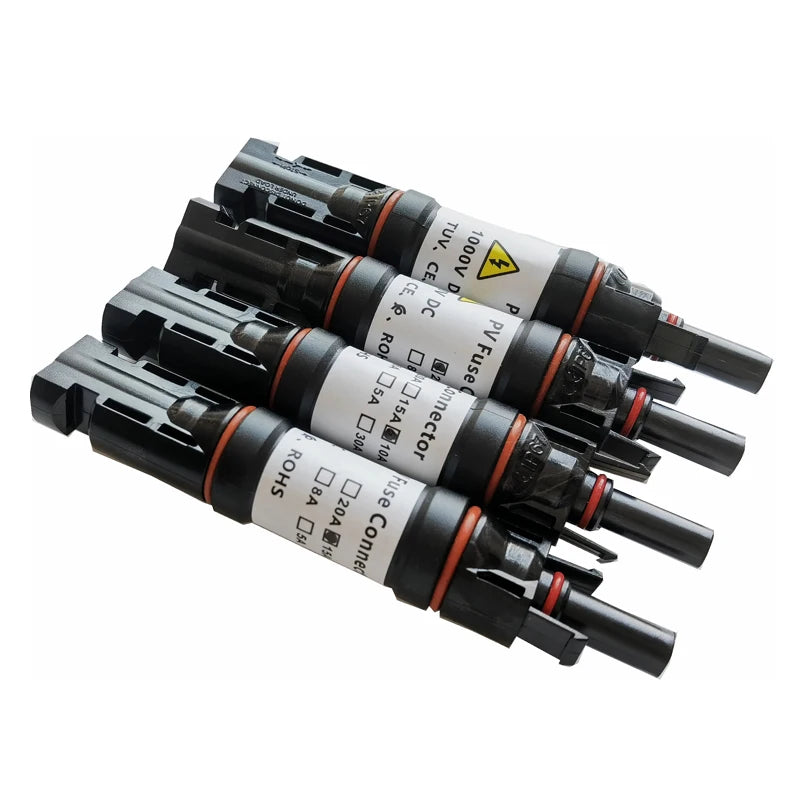

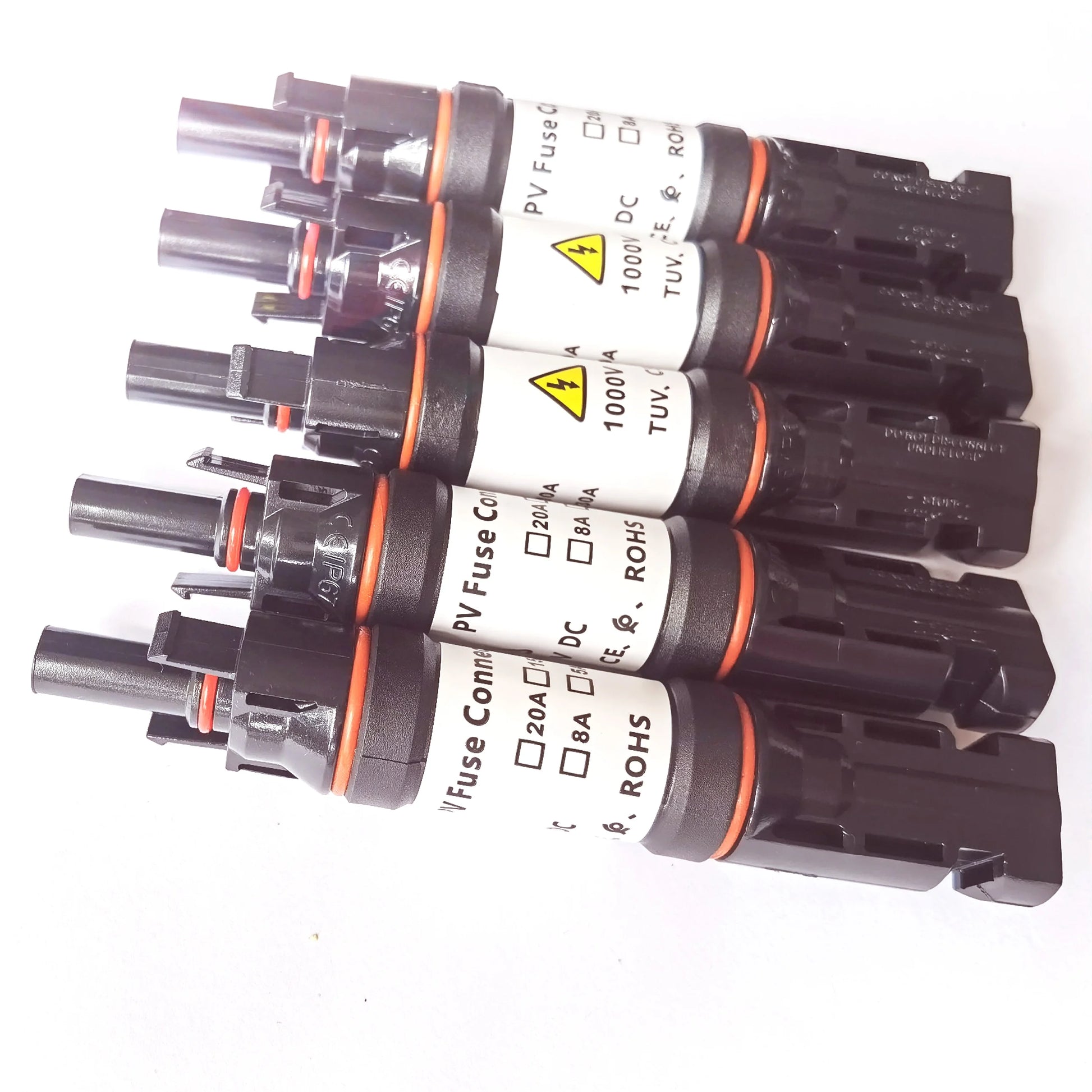

In-line Fuse Connector 30A 20A 15A 10A Solar PV Connector Fuse protection 1000 VDC Male to Fem PV Photovoltaic Waterproof

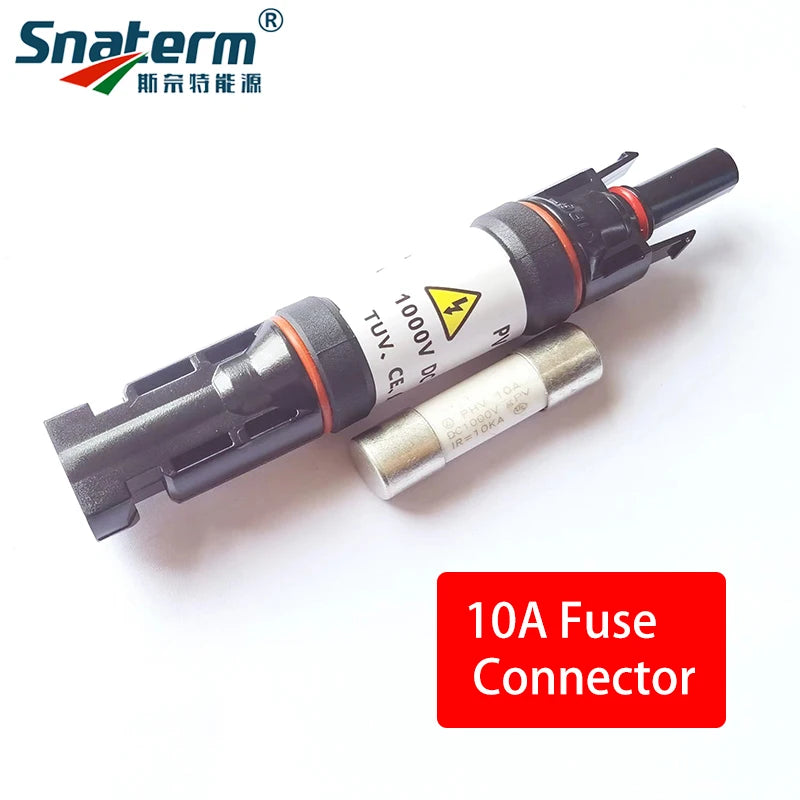

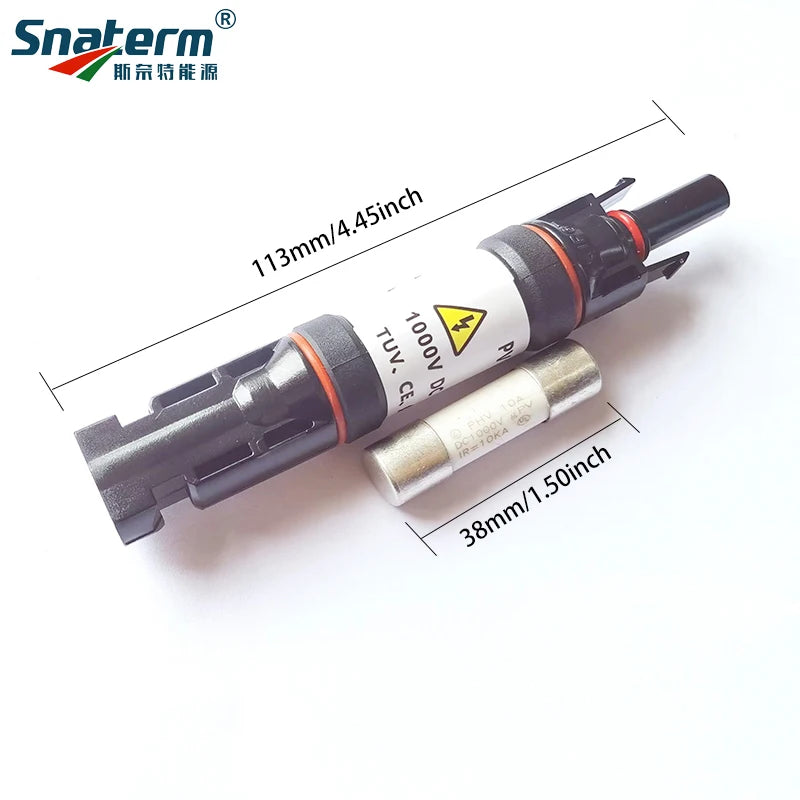

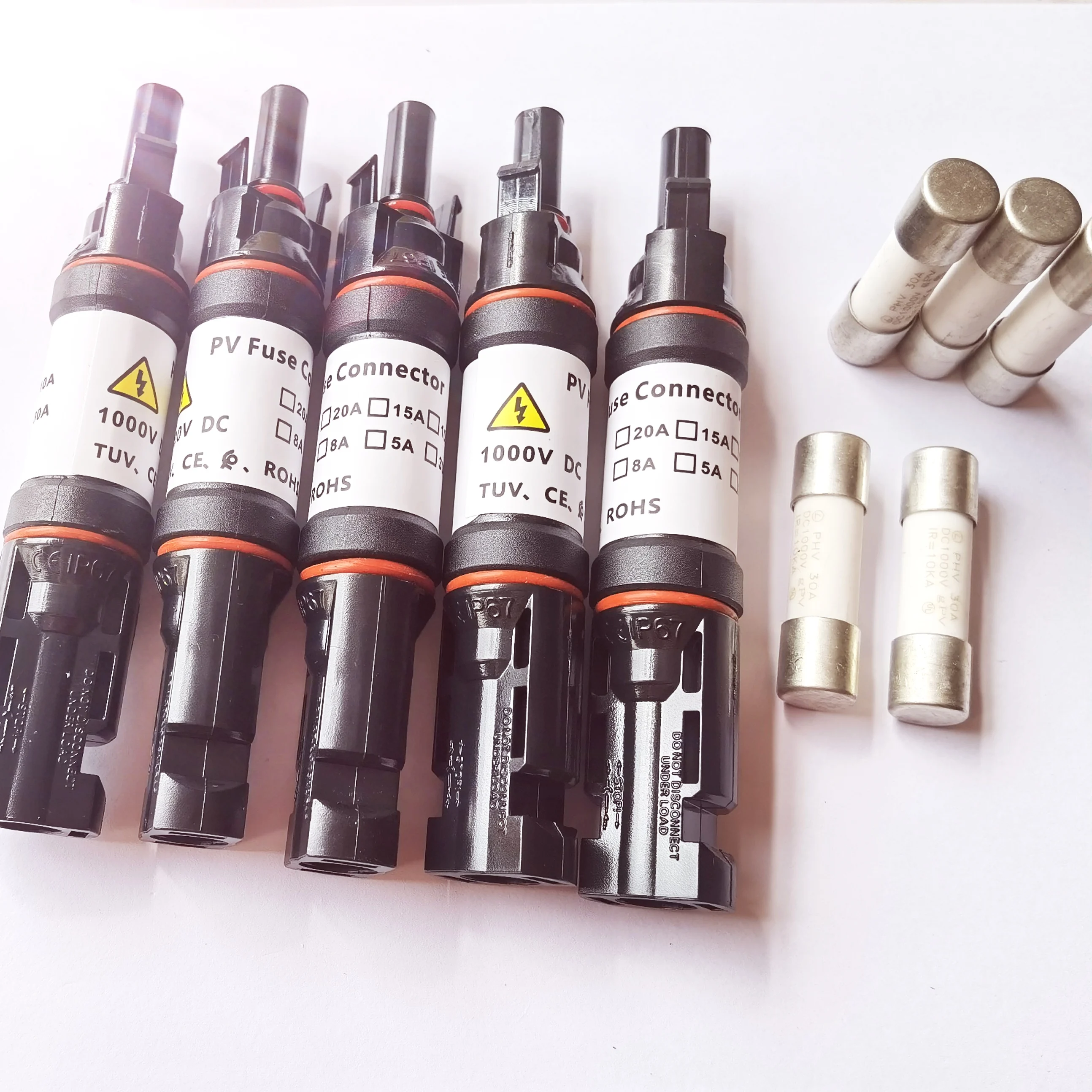

1,Connector with Fuse : 30A /20A /15A/10A for choice. ( Fuse with the Connctor)

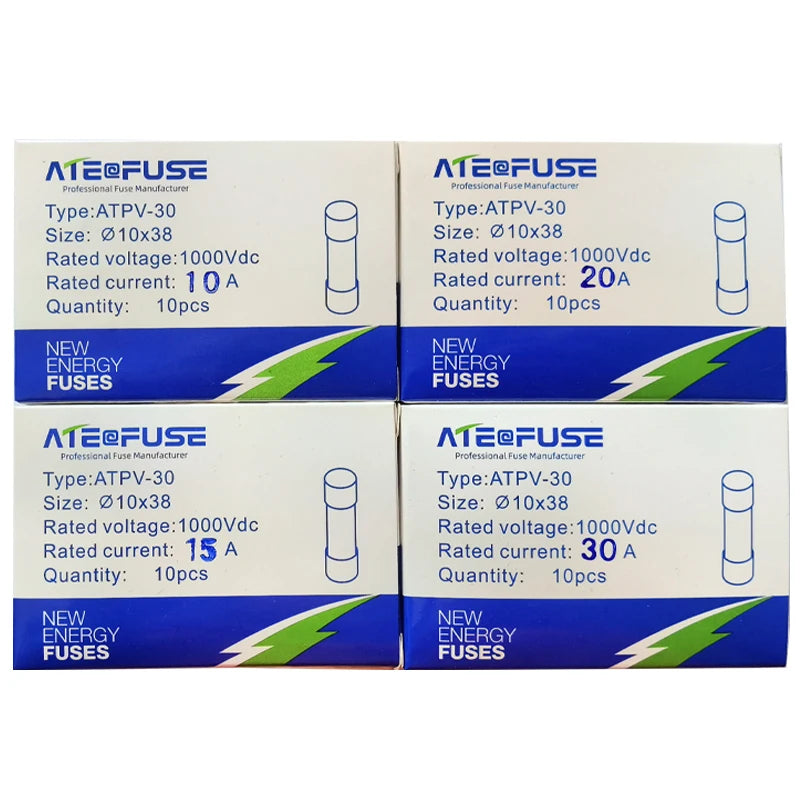

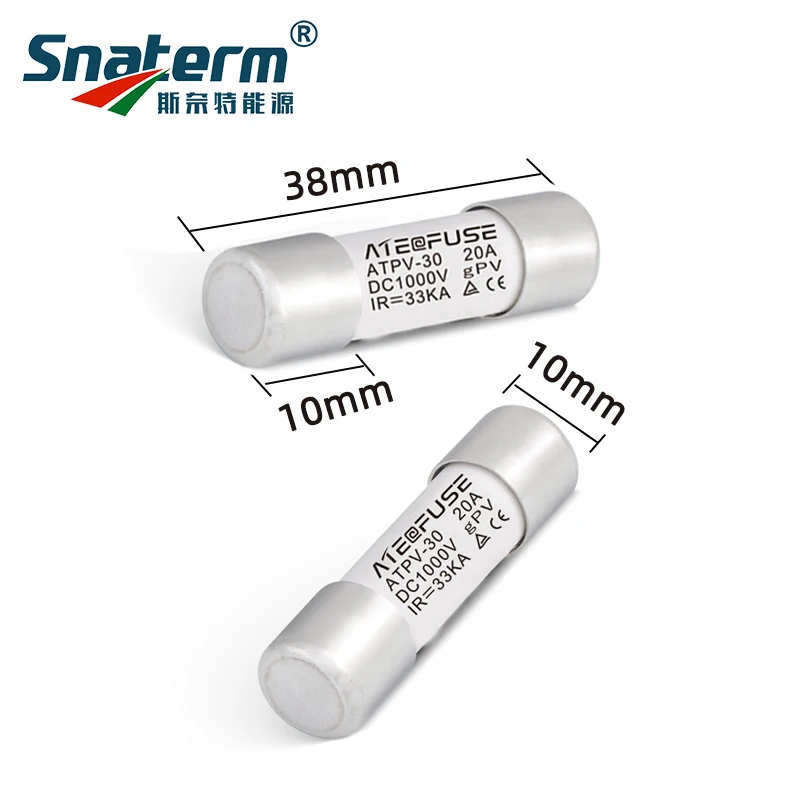

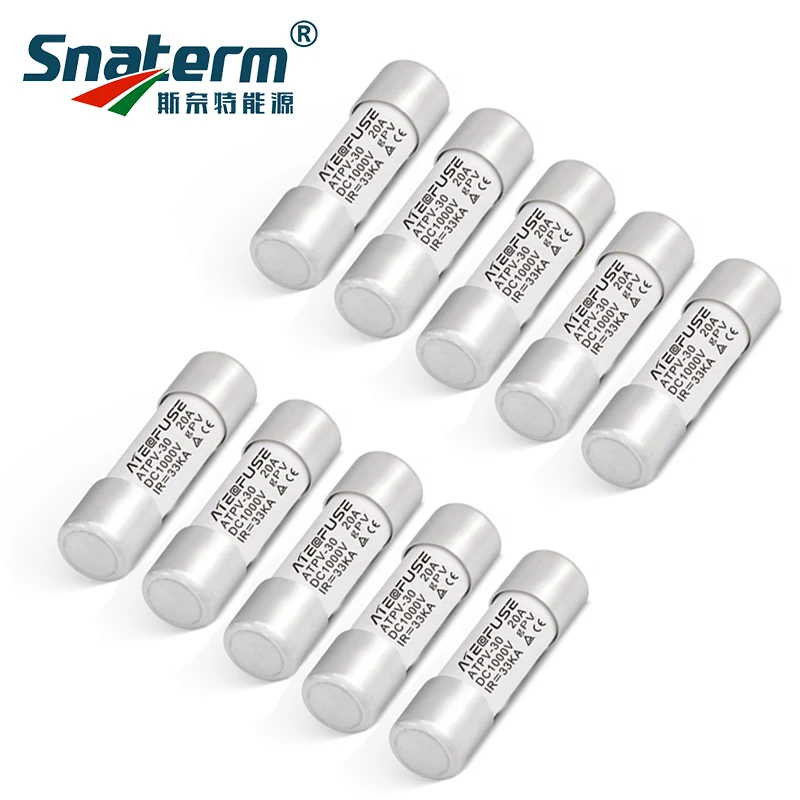

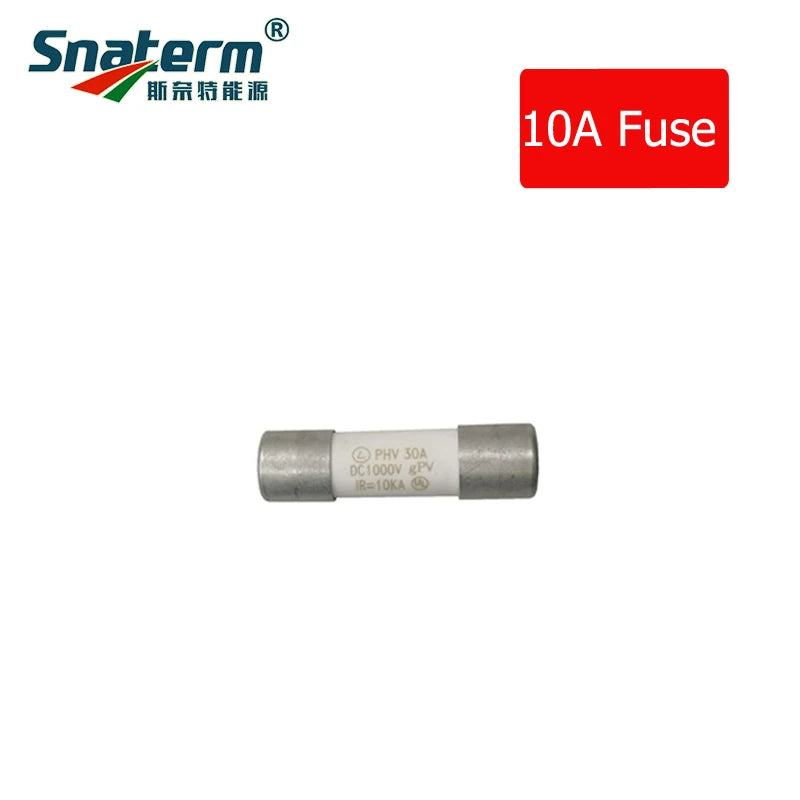

2, Fuse Current :30A /20A /15A/10A for choice. (only the fuse, no connector )
Features
100% Brand new and high quality;
Compatible with solar Connectors
Designed for wide range of DC Applications - Simple Plug & Play
All Weather Waterproof
10A 15A 20A 30A Solar PV In-Line Fuse Holder Waterproof w/ Fuse 20 Amp
Specifications
Contacts material: copper
Insulator Material: PC
Shape: bar
Maximum working voltage:DC1000V
Current:15A/20A/30A
Flame class: UL94-V0
Pollution degree:2
Contact resistance: ≤ 5mm Ω
Shell Protection degree:IP65
Specification of Connecting Line: 1.5~6mm2
Ambient temperature range ： -40 � +85 ℃
Safety Level:class ‖
Insertion force: ≤ 50N
Withdrawal force: ≥ 50N
Fuse Current ： 20A
Dia of Pin:4.0
