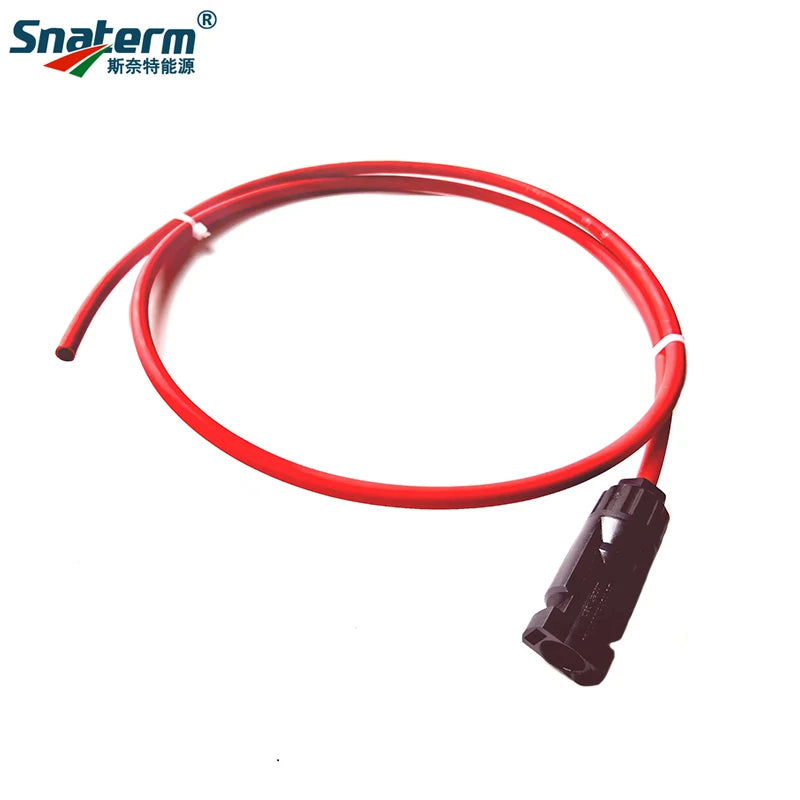

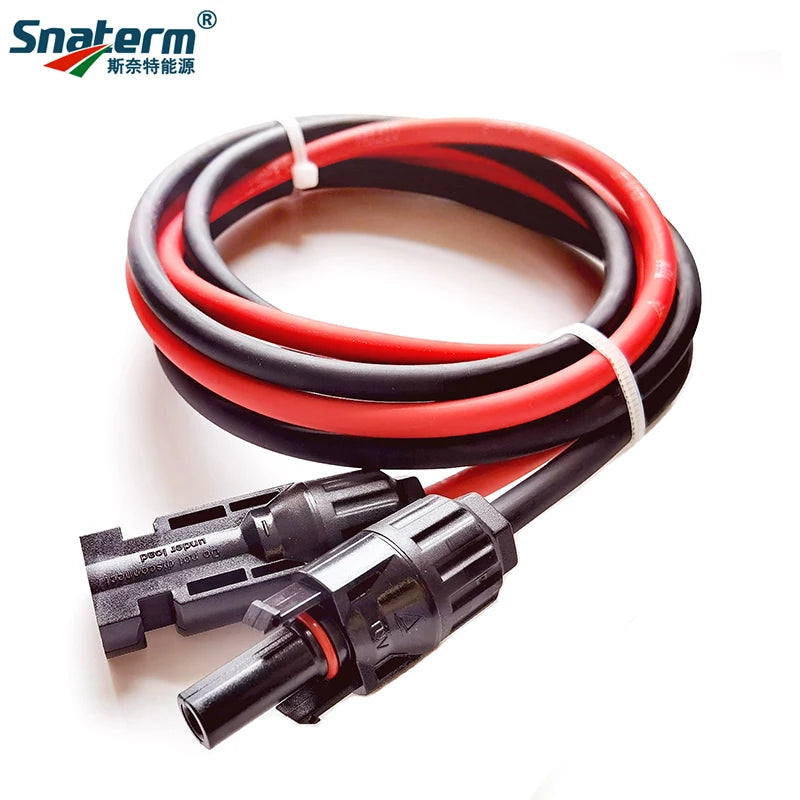

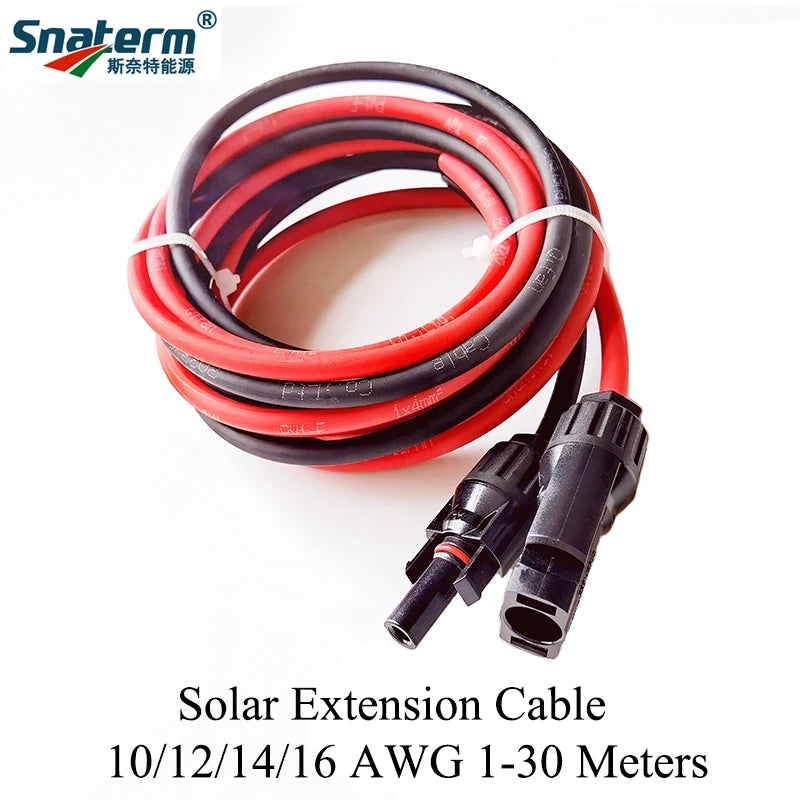

1 Pair Female and Male Single head solar extension wire cable PV wire 6/4/2.5/1.5 mm2 Solar PV Cable 1M 2M 3M 5M 8M 10M Meters
1 Pair Female and Male Single head solar extension wire cable PV wire 6/4/2.5/1.5 mm2 Solar PV Cable 1M 2M 3M 5M 8M 10M Meters
Prezzo di listino
€3,38 EUR
Prezzo di listino
€0,00 EUR
Prezzo scontato
€3,38 EUR
Prezzo unitario
per
Imposte incluse.
Impossibile caricare la disponibilità di ritiro
- BENEFICIO DEL PRODOTTO
- Reso completamente Gratuito
- Spedizione in 24-48 ore
SPECIFICATIONS
Application: Underground
Brand Name: NoEnName_Null
Certification: CE,RoHS,UL
Choice: yes
Conductor Material: Copper
Conductor Type: Solid
Insulation Material: PVC
Model Number: 6/4/2.5 mm2 10/12/14 AWG
Origin: Mainland China
Type: Insulated
is_customized: Yes

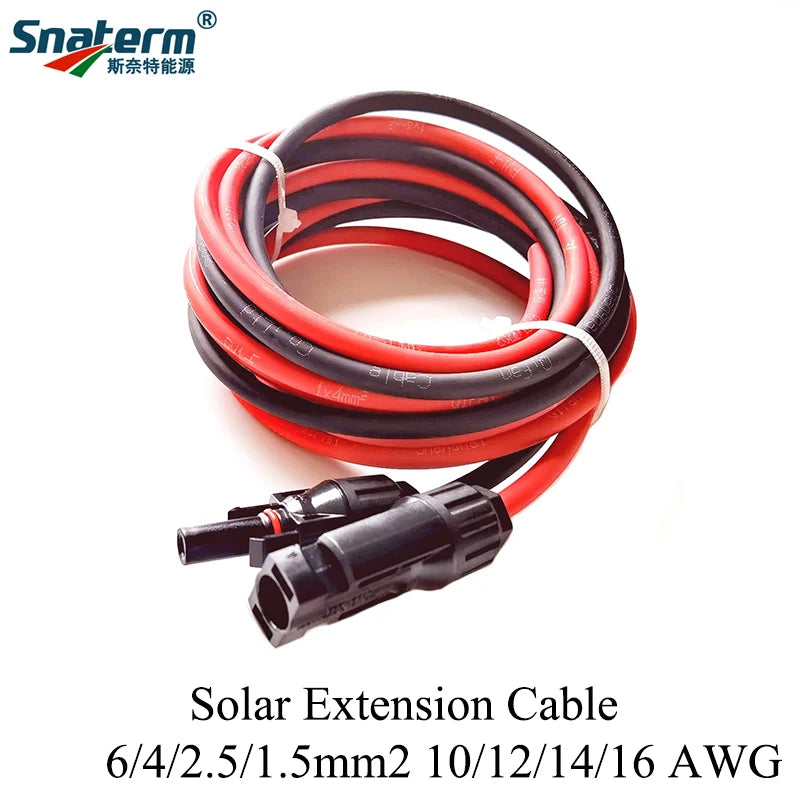

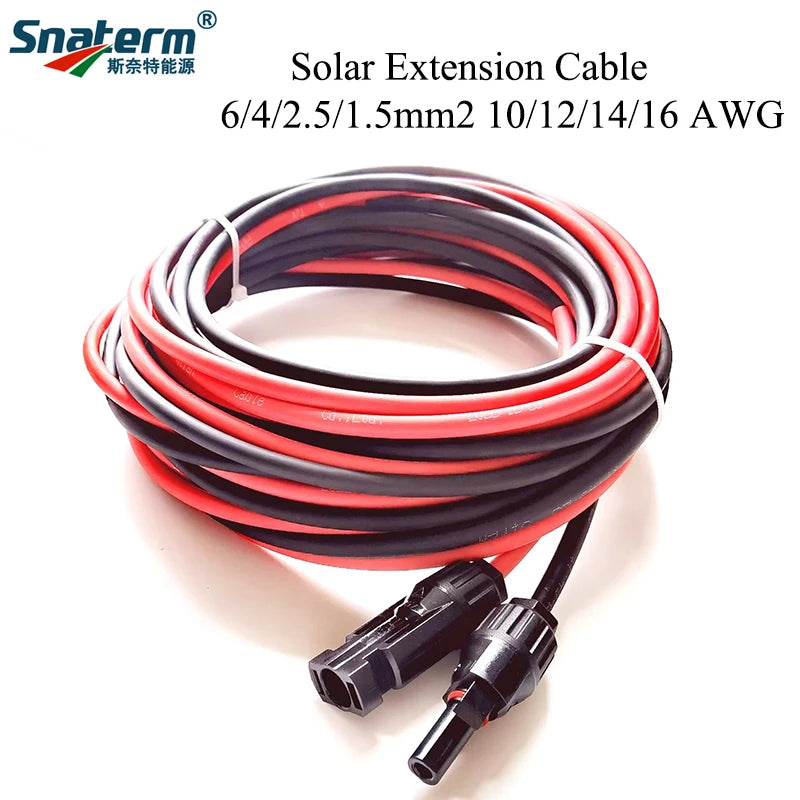

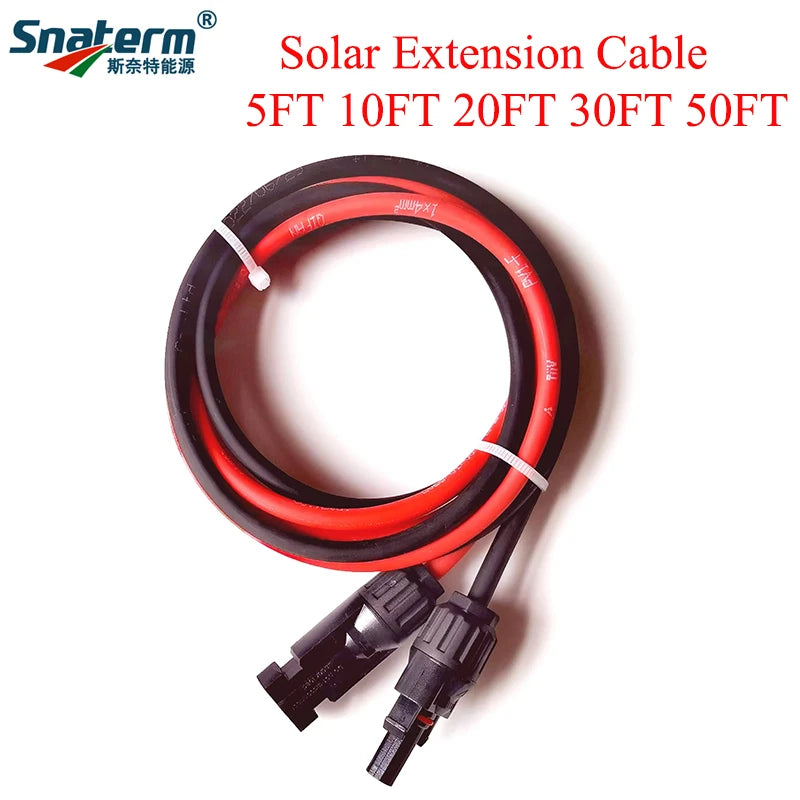

1 pair solar cable with 1 pair connector red female and black male wire, 6mm/4mm/2.5mm(10AWG/12AWG/14AWG)

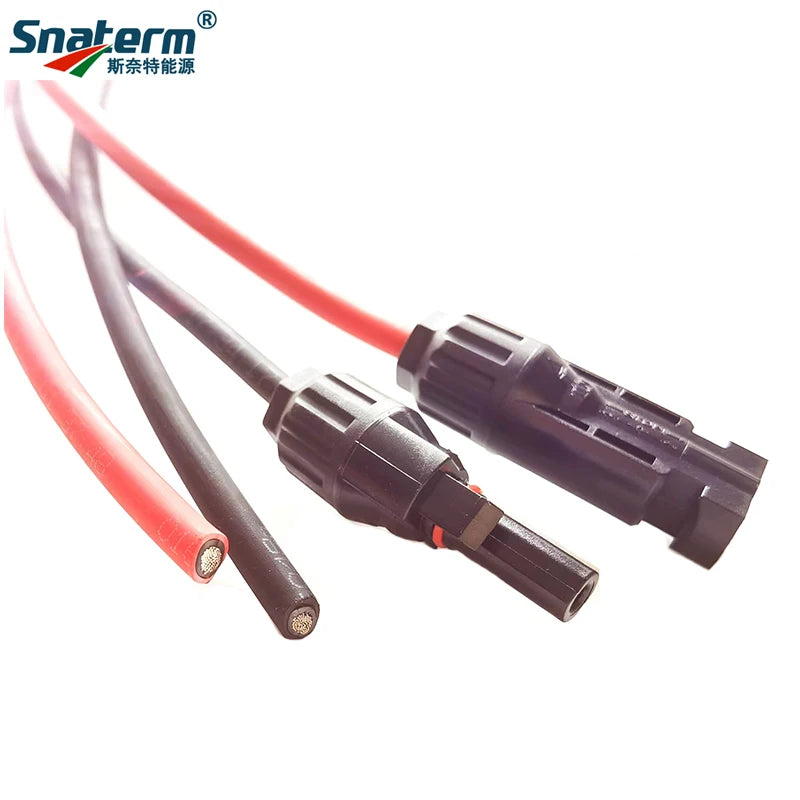

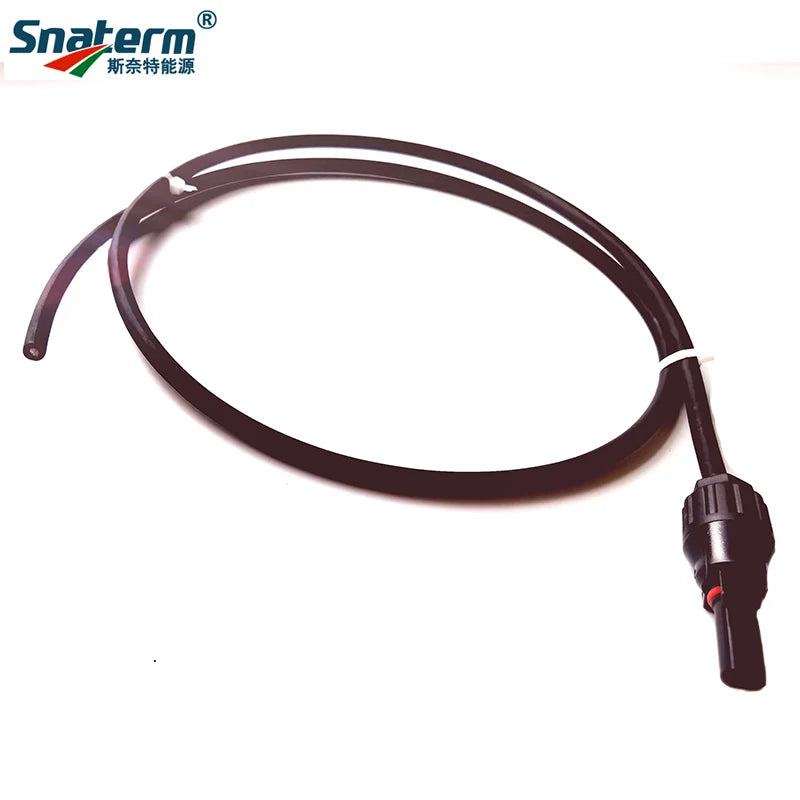

Solar Cable With Solar Connector (red female, black male):
1. Cable Standard: 6mm/4mm/2.5mm(10AWG/12AWG/14AWG)
2. TUV certification.
3. Length: Solar Cable With Solar Connectors. (red female ,black male )
4. Warranty : 25 years .
Cable size range : 6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)
1 Meters (3.28ft) / 2 Meters (6.56ft) / 3 Meters (9.84ft) / 5 Meters (16.4ft) / 10 Meters (32.8ft)
Products Description:
1,Conductor: Stranded, tinned copper,
2,Inner insulation: XLPE
3,Outer jacket: PVC
4,Color: Black and Red
Technical specification:
1,Nominal voltage: 600/1000V AC
2,Test voltage: AC 2.5 KV
3,Temperature rating: -40°C~90°C wet or dry,
4,Ambient temperature :> 25 years (TUV) -40°C~ + 90°C
Material propertied/standards:
1,Fire performance: IEC 60332-1
2,Smoke emission: IEC 61034; EN 50268-2
3,Low fire load: DIN 51900
4,Approvals: TUV & UL
Advantages:
1,Electron- beam cross-linked compounds
2,UV,ozone and hydrolysis resistant
3,High temperature resistant, the materials do not melt or flow
4,Good cold flexibility
5,Very long service life > 25 years at 90°C
6,Compatible to all popular connectors

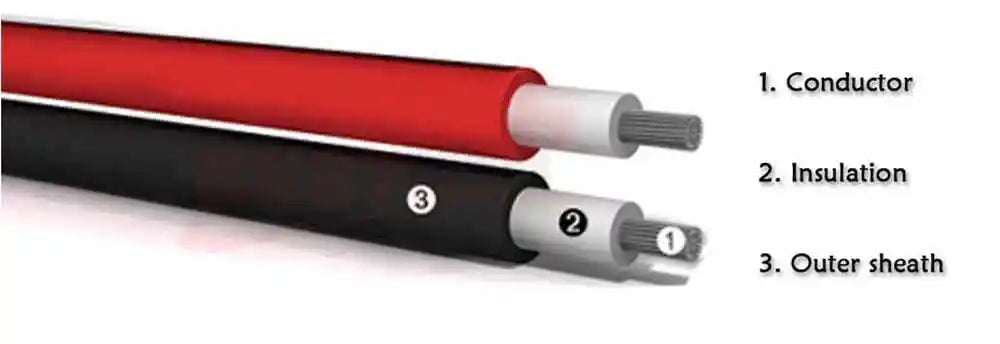

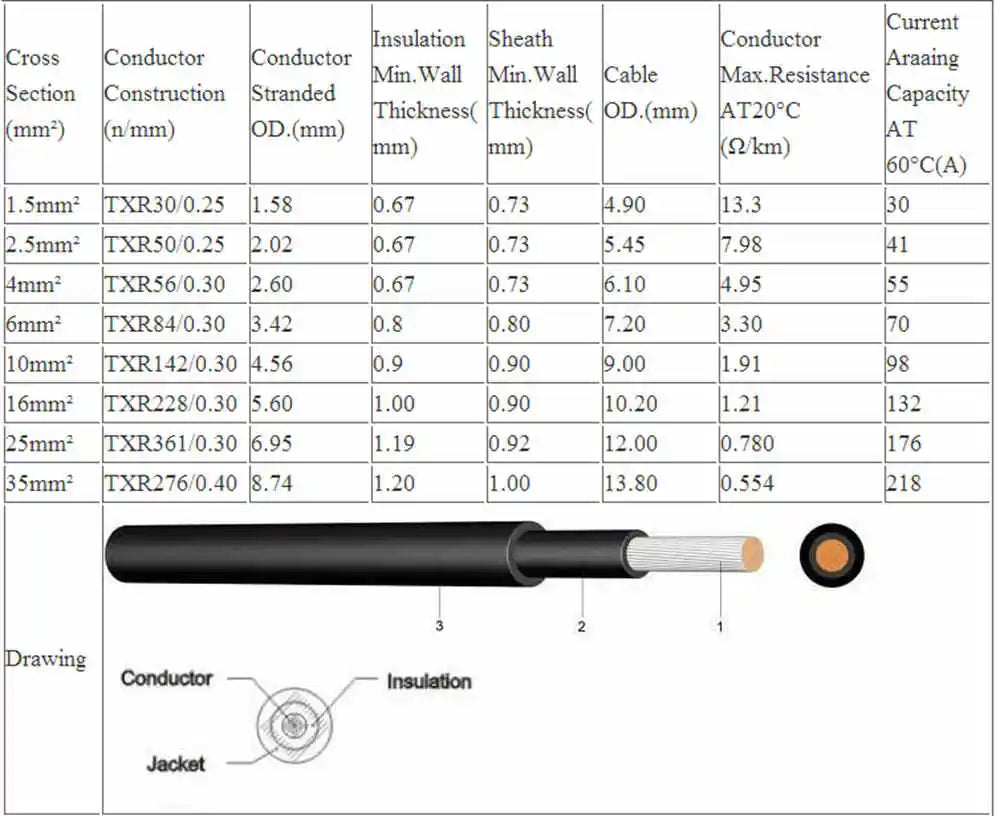

Solar Cable Structure :
|
