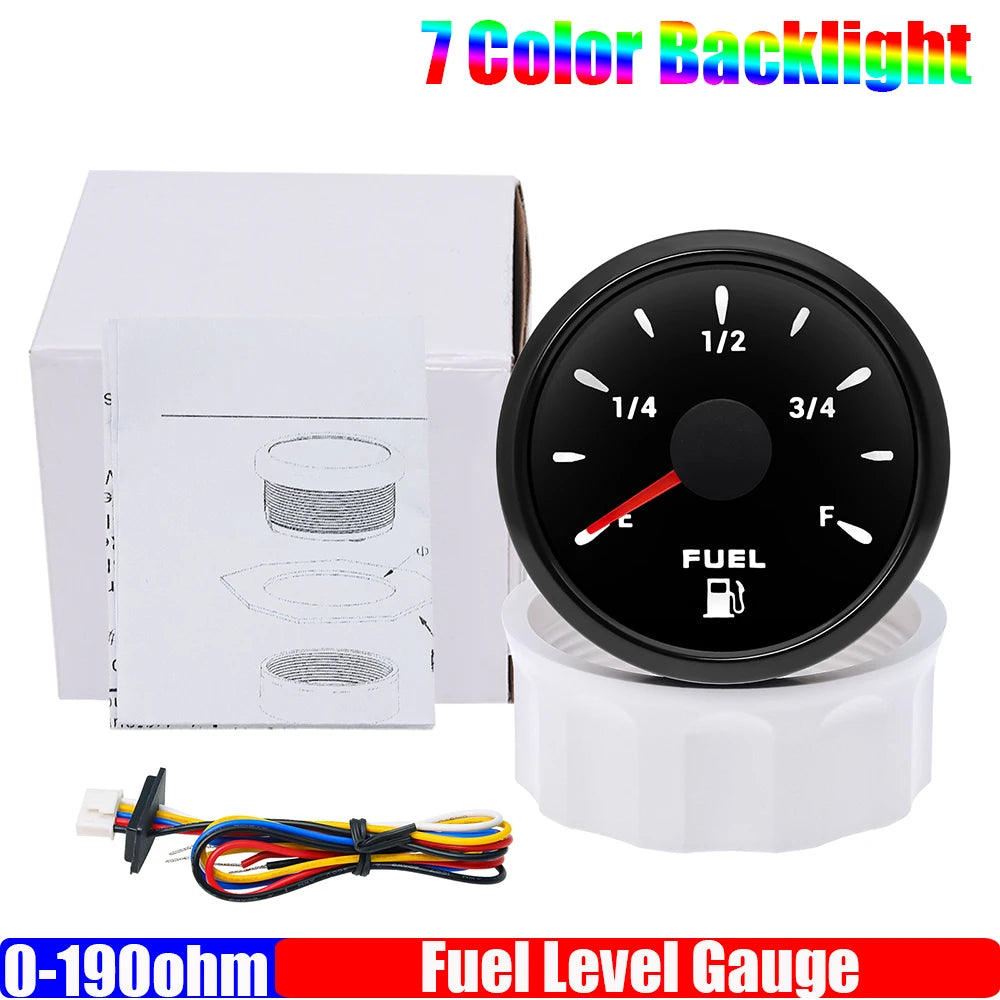

Attention , this Item Package just only the Gauge without Sensor

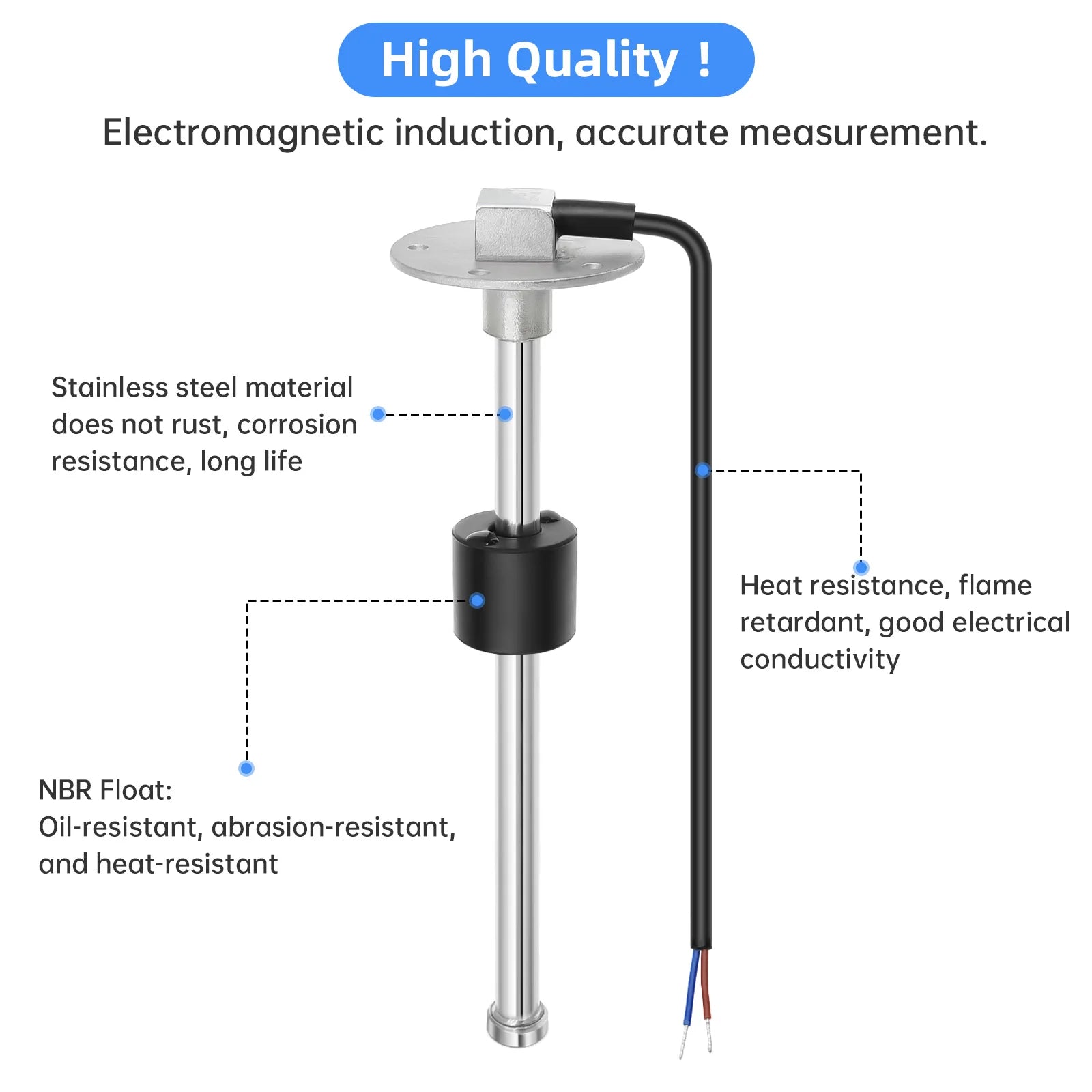

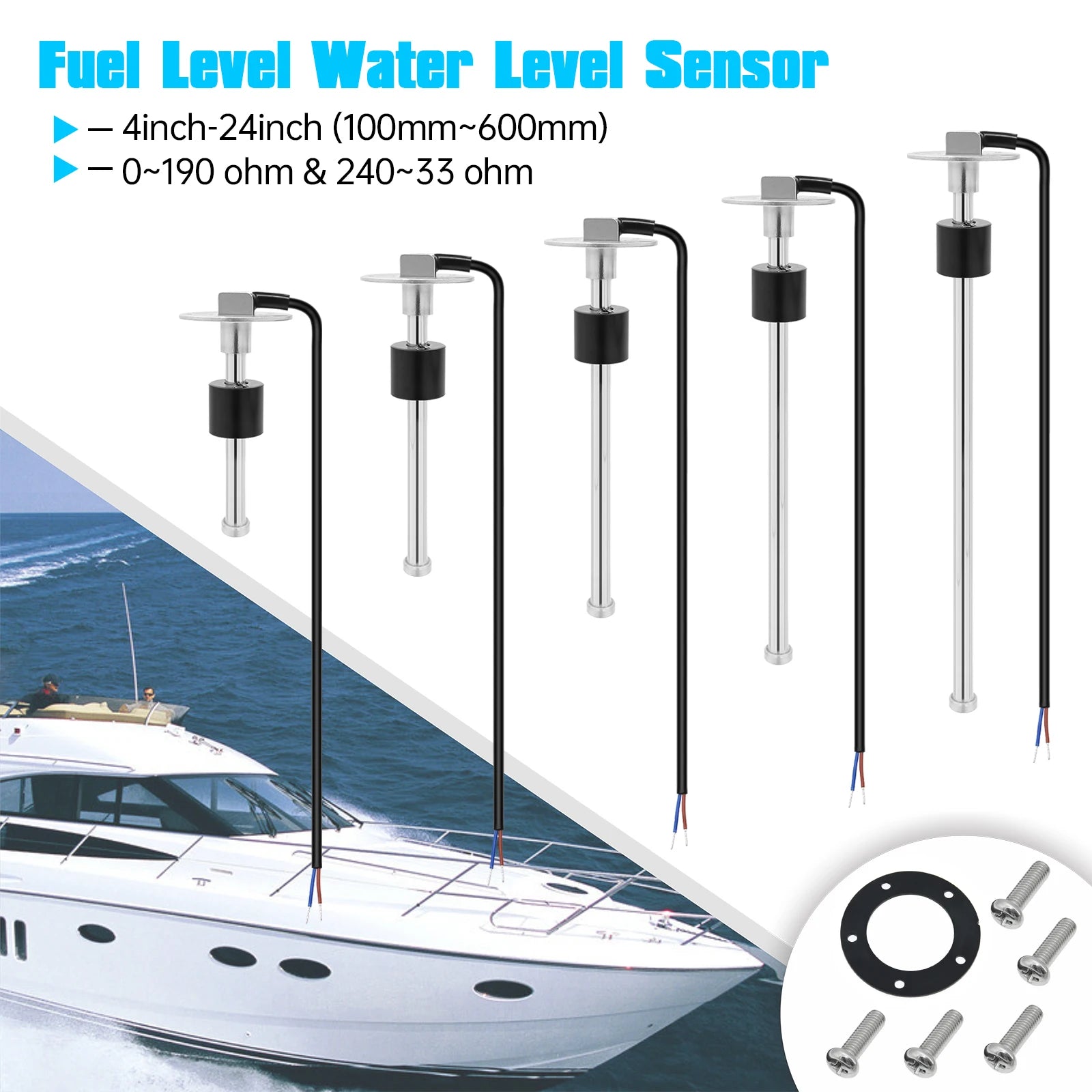

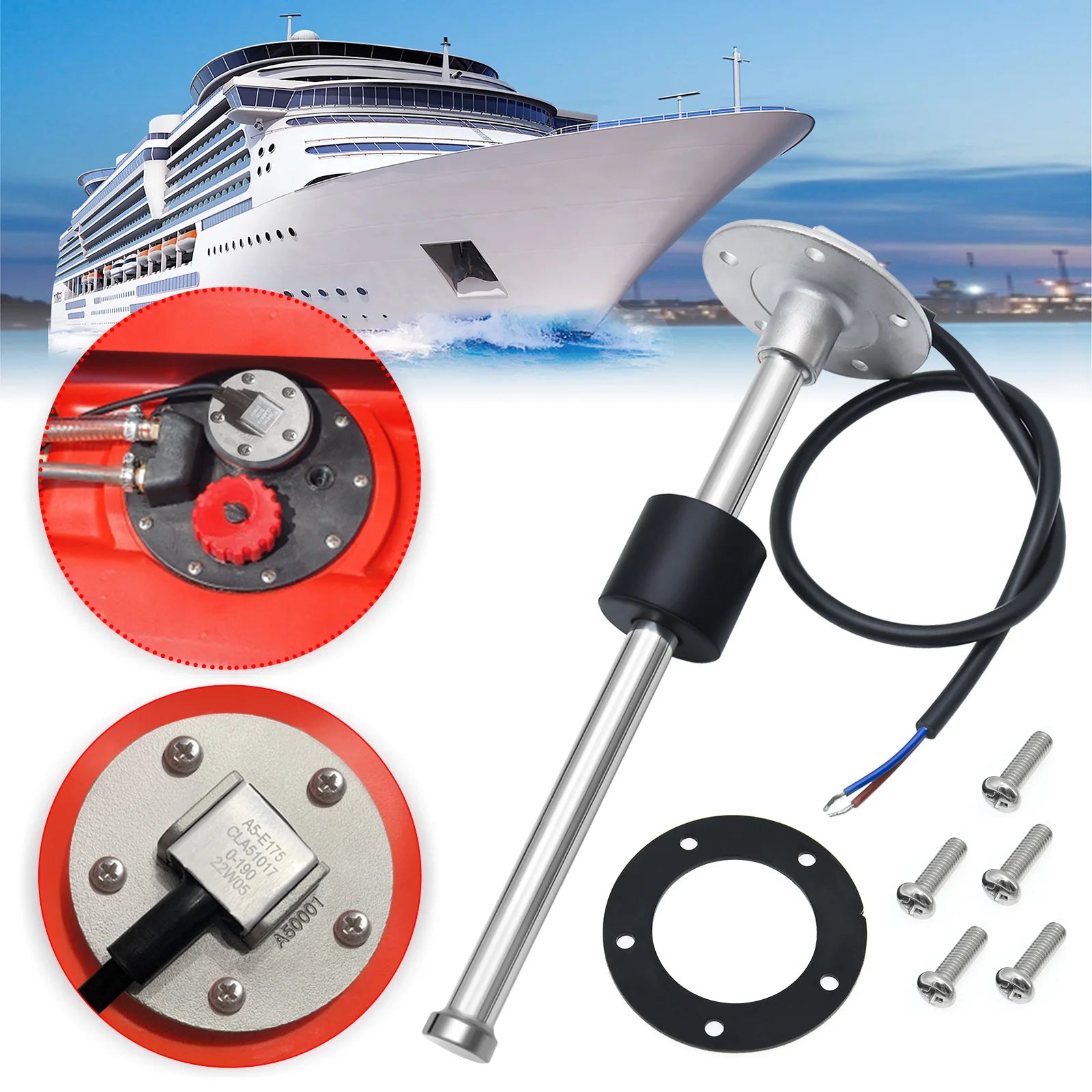

Sensor Feature:

- Protection ank: IP67

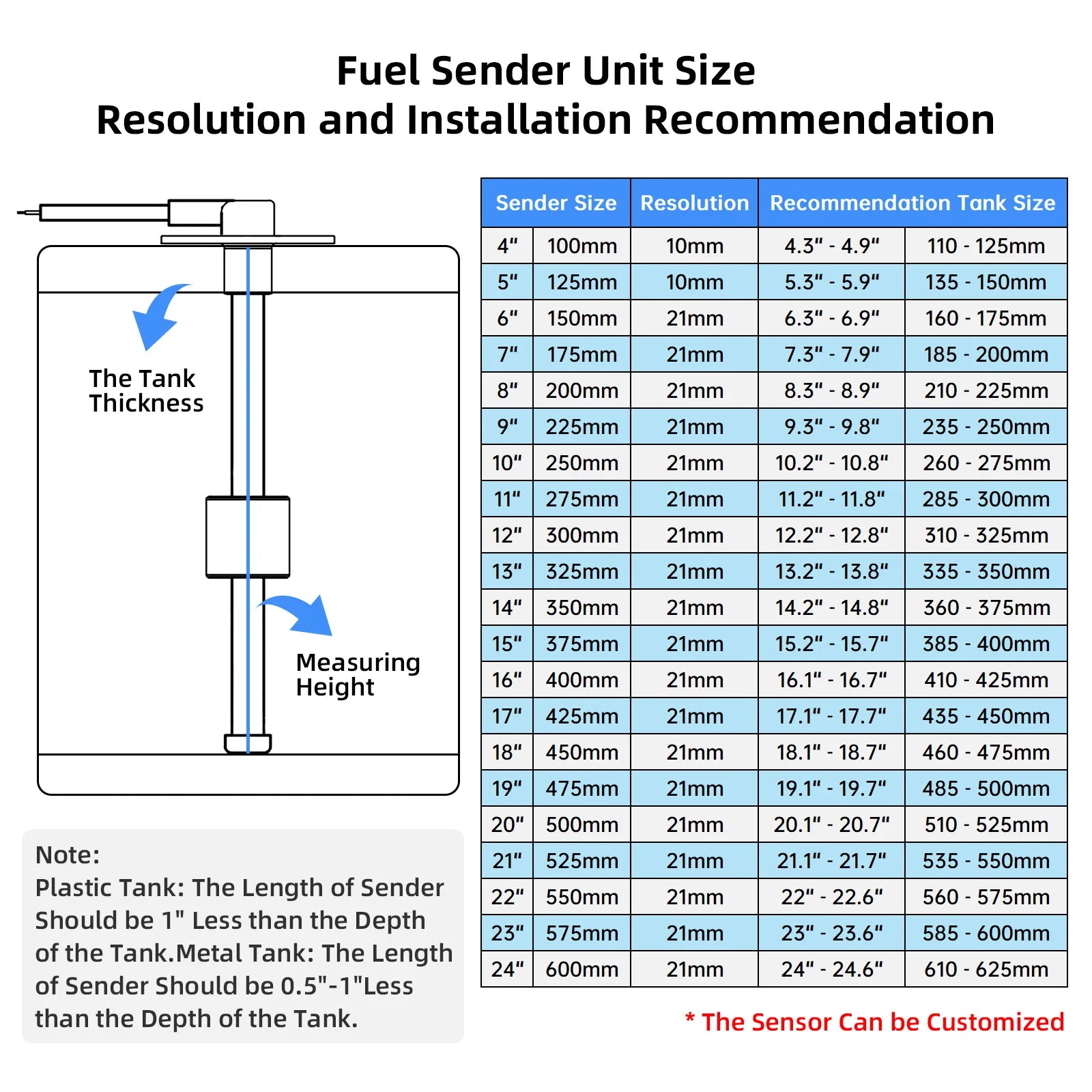

- Resolution range: 21 mm

- Assembly: SAE standard 5 holes

- Rated current for alarm switch: 500mA

- Operating temperatures: - 40 to 85 Celsius

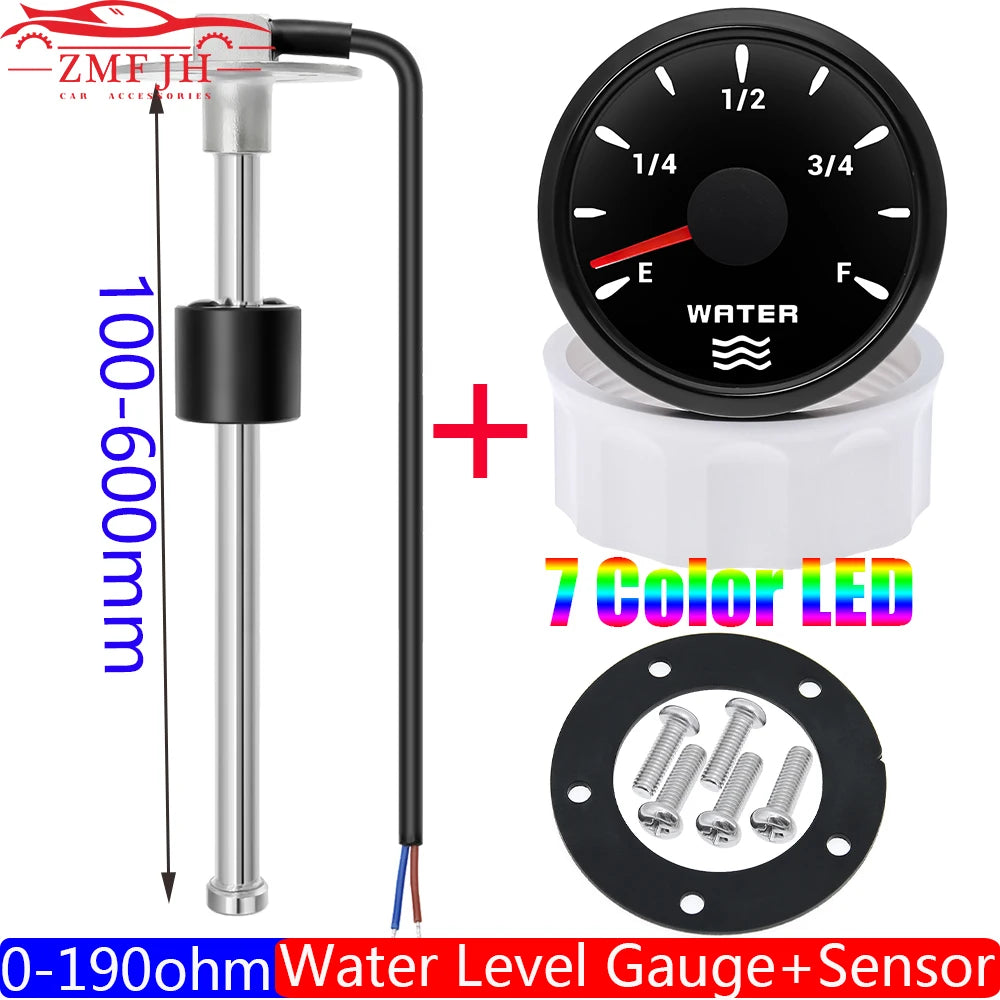

- Fit for Fuel Level Gauge and Water Level Gauge

- Sensor Length :100-600mm

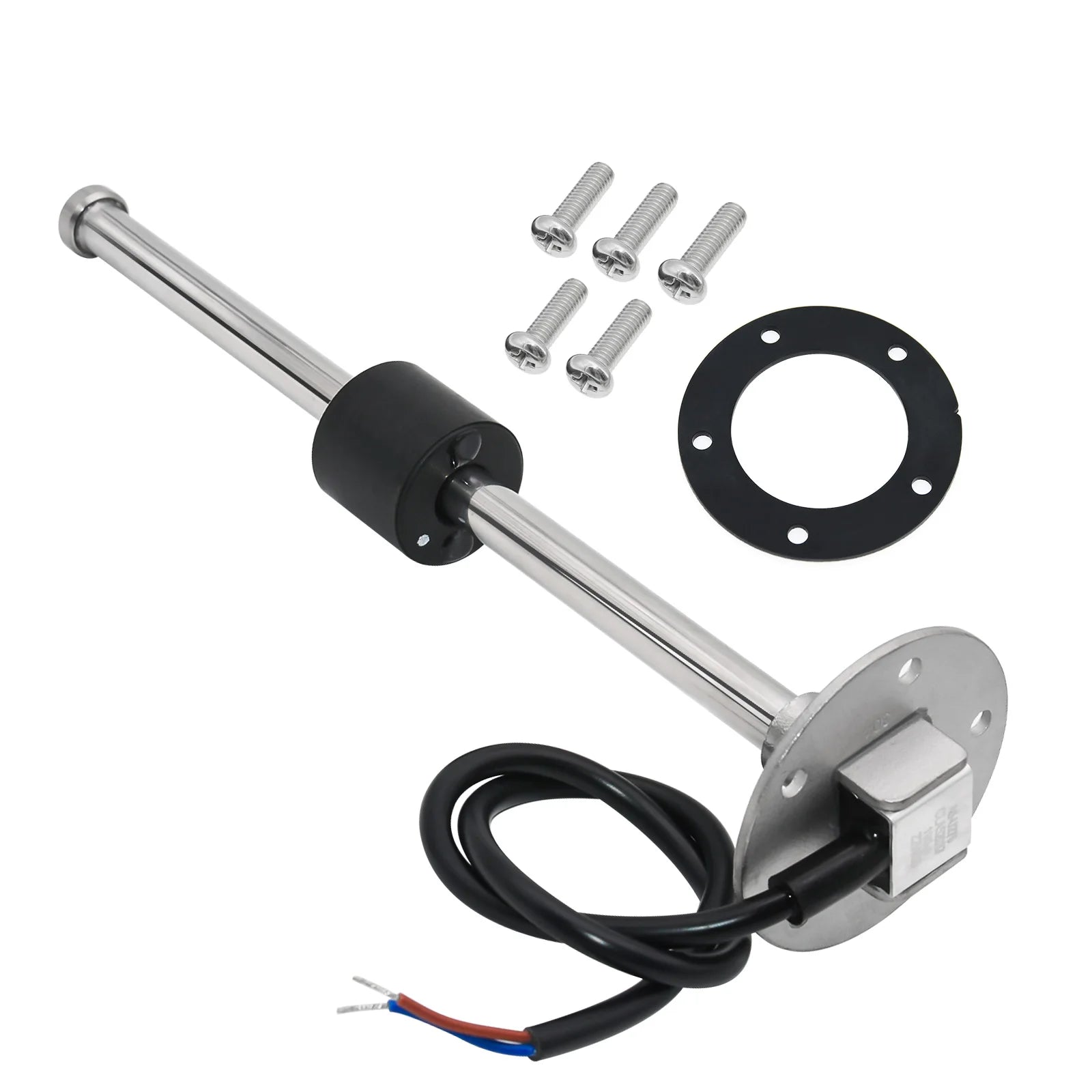

- Mounting: 5 pieces of M5 screws and 2 mm thick gasket

- Output signal: 0~190 ohm (Standard European)

- Fitment: for Gasoline, diesel, methanol fuel, ethanol fuel

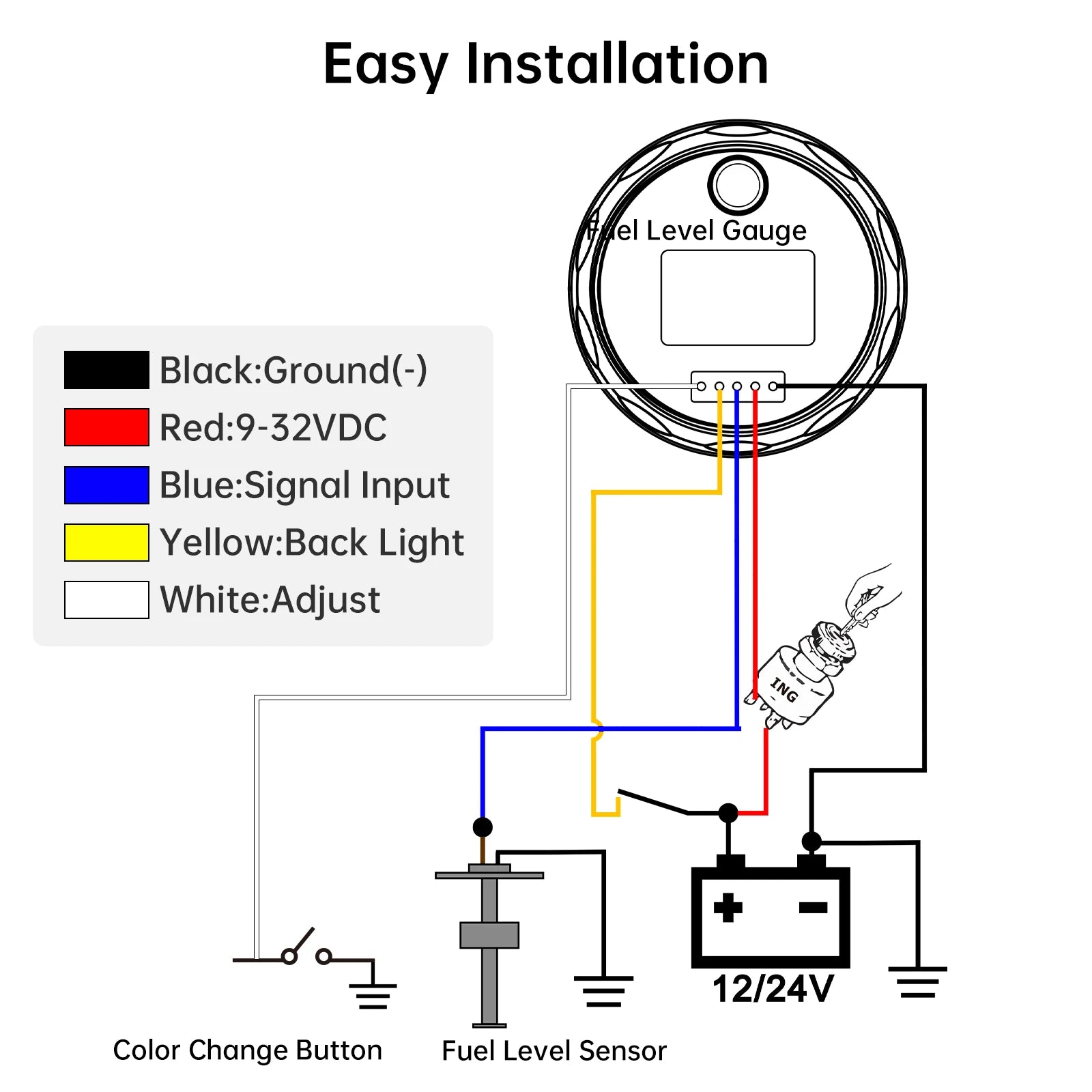

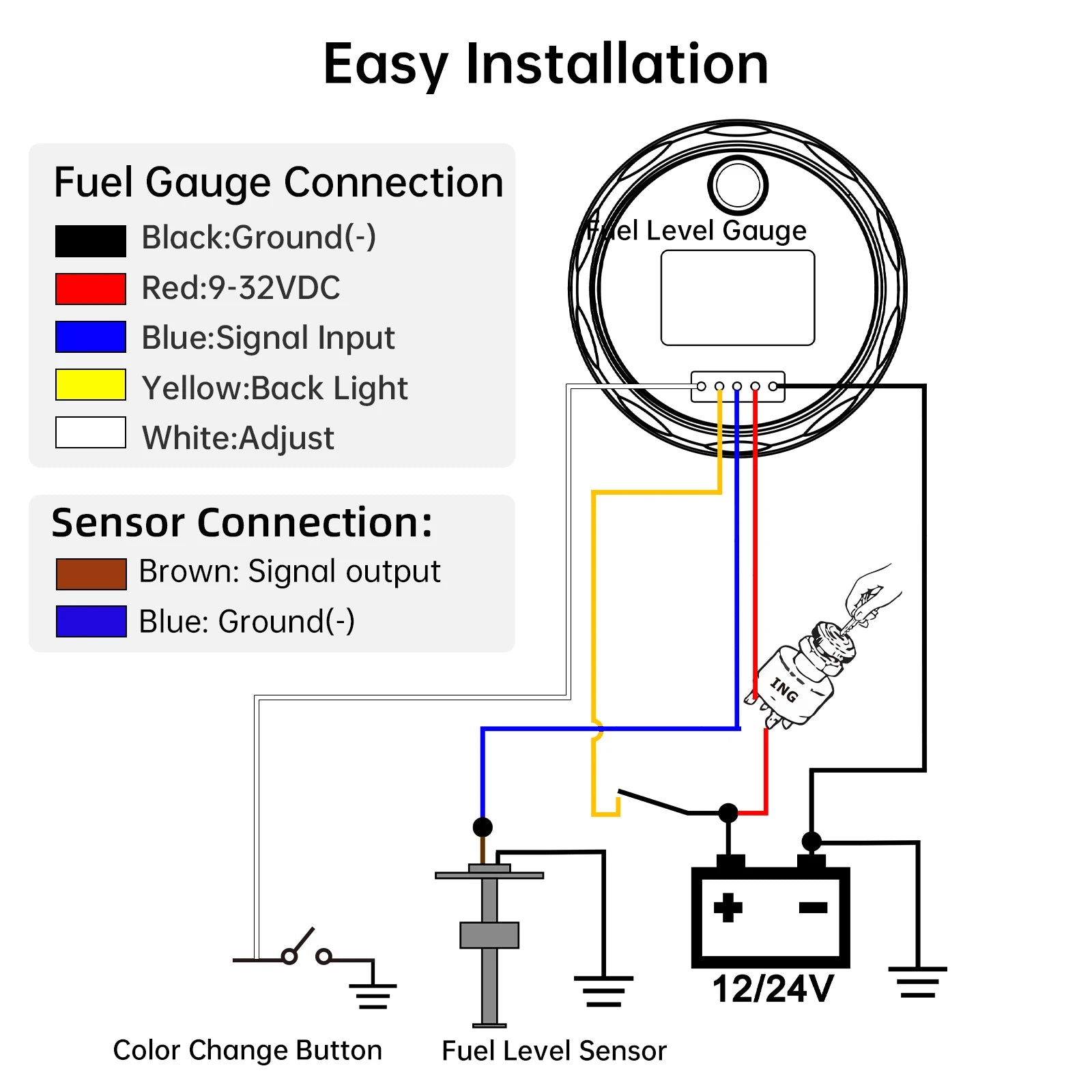

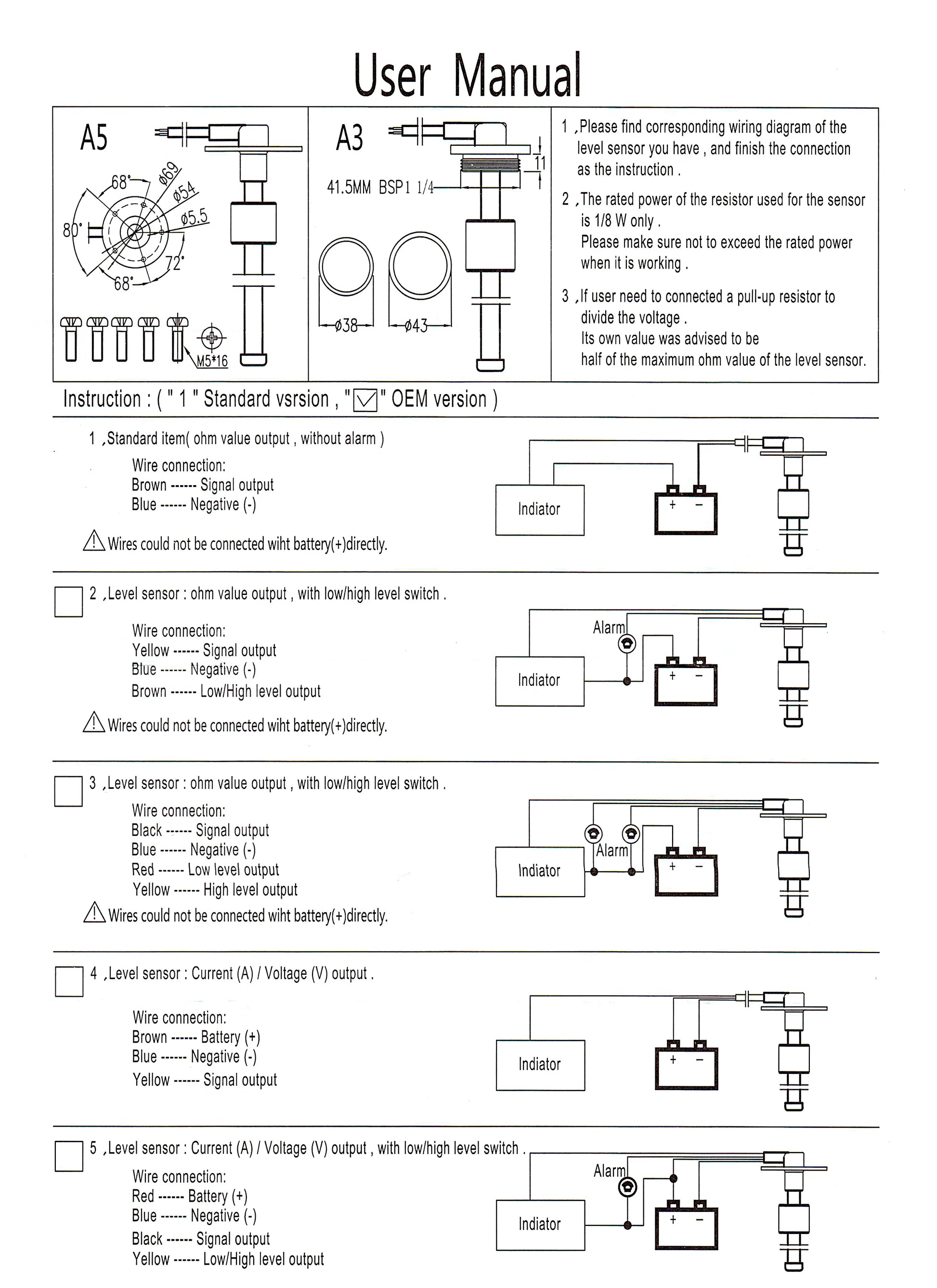

Sensor Connection:

Blue wire: connect the ground wire

Brown wire: connect the gauge signal wire

☆Empty oil level 0 ohm

★Full oil level 190 ohm

Attention:

- Empty oil level : 0 ohm

- Full oil level : 190 ohm

- When the oil / water level is empty , there will be a space of 3-21mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~

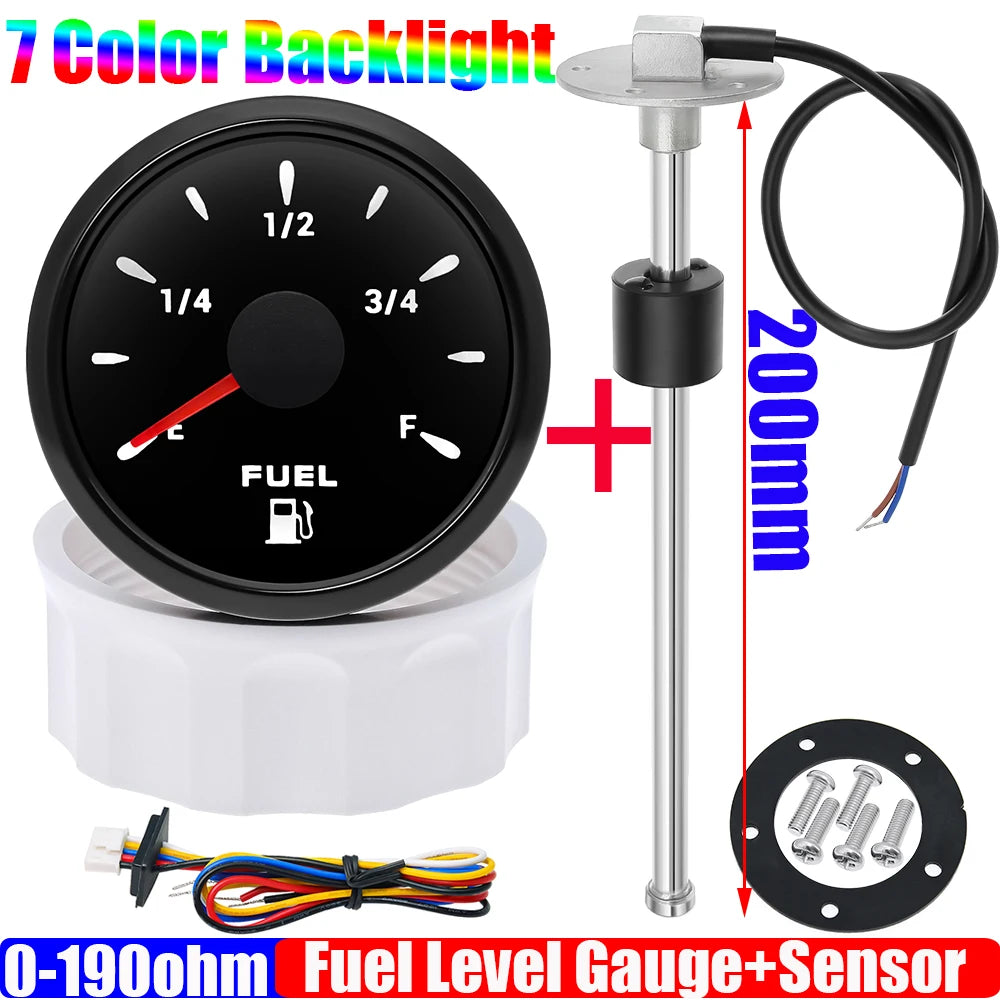

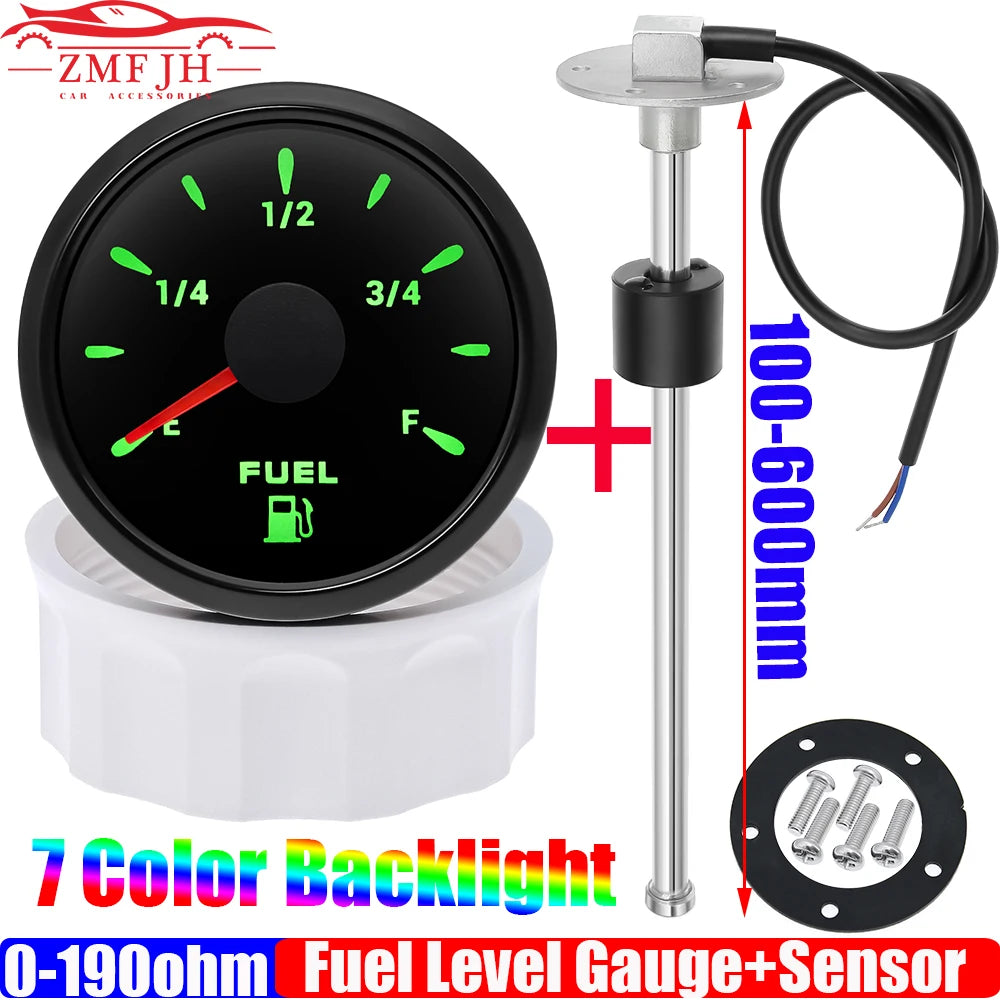

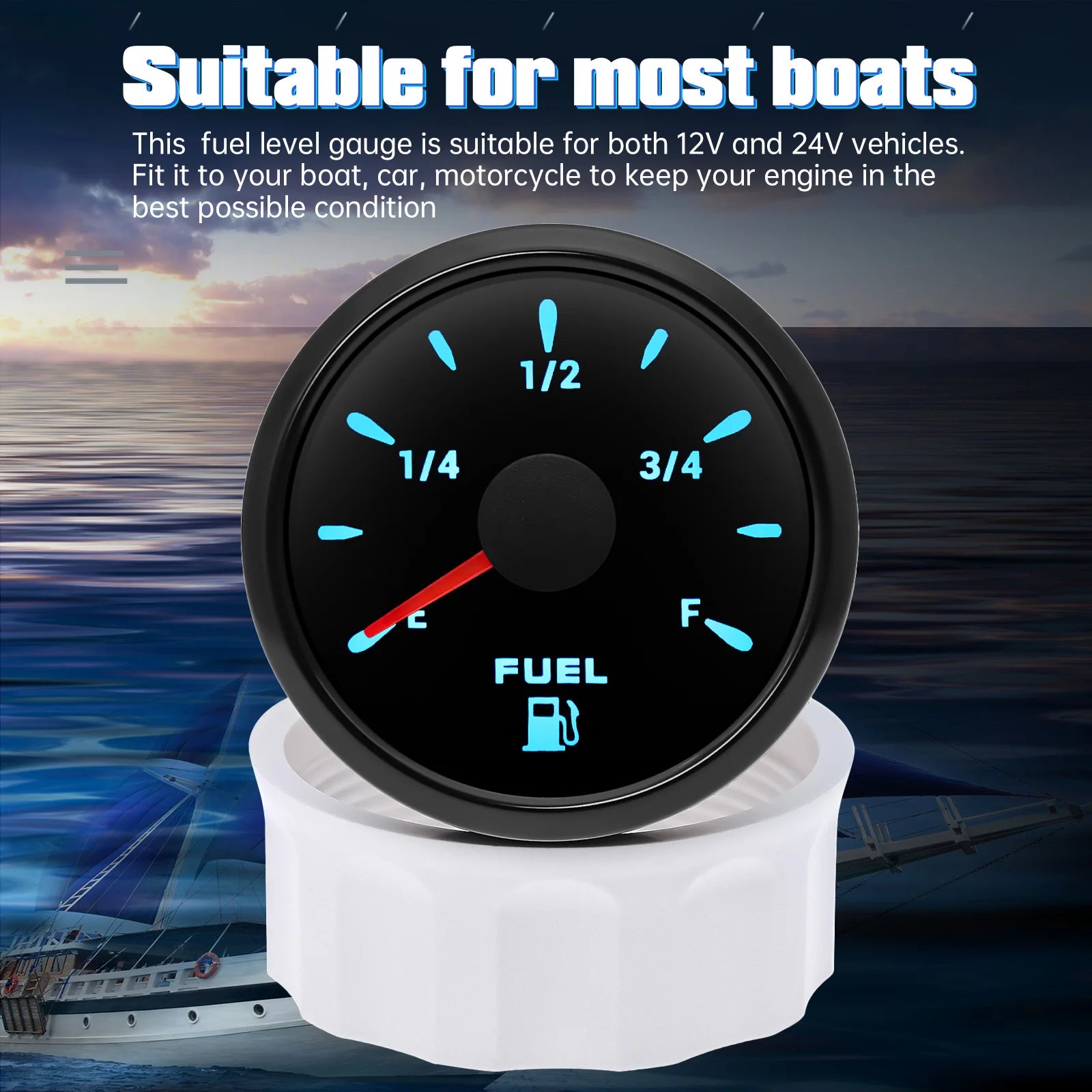

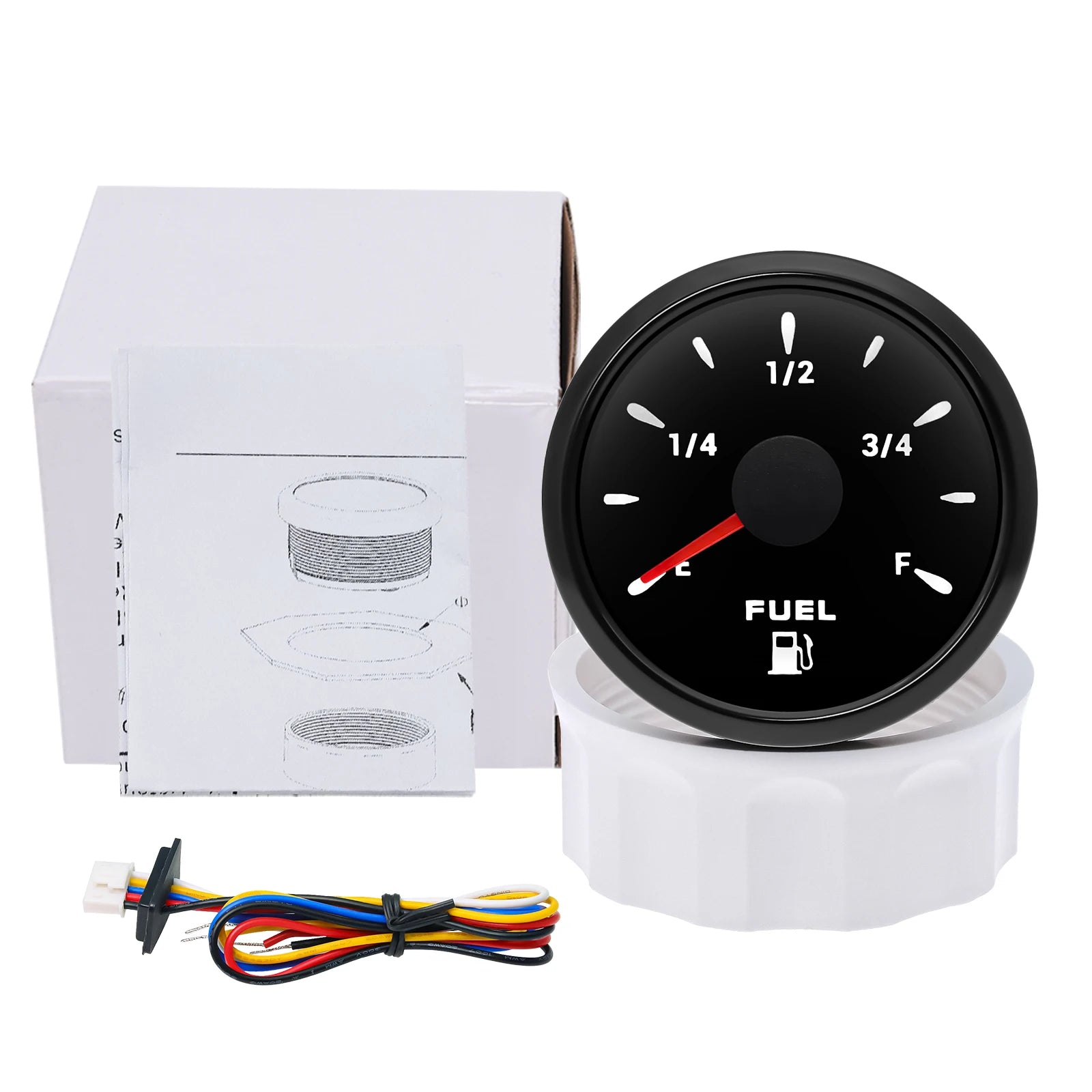

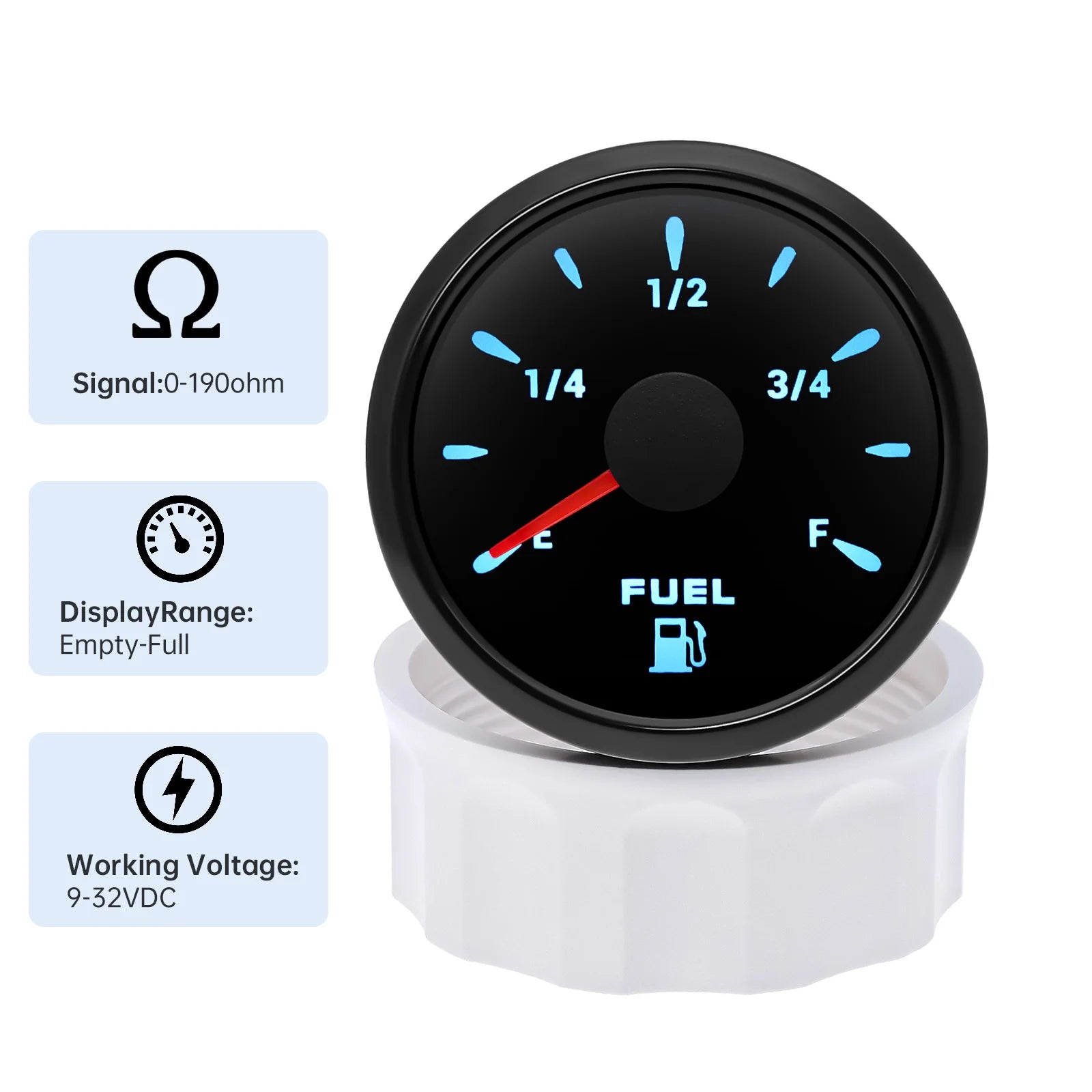

Fuel Level Gauge:

- Indicating Range:E-1/4-1/2-3/4-F

- Name: 52mm Fuel Level Gauge

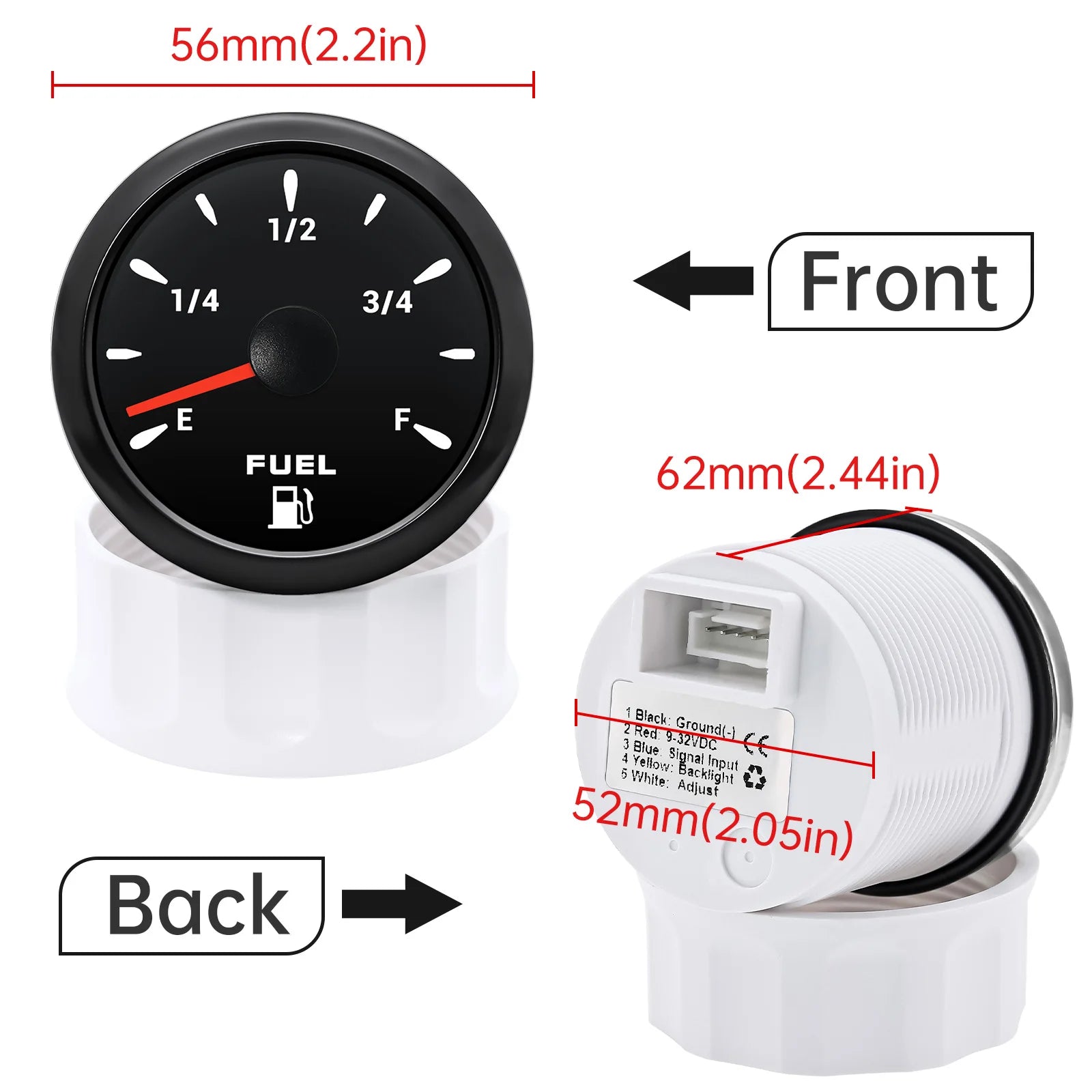

- Fixing dimension: 52mm or 2-1/16"

- Operating Voltage: 9-32V /fit 12V-24V

- Materials: Plastic

- Input signal:0~190ohm (European standard),

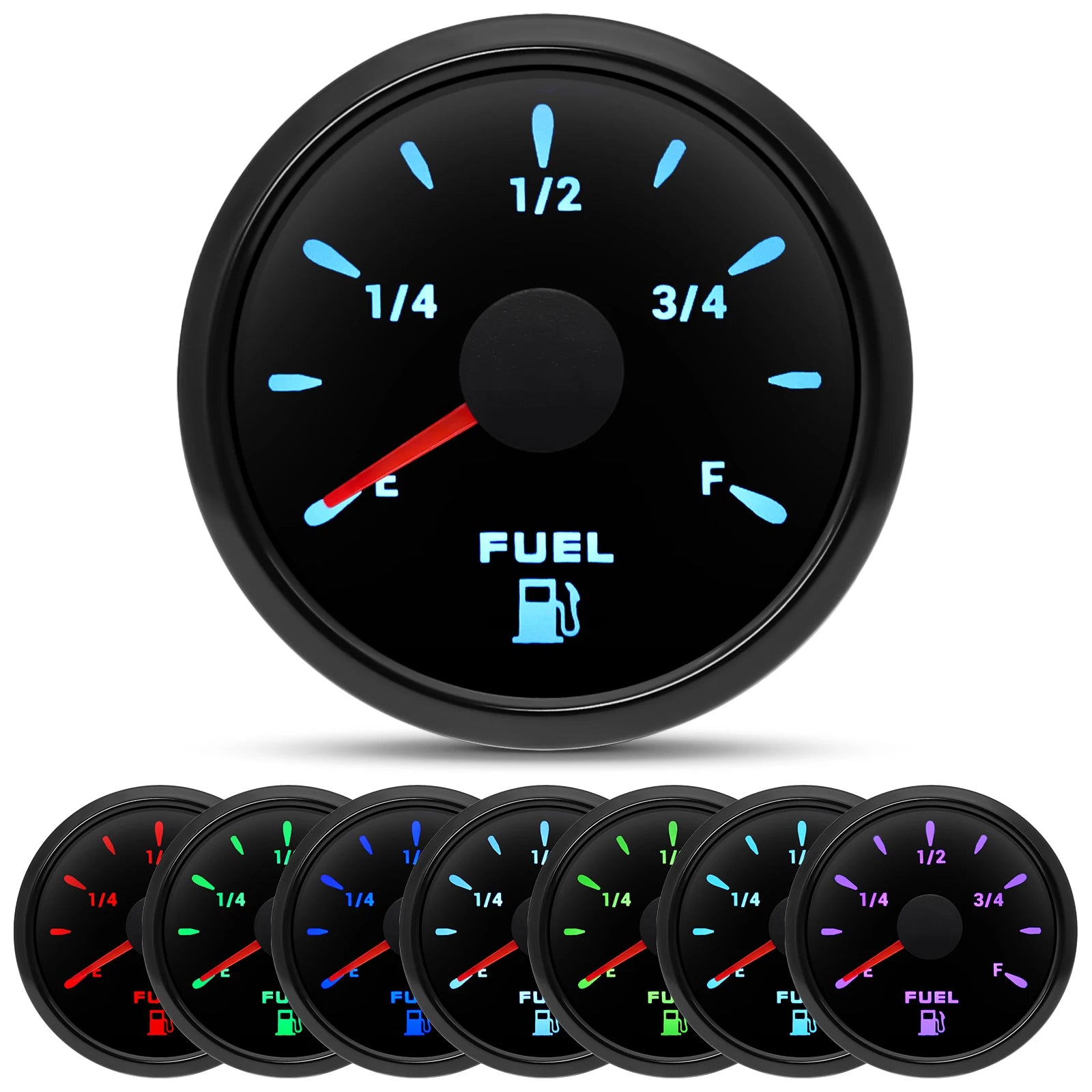

-Backlight Color: 7 Color Light

- Waterproof IP67
